Power-Folding Mirrors

 (If Equipped)

The power folding mirrors operate with the
ignition on.

Note:

The mirrors no longer operate if you

switch the ignition off.

E131482

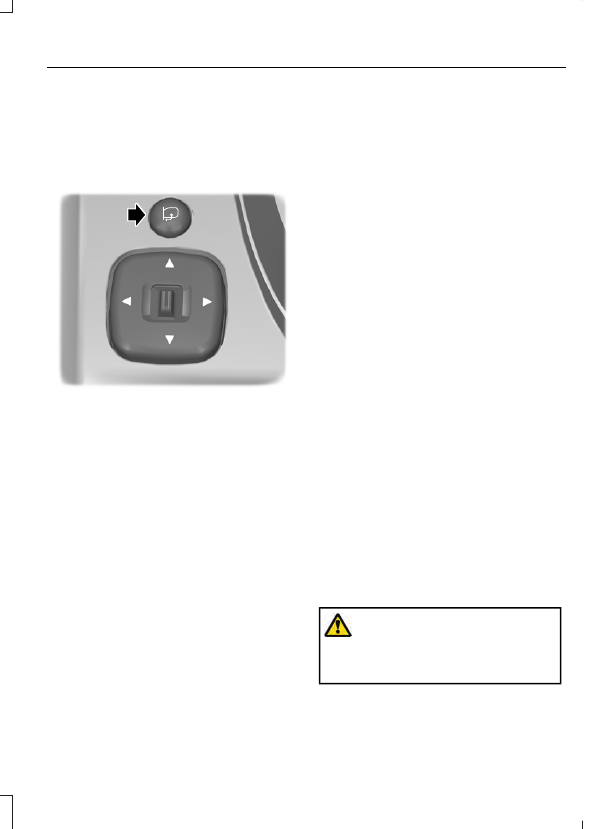

Press the button to fold the mirrors inward.

Release the button to stop and reverse the
direction of movement, or to fold the
mirrors outward.

Loose Mirror

If you manually fold your power-folding
mirrors, they may not work properly even
after you re-position them. You need to
reset them if:
•

The mirrors vibrate when you drive.

•

The mirrors feel loose.

•

The mirrors do not stay in the folded or
unfolded position.

•

One of the mirrors is not in its normal
driving position.

To reset the power-fold feature:

1.

Push the mirrors fully forward.

2. Press the mirror folding switch and

guide the mirror to detent point, you
will hear a click at this point.

3. Let the mirror fold toward your vehicle

on its own.

4. Verify by pressing the mirror folding

switch to fold mirrors inward and back
out 2 or 3 times.

Note:

You may hear a loud noise as you

reset the power-folding mirrors. This sound
is normal. Repeat this process as needed
each time you manually fold the mirrors.

Heated Exterior Mirrors

 (If Equipped)

The heated exterior mirrors will remove
ice, mist and fog. See

Heated Rear

Window

 (page 122).

Signal Indicator Mirrors

 (If Equipped)

The outer portion of the appropriate mirror
housing blinks when you switch on the
direction indicator.

Puddle Lamps

 (If Equipped)

The lamps on the bottom part of the mirror
housing light when you use your
transmitter to unlock the doors or when
you open a door.

Blind Spot Information System

 (If

Equipped)

See

Blind Spot Information System

(page 206).

INTERIOR MIRROR

Manual Dimming Mirror

WARNING:

Do not adjust the

mirrors when your vehicle is moving. This
could result in the loss of control of your
vehicle, serious personal injury or death.

87

Windows and Mirrors

Pull the tab below the mirror toward you
to reduce the effect of bright light from
behind.

Automatic Dimming Mirror

 (If Equipped)

WARNING:

Do not adjust the

mirrors when your vehicle is moving. This
could result in the loss of control of your
vehicle, serious personal injury or death.

The mirror dims to reduce the effect of
bright light from behind. It returns to
normal when the bright light from behind
is no longer present or if you shift into
reverse (R).

Do not block the sensors on the front and
back of the mirror.

Note:

A rear center passenger or raised rear

center head restraint could prevent light
from reaching the sensor.

SUN VISORS

E138666

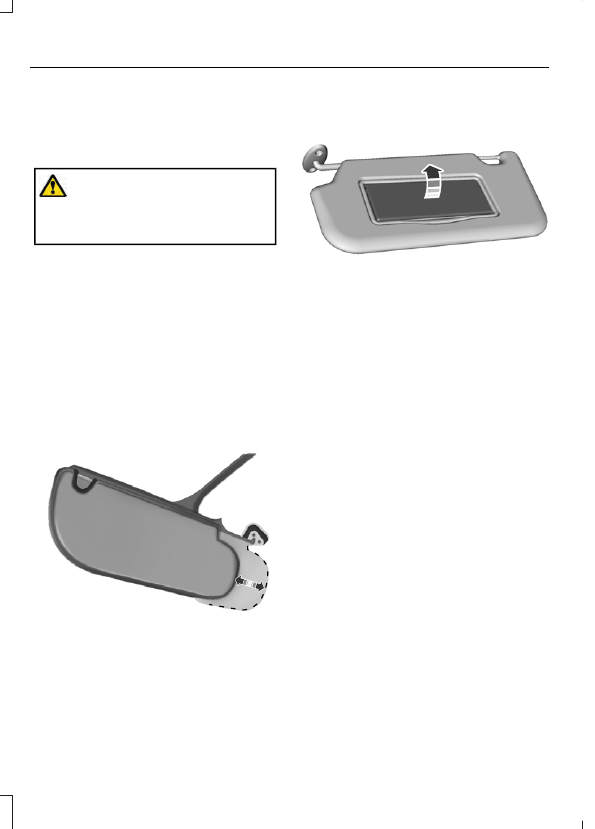

Rotate the sun visor toward the side
window and extend it rearward for extra
shade.

Illuminated Vanity Mirror

 (If Equipped)

E162197

Lift the cover to switch the lamp on.

88

Windows and Mirrors

GAUGES

Type 1 and 2

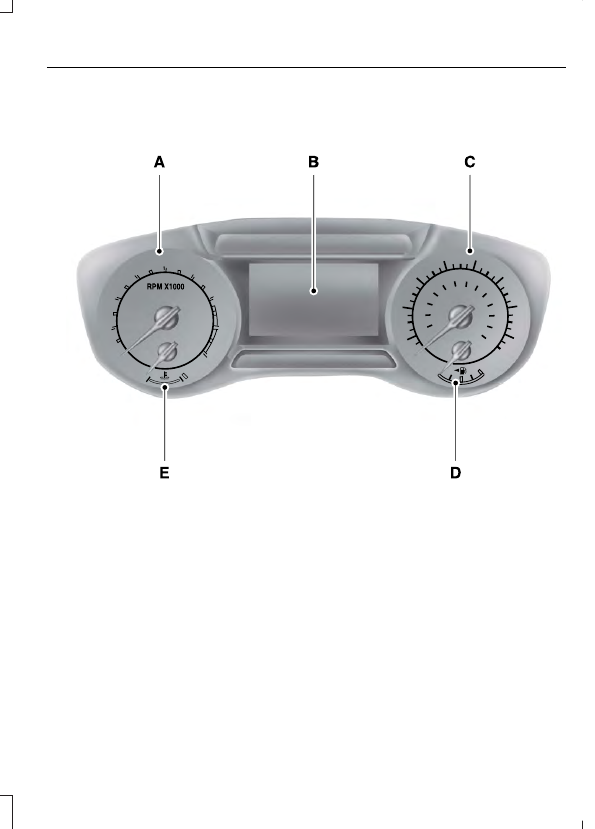

E271817

Tachometer

A

Information Display (Type 2 shown Type 1 similar)

B

Speedometer

C

Fuel Gauge

D

Engine Coolant Temperature Gauge

E

Information Display

Odometer

Located in the bottom of the information
display. Registers the accumulated
distance your vehicle has traveled.

Compass

Displays the vehicle’s heading direction.

Trip Computer

See

General Information

 (page 96).

89

Instrument Cluster

Vehicle Settings and Personalization

See

General Information

 (page 96).

Engine Coolant Temperature
Gauge

WARNING:

Do not remove the

coolant reservoir cap when the engine is
on or the cooling system is hot. Wait 10
minutes for the cooling system to cool
down. Cover the coolant reservoir cap
with a thick cloth to prevent the
possibility of scalding and slowly remove
the cap. Failure to follow this instruction
could result in personal injury.

Indicates engine coolant temperature. At
normal operating temperature, the level
indicator will be in the normal range. If the
engine coolant temperature exceeds the
normal range, stop your vehicle as soon as
safely possible, switch off the engine and
let the engine cool.

Note:

Do not restart the engine until the

cause of overheating has been resolved.

Fuel Gauge

The fuel gauge indicates about how much
fuel is in the fuel tank.

The arrow adjacent to the fuel pump
symbol indicates on which side of your
vehicle the fuel filler door is located.

Note:

The fuel gauge may vary slightly

when your vehicle is moving or on a slope.

Low Fuel Reminder

A low fuel level reminder displays and
sounds when the distance to empty
reaches 75 mi (120 km) to empty for
MyKey, and at 50 mi (80 km), 25 mi
(40 km), 10 mi (20 km) and 0 mi (0 km)
for all vehicle keys.

Note:

The low fuel reminder can appear at

different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.

90

Instrument Cluster

Type 3

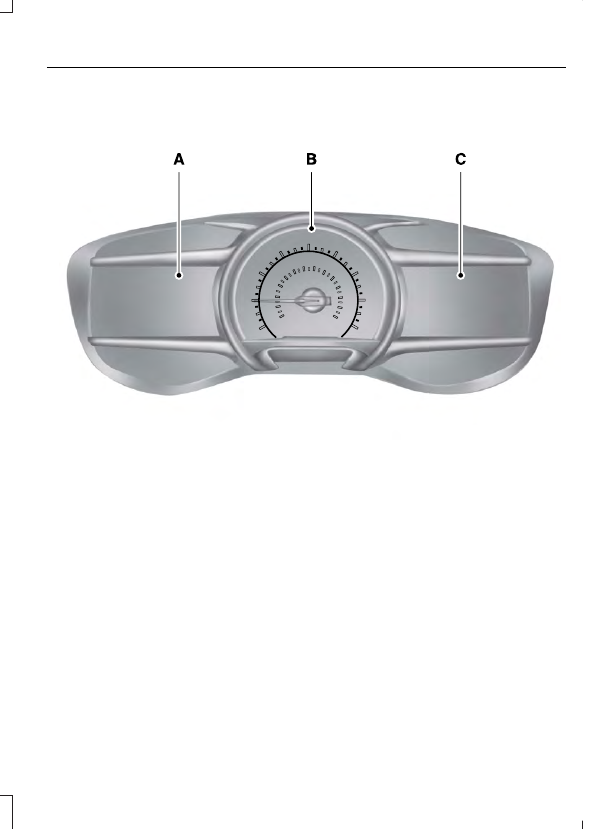

E272460

Left Information Display

A

Speedometer

B

Right Information Display.  See

General Information

 (page 96).

C

Left Information Display

Odometer

Located in the bottom of the information
display. Registers the accumulated
distance your vehicle has traveled.

Trip Computer

See

General Information

 (page 96).

Vehicle Settings and Personalization

See

General Information

 (page 96).

91

Instrument Cluster

WARNING LAMPS AND
INDICATORS

The following warning lamps and
indicators alert you to a vehicle condition
that may become serious.  Some lamps
illuminate when you start your vehicle to
make sure they work.  If any lamps remain
on after starting your vehicle, refer to the
respective system warning lamp for further
information.

Note:

Some warning indicators appear in

the information display and operate the
same as a warning lamp but do not
illuminate when you start your vehicle.

Adaptive Cruise Control Indicator

(If Equipped)

E144524

It illuminates when you switch
the system on.

It illuminates white when the

system is in standby mode.  It illuminates
green when you set the adaptive cruise
speed.

See

Using Adaptive Cruise Control

(page 193).

Anti-Lock Braking System

If it illuminates when you are
driving, this indicates a
malfunction.  Your vehicle

continues to have normal braking without
the anti-lock brake system function.  Have
your vehicle checked as soon as possible.

Automatic Headlamp High Beam
Indicator

 (If Equipped)

It illuminates when the system
turns the headlamp high beam
on.

See

Automatic High Beam Control

(page 80).

Auto-Start-Stop Indicator

It illuminates when the engine
has automatically stopped.  It
flashes to inform you when the

engine needs to restart.  The indicator is
shown with a strikethrough if the system
is not available.

See

Auto-Start-Stop

 (page 148).

Battery

It illuminates when you switch
the ignition on.

If it illuminates when the engine

is running this indicates a malfunction.
Have your vehicle checked as soon as
possible.

Blind Spot Monitor

 (If Equipped)

E151262

It illuminates when you switch
the system off.

See

Blind Spot Information

System

 (page 206).

Brake System Warning Lamp

WARNING:

Driving your vehicle

with the warning lamp on is dangerous.
A significant decrease in braking
performance may occur. It may take you
longer to stop your vehicle. Have your
vehicle checked as soon as possible.
Driving extended distances with the
parking brake engaged can cause brake
failure and the risk of personal injury.

Note:

Indicators vary depending on region.

This lamp is a dual function lamp and
illuminates when:

92

Instrument Cluster

•

You apply the parking brake with the
ignition on.

•

Your vehicle has a brake fault or low
brake fluid level, regardless of parking
brake position.

E270480

If the lamp illuminates when you
are moving, you may have the
parking brake applied. Make sure
that the parking brake is off.
Have your vehicle checked as
soon as possible if the lamp

continues to illuminate.

Cruise Control Indicator

 (If Equipped)

E71340

It illuminates when you switch
the system on.

See

Using Cruise Control

(page 192).

Direction Indicator

Flashes when the left or right
direction indicator or the hazard
flasher turns on.  An increase in

the rate of flashing warns of a failed
indicator bulb.

Door Ajar Warning Lamp

It illuminates when you switch
the ignition on and remains on if
any door is open.

Electronic Locking Differential

 (If

Equipped)

E163170

Illuminates when using the
electronic locking differential.

Engine Coolant Temperature
Warning Lamp

If it illuminates when your vehicle
is moving, this indicates that the
engine is overheating.  Stop your

vehicle as soon as it is safe to do so and
switch the engine off.  Have your vehicle
checked as soon as possible.

See

Engine Coolant Check

 (page 268).

Fasten Seatbelt Warning Lamp

E71880

It illuminates and a chime
sounds until you fasten the
seatbelts.

Fasten Rear Seatbelt Warning
Lamp

 (If Equipped)

E206718

It illuminates and a chime
sounds until you fasten the rear
seatbelts.

Four-Wheel Drive Indicators

 (If

Equipped)

E181780

Illuminates when four-wheel
drive low is engaged.

E181779

Illuminates when four-wheel
drive high is engaged.

Front Airbag

E67017

If it fails to illuminate when you
start your vehicle, continues to
flash or remains on, it indicates

a malfunction.  Have the system checked.

Front Fog Lamp Indicator

 (If Equipped)

It illuminates when you switch
the front fog lamps on.

93

Instrument Cluster

Headlamp High Beam Indicator

It illuminates when you switch
the headlamp high beam on.  It
flashes when you use the

headlamp flasher.

Hood Ajar Warning Lamp

E296055

Illuminates when the ignition is
on and the hood is not
completely closed.

Low Beam Malfunction

 (If Equipped)

E181350

Lights when there is a
malfunction with the low beam
headlamp.

Low Fuel Level Warning Lamp

If it illuminates when you are
driving, refuel as soon as
possible.

Low Tire Pressure Warning Lamp

It illuminates when your tire
pressure is low.  If the lamp
remains on with the engine

running or when driving, check the tire
pressure as soon as possible.

It also momentarily illuminates when you
switch the ignition on to confirm the lamp
is functional. If it does not illuminate when
you switch the ignition on, or begins to
flash at any time, have the system checked
by your authorized dealer.

Low Washer Fluid Level Warning
Lamp

E132353

It illuminates when the washer
fluid is low.

Oil Pressure Warning Lamp

It illuminates when you switch
the ignition on.

If it illuminates when the engine

is running this indicates a malfunction.
Stop your vehicle as soon as it is safe to
do so and switch the engine off.  Check the
engine oil level.  If the oil level is sufficient,
this indicates a system malfunction.  Have
your vehicle checked as soon as possible.

See

Engine Oil Check

 (page 265).

Parking Lamps

It illuminates when you switch
the parking lamps on.

Powertrain Malfunction/Reduced
Power/Electronic Throttle Control

Illuminates when the system has
detected a powertrain or a
four-wheel drive fault. Contact

an authorized dealer as soon as possible.

Service Engine Soon

If it illuminates when the engine
is running this indicates a
malfunction.  The On Board

Diagnostics system has detected a
malfunction of the vehicle emission control
system.

If it flashes, engine misfire may be
occurring.  Increased exhaust gas
temperatures could damage the catalytic
converter or other vehicle components.
Drive in a moderate fashion, avoid heavy
acceleration and deceleration and have
your vehicle immediately serviced.

It illuminates when you switch the ignition
on prior to engine start to check the bulb
and to indicate whether your vehicle is
ready for Inspection and Maintenance
(I/M) testing.

94

Instrument Cluster

Normally, it illuminates until the engine is
cranked and automatically turns off if no
malfunctions are present. However, if after
15 seconds it flashes eight times, this
indicates that your vehicle is not ready for
Inspection and Maintenance (I/M) testing.
See

Emission Law

 (page 157).

Stability Control and Traction
Control Indicator

E138639

Flashes during operation.

If it does not illuminate when you
switch the ignition on, or remains

on when the engine is running, this
indicates a malfunction.  Have your vehicle
checked as soon as possible.

See

Using Stability Control

 (page 180).

Stability Control and Traction
Control Off Warning Lamp

E130458

It illuminates when you switch
the system off.

Tow Haul Indicator

 (If Equipped)

E271981

It illuminates when you switch
the system on.

Trail Control

 (If Equipped)

E272858

It illuminates when you switch
the system on.

AUDIBLE WARNINGS AND
INDICATORS

Key in Ignition Warning Chime

 (If

Equipped)

Sounds when you open the driver's door
and you have left the key in the ignition.

Keyless Warning Alert

 (If Equipped)

Sounds the horn twice when you exit your
vehicle with the intelligent access key, after
the last door is closed and your keyless
vehicle is in RUN, indicating your vehicle is
still on.

Headlamps On Warning Chime

Sounds when you remove the key from the
ignition and open the driver's door and you
have left the headlamps or parking lamps
on.

Parking Brake On Warning Chime

Sounds when you have left the parking
brake on and drive your vehicle. If the
warning chime remains on after you have
released the parking brake, have the
system checked by an authorized dealer
immediately.

95

Instrument Cluster

GENERAL INFORMATION

WARNING:

Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the
safe operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.

Note:

Your vehicle may or may not be

equipped with all the messages listed in this
chapter. Your vehicle will not display
messages of systems it is not equipped with.

Various systems on your vehicle can be
controlled using the information display
controls on the steering wheel.
Corresponding information is displayed in
the information display.

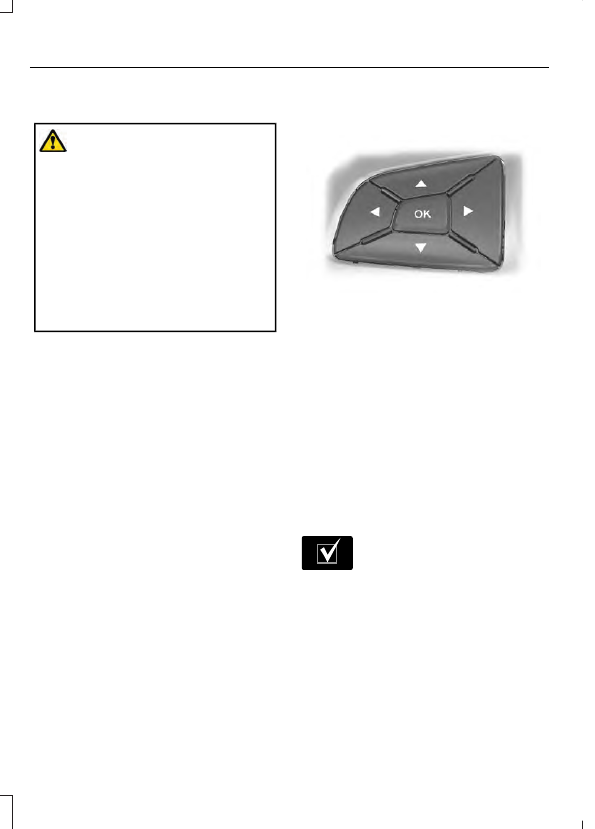

Information Display Controls
(Type 1 and Type 2)

E205893

•

Press the up or down arrow buttons to
scroll through the list.

•

Press the right arrow button to enter a
sub-menu.

•

Press the left arrow button to exit a
menu.

•

Press and hold the left arrow button at
any time to return to the main menu
display (escape button).

•

Press the

OK

 button to choose and

confirm settings or messages.

Menu

You can access the menu using the
information display control.

E204495

This icon gives you the ability to
switch a feature on or off. A
check in the box indicates the

feature is enabled, and unchecked
indicates the feature is disabled.

Note:

Some options may appear slightly

different or not at all if the items are
optional.

96

Information Displays

Trip 1 and 2

Digital Speedo

Distance to E

Trip Odometer

Trip Timer

Average Fuel

Outside Temp.

All Values

1

1

Type 2

•

Digital Speedometer - Shows the speed your vehicle is traveling.

•

Distance to E - Shows the approximate distance your vehicle can travel before running
out of fuel.

•

Trip Odometer — Registers the distance of individual journeys.

•

Trip Timer — The timer stops when you turn your vehicle off and restarts when you
restart your vehicle.

•

Average Fuel — Shows the average fuel economy for a given trip.

•

Outside Temperature — Shows the outside air temperature.

•

All Values — Shows the Distance to E, Trip Odometer, Trip Timer and Average Fuel.

Note:

Press and hold

OK

 on the current screen to reset the respective trip, distance, time

and fuel information.

Fuel Economy

Distance to E

Inst Fuel Econ

Average Fuel

Fuel History

1

Average Speed

97

Information Displays

Fuel Economy

All Values

1

Auto StartStop

1

 Type 2

•

Distance to Empty - Shows the approximate distance your vehicle can travel before
running out of fuel.

•

Inst Fuel Economy - Shows a visual graph of your instantaneous fuel economy along
with your Avg MPG since the function was last reset.

•

Average Fuel — Shows the average fuel economy for a given trip.

•

Fuel History - Shows a bar chart of your fuel history.

•

Average Speed — Shows your average speed for a given trip.

•

All Values — Shows all fuel economy values (DTE, Inst Fuel Econ, Avg Fuel).

•

Auto StartStop - Available Auto Start-Stop messaging will provide details about what
is happening with your system.  See

Information Messages

 (page 104).

Note:

You can reset your average fuel economy by pressing and holding the

OK

 button on

the left hand steering wheel controls.

Driver Assist

Traction control

Cross Traffic

1

Enter the submenu and select your setting

Cruise Control

1

Enter the submenu and select your setting

Driver Alert

1

Hill Start Assist

Enter the submenu and
select your setting

Lane Keeping System

1

Enter the submenu and
select your setting

Pre-Collision

Rear Park Aid

Enter the submenu and select your setting

Speed Limiter

1

Tire Monitor

98

Information Displays

Driver Assist

Tire Pressure

Trailer Sway

1

Type 2

Settings

Auto Engine Off

Vehicle

Easy Entry/Exit

Enter the submenu and
select your setting

Lighting

Enter the submenu and select your setting

Locks

Hold OK to Initialize Neutral Tow

Neutral
Tow

oil Life XXX% - Hold

OK

 to Reset

Oil Life
Reset

Enter the submenu and
select your setting

Remote
Start

Enter the submenu and select your setting

Windows

Enter the submenu and select your setting

Wipers

Hold

OK

 to Create MyKey

Create
MyKey

MyKey

Enter the submenu and select your setting

911
Assist

Enter the submenu and select your setting

Do Not
Disturb

Enter the submenu and select your setting

Traction
Control

Enter the submenu and select your setting

Max
Speed

Enter the submenu and select your setting

Speed
Minder

Volume Limiter

99

Information Displays

Settings

Hold

OK

 to Clear All MyKeys

Clear
MyKeys

Enter the submenu and select your setting

Distance

Display
Setup

Enter the submenu and select your setting

Temper-
ature

Enter the submenu and select your setting

Tire Pres-
sure

Enter the submenu and select your setting

Language

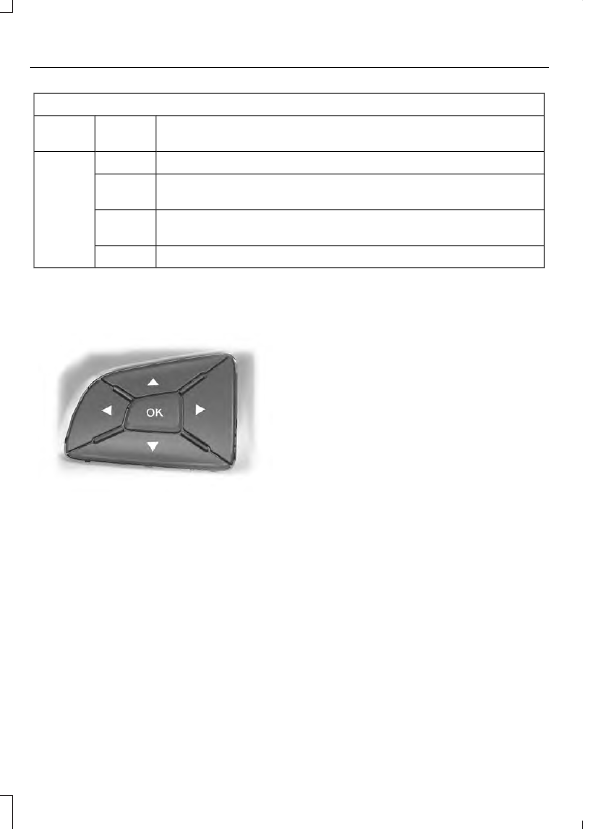

Information Display Controls
(Type 3)

E205893

•

Press the up or down arrow buttons to
scroll through the list.

•

Press the right arrow button to enter a
sub-menu.

•

Press the left arrow button to exit a
menu.

•

Press and hold the left arrow button at
any time to return to the main menu
display (escape button).

•

Press the

OK

 button to choose and

confirm settings or messages.

Main menu

From the main menu bar on the left side
of the information display, you can choose
from the following categories:

•

Display Mode

•

Trip 1 & 2

•

Fuel Economy

•

Driver Assist

•

Settings

Scroll up or down to highlight one of the
categories, then press the right arrow key
or

OK

 to enter into that category. Press the

left arrow key as needed to exit back to the
main menu.

Display Mode

Use the up/down arrow buttons to choose
between the following display options.

100

Information Displays

Display Mode

Distance to Empty

Tach and Gauges

Off Road

Digital Speedometer

Tire Pressure

Average Speed

Trip 1 & 2

You can access the menu using the
information display control.

Note:

Some options may appear slightly

different or not at all if the items are
optional.

Trip 1 & 2

All Values

All Values — shows all trip values (Trip Timer, Odometer and Average Fuel).

•

Trip Odometer — Shows your accumulated trip distance.

•

Trip Timer— The timer stops when you turn your vehicle off and restarts when you
restart your vehicle.

•

Average Fuel — Shows your average fuel economy for a given trip.

Note:

You can reset your trip information by pressing and holding the

OK

 button on the left

hand steering wheel controls.

Fuel Economy

Use the left and right arrow buttons to
choose the desired fuel economy display.

101

Information Displays

Fuel Economy

Fuel Economy

Fuel History

Auto StartStop

•

Fuel Economy - Shows a visual graph of your instantaneous fuel economy, average
fuel economy and distance to empty.

•

Fuel History - Shows a bar chart of your fuel history from the past 30 min, average
fuel economy and distance to empty.

•

Auto StartStop - Available Auto Start-Stop messaging will provide details about what
is happening with your system.  See

Information Messages

 (page 104).

Note:

You can reset your average fuel economy by pressing and holding the

OK

 button on

the left hand steering wheel controls.

Driver Assist

In this mode, you can configure different
driver setting choices.

Note:

Some items are optional and may

not appear.

Driver Assist

Blind spot

Blind Spot

Enter the submenu and select your
setting

Trailer

Enter the submenu and select your
setting

Trailer Length

Cross Traffic
Alert

Hill Start Assist

Rear Park Aid

Trailer Sway

Enter the submenu and select your setting

Chimes

Enter the submenu and select your setting

Cruise Control

Enter the submenu and select your setting

Driver Alert

102

Information Displays
