Ford Ranger (2022 year). Manual in english

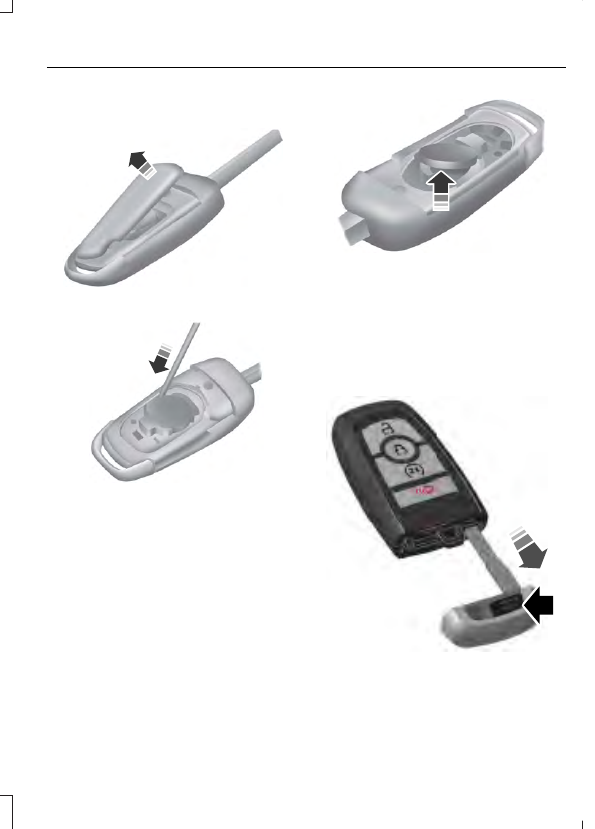

2. Press the clip down to release the

battery cover.

E151799

3. Carefully remove the cover.

E151800

Note:

Do not touch the battery contacts or

the printed circuit board with the
screwdriver.

4. Insert a screwdriver as shown to

release the battery.

E151801

5. Remove the battery.

6. Install a new battery with the

facing

up.

Replace the battery cover.

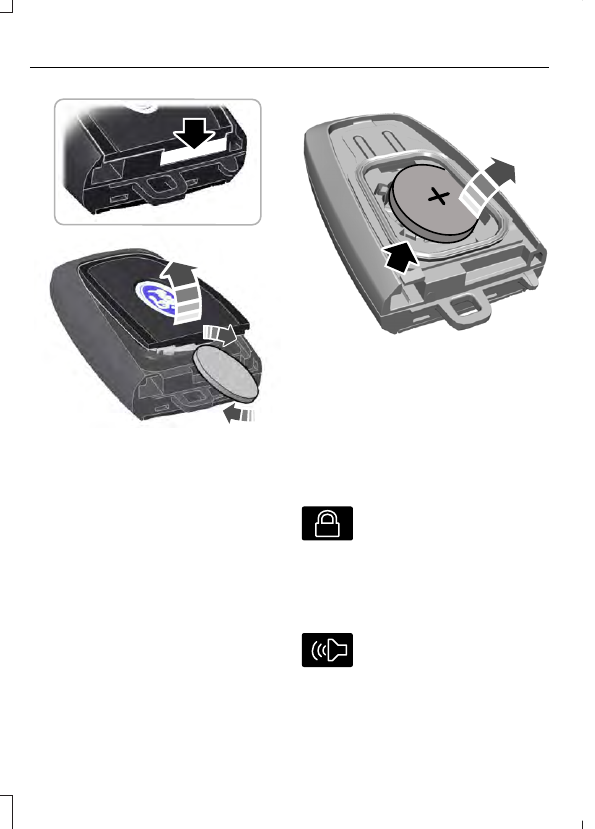

Intelligent Access Key

The remote control uses one coin-type
three-volt lithium battery.

E279949

Push the release button and pull the
key blade out.

Keys and Remote Controls

E218401

2. Twist a thin coin under the tab hidden

behind the key blade head to remove
the battery cover.

E218402

3. Insert a suitable tool, for example a

screwdriver, in the position shown and
carefully remove the battery.

4. Install a new battery with the

facing

upward.

5. Reinstall the battery housing cover

onto the remote control and install the
key blade.

Car Finder

E138623

Press the button twice within
three seconds. The horn sounds
and the direction indicators

flash.

Sounding a Panic Alarm

(If Equipped)

Note:

The panic alarm only operates when

the ignition is off.

E138624

Press the button to activate the
alarm. Press the button again or
switch the ignition on to

deactivate.

Keys and Remote Controls

Remote Start

(If Equipped)

WARNING:

Do not start the engine

in a closed garage or in other enclosed
areas. Exhaust fumes are toxic. Always
open the garage door before you start
the engine. Failure to follow this
instruction could result in personal injury
or death.

Note:

Do not use remote start if your fuel

level is low.

E138625

The remote start button is on the
remote control.

This feature allows you to start your
vehicle from the outside. The remote
control has an extended operating range.

If your vehicle has automatic climate
control, you can configure it to operate
when you remote start your vehicle. See

Climate Control

(page 117). A manual

climate control system will run at the
setting it was set to when you switched
your vehicle off.

Many states and provinces have
restrictions for the use of remote start.
Check your local and state or provincial
laws for specific requirements regarding
remote start systems.

The remote start system does not work if:
•

The ignition is on.

•

The alarm system triggers.

•

You disable the feature.

•

The hood is open.

•

The transmission is not in park (P).

•

The vehicle battery voltage is too low.

•

The service engine soon light is on.

Remote Control Feedback (If
Equipped)

An LED on the remote control provides
status feedback of remote start or stop
commands.

Status

LED

Remote start

successful

Solid green

Remote stop

successful

Solid red

Request failed or

status not received

Blinking red

Status incomplete

Blinking green

Remote Starting Your Vehicle

Note:

You must press each button within

three seconds of each other. If you do not
follow this sequence, your vehicle does not
start remotely, the direction indicators do
not flash twice and the horn does not sound.

E138626

To remote start your vehicle:

Press the lock button to lock all the
doors.

2. Press the remote start button twice.

The exterior lamps flash twice.

The horn sounds if the system fails to start.

Note:

You must press the push button

ignition switch on the instrument panel once
while applying the brake pedal before
driving your vehicle.

Keys and Remote Controls

The power windows do not work during
remote start and the radio does not turn
on automatically.

The parking lamps remain on and your
vehicle will run for 5, 10 or 15 minutes,
depending on the setting.

Extending the Engine Running Time

To extend the engine running time duration
of your vehicle during remote start, repeat
steps 1 and 2 while the engine is running.
If the duration is set to 15 minutes, the
duration extends by another 15 minutes.
For example, if your vehicle had been
running from the first remote start for 10
minutes, your vehicle continues to run now
for a total of 30 minutes. You can extend
the engine running time duration to a
maximum of 30 minutes.

Wait at least five seconds before remote
starting after the engine stops running.

Turning Your Vehicle Off After Remote
Starting

E138625

Press the button once. Your
vehicle and the parking lamps
turn off.

You may have to be closer to your vehicle
than when starting due to ground reflection
and the added noise of your running
vehicle.

You can switch this feature on or off in the
information display.

REPLACING A LOST KEY OR
REMOTE CONTROL

Replacement keys or remote controls can
be purchased from an authorized dealer.
Authorized dealers can program remote
controls for your vehicle.

PASSIVE KEY BACKUP
POSITION

(IF EQUIPPED)

E272540

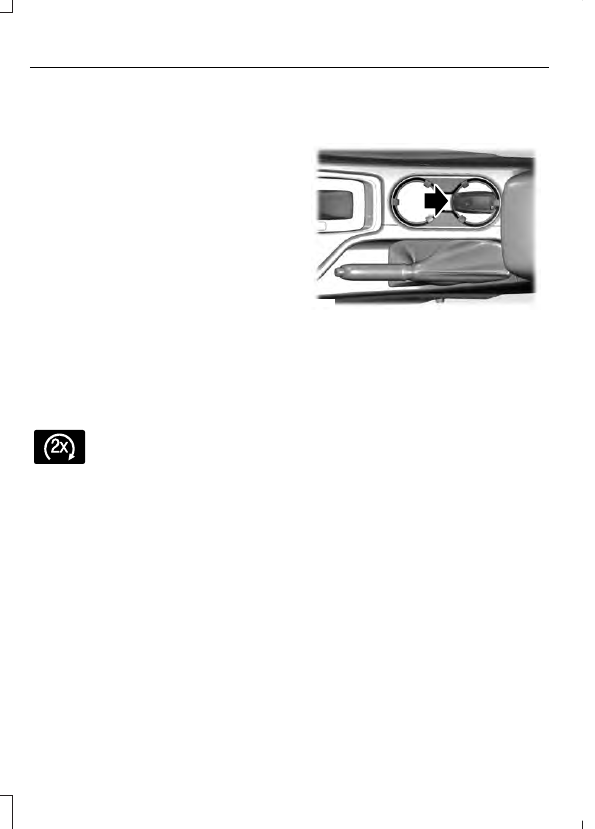

Place the passive key in the position
shown, with the buttons facing upward.
Make sure that you place the key fob in the
center of the cup holder.

The top or bottom end of the key must be
pointing towards the front or rear of the
vehicle.

With the key in this position, press the
brake or clutch pedal, then press the start
button to switch on your vehicle.

Keys and Remote Controls

PRINCIPLE OF OPERATION

MyKey allows you to program keys with
restricted driving modes to promote good
driving habits. You can program the
restrictions to all keys except one. Any keys
that you did not program are administrator
keys or admin keys.

You can use admin keys to:
•

Create a MyKey with certain vehicle
restrictions.

•

Program certain MyKey settings.

•

Clear all MyKey restrictions.

After you program a MyKey, you can view
the following information through the
information display:
•

The total number of admin keys and
MyKeys for your vehicle.

•

The total distance a MyKey driver
traveled with your vehicle.

Note:

Every MyKey receives the same

restrictions and settings. You cannot
program them individually.

Note:

For vehicles equipped with a

push-button start switch: When both a
MyKey and an admin key are present when
you start your vehicle, the system recognizes
the admin key only.

Standard Settings

Not every vehicle includes the features
listed below. If your vehicle has this
equipment, then you cannot change the
following settings when using a MyKey:
•

Seatbelt reminder or Belt-Minder™.
MyKey mutes the audio system until
drivers, and in some instances,
passengers, fasten their seatbelts.

Note:

If your vehicle includes an

AM/FM radio or a very basic audio
system, then the radio may not mute.

•

Earlier low-fuel warning. The low-fuel
warning activates earlier for MyKey
drivers, giving them more time to refuel.

•

Certain driver alerts, stability systems
or parking aids turn on automatically
when you use the MyKey system. For
example, Blind Spot Information
System (BLIS), cross traffic alert, lane
departure warning or forward collision
warning.

Note:

MyKey drivers may be

able to turn the lane departure warning
feature off, but this feature turns back
on automatically with every new key
cycle.

•

Restricted touchscreen operation in
some markets. For example, MyKey
may prevent manual navigation
destination input while the vehicle is in
any gear other than park (P) or when
the vehicle reaches a certain rate of
speed.

•

Satellite radio adult content
restrictions, if this feature is available
in your market.

Optional Settings

You can configure certain vehicle feature
settings when you first create a MyKey. You
can also change the settings afterward
with an admin key.

MyKey™

Note:

Not every feature applies to every

vehicle in every market. When they are
available for your vehicle, then they appear
in your information display, providing
choices to switch them on or off, or to select
a more specific setting.

•

Various vehicle speed limits so the
MyKey driver cannot exceed certain
speeds. The information display shows
warnings followed by an audible tone
when the MyKey driver reaches the set
speed. You cannot override the set
speed by fully depressing the
accelerator pedal.

WARNING:

Do not set MyKey

maximum speed limit to a limit that will
prevent the driver from maintaining a
safe speed considering posted speed
limits and prevailing road conditions. The
driver is always responsible to drive in
accordance with local laws and
prevailing conditions. Failure to do so
could result in accident or injury.

•

Various vehicle speed reminders so
MyKey drivers know when their vehicle
speed approaches the limits. Warnings
appear in your information display and
a tone sounds when the MyKey drivers
exceed the set vehicle speed.

•

The audio system's maximum volume
limits to 45% so MyKey drivers can
concentrate on the road. A message
appears in the information display
when MyKey drivers attempt to exceed
the limited volume. MyKey also
disables the automatic volume control.

Note:

If your vehicle includes an

AM/FM radio or a very basic audio
system, then the radio may not limit.

•

Always on setting. This setting forces
certain features to remain on and
active for MyKey drivers. For example,
E911 or emergency assistance and the
do not disturb features stay on even if
a MyKey driver uses the feature's
control to switch it off. When selected,
you will not be able to turn off Advance
Trac or traction control (if your vehicle
has this feature).

CREATING A MYKEY

Use the information display to create a
MyKey:

Insert the key you want to program into
the ignition. If your vehicle has a
push-button start, place the remote
control into the backup slot. See

Starting a Gasoline Engine

(page

143).

2. Switch the ignition on.

3. Access the main menu in the

information display and then scroll
through the menus to change the
settings of your MyKey. From the
MyKey menu select the option Create
MyKey. See

Information Displays

(page 96).

MyKey™

4. Select

Yes

if you want to create the

key as MyKey. A confirmation message
appears on the screen.

5. Switch the ignition off.

You successfully created a MyKey. Make
sure you label it so you can distinguish it
from the admin keys.

You can also program configurable
settings for the key(s). See

Programming

and Changing Configurable Settings

Programming and Changing
Configurable Settings

Use the information display to access your
configurable MyKey settings.

Switch the ignition on using an admin
key or transmitter you want to program.

2. Access the main menu in the

information display and then scroll
through the menus to change the
settings of your MyKey. See

Information Displays

(page 96).

3. Follow the instructions in the display.

The programmed restrictions apply
when you switch the vehicle off, open
and close the driver door and restart
your vehicle with the programmed key
or transmitter.

Note:

You can clear or change your MyKey

settings at any time during the same key
cycle as you created the MyKey. Once you
have switched the vehicle off, however, you
need an admin key to change or clear your
MyKey settings. When you make any
changes to your MyKey settings, you change
the settings for every MyKey. You cannot
make individual changes to apply to certain
MyKeys.

CLEARING ALL MYKEYS

When you clear your MyKeys, you remove
all restrictions and return all MyKeys to
their original admin key status at once. To
clear all MyKeys of all MyKey settings, use
the information display.

Switch the ignition on using an admin
key.

2. Access the main menu in the

information display and then scroll
through the menus to begin clearing
your MyKey programming. See

Information Displays

(page 96).

3. Follow the instructions in the display.

4. A confirmation message appears in the

display after you finish clearing your
MyKeys.

Note:

When you clear your MyKeys, you

remove all restrictions and return all MyKeys
to their original admin key status. You
cannot remove the MyKey restrictions
individually.

CHECKING MYKEY SYSTEM
STATUS

You can find information about your
programmed MyKeys by using the
information display. See

Information

Displays

(page 96).

MyKey Distance

Tracks the distance when drivers use a
MyKey. The only way to delete the
accumulated distance is by using an admin
key to clear all MyKeys. If the distance does
not accumulate as expected, then the
intended user is not using the MyKey, or an
admin key user recently cleared and then
recreated a MyKey.

MyKey™

Number of MyKeys

Indicates the number of MyKeys
programmed to your vehicle. Use this
feature to detect how many MyKeys you
have for your vehicle and determine when
all MyKeys have been deleted.

Number of Admin Keys

Indicates how many admin keys are
programmed to your vehicle. Use this
feature to determine how many admin
keys you have for your vehicle, and detect
if an additional MyKey has been
programmed.

USING MYKEY WITH REMOTE
START SYSTEMS

MyKey is not compatible with non
Ford-approved, aftermarket remote start
systems. If you choose to install a remote
start system, see an authorized dealer for
a Ford-approved remote start system.

MYKEY – TROUBLESHOOTING

Potential Causes

Condition

The key or transmitter used to start the vehicle
does not have admin privileges.

I cannot create a MyKey.

Vehicles with keyless start: Make sure you place
the transmitter into the backup slot. See

Passive Anti-Theft System

(page 70).

The key or transmitter used to start the vehicle
is the only admin key. There always has to be
at least one admin key.
The passive anti-theft system is disabled or in
unlimited mode.

The transmitter used to start your vehicle does
not have admin privileges.

I cannot program the configurable
settings.

There are no MyKeys programmed to the
vehicle. See

Creating a MyKey

(page 60).

The key or transmitter used to start the vehicle
does not have admin privileges.

I cannot clear the MyKeys.

No MyKeys are created. See

Creating a MyKey

(page 60).

Purchase a new key or transmitter from an
authorized dealer.

I lost the only admin key.

MyKey™

Potential Causes

Condition

Program a spare key or transmitter. You may
need to see an authorized dealer. See

Passive

Anti-Theft System

(page 70).

I lost a key.

The MyKey user is not using the MyKey.

The MyKey distance does not accumu-
late.

An admin key holder cleared the MyKeys and
created new MyKeys.
The key system has been reset.

An admin transmitter is present at vehicle start.

No MyKey functions with the trans-
mitter.

There are no MyKeys programmed to your
vehicle. See

Creating a MyKey

(page 60).

MyKey™

LOCKING AND UNLOCKING

You can use the power door lock control
or the remote control to lock and unlock
your doors. This is also true for the tailgate
if your vehicle comes with power tailgate
lock. See

Tailgate Lock

(page 68).

Note:

Always take your keys and lock all

doors when leaving your vehicle.

Note:

Do not use the door latch assembly

to attach any accessory, such as handles or
steps, as this can cause damage to your
vehicle.

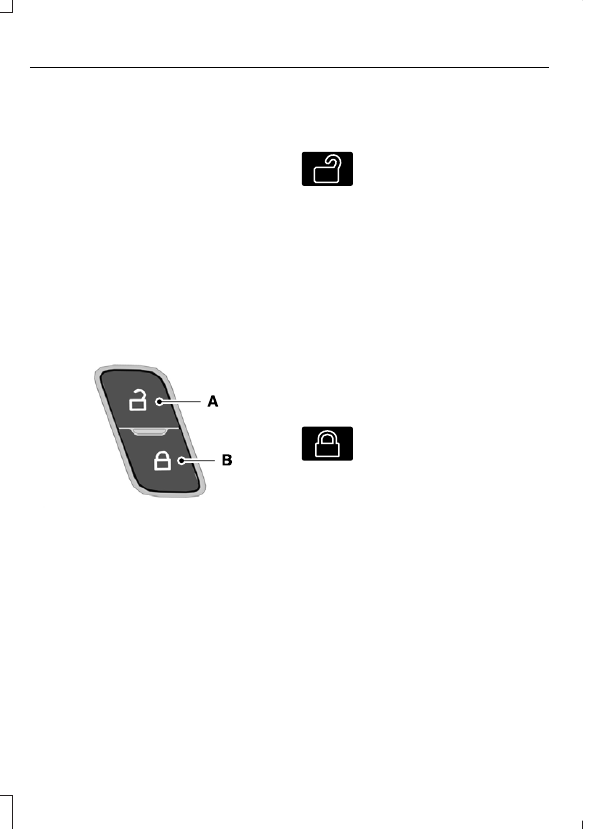

Power Door Locks

The power door lock control is on the driver
and front passenger door panels.

E196954

Unlock.

Lock.

Door Lock Indicator

An LED on the power door lock control
illuminates when you lock the door.

Door Lock Switch Inhibitor

The power door lock switch no longer
operates after 20 seconds. You must
unlock your vehicle with the remote
control, or switch the ignition on to restore
function to these switches.

Remote Control

Unlocking the Doors - Two-Stage
Unlock

E138629

Press the button to unlock the
driver door.

Press the button again within

three seconds to unlock all doors. The
direction indicators will flash.

With the ignition off, press and hold both
the lock and unlock buttons on the remote
control for three seconds to change
between driver door or all door unlock
mode. The direction indicators will flash
twice to indicate a change to the unlocking
mode. Driver door mode only unlocks the
driver door when you press the unlock
button once. All door mode unlocks all
doors when you press the unlock button
once. The unlocking mode applies to the
remote control and Intelligent Access Key.

Locking the Doors

E138623

Press the button to lock all
doors. The direction indicators
will flash.

Press the button again within three
seconds to confirm that all the doors are
closed. The doors will lock again, the horn
will sound and the direction indicators will
flash if all the doors are closed.

Locking and Unlocking the Doors
with the Key Blade

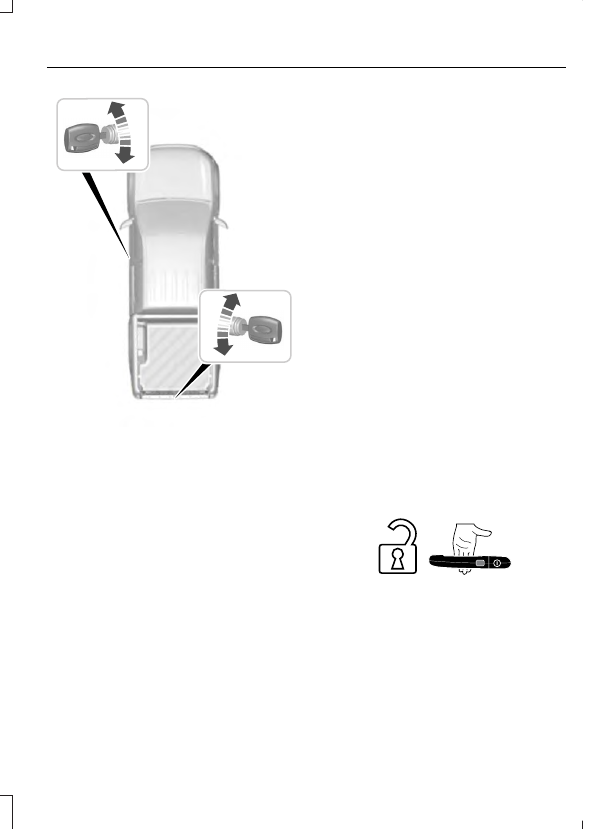

Turn the top of the key toward the front of
your vehicle once to lock all doors. Turn
the top of the key toward the rear of your
vehicle once to unlock only the driver door.

If the central locking function does not
operate, lock the doors individually using
the key in the position shown.

Doors and Locks

E237137

Unlock.

Lock.

Opening a Rear Door from the
Inside

Pull the interior door handle twice to
unlock and open a rear door. The first pull
unlocks the door and the second pull
opens the door.

Activating Intelligent Access

(If

Equipped)

General Information

You can unlock and lock the vehicle
without taking the keys out of your pocket
or purse when your passive key is within
3 ft (1 m) of your vehicle. Passive entry uses
a sensor on the back of the front door
handle for unlocking and a separate sensor
on the face of each door handle for locking.

The system does not function if:
•

The vehicle battery has no charge.

•

The key battery has no charge.

•

The key frequencies have jammed.

Note:

The system is available on the front

doors only.

Note:

The system may not function if the

key is close to metal objects or electronic
devices, for example keys or a cell phone.

Note:

If the system does not function, use

the key blade to lock and unlock your
vehicle. See

Remote Control

(page 52).

Note:

The system also unlocks and locks

the luggage compartment.

Unlocking Using Passive Entry

E248555

With your passive key within 3 ft (1 m) of
your vehicle, touch the unlock sensor on
the back of the door handle for a brief
period and then pull on the door handle to
unlock, being careful not to touch the lock
sensor at the same time, or to pull the door
handle too quickly. The system requires a
brief delay to authenticate your passive
key.

Doors and Locks

Locking Using Passive Entry

E248556

With your passive key within 3 ft (1 m) of
your vehicle, touch the outer door handle
lock sensor for approximately one second
to lock, being careful not to touch the
unlock sensor on the back of the door
handle at the same time. After locking, you
can immediately pull on the door handle
to confirm locking occurred without
inadvertently unlocking.

Note:

Do not use the outside door handle

as an anchor-point for the cargo strap.

Smart Unlocks for Integrated
Keyhead Transmitter

(If Equipped)

This helps to prevent you from locking
yourself out of your vehicle if the key is still
in the ignition.

When you open one of the front doors and
lock your vehicle with the power door lock
control, all the doors will lock then unlock
and the horn will sound twice if the key is
still in the ignition.

You can still lock your vehicle with the key
in the ignition by:
•

Pressing the lock button on the remote
control even if the doors are not closed.

If both front doors are closed, you can lock
your vehicle by any method, regardless of
whether the key is in the ignition or not.

Mislock

(If Equipped)

The horn sounds twice and the direction
indicators do not flash:
•

If any door or the luggage
compartment is open.

•

If the hood is open on vehicles with an
anti-theft alarm or remote start.

You can switch this feature on or off in the
information display. See

General

Information

(page 96).

Autolock

(If Equipped)

Autolock locks all the doors when:
•

All doors are closed.

•

The ignition is on.

•

You shift into any gear putting your
vehicle in motion.

•

Your vehicle reaches a speed greater
than 4 mph (7 km/h).

Autolock repeats when:
•

You open then close any door while the
ignition is on and your vehicle speed is
4 mph (7 km/h) or lower.

•

Your vehicle reaches a speed greater
than 4 mph (7 km/h).

Autounlock

Autounlock unlocks all the doors when:
•

The ignition is on, all the doors are
closed, and your vehicle has been
moving at a speed greater than 4 mph
(7 km/h).

•

Your vehicle comes to a stop and you
switch the ignition off or to the
accessory position.

•

You open the driver door within 10
minutes of switching the ignition off or
to accessory.

Doors and Locks

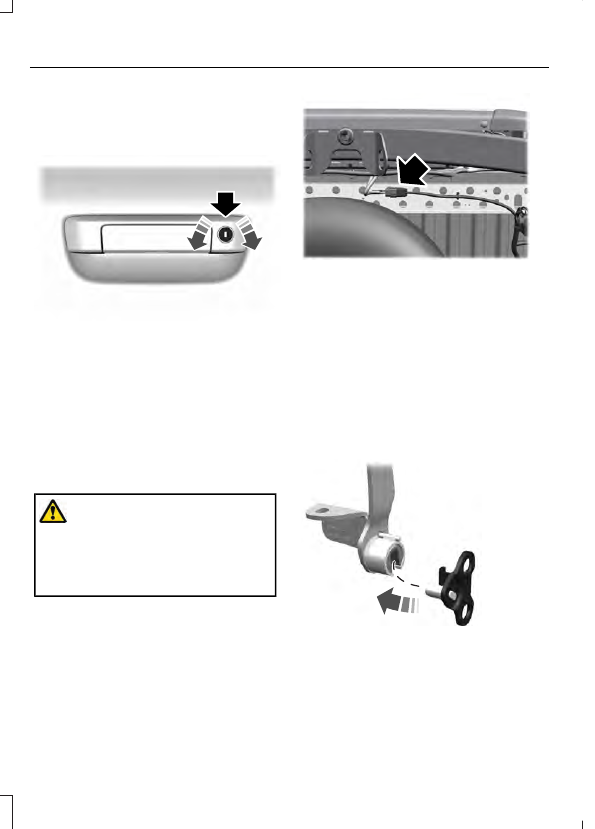

TAILGATE LOCK

The tailgate lock can help prevent theft of
the tailgate.

E295939

Insert the ignition key into the tailgate lock.
Turn it to the left to lock the tailgate. Turn
it to the right to unlock the tailgate.

Power Tailgate Lock

(If Equipped)

You can use the power door lock control
or the remote control to lock and unlock
your tailgate.

REMOVING THE TAILGATE

WARNING:

Always properly secure

cargo to prevent shifting cargo or cargo
falling from the vehicle. Failure to do so
could result in compromised vehicle
stability and serious personal injury to
vehicle occupants or others.

You can remove the tailgate for more
loading room.

E295026

Locate and disconnect the in-line
connector. It is under the pickup box
on the center right-hand side of the
vehicle near the spare tire.

2. There is a protective cap in the glove

box. Install it on the in-line connector
that remains under the pickup box.

3. Partially lower the tailgate. Carefully

feed the tailgate harness up through
the gap between the pickup box and
the bumper and place it out of the way
under the pickup box.

4. Lower the tailgate.

E295025

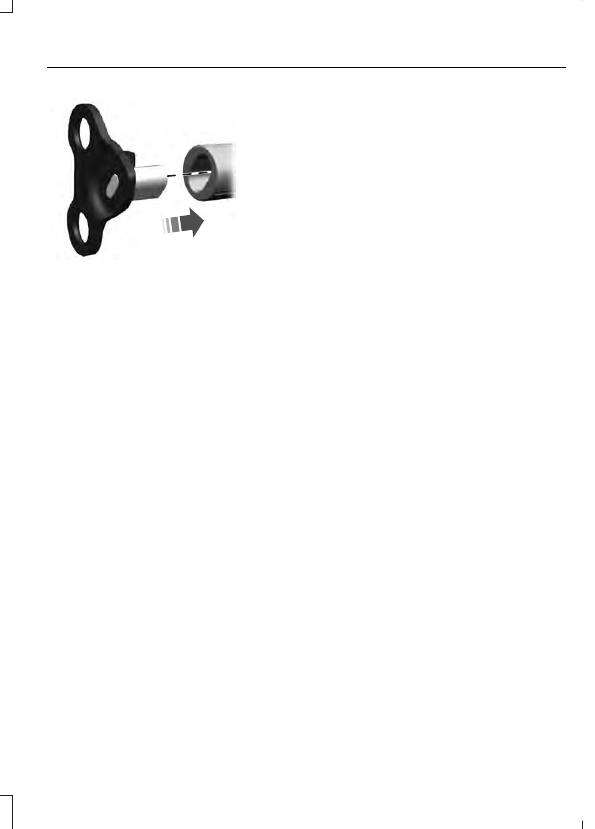

5. Lift the tailgate to 45 degrees from

horizontal.

6. Lift the right side off its hinge.

Tailgate

PASSIVE ANTI-THEFT
SYSTEM

Note:

The system is not compatible with

non-Ford aftermarket remote start systems.
Use of these systems could result in vehicle
starting problems and a loss of security
protection.

Note:

Metallic objects, electronic devices

or a second coded key on the same key
chain could cause vehicle starting problems
if they are too close to the key when starting
the engine. Prevent these objects from
touching the coded key while starting the
engine. Switch the ignition off, move all
objects on the key chain away from the
coded key and restart the engine if a
problem occurs.

Note:

Do not leave a duplicate coded key

in the vehicle. Always take your keys and
lock all doors when leaving the vehicle.

SecuriLock®

The system is an engine immobilization
system. It helps to prevent anyone from
starting the engine without using a coded
key programmed to your vehicle. Using the
wrong key could prevent the engine from
starting. A message may appear in the
information display.

If you are unable to start the engine with a
correctly coded key, there is a problem with
the system and a message could appear
in the information display.

Automatic Arming

The vehicle arms immediately after you
switch the ignition off.

Automatic Disarming

Switching the ignition on with a coded key
disarms the vehicle.

Replacement Keys

Note:

Your vehicle comes with two

integrated keyhead transmitters or two
intelligent access keys.

The integrated keyhead transmitter
functions as a programmed ignition key
that operates all the locks and starts the
vehicle, as well as a remote control.

The intelligent access key functions as a
programmed key that operates the driver
door lock and activates the intelligent
access with push button start system, as
well as a remote control.

If your programmed transmitters or
standard SecuriLock coded keys
(integrated keyhead transmitters only) are
lost or stolen and you do not have an extra
coded key, you will need to have your
vehicle towed to an authorized dealer. You
need to erase the key codes from your
vehicle and program new coded keys.

Store an extra programmed key away from
the vehicle in a safe place to help prevent
any inconveniences. See your authorized
dealer to purchase additional spare or
replacement keys.

Programming a Spare Intelligent
Access Key

(If Equipped)

See your authorized dealer to have
additional keys programmed to your
vehicle.

ANTI-THEFT ALARM

(IF EQUIPPED)

Alarm System

Perimeter Alarm

The perimeter alarm is a deterrent against
unauthorized access to your vehicle
through the doors, luggage compartment
and the hood.

Security

Ford Ranger (2022 year). Manual in english - page 4
