Saving a Preset Position

Switch the ignition on.

2. Adjust the memory features to your

preferred position.

3. Press and hold the preferred preset

button until you hear a single tone.

You can save up to three preset memory
positions at any time.

Recalling a Preset Position

Press and release a preset button.

Note:

You can only recall a preset memory

position when the ignition is off, or when the
transmission is in park (P) or neutral (N) if
the ignition is on.

You can also recall a preset memory
position by:
•

Pressing the unlock button on your
intelligent access key fob if it is linked
to a preset position.

•

Unlocking the intelligent driver door
handle if a linked key fob is present.

Note:

When the ignition is off and you use

a linked key fob to recall your memory
position, the seat moves to the easy entry
position.

Note:

Pressing any of the preset buttons

during a memory recall cancels the
operation.

Seat recall movement also stops if you
drive your vehicle.

Linking a Preset Position to your
Remote Control or Intelligent
Access Key Fob

You can save preset memory positions for
up to three remote controls or intelligent
access keys.

With the ignition on, move the memory
positions to the preferred positions.

2. Press and hold a preset button for five

seconds. A tone sounds after two
seconds. Continue holding until you
hear a second tone.

3. Within three seconds, press the lock

button on the remote control you are
linking.

To unlink a remote control, follow the
same procedure – except in step 3, press
the unlock button on the remote control.

Note:

If more than one linked remote

control or intelligent access key is in range,
the memory function moves to the settings
of the first key to initiate a memory recall.

Easy Entry and Exit Feature

If you enable the easy entry and exit
feature, it moves the driver seat position
rearward up to 2 in (5 cm) when you switch
the ignition off.

The driver seat returns to the previous
position when you switch the ignition on.

You can enable or disable this feature
through the information display. See

Information Displays

(page 99).

138

Seats

REAR SEATS

WARNING:

When folding the seat

backrest down, take care not to get your
fingers caught in the mechanism.

WARNING:

Make sure that the

seats and the seat backrests are secure
and fully locked in their catches.

Accessing the Rear Seats

E207088

Use the seatback release to fold the back
of the front seat forward for rear seat
access. The release handle is on the upper
back of the front seat. The seatback has
memory and locks automatically in the
original position.

Second Row Split-Folding Rear
Seat

(If Equipped)

E175611

To lower the seatback(s):

Pull the strap to release the seatback.

2. Fold the seatback down.

Returning the Seatbacks to the Upright
Position

When raising the seatback(s), push the
top of the seatback rearward and make
sure you hear the seat latch into place. Pull
down on the seatback to make sure that
it has locked into position.

CLIMATE CONTROLLED SEATS

(IF EQUIPPED)

Heated Seats

WARNING:

People who are unable

to feel pain to their skin because of
advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol
use, exhaustion or other physical
conditions, must use caution when using
the heated seat. The heated seat may
cause burns even at low temperatures,
especially if used for long periods of time.
Do not place anything on the seat that
may block the heat, such as a blanket or

139

Seats

cushion. This can cause the heated seat
to overheat. Do not puncture the seat
with pins, needles or other pointed
objects. This damages the heating
element and can cause the heated seat
to overheat. An overheated seat may
cause serious personal injury.

Note:

Do not do the following:

•

Place heavy objects on the seat.

•

Operate the seat heater if water or any
other liquid spills on the seat. Allow the
seat to dry thoroughly.

•

Operate the heated seats unless the
engine is running. Doing so can cause
the battery to lose charge.

E146322

Press the heated seat symbol to cycle
through the various heat settings and off.
More indicator lights indicate warmer
settings.

Cooled Seats

The cooled seats only function when the
engine is running.

E146309

Press the cooled seat symbol to cycle
through the various cool settings and off.
More indicator lights indicate cooler
settings.

If the engine falls below 350 RPM while
the cooled seats are on, the feature turns
itself off. You will need to reactivate it.

140

Seats

WHAT IS THE GARAGE DOOR
OPENER

HomeLink Wireless Control
System

E188211

The universal garage door opener replaces
the common hand-held garage door
opener with a three-button transmitter
integrated into the driver’s sun visor.

HOW DOES THE GARAGE
DOOR OPENER WORK

The system includes two primary features,
a garage door opener and a platform for
remote activation of devices within the
home. You can program garage doors as
well as entry gate operators, security
systems, entry door locks and home or
office lighting.

Additional system information can be
found online at www.homelink.com or by
calling the toll-free help line at
1-800-355-3515.

Note:

You can program a maximum of

three devices. To change or replace any of
the three devices after it has been initially
programmed, you must first erase the
current settings. See

Clearing the Garage

Door Opener

(page 143).

GARAGE DOOR OPENER
PRECAUTIONS

WARNING:

Do not use the system

with any garage door opener that does
not have the safety stop and reverse
feature as required by U.S. Federal
Safety Standards (this includes any
garage door opener manufactured
before April 1, 1982). A garage door
opener which cannot detect an object,
signaling the door to stop and reverse,
does not meet current federal safety
standards. Using a garage door opener
without these features increases the risk
of serious injury or death.

Note:

Make sure that the garage door and

security device are free from obstruction
when you are programming. Do not program
the system with your vehicle in the garage.

Note:

Make sure you keep the original

remote control transmitter for use in other
vehicles as well as for future system
programming.

Note:

We recommend that upon the sale

or lease termination of your vehicle, you
erase the programmed function buttons for
security reasons. See

Clearing the Garage

Door Opener

(page 143).

GARAGE DOOR OPENER
LIMITATIONS

Canadian radio-frequency laws require
transmitter signals to time-out (or quit)
after several seconds – which may not be
long enough for HomeLink to pick up the
signal.

U.S. gate operators time-out in the same
manner.

141

Garage Door Opener

(If Equipped)

Note:

If programming a garage door opener

or gate operator, it is advised to unplug the
device during the “cycling” process to
prevent possible overheating.

PROGRAMMING THE GARAGE
DOOR OPENER TO YOUR
HAND-HELD TRANSMITTER

This process is to program your in-vehicle
HomeLink function button with your
hand-held transmitter.

Note:

The programming steps below

assume you will be programming HomeLink
that was not previously programmed. If your
HomeLink was previously programmed, you
may need to erase your HomeLink buttons.
See

Clearing the Garage Door Opener

(page 143).

E188212

With your vehicle parked outside of the
garage, switch your ignition to the on
position, but do not start your vehicle.

2. Press and release one of the three

HomeLink function buttons that you
would like to program.

3. Hold your hand-held garage door

transmitter 1–3 in (2–8 cm) away from
the HomeLink button you want to
program.

4. Press and hold the hand-held

transmitter button you want to
program while watching the indicator
light on HomeLink. Continue to hold
the hand-held button until the
HomeLink indicator light flashes rapidly
or is continuously on.

Note:

You may need to use a different

method if you live in Canada or have
difficulties programming your gate operator
or garage door opener. See

Programming

the Garage Door Opener to Your Gate
Opener Motor

(page 143).

5. Press and hold the HomeLink button

you programmed for two seconds, then
release. You may need to do this twice
to activate the door.

Note:

If the indicator light stays on, the

programming is complete.

Note:

If the HomeLink indicator flashes

rapidly, repeat step 5.

Note:

If your device still does not operate,

you must program your garage door. See

Programming the Garage Door Opener to
Your Garage Door Opener Motor

(page

142).

6. To program additional buttons, repeat

Steps 1 – 4.

PROGRAMMING THE GARAGE
DOOR OPENER TO YOUR
GARAGE DOOR OPENER
MOTOR

E142659

142

Garage Door Opener

(If Equipped)

Press the learn button on the garage
door opener motor, you have 30
seconds to complete the next two
steps.

2. Return to your vehicle.

E188212

3. Press and hold one of the three

HomeLink function buttons you want
to program for two seconds, then
release. Repeat this step. Depending
on your brand of garage door opener,
you may need to repeat this sequence
a third time.

PROGRAMMING THE GARAGE
DOOR OPENER TO YOUR GATE
OPENER MOTOR

Gate Operator / Canadian
Programming

Canadian radio-frequency laws require
transmitter signals to “time-out” (or quit)
after several seconds of transmission –
which may not be long enough for
HomeLink to pick up the signal during
programming. Similar to this Canadian law,
some U.S. gate operators “time-out” in the
same manner.

Note:

If programming a garage door opener

or gate operator, it is advised to unplug the
device during the “cycling” process to
prevent possible overheating.

Press and release, every two seconds,
your hand-held transmitter until the
HomeLink indicator light changes to a
rapidly blinking or continuously on light.

2. Release the hand-held transmitter

button.

3. Press and hold the HomeLink function

button you want to program for two
seconds, then release. You may need
to do this twice to activate the door.

Note:

If the indicator light stays on, the

programming is complete.

Note:

If the HomeLink indicator flashes

rapidly, repeat Step 3.

Note:

If your device still does not operate,

you must program your garage door. See

Programming the Garage Door Opener to
Your Garage Door Opener Motor

(page

142).

4. To program additional buttons, repeat

Steps 1 – 4.

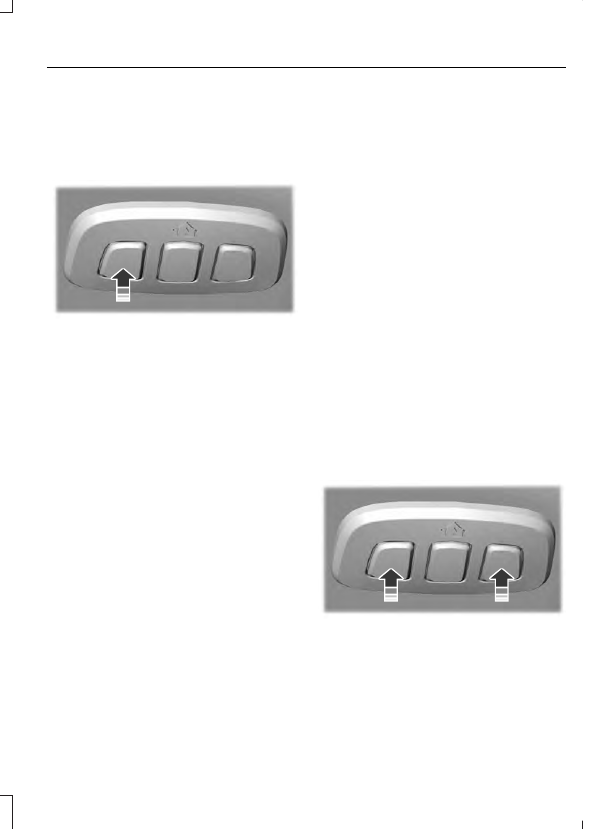

CLEARING THE GARAGE DOOR
OPENER

E188213

Press and hold the outer two function
buttons simultaneously for
approximately 10 seconds until the
indicator light above the buttons
flashes rapidly.

143

Garage Door Opener

(If Equipped)

2. When the indicator light flashes,

release the buttons.

Note:

You cannot erase individual buttons.

REPROGRAMMING THE
GARAGE DOOR OPENER

To program a device to a previously trained
button, follow these steps:

Press and hold the desired button. Do
NOT release the button.

2. The indicator light begins to flash after

20 seconds. Without releasing the
button, follow programming steps.

GARAGE DOOR OPENER
RADIO FREQUENCIES

FCC and RSS-210 Industry Canada
Compliance

WARNING:

Changes or

modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met.

This device complies with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that could cause undesired
operation.

This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment. End Users must
follow the specific operating instructions
for satisfying RF exposure compliance. This
transmitter must be at least 8 in (20 cm)
from the user and must not be co-located
or operating in conjunction with any other
antenna or transmitter.

144

Garage Door Opener

(If Equipped)

12 Volt DC Power Point

WARNING:

Do not plug optional

electrical accessories into the cigar
lighter socket. Incorrect use of the cigar
lighter can cause damage not covered
by the vehicle warranty, and can result
in fire or serious injury.

Note:

When you switch the ignition on, you

can use the socket to power 12 volt
appliances with a maximum current rating
of 15 amps.

If the power supply does not work after you
switch the ignition off, switch the ignition
on.

Note:

Do not hang any accessory from the

accessory plug.

Note:

Do not use the power point over the

vehicle capacity of 12 volt DC 180 watts or
a fuse may blow.

Note:

Always keep the power point caps

closed when not in use.

Do not insert objects other than an
accessory plug into the power point. This
damages the power point and may blow
the fuse.

Run the vehicle for full capacity use of the
power point.

To prevent the battery from running out of
charge:
•

Do not use the power point longer than
necessary when the vehicle is not
running.

•

Do not leave devices plugged in
overnight or when you park your vehicle
for extended periods.

Locations

Power points may be in the following
locations:
•

On the front of the center console.

•

Inside the center console.

145

Auxiliary Power Points

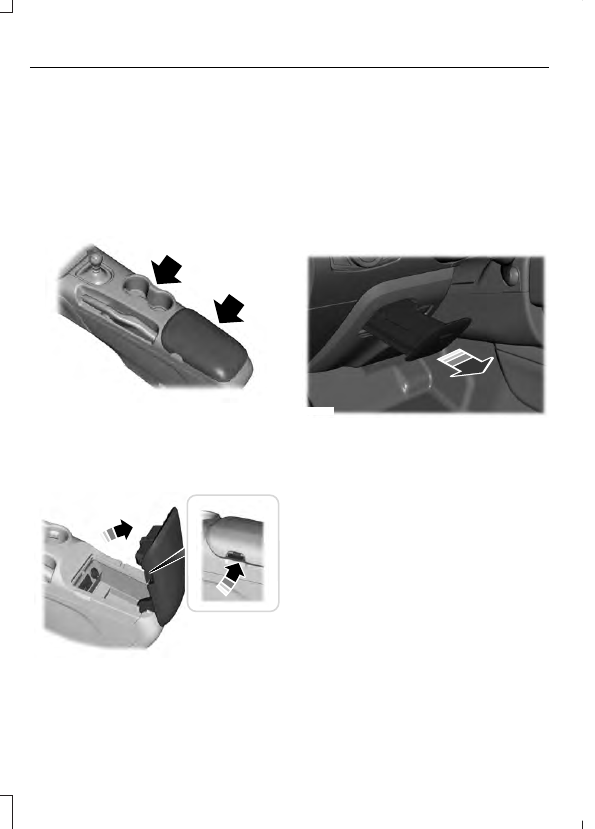

CENTER CONSOLE

Stow items in the cup holder carefully as
items could become loose during hard
braking, acceleration or crashes, including
hot drinks which could spill.

The console includes:
•

Cup holder.

•

Storage compartment.

E209039

Lift the latch to open the storage
compartment to access the following
features:
•

Auxiliary power point.

•

USB port.

E175706

Locking Storage Bin

(If Equipped)

The storage bin locks when you
electronically lock the doors. The bin
unlocks when you use the remote control
to unlock the driver door.

Note:

You cannot lock the storage bin when

the vehicle is on.

GLASSES HOLDER

E188216

Press near the center of the door to open
it. Pull out the tray.

146

Storage Compartments

GENERAL INFORMATION

WARNING:

Extended idling at high

engine speeds can produce very high
temperatures in the engine and exhaust
system, creating the risk of fire or other
damage.

WARNING:

Do not park, idle or

drive your vehicle on dry grass or other
dry ground cover. The emission system
heats up the engine compartment and
exhaust system, creating the risk of fire.

WARNING:

Do not start the engine

in a closed garage or in other enclosed
areas. Exhaust fumes can be toxic.
Always open the garage door before you
start the engine.

WARNING:

Exhaust leaks may

result in entry of harmful and potentially
lethal fumes into the passenger
compartment. If you smell exhaust
fumes inside your vehicle, have your
vehicle inspected immediately. Do not
drive if you smell exhaust fumes.

If you disconnect the battery, your vehicle
may exhibit some unusual driving
characteristics for approximately 5 mi
(8 km) after you reconnect it. This is
because the engine management system
must realign itself with the engine. You
can disregard any unusual driving
characteristics during this period.

The powertrain control system meets all
Canadian interference-causing equipment
standard requirements regulating the
impulse electrical field or radio noise.

When you start the engine, avoid pressing
the accelerator pedal before and during
operation. Only use the accelerator pedal
when you have difficulty starting the
engine.

KEYLESS STARTING

Note:

The keyless starting system may not

function if the key is close to metal objects
or electronic devices such as cellular
phones.

Note:

A valid key must be located inside

your vehicle to switch the ignition on and
start the engine.

Ignition Modes

E248637

The keyless starting system has three
modes:

Off:

Turns the ignition off.

•

Without applying the brake pedal,
press and release the button once
when the ignition is in the on mode, or
when the engine is running but the
vehicle is not moving.

On:

All electrical circuits are operational

and the warning lamps and indicators
illuminate.

•

Without applying the brake pedal,
press and release the button once.

Start:

Starts the engine.

147

Starting and Stopping the Engine

•

Press the brake pedal (automatic
transmission) or clutch pedal (manual
transmission), and then press the
button for any length of time. An
indicator light on the button illuminates
when the ignition is on and when the
engine starts.

STEERING WHEEL LOCK

(IF

EQUIPPED)

Your vehicle has an electronically
controlled steering wheel lock that
automatically operates.

The steering wheel will lock shortly after
you have parked your vehicle and the
passive key is outside it or when you lock
your vehicle.

Note:

The steering wheel will not lock when

the ignition is on or when your vehicle is
moving.

Unlocking the Steering Wheel

The steering wheel unlocks when the
system detects a valid passive key inside
your vehicle. If the steering wheel relocks,
switch the ignition on to unlock it.

Note:

You may have to slightly rotate the

steering wheel to assist unlocking it.

STARTING A GASOLINE
ENGINE

When you start the engine, the idle speed
increases, this helps to warm up the
engine. If the engine idle speed does not
slow down, have your vehicle checked as
soon as possible.

Note:

You can crank the engine for a total

of 60 seconds without the engine starting
before the starting system temporarily
disables. The 60 seconds does not have to
be all at once. For example, if you crank the
engine three times for 20 seconds each
time, without the engine starting, you
reached the 60-second time limit. A
message appears in the information display
alerting you that you exceeded the cranking
time. You cannot attempt to start the
engine for at least 15 minutes. After 15
minutes, you are limited to a 15-second
engine cranking time. You need to wait 60
minutes before you can crank the engine for
60 seconds again.

Before starting the engine, check the
following:
•

Make sure all occupants have fastened
their seatbelts.

•

Make sure the headlamps and
electrical accessories are off.

•

Make sure the parking brake is on.

•

Move the transmission selector lever
to park (P) (automatic transmission)
or neutral (N) (manual transmission)

Note:

Do not touch the accelerator pedal.

Note:

You must have your intelligent access

key in the vehicle in order to shift the
transmission out of position

Fully press the brake pedal.

2. Press the button.

The system does not function if:
•

The key frequencies are jammed.

•

The key battery has no charge.

If you are unable to start the engine, do the
following:

148

Starting and Stopping the Engine

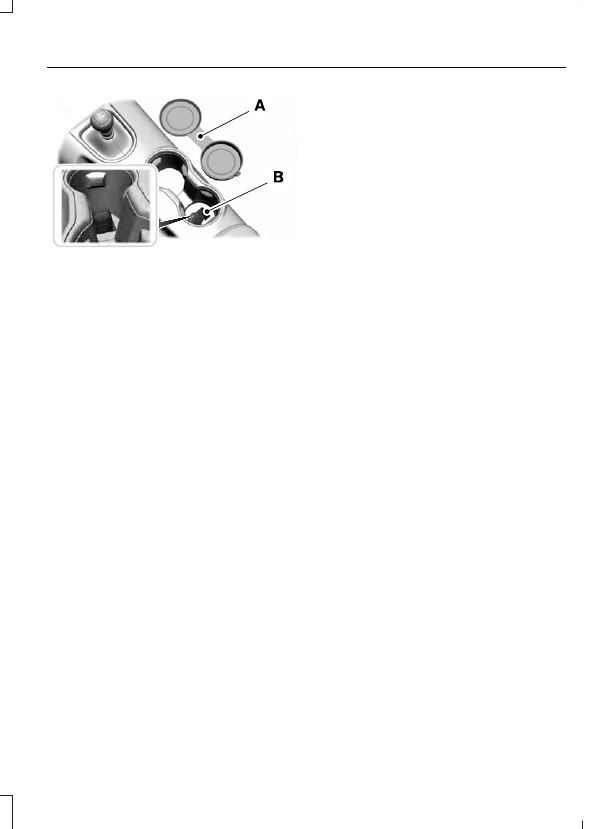

E174956

Remove the rubber covering (A) in the
cupholder.

2. Place the remote in the backup slot (B)

with the buttons facing up and the
keyring toward the front of the vehicle.

3. With the key in this position, press the

brake pedal (automatic transmission)
or clutch pedal (manual transmission),
then the START button to switch the
ignition on and start your vehicle.

Fast Restart

The fast restart feature allows you to
restart the engine within 20 seconds of
switching it off, even if a valid key is not
present.

Within 20 seconds of switching the engine
off, press the brake pedal (automatic
transmission) or clutch pedal (manual
transmission) and press the button. After
20 seconds have expired, you can no
longer restart the engine without the key
present inside your vehicle.

Once the engine has started, it remains
running until you press the button, even if
the system does not detect a valid key. If
you open and close a door while the engine
is running, the system searches for a valid
key. You cannot restart the engine if the
system does not detect a valid key within
20 seconds.

Failure to Start

If you cannot start the engine after three
attempts, wait 10 seconds and follow this
procedure:

If your vehicle has an automatic
transmission, fully press the brake
pedal. If your vehicle has a manual
transmission, fully press the clutch
pedal and apply the handbrake.

2. Move the transmission selector lever

to park (P) (automatic transmission)
or neutral (N) (manual transmission).

3. Fully press the accelerator pedal and

hold it there.

4. Attempt to start your vehicle and wait

until the engine stops cranking.

5. Release the accelerator pedal.

6. Start the engine.

Automatic Engine Shutdown

Your vehicle has a feature that
automatically shuts down the engine if it
has been idling for an extended period. The
ignition also turns off in order to save
battery power. Before the engine shuts
down, a message appears in the
information display showing a timer
counting down from 30 seconds. If you do
not intervene within 30 seconds, the engine
shuts down. Another message appears in
the information display to inform you that
the engine has shut down in order to save
fuel. Start your vehicle as you normally do.

Automatic Engine Shutdown Override

Note:

You cannot permanently switch off

the automatic engine shutdown feature.
When you switch it off temporarily, it turns
on at the next ignition cycle.

You can stop the engine shutdown, or reset
the timer, at any point before the
30-second countdown has expired by
doing any of the following:

149

Starting and Stopping the Engine

•

You can reset the timer by interacting
with your vehicle, such as pressing the
brake pedal or accelerator pedal.

•

You can temporarily switch off the
shutdown feature any time the ignition
is on for the current ignition cycle only.
Use the information display to do so.
See

Information Displays

(page 99).

•

During the countdown before engine
shutdown, you are prompted to press
OK or RESET, depending on your type
of information display, to temporarily
switch the feature off for the current
ignition cycle only.

Stopping the Engine When Your
Vehicle is Stationary

Move the transmission selector lever
to park (P) (automatic transmission)
or neutral (N) (manual transmission).

2. Press the button once.

3. Apply the parking brake.

Note:

This switches off the ignition, all

electrical circuits, warning lamps and
indicators.

Note:

If the engine is idling for 30 minutes,

the ignition and engine automatically shut
down.

Stopping the Engine When Your
Vehicle is Moving

WARNING:

Switching off the

engine when your vehicle is still moving
results in a significant decrease in
braking assistance. Higher effort is
required to apply the brakes and to stop
your vehicle. A significant decrease in
steering assistance could also occur. The
steering does not lock, but higher effort

could be required to steer your vehicle.
When you switch the ignition off, some
electrical circuits, for example airbags,
also turn off. If you unintentionally switch
the ignition off, shift into neutral (N) and
restart the engine.

Press and hold the button for one
second, or press it three times within
two seconds.

2. Move the transmission selector lever

to the neutral position and use the
brakes to bring your vehicle to a safe
stop.

3. When your vehicle has stopped, move

the transmission selector lever to park
(P) (automatic transmission) or
neutral (N) (manual transmission).

4. Apply the parking brake.

Guarding Against Exhaust Fumes

WARNING:

Exhaust leaks may

Important Ventilating Information

If you stop your vehicle and the leave the
engine idling for long periods, we
recommend that you do one of the
following:

•

Open the windows at least 1 in
(2.5 cm).

•

Set your climate control to outside air.

150

Starting and Stopping the Engine

ENGINE BLOCK HEATER

(IF

EQUIPPED)

WARNING:

Failure to follow engine

block heater instructions could result in
property damage or serious personal
injury.

WARNING:

Do not use your heater

with ungrounded electrical systems or
two-pronged adapters. There is a risk of
electrical shock.

WARNING:

Do not fully close the

hood, or allow it to drop under its own
weight when using the engine block
heater. This could damage the power
cable and may cause an electrical short
resulting in fire, injury and property
damage.

Note:

The heater is most effective when

outdoor temperatures are below 0°F
(-18°C).

The heater acts as a starting aid by
warming the engine coolant. This allows
the climate control system to respond
quickly. The equipment includes a heater
element, installed in the engine block and
a wire harness. You can connect the
system to a grounded 120-volt AC
electrical source.

We recommend that you do the following
for a safe and correct operation:
•

Use a 16-gauge outdoor extension cord
that is product certified by
Underwriter’s Laboratory (UL) or
Canadian Standards Association
(CSA). This extension cord must be
suitable for use outdoors, in cold

temperatures, and be clearly marked
Suitable for Use with Outdoor
Appliances. Do not use an indoor
extension cord outdoors. This could
result in an electric shock or become a
fire hazard.

•

Use as short an extension cord as
possible.

•

Do not use multiple extension cords.

•

Make sure that when in operation, the
extension cord plug and heater cord
plug connections are free and clear of
water. This could cause an electric
shock or fire.

•

If the block heater cord is under the
hood, Do Not remove the wiring from
its original location. Do Not close the
hood on the extension wiring.

•

Make sure your vehicle is parked in a
clean area, clear of combustibles.

•

Make sure the heater, heater cord and
extension cord are firmly connected.

•

Check for heat anywhere in the
electrical hookup once the system has
been operating for approximately 30
minutes.

•

Make sure the system is unplugged and
properly stowed before starting and
driving your vehicle. Make sure the
protective cover seals the prongs of the
block heater cord plug when not in use.

•

Make sure the heater system is
checked for proper operation before
winter.

Using the Engine Block Heater

Make sure the receptacle terminals are
clean and dry prior to use. Clean them with
a dry cloth if necessary.

151

Starting and Stopping the Engine

SAFETY PRECAUTIONS

WARNING:

Do not overfill the fuel

tank. The pressure in an overfilled tank
may cause leakage and lead to fuel spray
and fire.

WARNING:

The fuel system may

be under pressure. If you hear a hissing
sound near the fuel filler inlet, do not
refuel until the sound stops. Otherwise,
fuel may spray out, which could cause
serious personal injury.

WARNING:

Fuels can cause serious

injury or death if misused or mishandled.

WARNING:

Fuel may contain

benzene, which is a cancer-causing
agent.

WARNING:

When refueling always

shut the engine off and never allow
sparks or open flames near the fuel tank
filler valve. Never smoke or use a cell
phone while refueling. Fuel vapor is
extremely hazardous under certain
conditions. Avoid inhaling excess fumes.

Follow these guidelines when refueling:
•

Extinguish all smoking materials and
any open flames before refueling your
vehicle.

•

Always switch the engine off before
refueling.

•

Automotive fuels can be harmful or
fatal if swallowed. Fuel is highly toxic
and if swallowed can cause death or
permanent injury. If fuel is swallowed
immediately call a physician, even if no
symptoms are immediately apparent.
The toxic effects of fuel may not be
apparent for hours.

•

Avoid inhaling fuel vapors. Inhaling fuel
vapor can lead to eye and respiratory
tract irritation. In severe cases,
excessive or prolonged breathing of
fuel vapor can cause serious illness and
permanent injury.

•

Avoid getting fuel in your eyes. If you
splash fuel in your eyes, immediately
remove contact lenses (if worn), flush
with water for 15 minutes and seek
medical attention. Failure to seek
proper medical attention could lead to
permanent injury.

•

Fuels can be harmful if absorbed
through the skin. If you splash fuel on
your skin, clothing or both, promptly
remove contaminated clothing and
thoroughly wash your skin with soap
and water. Repeated or prolonged skin
contact causes skin irritation.

•

Be particularly careful if you are taking
Antabuse or other forms of Disulfiram
for the treatment of alcoholism.
Breathing fuel vapors could cause an
adverse reaction, serious personal
injury or sickness. Immediately call a
physician if you experience any adverse
reactions.

FUEL QUALITY

Choosing the Right Fuel

E161513

Your vehicle is designed to operate on
regular unleaded gasoline with a minimum
pump (R+M)/2 octane rating of 87.

153

Fuel and Refueling

Ford Mustang (2022 year). Manual in english - page 9
