Truck Info

Gauge View

Digital Speedometer

Engine Information

Maintenance Monitor

Transmission Temperature

•

Engine Information - Shows engine hours, engine idle hours and engine oil temp and
oil life.

Settings

Select Your Setting

Lighting

Vehicle

Advanced
Settings

Easy Entry/Exit

Locks

FordPass

Windows

Wiper Controls

Select Your Setting

Measurement
Units

Displ.
Settings

Temperature
Units

Tire Pressure

Language

Information Displays

INFORMATION MESSAGES

Note:

Depending on your vehicle options

and instrument cluster type, not all of the
messages will display or be available. The
information display may abbreviate or
shorten certain messages.

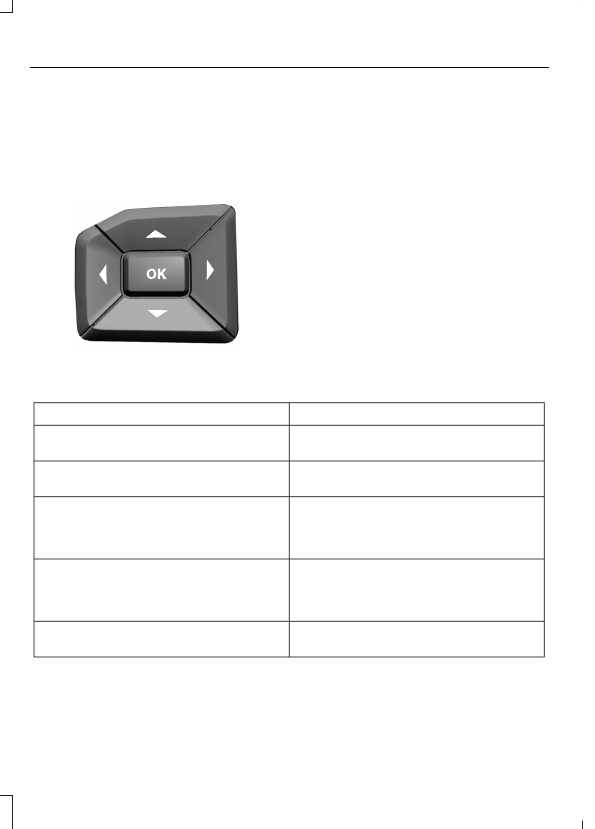

E184451

Press the

button to acknowledge and

remove some messages from the
information display. The information
display will automatically remove other
messages after a short period of time.

You need to confirm certain messages
before you can access the menus.

Adaptive Cruise Control

Action

Message

The radar requires service and is preventing
the adaptive cruise control from engaging.

Adaptive Cruise Malfunction

A condition exists such that the adaptive

cruise cannot function properly.

Adaptive Cruise Not Available

You have a blocked sensor due to

inclement weather, ice, mud or water in

front of the radar sensor. You can typically

clean the sensor to resolve.

Adaptive Cruise Not Available Sensor

Blocked See Manual

The system has disabled the automatic

braking. Verify the system is on, if the

message continues to display have the

system checked as soon as possible.

Normal Cruise Active Adaptive Braking Off

The radar requires service and is preventing
the adaptive cruise control from engaging.

Front Sensor Not Aligned

Information Displays

Action

Message

The adaptive cruise has reinstated controls

to the driver. Take control of your vehicle.

Adaptive Cruise - Driver Resume Control

Your vehicle speed is too low to activate

the adaptive cruise. Increase your vehicle's

speed to use the system.

Adaptive Cruise Speed Too Low to Activate

The adaptive cruise is automatically

adjusting the gap distance and you need to

shift the transmission into a lower gear.

Adaptive Cruise Shift Down

Automatic Engine Shutdown

Action

Message

The engine is getting ready to shut off.

Vehicle Shuts Off In {seconds:#0} Seconds

The engine has shut off to help increase

fuel economy.

Vehicle Shut Off to Save Energy

The engine is getting ready to shut off.

Press and hold the

button to override

the system.

Vehicle Shuts Off in {seconds:#0} Seconds

Press Ok to Override

Information Displays

Battery and Charging System

Action

Message

The charging system requires service. If the

warning stays on or continues to come on,

have the system checked as soon as

possible.

Check Charging System

The battery management system detects

an extended low-voltage condition. Your

vehicle will disable various features to help

preserve the battery. Turn off as many of

the electrical loads as soon as possible to

help improve system voltage. If the system

voltage has recovered, the disabled

features will operate again as normal.

Low Battery Features Temporarily Turned

Off

The battery management system determ-

ines that the battery is at a low state of

charge. Turn your ignition off as soon as

possible to protect the battery. This

message will clear once you restart your

vehicle and the battery state of charge has

recovered. Turning off unnecessary elec-

trical loads will allow faster battery state-

of-charge recovery.

Turn Power Off To Save Battery

Diesel Messages

WARNING:

When the

Exhaust

Filter Cleaning

message appears in the

information display, do not park near
flammable materials, vapors or
structures until filter cleaning is
complete.

Information Displays

Action

Message

Your vehicle has entered the cleaning

mode. Various engine actions raises the

exhaust temperature in the diesel particu-

late filter system to burn off the particles,

exhaust soot. After the vehicle burns the

particles off, the exhaust temperature

returns to normal levels.

Exhaust Filter Cleaning

The diesel particulate filter is full of

particles, exhaust soot, and you are not

operating the vehicle in a manner that

allows normal cleaning. Drive the vehicle

above 30 mph (48 km/h) until the message

clears.

Exhaust Filter Overloaded Drive to Clean

Exhaust Filter Overloaded Clean Now

Exhaust Filter at Limit Clean Now

Exhaust Filter at Limit Drive to Clean Now

The exhaust system temperature exceeded
the intended operating range. If this warning
occurs, a tone sounds, followed by reduced
engine power. The engine shuts down when

your vehicle speed is below 3 mph

(5 km/h). Stop the vehicle as soon as safely
possible. Have the system checked as soon

as possible.

Exhaust System Overheated Stop Safely

NOW

In extremely cold weather, typically below

-15°F (-26°C) and if the engine block heater
is not utilized, your engine will not respond
to accelerator pedal movement for a short

period of time. This restriction allows your

engine to properly circulate the oil to avoid

engine damage.

Engine Warming Please Wait {seconds:00}

sec

The diesel particulate filter is clean.

Exhaust Filter Drive Complete

The diesel filter is clean, operator

commanded regeneration only.

Exhaust Filter Cleaned

The manual regeneration process has

stopped, operator commanded regenera-

tion only.

Exhaust Filter Cleaning Stopped

The distance you can travel before

depleting the remaining diesel exhaust fluid.

DEF Level Low Range: distance

imperial:###0 mi Refill Now

DEF Level Low Range: distance

metric:###0 km Refill Now

Information Displays

Action

Message

The diesel exhaust fluid is nearing empty.

Your vehicle's top speed will become

limited in the displayed distance. You must
replenish the diesel exhaust fluid to resume

normal operation of your vehicle. See

Selective Catalytic Reductant System

(page 118).

DEF Level Empty Speed Limited to avg

speed imperial:#0 MPH in distance

imperial:###0 mi

DEF Level Empty Speed Limited to avg

speed metric:#0 km/h in distance

metric:###0 km

The remaining diesel exhaust fluid has

depleted. Upon restart, your vehicle speed

is now limited. You must replenish the
diesel exhaust fluid to resume normal

operation of your vehicle. See

Selective

Catalytic Reductant System

(page 118).

DEF Level Empty Speed Limited to avg

speed imperial:#0 MPH Upon Restart

DEF Level Empty Speed Limited to avg

speed metric:#0 km/h Upon Restart

The diesel exhaust fluid is empty. You must
replenish the diesel exhaust fluid to resume

normal operation of your vehicle. See

Selective Catalytic Reductant System

(page 118).

DEF Level Empty Speed Limited to avg

speed imperial:#0 MPH

DEF Level Empty Speed Limited to avg

speed metric:#0 km/h

The selective catalytic reduction system

detects low exhaust fluid. The engine will

eventually enter into an idle only mode. You

must replenish diesel exhaust fluid to

resume normal operation of your vehicle.

See

Selective Catalytic Reductant

System

(page 118).

DEF Level Empty Engine Idled Soon

The selective catalytic reduction requires

service and is causing your vehicle to enter

an idle-only mode. If the exhaust fluid is

empty, you must replenish the diesel

exhaust fluid to resume normal operation

of your vehicle. See

Selective Catalytic

Reductant System

(page 118).

DEF Level Empty Engine Idled See Manual

The selective catalytic reduction system

requires service. The system displays your

vehicle's top speed limit and distance

before limitation. Have the system checked

as soon as possible.

DEF Fault Speed Limited to avg speed

imperial:#0 MPH in distance imperial:###0

DEF Fault Speed Limited to avg speed

metric:#0 km/h in distance metric:###0

Information Displays

Action

Message

The selective catalytic reduction system

requires service. Upon restart, your vehicle

speed is now limited. Have the system

checked as soon as possible.

DEF Fault Speed Limited to avg speed

imperial:#0 MPH Upon Restart

DEF Fault Speed Limited to avg speed

metric:#0 km/h Upon Restart

The selective catalytic reduction system

requires service. The system displays your

vehicle's top speed limit. Have the system

checked as soon as possible.

DEF Fault Speed Limited to avg speed

imperial:#0 MPH

DEF Fault Speed Limited to avg speed

metric:#0 km/h

Have your vehicle checked as soon as

possible. Ignoring this warning message

could lead to reduced drivability and

customer expense, including damage to

the diesel particulate filter. Your new

vehicle warranty may not cover this

damage.

Exhaust Filter Over Limit Service Now

The water separator has reached a prede-

termined capacity and needs draining. See

Draining the Fuel Filter Water Trap

(page 231).

Water in Fuel Drain Filter

A low fuel pressure condition has occurred
due to cold, low fuel level or fuel filters need

to be changed. See

Fuel Quality

(page

106).

Fuel Pressure Low

Doors and Locks

Action

Message

The driver door is not completely closed.

Close the driver door. If the message

continues to display, have the system

checked as soon as possible.

Driver Door Ajar

The passenger door is not completely

closed. Close the passenger door. If the
message continues to display, have the

system checked as soon as possible.

Passenger Door Ajar

Information Displays

Driver Alert

Action

Message

Stop and rest as soon as it is safe to do so.

Driver Alert Warning Rest Now

Take a rest soon.

Driver Alert Warning Rest Suggested

Drivetrain

Action

Message

The electronic locking differential requires
service. Have the system checked as soon

as possible.

Check Locking Differential

Engine

Action

Message

The engine has reduced power to help

reduce high engine temperature. Have the

system checked as soon as possible.

Power Reduced to Lower Engine Temp

Fuel

Action

Message

An early reminder of a low fuel condition.

Refuel your vehicle.

Fuel Level Low

A fuel fill inlet may not be properly closed.

Check Fuel Fill Inlet

Information Displays

Lane Departure Warning System

Action

Message

The system has detected a condition that

has caused the system to be temporarily

unavailable. If the message continues to

display, have the system checked as soon

as possible.

Front Camera Temporarily Not Available

The system has detected a condition that

requires you to clean the windshield in order

for it to operate properly.

Front Camera Low Visibility Clean Screen

The system requires service, have the

system checked as soon as possible.

Front Camera Malfunction Service Required

The system requests you to keep your

hands on the steering wheel.

Keep Hands on Steering Wheel

Maintenance

Action

Message

Stop your vehicle as soon as safely possible
and turn off the engine. Check the oil level,
if the warning stays on or continues to come

on with your engine running, have your

vehicle checked as soon as possible.

Low Engine Oil Pressure

The engine oil life is low and needs to be

changed soon.

Change Engine Oil Soon

The engine oil life is low and needs to be

changed immediately.

Oil Change Required

The brake fluid level is low, have the system

checked as soon as possible.

Brake Fluid Level Low

The brake system requires service. Stop

your vehicle in a safe place. Have the

system checked as soon as possible.

Check Brake System

Your vehicle is still in transport or factory

mode. This may not allow some features

to operate properly. Have your vehicle

checked as soon as possible.

Factory Mode Contact Dealer

Transport Mode Contact Dealer

The powertrain requires service.

See Manual

Information Displays

Power Steering

Action

Message

The power steering system requires service.

Have the system checked as soon as

possible.

Steering Fault Service Now

The power steering system is not working.
Stop your vehicle in a safe place. Have the

system checked as soon as possible.

Steering Loss Stop Safely

The power steering system, passive entry

or passive entry start system requires

service. Have the system checked as soon

as possible.

Steering Assist Fault Service Required

The steering lock system requires service.

Have the system checked as soon as

possible.

Steering Lock Malfunction Service Now

Pre-Collision Assist

Action

Message

The system requires service. Have the

system checked as soon as possible.

Pre-Collision Assist Not Available

You have a blocked sensor due to

inlcement weather, ice, mud or water in

front of the radar sensor. You can typically

clean the sensor to resolve. If the message

continues to appear, have the system

checked as soon as possible.

Pre-Collision Assist Not Available Sensor

Blocked

Traction Control

Action

Message

The status of the traction control system

after you switched if on. See

Using Trac-

tion Control

(page 148).

Traction Control On

The status of the traction control system

after you switched if off. See

Using Trac-

tion Control

(page 148).

Traction Control Off

Information Displays

Transmission

Action

Message

You switched the engine off and the shift
selector is in any position other than park

(P).

Shift to Park

Displays when the brake pedal needs to be

pressed.

Press Brake Pedal

The transmission is overheating and needs

to cool. Stop in a safe place as soon as

possible.

Transmission Over Temperature Stop

Safely

Have the system checked as soon as

possible.

Transmission Service Required

The transmission is overheating and needs

to cool. Stop in a safe place as soon as

possible.

Transmission Too Hot Press Brake

The transmission has limited functionality.

Have the system checked as soon as

possible.

Transmission Limited Function See Manual

A reminder to shift into park (P). In addi-

tion, this message is typical after recon-

necting or recharging the battery until you

cycle the ignition to the on mode. See

Changing the 12V Battery

(page 245).

Transmission Not in Park

Have the system checked as soon as

possible.

Transmission Fault Service Now

Displays when the transmission has

adjusted the shift strategy.

Transmission Adjusted

Displays when the transmission is adjusting

the shift strategy.

Transmission AdaptMode

Transmission is too cold. Wait for it to warm

up before you drive.

Transmission Warming Up Please Wait

Information Displays

Action

Message

Displays when the transmission shift lever

is locked and unable to select gears.

Transmission IndicatMode Lockup On

Displays when the transmission shift lever

is unlocked and free to select gears.

Transmission IndicatMode Lockup Off

The transmission is overheating and needs

to cool. Stop in a safe place as soon as

possible.

Transmission Overheating Stop Safely

Information Displays

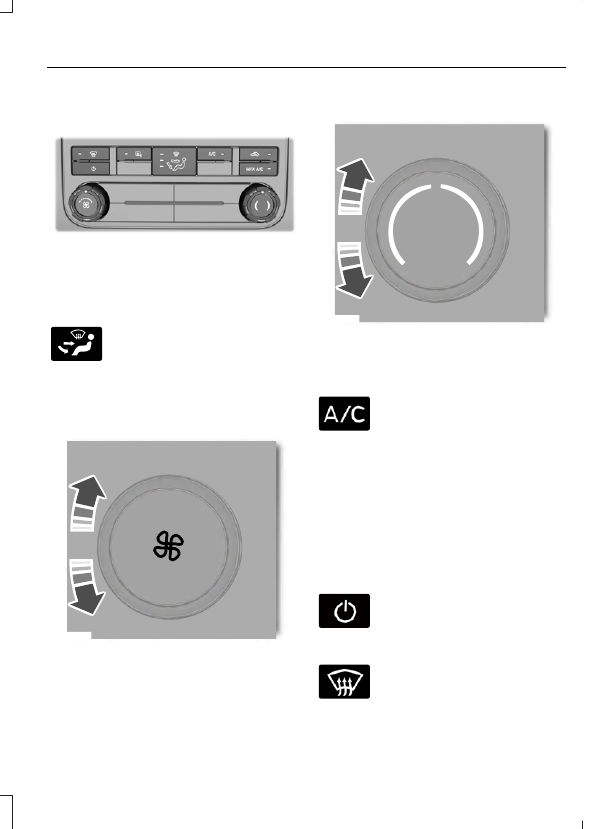

MANUAL CLIMATE CONTROL

E305247

Note:

Depending on your vehicle option

package, the controls may look different
from what you see here.

Directing the Air

E265283

Press and release the button to
direct air between the
instrument panel air vents,

footwell air vents and windshield air vents
and de-mister.

Setting the Blower Motor Speed

E265389

Turn the control to adjust the volume of
air circulated in the vehicle.

Setting the Temperature

E265862

Turn the control to set the temperature.

Switching the Air Conditioning On
and Off

Press and release the button to
switch the air conditioning on or
off.

Use air conditioning with recirculated air
to improve cooling performance and
efficiency.

Note:

In certain conditions (for example,

maximum defrost), the air conditioning
compressor may continue to operate even
though you switch off the air conditioning.

Switching the Climate Control On
and Off

Press and release the button.

Switching Defrost On and Off

Press and release the button to
distribute air through the
windshield air vents and

de-mister.

Climate Control

Air directed to the instrument panel and
footwell air vents turns off. You can also
use this setting to defog and clear the
windshield of a thin covering of ice.

Switching Maximum Air
Conditioning On and Off

Press and release the button for
maximum cooling.

The left-hand and right-hand settings set
to LO, recirculated air flows through the
instrument panel air vents, air conditioning
turns on and the blower motor adjusts to
the highest speed.

Switching Recirculated Air On and
Off

Press and release the button to
switch between outside air and
recirculated air.

The air currently in the passenger
compartment recirculates. This may
reduce the time needed to cool the interior
(when used with A/C) and reduce
unwanted odors from entering your vehicle.

Note:

Recirculated air may turn off (or

prevent you from switching on) in all air flow
modes except MAX A/C to reduce the risk
of fogging. Recirculation may also turn on
and off in various air distribution control
combinations during hot weather in order
to improve cooling efficiency.

HINTS ON CONTROLLING THE
INTERIOR CLIMATE

General Hints

Note:

Prolonged use of recirculated air may

cause the windows to fog up.

Note:

You may feel a small amount of air

from the footwell air vents regardless of the
air distribution setting.

Note:

To reduce humidity build-up inside

your vehicle, do not drive with the system
switched off or with recirculated air always
switched on.

Note:

Do not place objects under the front

seats as this may interfere with the airflow
to the rear seats.

Note:

Remove any snow, ice or leaves from

the air intake area at the base of the
windshield.

Note:

To improve the time to reach a

comfortable temperature in hot weather,
drive with the windows open until you feel
cold air through the air vents.

Quickly Heating the Interior

Adjust the blower motor speed to the
highest speed setting.

2. Adjust the temperature control to the

highest setting.

3. Direct air to the footwell air vents.

Recommended Settings for
Heating

Adjust the blower motor speed to the
center setting.

2. Adjust the temperature control to the

midway point of the hot settings.

3. Direct air to the footwell air vents.

Quickly Cooling the Interior

Select

MAX A/C

2. Drive with the windows open for a short

period of time.

Recommended Settings for
Cooling

Adjust the blower motor speed to the
center setting.

2. Adjust the temperature control to the

midway point of the cold settings.

Climate Control

3. Direct air to the instrument panel air

vents.

Vehicle Stationary for Extended
Periods During Extreme High
Ambient Temperatures

Apply the parking brake.

2. Place your vehicle in park (P) or

neutral.

3. Select

MAX A/C

4. Adjust the blower motor speed to the

lowest speed setting.

Defogging the Side Windows in
Cold Weather

Direct air to the instrument panel and
windshield air vents.

2. Press and release

A/C

3. Adjust the temperature control to the

setting you prefer.

4. Adjust the blower motor speed to the

highest setting.

5. Direct air toward the side windows.

6. Close the instrument panel air vents.

HEATED EXTERIOR MIRRORS

(IF EQUIPPED)

Press the button to clear the
exterior mirrors of thin ice and
fog. Press the button again to

switch them off. They switch off after a
short period of time.

Note:

Do not remove ice from the mirrors

with a scraper or adjust the mirror glass
when it is frozen in place. These actions
could cause damage to the glass and
mirrors.

Note:

Do not clean the mirror housing or

glass with harsh abrasives, fuel or other
petroleum-based cleaning products.

Climate Control

SITTING IN THE CORRECT
POSITION

WARNING:

Do not recline the

seatback as this can cause the occupant
to slide under the safety belt, resulting
in serious injury in the event of a crash.

WARNING:

Do not place objects

higher than the seatback to reduce the
risk of serious injury in the event of a
crash or during heavy braking.

E68595

When you use them properly, the seat,
head restraint, safety belt and airbags will
provide optimum protection in the event
of a crash.

We recommend that you follow these
guidelines:
•

Sit in an upright position with the base
of your spine as far back as possible.

•

Do not recline the seatback more than
30 degrees.

•

Adjust the head restraint so that the
top of it is level with the top of your
head and as far forward as possible.
Make sure that you remain
comfortable.

•

Keep sufficient distance between
yourself and the steering wheel. We
recommend a minimum of 10 in
(25 cm) between your breastbone and
the airbag cover.

•

Hold the steering wheel with your arms
slightly bent.

•

Bend your legs slightly so that you can
press the pedals fully.

•

Position the shoulder strap of the
safety belt over the center of your
shoulder and position the lap strap
tightly across your hips.

Make sure that your driving position is
comfortable and that you can maintain full
control of your vehicle.

HEAD RESTRAINTS

WARNING:

Fully adjust the head

restraint before you sit in or operate your
vehicle. This will help minimize the risk
of neck injury in the event of a crash. Do
not adjust the head restraint when your
vehicle is moving.

WARNING:

The head restraint is a

safety device. Whenever possible it
should be installed and properly
adjusted when the seat is occupied.
Failure to adjust the head restraint
properly could reduce its effectiveness
during certain impacts.

Note:

Adjust the seat backrest to an upright

driving position before adjusting the head
restraint. Adjust the head restraint so that
the top of it is level with the top of your head
and as far forward as possible. Make sure
that you remain comfortable. If you are
extremely tall, adjust the head restraint to
its highest position.

Seats

Ford F-650 / 750 (2022 year). Manual in english - page 5
