Note:

If the system detects a blockage, for

example bird droppings, bug splatter, snow
or ice, the system goes into low beam mode
until you clear the blockage. A message may
appear in the information display if the
camera is blocked.

Note:

Using much larger tires or equipping

vehicle accessories such as snowplows can
modify your vehicle's ride height and
degrade automatic high beam control
performance.

A camera sensor, centrally mounted
behind the windshield of your vehicle,
continuously monitors conditions to turn
the high beams on and off.

Once the system is active, the high beams
turn on if:
•

The ambient light level is low enough.

•

There is no traffic in front of your
vehicle.

•

The vehicle speed is greater than
approximately 32 mph (51 km/h).

The system turns the high beams off if:
•

The ambient light level is high enough
that high beams are not required.

•

The system detects an approaching
vehicle's headlamps or tail lamps.

•

The vehicle speed falls below
approximately 27 mph (44 km/h).

•

The system detects severe rain, snow
or fog.

•

The camera is blocked.

Switching the System On and Off

Switch the system on using the information
display. See

Information Displays

(page

70).

E142451

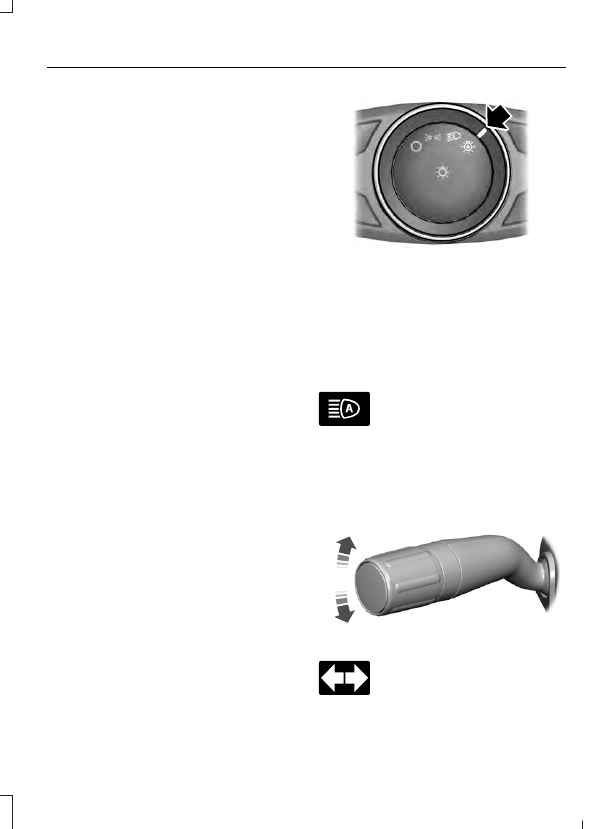

Switch the lighting control to the
autolamps position. See

Autolamps

(page 55).

Overriding the System

Push the lever away from you to switch
between high beam and low beam.

Automatic High Beam Indicator

The indicator illuminates to
confirm when the system is
ready to assist.

DIRECTION INDICATORS

E311431

Push the lever up or down to use
the direction indicators.

Note:

Tap the lever up or down to make the

direction indicators flash three times.

Lighting

INTERIOR LAMPS

The lamps turn on under the following
conditions:
•

You open any door.

•

You press a remote control button.

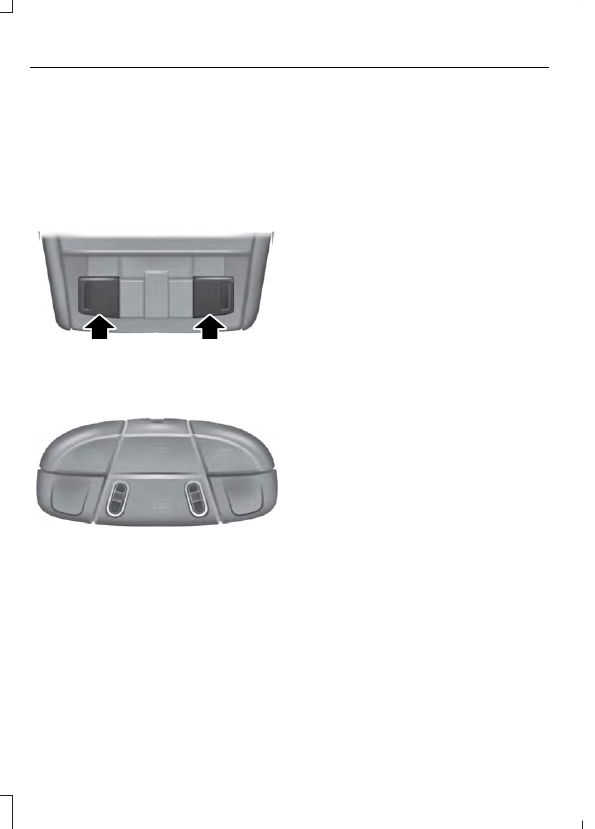

Map Lamps

E163273

Dome and Map Lamps

E163274

Press the button to switch the lamps on
or off.

Lighting

POWER WINDOWS

(IF EQUIPPED)

WARNING:

Do not leave children

unattended in your vehicle and do not
let them play with the power windows.
Failure to follow this instruction could
result in personal injury.

WARNING:

When closing the

power windows, verify they are free of
obstruction and make sure that children
and pets are not in the proximity of the
window openings.

E163056

Note:

You may hear a pulsing noise when

just one of the windows is open. Lower the
opposite window slightly to reduce this
noise.

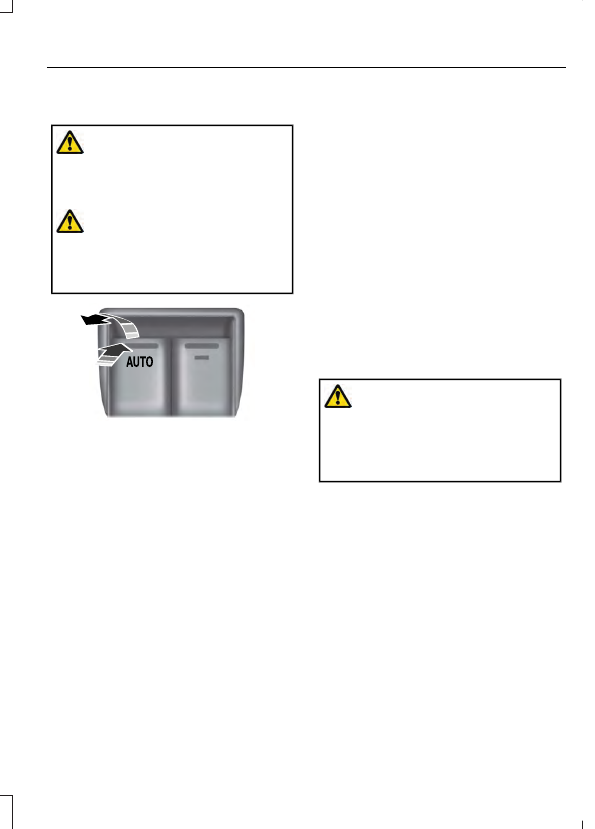

Press the switch to open the window. Lift
the switch to close the window.

One-Touch Up or Down

(If Equipped)

Press or lift the switch fully and release it.
Press or lift it again to stop the window.

Note:

The window may disable for up to

five minutes if you cycle it up and down
repeatedly. This helps prevent damage to
the motor. Normal operation resumes once
the motor cools.

Restoring the One-Touch Up Function

You may lose the one-touch function if the
vehicle battery is low.

Note:

Perform one-touch up re-calibration

with the door closed. Calibrating with the
door open causes the window to bounce
back continuously.

To reset the function after the battery
recharges:

Pull the switch all the way up.

2. Hold the switch until the glass stops

and continue to hold for two seconds.

3. Press the switch down and operate the

window to the full down position.
One-touch up is now functional.

Bounce-Back

The window stops automatically while
closing. It reverses some distance if there
is an obstacle in the way.

Overriding the Bounce-Back Feature

WARNING:

If you override

bounce-back, the window does not
reverse if it detects an obstacle. Take
care when closing the windows to avoid
personal injury or damage to your
vehicle.

Pull up the window switch and hold within
two seconds of the window reaching the
bounce-back position. The window travels
up with no bounce-back protection. The
window stops if you release the switch
before the window closes fully.

Window Lock

(If Equipped)

Press the control to lock or unlock the rear
window controls.

Windows and Mirrors

EXTERIOR MIRRORS

Auxiliary Convex Mirrors

E208233

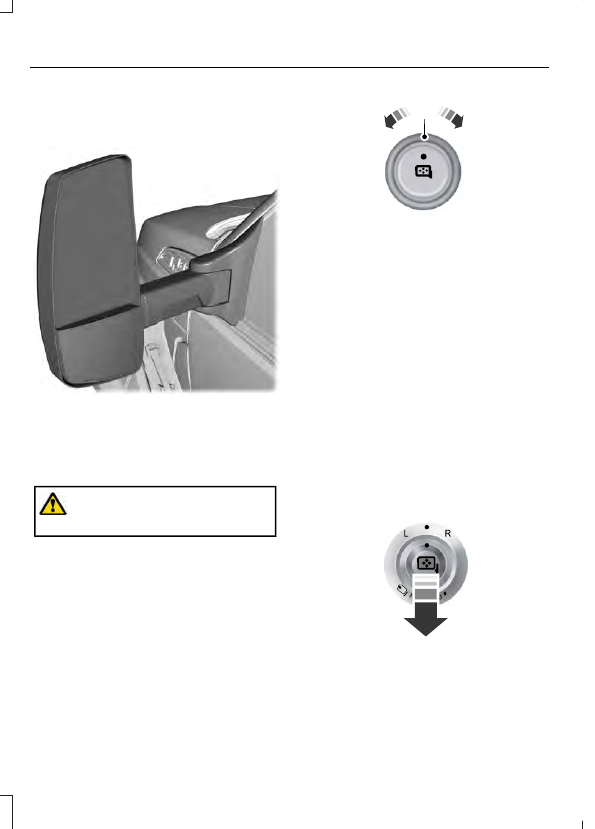

Convex mirrors are a ball-stud design for
precise adjustment to maximize viewing
area.

Power Exterior Mirrors

(If Equipped)

WARNING:

Do not adjust the

mirrors when your vehicle is moving.

E163059

Left–hand mirror.

Off.

Right–hand mirror.

To adjust a mirror:

Rotate the control to select the mirror
you want to adjust.

2. Adjust the position of the mirror.

3. Return the control to the center

position to lock mirrors in place.

Foldaway Exterior Mirrors

For tight parking conditions, you can push
the mirror toward the door window glass.
Before driving, make sure that you fully
engage the mirror in its support when
returning it to its original position.

Power–Folding Mirrors (If Equipped)

E163060

Rotate the control so the dots line up.

2. Pull the control back to fold the mirrors

in or out.

Windows and Mirrors

Note:

If you repeatedly fold and unfold the

mirrors several times within one minute, the
system may disable to protect the motors
from overheating. It resets to normal
function automatically within three to five
minutes.

You can also fold a mirror manually by
pushing it toward the door window glass.
After you manually adjust the mirror, you
need to reset it.

To reset the power–folding mirror system
and return it to its normal function:
•

Fold the mirror manually by pushing it
toward the door window glass.

•

Use the power–fold control to fold and
unfold the mirror two or three times.
The mirror makes a sound as it resets.

Heated Exterior Mirrors

(If Equipped)

See

Heated Exterior Mirrors

(page 87).

Signal Indicator Mirrors

(If Equipped)

The outer portion of the appropriate mirror
housing blinks when you use the direction
indicator.

Clearance Lamps

(If Equipped)

The lower, outer part of the mirror housings
light when you switch on the headlamps
or parking lamps.

Telescoping Mirrors

(If Equipped)

E163061

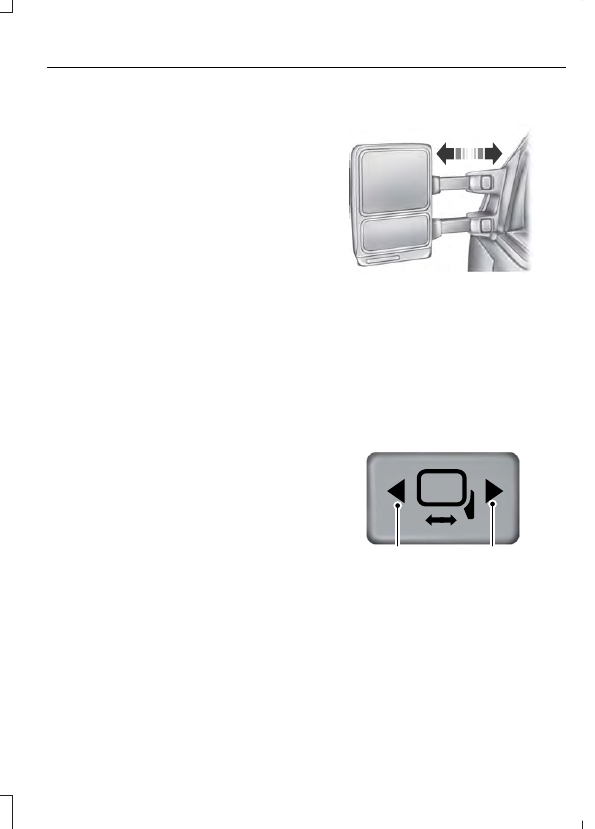

This feature lets you extend the mirror
about 3 in (76 mm). It is useful when
towing a trailer. You can manually pull out
or push in the mirrors to the desired
position.

PowerScope™ Power Telescoping
Mirrors (If Equipped)

This feature lets you position both mirrors
in or out at the same time. The control is
on the door trim panel.

E163062

Telescope out.

Telescope in.

Windows and Mirrors

To adjust the mirrors:
•

Press and hold the control.

•

When you position the mirrors in or out,
the motors run as long as you hold the
control. The running motors allow you
to make adjustments as needed.

•

After positioning the mirrors, return the
control to the center position to help
protect the motors from overheating.

INTERIOR MIRROR

(IF EQUIPPED)

WARNING:

Do not adjust the mirror

when your vehicle is moving.

Note:

Do not clean the housing or glass of

any mirror with harsh abrasives, fuel or other
petroleum or ammonia-based cleaning
products

You can adjust the interior mirror to your
preference. Some mirrors also have a
second pivot point. This lets you move the
mirror head up or down and from side to
side.

Pull the tab below the mirror toward you
to reduce glare at night.

SUN VISORS

Slide-on-rod

(If Equipped)

E138666

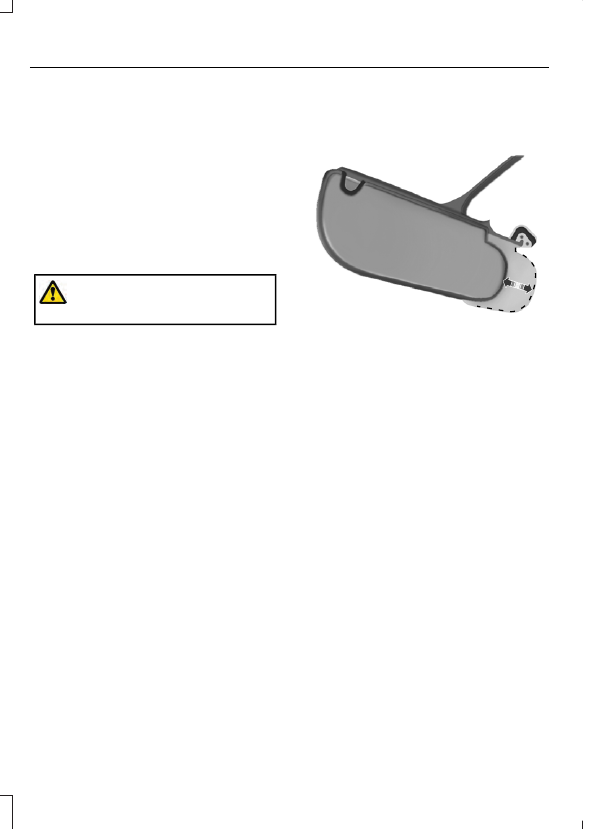

Rotate the sun visor toward the side
window and extend it rearward for extra
shade.

Windows and Mirrors

GAUGES

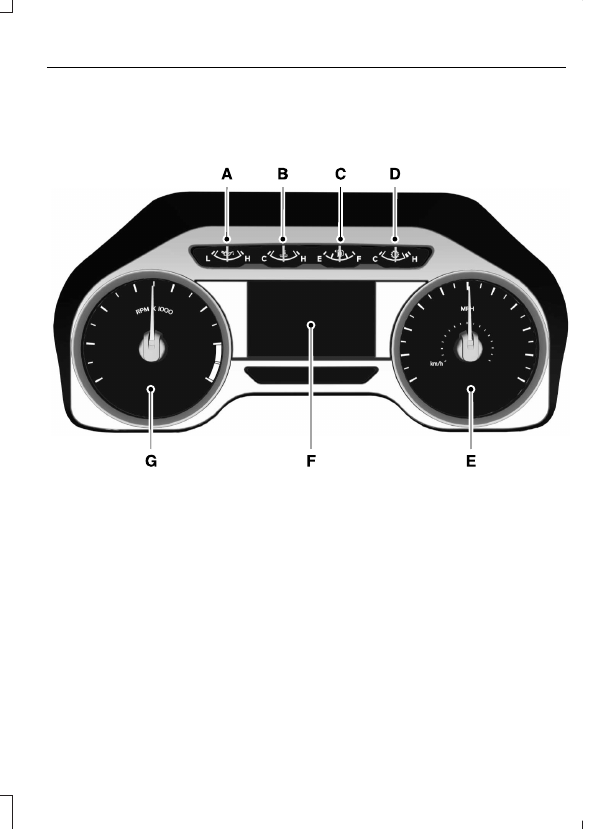

2.3 Inch Display

E219638

Engine oil pressure gauge.

Engine coolant temperature gauge.

Fuel gauge.

Transmission fluid temperature gauge.

Speedometer.

Information display. See

General Information

(page 70).

Tachometer.

Instrument Cluster

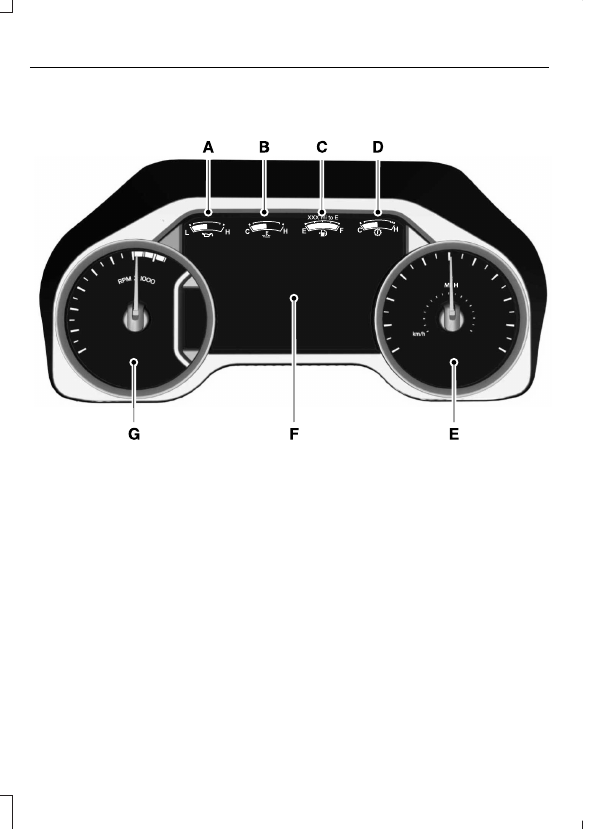

8 Inch Display

E299699

Engine oil pressure gauge.

Engine coolant temperature gauge.

Fuel gauge.

Configurable gauge.

Speedometer.

Information display. See

General Information

(page 70).

Tachometer.

Instrument Cluster

Engine Oil Pressure Gauge

Indicates engine oil pressure. At normal
operating temperature, the level indicator
is in the normal range. If the pressure gauge
falls below the normal range, stop your
vehicle, switch off the engine and check
the engine oil level. Add oil if needed. If the
oil level is correct, have your vehicle
checked by an authorized dealer.

Engine Coolant Temperature
Gauge

WARNING:

Do not remove the

coolant reservoir cap when the engine is
on or the cooling system is hot. Wait 10
minutes for the cooling system to cool
down. Cover the coolant reservoir cap
with a thick cloth to prevent the
possibility of scalding and slowly remove
the cap. Failure to follow this instruction
could result in personal injury.

Indicates engine coolant temperature. At
normal operating temperature, the level
indicator is in the normal range. If the
engine coolant temperature exceeds the
normal range, stop your vehicle as soon as
possible, switch off the engine and let the
engine cool.

Fuel Gauge

The fuel gauge indicates about how much
fuel is in the fuel tank.

The arrow adjacent to the fuel pump
symbol indicates on which side of your
vehicle the fuel filler door is located.

Note:

The fuel gauge may vary slightly

when your vehicle is moving or on a slope.

Low Fuel Reminder

A low fuel level reminder displays and
sounds when the distance to empty
reaches 50 mi (80 km), 25 mi (40 km),
10 mi (20 km) and 0 mi (0 km) for all
vehicle keys.

Note:

The low fuel reminder can appear at

different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.

Distance to Empty

Indicates the approximate distance your
vehicle can travel on the fuel remaining in
the tank. Changes in driving pattern can
cause the value to not only decrease but
also increase or stay constant for periods
of time.

Configurable Gauge

Transmission Fluid Temperature Gauge

Indicates transmission fluid temperature.
At normal operating temperature, the level
indicator is in the normal range. If the
transmission fluid temperature exceeds
the normal range, stop your vehicle as soon
as possible and verify the airflow is not
restricted by snow or debris blocking
airflow through the grille.

Special operating conditions such as
snowplowing, towing, or off-road use may
cause higher than normal operating
temperatures. See

Special Operating

Conditions Scheduled Maintenance

(page 331).

To lower the transmission temperature
into the normal range, alter the severity of
your driving conditions. Operating the
transmission for extended periods with the
gauge in the higher than normal area may
cause internal transmission damage. If the
gauge continues to show high
temperatures, see an authorized dealer.

Instrument Cluster

Diesel Exhaust Fluid Gauge

Indicates the fluid level in the diesel
exhaust fluid (DEF) tank.

Voltmeter

Displays electrical system voltage.

WARNING LAMPS AND
INDICATORS

The following warning lamps and
indicators alert you to a vehicle condition
that may become serious. Some lamps
illuminate when you start your vehicle to
make sure they work. If any lamps remain
on after starting your vehicle, refer to the
respective system warning lamp for further
information.

Note:

Some warning indicators appear in

the information display and operate the
same as a warning lamp but do not
illuminate when you start your vehicle.

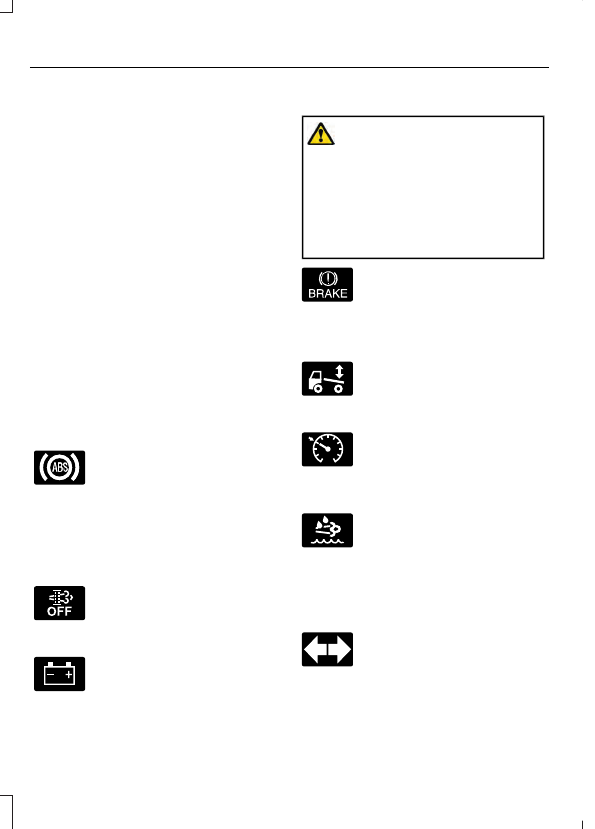

Anti-Lock Braking System

If it illuminates when you are
driving, this indicates a
malfunction. Your vehicle

continues to have normal braking without
the anti-lock brake system function. Have
your vehicle checked as soon as possible.

Automatic Regeneration Control

(If Equipped)

E208811

Illuminates when you switch it
off.

Battery

If it illuminates while driving, it
indicates a malfunction. Switch
off all unnecessary electrical

equipment and have the system checked
by an authorized dealer immediately.

Brake System

WARNING:

Driving your vehicle

with the warning lamp on is dangerous.
A significant decrease in braking
performance may occur. It may take you
longer to stop your vehicle. Have your
vehicle checked as soon as possible.
Driving extended distances with the
parking brake engaged can cause brake
failure and the risk of personal injury.

E209041

Indicates low brake fluid level or
a brake system malfunction.
Have the system checked

immediately by an authorized dealer.

Check Suspension

(If Equipped)

E208808

Illuminates when you press the
air suspension dump switch.

Cruise Control

E71340

Illuminates when you switch on
this feature. See

What Is Cruise

Control

(page 160).

Diesel Exhaust Fluid

(If Equipped)

E163176

Illuminates with the key in the
ON position, when the fluid is
contaminated or the level falls

below 1.0 gal (3.8 L). Refill the tank or, at
a minimum, add at least 1.0 gal (3.8 L) in
the tank.

Direction Indicator

Illuminates when you switch on
the left or right direction
indicator or when you switch on

the hazard warning flashers. If the
indicators stay on or flash faster, check for
a burned out bulb.

Instrument Cluster

Door Ajar

Displays when the ignition is on
and any door is not completely
closed.

Electronic Locking Differential

(If

Equipped)

E163170

Illuminates when using the
electronic locking differential.

Engine Coolant Temperature

If it illuminates when your vehicle
is moving, this indicates that the
engine is overheating. Stop your

vehicle as soon as it is safe to do so and
switch the engine off. Have your vehicle
checked as soon as possible. See

Engine

Coolant Check

(page 237). idk

Engine Oil Pressure

If it illuminates with the engine
running, or when you are driving,
this indicates a malfunction.

Stop your vehicle as soon as it is safe to
do so and switch off the engine. Check the
engine oil level.

Note:

Do not resume your journey if it

illuminates despite the level being correct.
Have the system checked as soon as
possible.

Exhaust Brake On

(If Equipped)

E171217

The exhaust brake indicator light
illuminates when you switch the
exhaust brake on.

Fasten Seatbelt

E71880

Illuminates and a tone sounds
to remind you to fasten your
seatbelt.

High Beam

Illuminates when you switch on
the high beam headlamps. It
flashes when you use the

headlamp flasher.

Hydromax

E146190

Illuminates to indicate normal
hydromax booster reserve
system activation when the

engine is off and the service brake pedal is
applied. This light may also illuminate
momentarily if the engine is running and
the driver turns the steering wheel fully in
one direction while braking. If the light
remains on while the engine is running, this
indicates inadequate hydraulic booster
pressure or reserve pump system failure.
Stop the vehicle as soon as possible and
seek service immediately by your
authorized dealer.

Parking Lamps

Illuminates when you switch the
parking lamps on.

Low Fuel Level

(If Equipped)

Illuminates when the fuel level
is low or the fuel tank is nearly
empty. Refuel as soon as

possible.

Parking Brake Warning

E208810

Illuminates briefly when you
switch the ignition to the on
position, with the engine off. It

also illuminates when you apply the
parking brake. If the park brake lamp does
not illuminate at these times, seek service
immediately. Vehicles with the power
parking brake option: If the park brake
warning lamp begins to blink after setting

Instrument Cluster

the parking brake, this may indicate a
failure in the parking brake system. Have
the system checked as soon as possible.
Driving extended distances with the
parking brake engaged can cause brake
failure and the risk of personal injury.

Parking Lamps

Illuminates when you switch the
low beam headlamps or the
parking lamps on.

Powertrain Malfunction/Reduced

Power/Electronic Throttle Control

(If Equipped)

Illuminates in the event of a
powertrain fault. Contact an
authorized dealer as soon as

possible.

Service Engine Soon

If it illuminates when the engine
is running, the on board
diagnostics system notifies you

that the emission control system requires
service.

If it flashes, engine misfire may be
occurring. Increased exhaust gas
temperatures could damage the catalytic
converter or other vehicle components.
Avoid heavy acceleration and deceleration
and have your vehicle serviced
immediately.

It illuminates when you switch the ignition
on prior to engine start to check the bulb
and to indicate whether your vehicle is
ready for Inspection and Maintenance
(I/M) testing.

Normally, it illuminates until the engine is
cranked and automatically turns off if no
malfunctions are present. However, if after
15 seconds it flashes eight times, this
indicates that your vehicle is not ready for
Inspection and Maintenance (I/M) testing.

See

Catalytic Converter

(page 116).

Stability Control Indicator

(If Equipped)

E138639

Flashes during operation.

If it does not illuminate when you switch
the ignition on, or remains on when the
engine is running, this indicates a
malfunction. Have your vehicle checked
as soon as possible.

Traction Control Indicator

E138639

It flashes during a traction
control event.

If it does not illuminate when you switch
the ignition on, or remains on when the
engine is running, this indicates a
malfunction. Have your vehicle checked
as soon as possible.

Traction Control System Off

E194301

Illuminates when you switch the
system off.

Trailer Anti-Lock Brake System
(ABS)

E209040

Illuminates briefly when you
switch on the ignition, and only
when a PLC trailer or a PLC

diagnostic tool is connected. If the light
fails to illuminate, remains on after you
start the vehicle or continues to flash, have
the system serviced immediately.

Instrument Cluster

Transmission Tow/Haul

E246592

Illuminates when you switch on
the tow/haul feature. If the light
flashes steadily, have the system

serviced immediately, damage to the
transmission could occur.

Two Speed Axle

(If Equipped)

E208809

The Two Speed Axle indicator
comes on when you switch the
low axle range on.

Wait to Start

(If Equipped)

Illuminates when you switch the
ignition on as part of the
pre-start system. Wait until the

wait to start indicator turns off before
attempting to start vehicle.

WARNING:

Do not use starting

fluid, for example ether, in the air intake
system. Such fluid could cause
immediate explosive damage to the
engine and possible personal injury.

Water in Fuel

(If Equipped)

Illuminates when the fuel
filter/water separator has a
significant quantity of water in

it.

If the light illuminates when the engine is
running, stop the vehicle as soon as safely
possible, shut off the engine, then drain the
fuel filter/water separator.

Allowing water to stay in the system could
result in extensive damage to, or failure of,
the fuel injection system.

WARNING:

Do not drain the

water-in-fuel separator while the engine
is running. Failure to follow this warning
may result in fire, serious injury, death or
property damage.

AUDIBLE WARNINGS AND
INDICATORS

Headlamps On Warning Chime

Sounds when you remove the key from the
ignition and open the driver's door and you
have left the headlamps or parking lamps
on.

Key in Ignition Warning Chime

Sounds when you open the driver's door
and you have left the key in the ignition.

Parking Brake On Warning Chime

Sounds when you have left the parking
brake on and drive your vehicle. If the
warning chime remains on after you have
released the parking brake, have the
system checked by your authorized dealer
immediately.

Instrument Cluster

GENERAL INFORMATION

WARNING:

Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the
safe operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.

Note:

Trailer options are not available if

your vehicle speed is greater than 3 mph
(5 km/h).

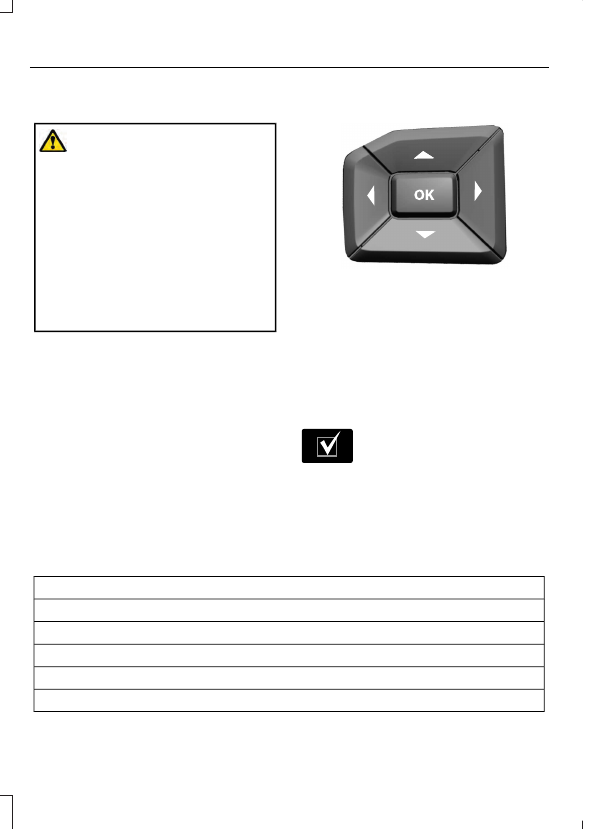

Information Display Controls

E184451

•

Press the up and down arrow buttons
to scroll through and highlight the
options within a menu.

•

Press the right arrow button to enter a
sub-menu.

•

Press the left arrow button to exit a
menu.

•

Press the

button to choose and

confirm settings or messages.

E204495

This icon shows the features on
or off status. A check in the box
indicates the feature is on, and

unchecked indicates the feature is off.

2.3 Inch Display Menu

Note:

Some options could appear slightly

different or not at all if the items are
optional.

Main Menu

Trip 1

Trip 2

Fuel Economy

Driver Assist

Settings

Information Displays

Trip 1 or 2

Displays the following of an individual
journey.

•

Digital speed.

•

Distance.

•

Time.

•

Distance to empty.

•

Average fuel economy.

Note:

Hold

to reset fuel history and

average fuel economy.

Fuel Economy

Displays the following:

•

Instant fuel economy.

•

Average fuel economy.

•

Average speed.

•

Distance to empty.

Note:

Hold

to reset fuel history and

average fuel economy.

Driver Assist

Displays the following:

•

Progressive range select.

•

Engine hours.

•

Voltmeter.

•

Maintenance monitor.

•

Oil Temp.

Settings

Select Your Setting

Auto Regen

Vehicle

Lighting

Locks

FordPass

Windows

Wiper Controls

Select Your Setting

Units

Displ. Settings

Temperature

Language

8 Inch Display Menu

Note:

Some options could appear slightly

different or not at all if the items are
optional.

Information Displays

Main Menu

MyView

Trip/Fuel

Truck Info

Settings

MyView

Trip 1

Fuel Economy

For more options, press the

button.

Configure MyView

Trip/Fuel

Trip 1

Trip 2

Fuel Economy

Fuel History

Trip 1 or 2

Displays the following of an individual
journey.

•

Trip timer.

•

Distance to empty.

•

Trip odometer.

•

Average fuel economy.

Note:

Hold

to reset fuel history and

average fuel economy.

Fuel Economy

Displays your instantaneous fuel usage as
a bar graph and average mpg.

Fuel History

Displays your fuel usage based on time.
The graph is updated each minute with the
fuel economy that you achieved during 30
minutes of driving.

Information Displays

Content .. 2 3 4 5 ..
