AUTOMATIC TRANSMISSION
FLUID CAPACITY AND
SPECIFICATION - DIESEL

Use fluid that meets the defined
specification.

If you do not use fluid that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Note:

Only use MERCON ULV transmission

fluid for automatic transmissions that
require MERCON ULV transmission fluid.
The use of any other fluid could cause
transmission damage.

Capacities

Quantity

Variant

18.1 qt (17.1 L)

1

All.

1

Approximate dry fill capacity. Actual amount could vary during fluid changes.

Materials

Specification

Name

WSS-M2C949-A, MERCON® ULV

Motorcraft® MERCON® ULV Automatic Transmis-
sion Fluid(U.S.)
Motorcraft® MERCON® ULV Automatic Transmis-
sion Fluid / MERCON® ULV huile pour boîtes auto-
matique Motorcraft®(Canada)
XT-12-QULV(U.S. & Canada)

AUTOMATIC TRANSMISSION
FLUID CAPACITY AND
SPECIFICATION - GASOLINE

Use fluid that meets the defined
specification.

If you do not use fluid that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Six-Speed Automatic
Transmission

Note:

Only use MERCON LV transmission

fluid for automatic transmissions that
require MERCON LV transmission fluid. The
use of any other fluid could cause
transmission damage.

487

Capacities and Specifications

Capacities

Quantity

Variant

13.9 qt (13.2 L)

1

6.2L.

1

Approximate dry fill capacity. Actual amount could vary during fluid changes.

Materials

Specification

Name

WSS-M2C938-AMERCON® LV,

Motorcraft® MERCON® LV Automatic Transmission
Fluid(U.S.)
Motorcraft® MERCON® LV Automatic Transmission
Fluid / Huile pour boîte automatique MERCON® LV
Motorcraft®(Canada)
XT-10-QLVC(U.S.)
CXT-10-LV6(Canada)

Ten-Speed Automatic
Transmission

Note:

Only use MERCON ULV transmission

fluid for automatic transmissions that
require MERCON ULV transmission fluid.
The use of any other fluid could cause
transmission damage.

Capacities

Quantity

Variant

18.2 qt (17.2 L)

1

6.2L.

18.2 qt (17.2 L)

1

7.3L .

1

Approximate dry fill capacity. Actual amount could vary during fluid changes.

488

Capacities and Specifications

Materials

Specification

Name

WSS-M2C949-A, MERCON® ULV

Motorcraft® MERCON® ULV Automatic Transmis-
sion Fluid(U.S.)
Motorcraft® MERCON® ULV Automatic Transmis-
sion Fluid / MERCON® ULV huile pour boîtes auto-
matique Motorcraft®(Canada)
XT-12-QULV(U.S. & Canada)

BRAKE FLUID SPECIFICATION

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced brake performance.

Note:

We recommend you use Dot 4 Low

Viscosity (LV) High Performance Brake Fluid
meeting WSS-M6C65-A2 specifications or
ISO 4925 Class 6 standards. If you use any
fluid other than the recommended fluid, it
could cause reduced brake performance
and not meet our performance standards.
Keep brake fluid clean and dry.
Contamination with dirt, water, petroleum
products or other materials could result in
brake system damage and possible failure.

Capacities

Quantity

Variant

Fill as required.

All.

Materials

Specification

Name

WSS-M6C65-A2

Motorcraft® DOT 4 LV High Performance Motor
Vehicle Brake Fluid(U.S.)
Motorcraft® DOT 4 LV High Performance Motor
Vehicle Brake Fluid / Liquide de frein automobile
haute performance DOT 4 LV Motorcraft®(Canada)
PM-20(U.S. & Canada)

489

Capacities and Specifications

TRANSFER CASE FLUID
CAPACITY AND
SPECIFICATION

Use fluid that meets the defined
specification.

If you do not use fluid that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

1.9 qt (1.8 L)

All.

Materials

Specification

Name

WSS-M2C938-AMERCON® LV,

Motorcraft® MERCON® LV Automatic Transmission
Fluid(U.S.)
Motorcraft® MERCON® LV Automatic Transmission
Fluid / Huile pour boîte automatique MERCON® LV
Motorcraft®(Canada)
XT-10-QLVC(U.S.)
CXT-10-LV6(Canada)

FRONT AXLE FLUID CAPACITY
AND SPECIFICATION

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

2.75 qt (2.6 L)

Four-wheel drive without limited slip.

2.75 qt (2.6 L)

1

Four-wheel drive with limited slip.

1

For complete refill of limited slip axles, add 5.4 fl oz. (160 ml) of Additive Friction Modifier

XL-3 or equivalent, meeting specification EST-M2C118-A. Include this friction modifier in
the total lube volume of 2.75 qt (2.6 L).

490

Capacities and Specifications

Materials

Specification

Name

EST-M2C118-A

Motorcraft® Additive Friction Modifier(U.S.)
Motorcraft® Additive Friction Modifier / Additif
modificateur de friction Motorcraft®(Canada)
XL-3(U.S.)
CXL-3(Canada)

WSP-M2C197-A

Motorcraft® SAE 80W-90 Premium Rear Axle
Lubricant(U.S.)
Motorcraft® SAE 80W-90 Premium Axle Lubricant
/ Lubrifiant pour essieux de très haute qualité SAE
80W-90 Motorcraft®(Canada)
XY-80W90-QL(U.S.)
CXY-80W90-1L(Canada)

REAR AXLE FLUID CAPACITY
AND SPECIFICATION - DIESEL

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Rear Axle - 10.5

Capacities

Quantity

Variant

3.3–3.5 qt (3.1–3.3 L)

With Electronic Locking Differential.

3.5–3.6 qt (3.3–3.4 L)

Without Electronic Locking Differential.

Materials

Specification

Name

WSS-M2C942-A

Motorcraft® SAE 75W-85 Premium Synthetic
Hypoid Gear Lubricant(U.S.)
Motorcraft® SAE 75W-85 Premium Synthetic
Hypoid Gear Lubricant / Huile synthétique de haute
qualité pour engrenages hypoïdes SAE 75W-85
Motorcraft®(Canada)
XY-75W85-QL(U.S. & Canada)

491

Capacities and Specifications

Rear Axle - 10.8

Capacities

Quantity

Variant

3.6 qt (3.42 L)

All.

Materials

Specification

Name

WSL-M2C192-A

Motorcraft® SAE 75W-140 Synthetic Rear Axle
Lubricant(U.S.)
Motorcraft® SAE 75W-140 Synthetic Rear Axle
Lubricant / Lubrifiant synthétique pour pont arrière
SAE 75W-140 Motorcraft®(Canada)
XY-75W140-QL(U.S.)
CXY-75W140-1L(Canada)

Rear Axle - 11.8

Capacities

Quantity

Variant

3.78 qt (3.58 L)

1

All.

1

For complete refill of limited slip axles, add 7.1 fl oz. (210 ml) of Additive Friction Modifier

XL-3 or equivalent, meeting Ford Specification EST-M2C118-A. Include this friction modifier
in the total lube volume of 3.78 qt (3.58 L).

492

Capacities and Specifications

Materials

Specification

Name

EST-M2C118-A

Motorcraft® Additive Friction Modifier(U.S.)
Motorcraft® Additive Friction Modifier / Additif
modificateur de friction Motorcraft®(Canada)
XL-3(U.S.)
CXL-3(Canada)

WSL-M2C192-A

Motorcraft® SAE 75W-140 Synthetic Rear Axle
Lubricant(U.S.)
Motorcraft® SAE 75W-140 Synthetic Rear Axle
Lubricant / Lubrifiant synthétique pour pont arrière
SAE 75W-140 Motorcraft®(Canada)
XY-75W140-QL(U.S.)
CXY-75W140-1L(Canada)

REAR AXLE FLUID CAPACITY
AND SPECIFICATION -
GASOLINE

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Rear Axle - 10.5

Capacities

Quantity

Variant

3.3–3.5 qt (3.1–3.3 L)

With Electronic Locking Differential.

3.5–3.6 qt (3.3–3.4 L)

Without Electronic Locking Differential.

493

Capacities and Specifications

Materials

Specification

Name

WSS-M2C942-A

Motorcraft® SAE 75W-85 Premium Synthetic
Hypoid Gear Lubricant(U.S.)
Motorcraft® SAE 75W-85 Premium Synthetic
Hypoid Gear Lubricant / Huile synthétique de haute
qualité pour engrenages hypoïdes SAE 75W-85
Motorcraft®(Canada)
XY-75W85-QL(U.S. & Canada)

Rear Axle - 10.8

Capacities

Quantity

Variant

3.6 qt (3.42 L)

7.3L.

Materials

Specification

Name

WSL-M2C192-A

Motorcraft® SAE 75W-140 Synthetic Rear Axle
Lubricant(U.S.)
Motorcraft® SAE 75W-140 Synthetic Rear Axle
Lubricant / Lubrifiant synthétique pour pont arrière
SAE 75W-140 Motorcraft®(Canada)
XY-75W140-QL(U.S.)
CXY-75W140-1L(Canada)

Rear Axle - 11.8

Capacities

Quantity

Variant

3.78 qt (3.58 L)

1

All.

1

For complete refill of limited slip axles, add 7.1 fl oz. (210 ml) of Additive Friction Modifier

XL-3 or equivalent, meeting Ford Specification EST-M2C118-A. Include this friction modifier
in the total lube volume of 3.78 qt (3.58 L).

494

Capacities and Specifications

Materials

Specification

Name

EST-M2C118-A

Motorcraft® Additive Friction Modifier(U.S.)
Motorcraft® Additive Friction Modifier / Additif
modificateur de friction Motorcraft®(Canada)
XL-3(U.S.)
CXL-3(Canada)

WSP-M2C197-A

Motorcraft® SAE 80W-90 Premium Rear Axle
Lubricant(U.S.)
Motorcraft® SAE 80W-90 Premium Axle Lubricant
/ Lubrifiant pour essieux de très haute qualité SAE
80W-90 Motorcraft®(Canada)
XY-80W90-QL(U.S.)
CXY-80W90-1L(Canada)

Rear Axle - 11.8 (With Heavy Duty Tow Option)

Capacities

Quantity

Variant

3.78 qt (3.58 L)

1

7.3L.

1

For complete refill of limited slip axles, add 7.1 fl oz. (210 ml) of Additive Friction Modifier

XL-3 or equivalent, meeting specification EST-M2C118-A. Include this friction modifier in
the total lube volume of 3.78 qt (3.58 L).

Materials

Specification

Name

EST-M2C118-A

Motorcraft® Additive Friction Modifier(U.S.)
Motorcraft® Additive Friction Modifier / Additif
modificateur de friction Motorcraft®(Canada)
XL-3(U.S.)
CXL-3(Canada)

WSL-M2C192-A

Motorcraft® SAE 75W-140 Synthetic Rear Axle
Lubricant(U.S.)
Motorcraft® SAE 75W-140 Synthetic Rear Axle
Lubricant / Lubrifiant synthétique pour pont arrière
SAE 75W-140 Motorcraft®(Canada)
XY-75W140-QL(U.S.)
CXY-75W140-1L(Canada)

495

Capacities and Specifications

HYDRAULIC POWER
STEERING FLUID CAPACITY
AND SPECIFICATION

Use fluid that meets the defined
specification.

If you do not use fluid that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

Fill as required.

All.

Materials

Specification

Name

WSS-M2C938-AMERCON® LV,

Motorcraft® MERCON® LV Automatic Transmission
Fluid(U.S.)
Motorcraft® MERCON® LV Automatic Transmission
Fluid / Huile pour boîte automatique MERCON® LV
Motorcraft®(Canada)
XT-10-QLVC(U.S.)
CXT-10-LV6(Canada)

496

Capacities and Specifications

VEHICLE IDENTIFICATION
NUMBER

LOCATING THE VEHICLE
IDENTIFICATION NUMBER

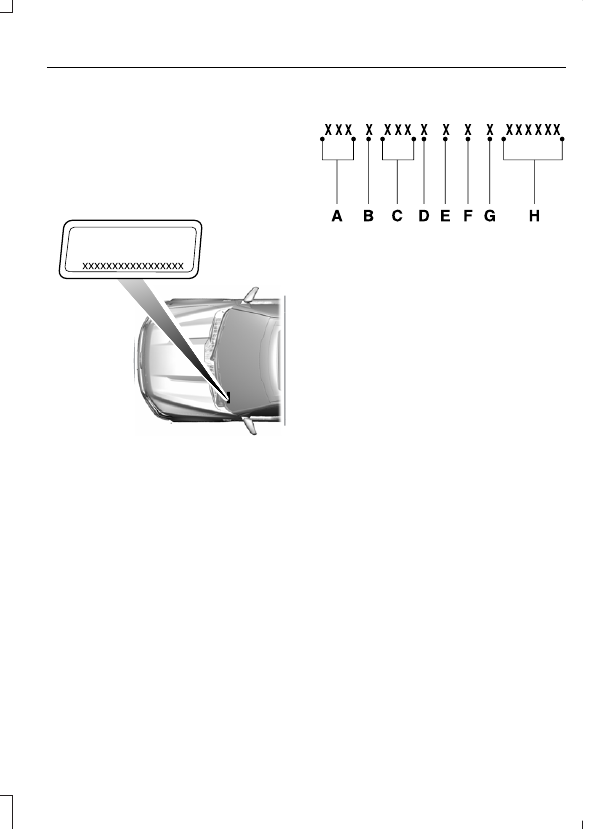

The vehicle identification number is on the
left-hand side of the instrument panel.

E311767

Note:

In the illustration, XXXX is

representative of your vehicle identification
number.

VEHICLE IDENTIFICATION
NUMBER OVERVIEW

The vehicle identification number contains
the following information:

E142477

World manufacturer identifier.

A

Brake system, gross vehicle
weight rating, restraint devices
and their locations.

B

Make, vehicle line, series, body
type.

C

Engine or motor type.

D

Check digit.

E

Model year.

F

Assembly plant.

G

Production sequence number.

H

497

Vehicle Identification

WHAT IS A CONNECTED
VEHICLE

A connected vehicle has technology that
allows your vehicle to connect to a mobile
network and for you to access a range of
features. When used in conjunction with
the FordPass app, it could allow you to
monitor and control your vehicle further,
for example checking the tire pressures,
the fuel level and the vehicle location. For
additional information, refer to the local
Ford website.

CONNECTED VEHICLE
REQUIREMENTS

Connected service and related feature
functionality requires a compatible vehicle
network.

Some remote features require additional
service activation. Log in to your Ford
account for details. Some restrictions, third
party terms and message or data rates
may apply.

CONNECTED VEHICLE
LIMITATIONS

Evolving technology, cellular networks, or
regulations could affect functionality and
availability, or continued provision of some
features. These changes could even stop
some features from functioning.

CONNECTING THE VEHICLE TO
A MOBILE NETWORK

WHAT IS THE MODEM

The modem allows access to a
range of features built into your
vehicle.

ENABLING AND DISABLING THE
MODEM - VEHICLES WITH:
MODEM

1.

Press

Settings

.

2. Press

FordPass Connect

.

3. Press

Connectivity Settings

.

4. Switch connectivity features on or off.

ENABLING AND DISABLING THE
MODEM - VEHICLES WITH: SYNC
3

1.

Select

Settings

.

2. Select

Connectivity Features

.

3. Select

Data sharing

.

4. Switch connectivity features on or off.

CONNECTING FORDPASS TO THE
MODEM

1.

Make sure that the modem is enabled
using the vehicle settings menu.

2. Open the FordPass app on your device

and log in.

3. Add your vehicle or select your vehicle

if already added.

4. Select the option for vehicle details.

5. Select the option to activate your

vehicle.

6. Make sure that the name on the screen

matches the name shown in your
FordPass account.

7.

Confirm that FordPass account is
connected to the modem.

CONNECTING THE VEHICLE TO
A WI-FI NETWORK

1.

Press

Settings

.

2. Press

Wi-Fi

.

498

Connected Vehicle - Vehicles With: SYNC 3

3. Switch

Wi-Fi

 on.

4. Press

View Available Networks

.

5. Select an available Wi-Fi network.

Note:

Enter the network password to

connect to a secure network.

CONNECTED VEHICLE – TROUBLESHOOTING - VEHICLES WITH:
MODEM

Possible Cause and Resolution

Symptom

I cannot confirm the
connection of my FordPass
account to the modem.

–

Modem is not enabled.
•

Switch connectivity features on.

–

Weak network signal.
•

Move your vehicle closer to a place where the
network signal is not obstructed.

499

Connected Vehicle - Vehicles With: SYNC 3

CONNECTED VEHICLE – TROUBLESHOOTING - VEHICLES WITH:
SYNC 3

Possible Cause and Resolution

Symptom

I cannot connect to a Wi-Fi
network.

–

Password error.
•

Enter the correct network password.

–

Weak network signal.
•

Move your vehicle closer to the Wi-Fi hotspot or to
a place where the network signal is not obstructed.

–

Multiple access points in range with the same SSID.
•

Use a unique name for your SSID. Do not use the
default name unless it contains a unique identifier,
for example as part of the MAC address.

The Wi-Fi connection
disconnects after successful
connection.

–

Weak network signal.
•

Move your vehicle closer to the Wi-Fi hotspot or to
a place where the network signal is not obstructed.

I am close to a Wi-Fi hotspot
but the network signal
strength is weak.

–

Obstructed network signal.
•

If your vehicle has a heated windshield, position
your vehicle so that the windshield is not facing the
Wi-Fi hotspot.

•

If your vehicle has metallic tinting on the windows
but not on the windshield, position your vehicle so
that the windshield is facing the Wi-Fi hotspot or
open the windows that are facing the hotspot.

•

If your vehicle has metallic tinting on the windows
and the windshield, open the windows that are
facing the hotspot.

•

If your vehicle is in a garage and you have the
garage door closed, open the garage door.

I cannot see a network in the
list of available networks
that I expect to see.

–

Hidden network.
•

Make the network visible and try again.

500

Connected Vehicle - Vehicles With: SYNC 3

Possible Cause and Resolution

Symptom

I cannot see the Wi-Fi
hotspot name when I search
for Wi-Fi networks on my
cell phone or other device.

–

System limitation.
•

Make sure Wi-Fi hotspot visibility is on.

•

The system does not provide a Wi-Fi hotspot at
this time.

–

Weak network signal.
•

Move your vehicle closer to the Wi-Fi hotspot or to
a place where the network signal is not obstructed.

–

Wi-Fi hotspot in high demand or has a slow Internet
connection.
•

Use a more reliable Wi-Fi hotspot.

Software downloads take
too long.

–

No software update available.

–

Wi-Fi network requires a subscription or acceptance
of terms and conditions.
•

Test the connection using another device. If the
network requires a subscription or acceptance of
terms and conditions, contact the network service
provider.

The system seems to
connect to a Wi-Fi network
and the signal strength is
excellent but the software
does not update.

501

Connected Vehicle - Vehicles With: SYNC 3

WHAT IS A CONNECTED
VEHICLE

A connected vehicle has technology that
allows your vehicle to connect to a mobile
network and for you to access a range of
features. When used in conjunction with
the FordPass app, it could allow you to
monitor and control your vehicle further,
for example checking the tire pressures,
the fuel level and the vehicle location. For
additional information, refer to the local
Ford website.

CONNECTED VEHICLE
REQUIREMENTS

Connected service and related feature
functionality requires a compatible vehicle
network.

Some remote features require additional
service activation. Log in to your Ford
account for details. Some restrictions, third
party terms and message or data rates
may apply.

CONNECTED VEHICLE
LIMITATIONS

Evolving technology, cellular networks, or
regulations could affect functionality and
availability, or continued provision of some
features. These changes could even stop
some features from functioning.

CONNECTING THE VEHICLE TO
A MOBILE NETWORK

WHAT IS THE MODEM

The modem allows access to a
range of features built into your
vehicle.

ENABLING AND DISABLING THE
MODEM

1.

Press

Settings

.

2. Press

Connectivity

.

3. Press

Connected Vehicle Features

.

4. Switch vehicle connectivity on or off.

CONNECTING FORDPASS TO THE
MODEM

1.

Make sure that the modem is enabled
using the vehicle settings menu.

2. Open the FordPass app on your device

and log in.

3. Add your vehicle or select your vehicle

if already added.

4. Select the option for vehicle details.

5. Select the option to activate your

vehicle.

6. Make sure that the name on the screen

matches the name shown in your
FordPass account.

7.

Confirm that FordPass account is
connected to the modem.

CONNECTING THE VEHICLE TO
A WI-FI NETWORK

E280315

Select the settings option on the
feature bar.

1.

Press

Connectivity

.

2. Press

Manage Wi-Fi Networks

.

3. Switch

Wi-Fi

 on.

4. Press

View Available Networks

.

5. Select an available Wi-Fi network.

Note:

Enter the network password to

connect to a secure network.

502

Connected Vehicle - Vehicles With: SYNC 4
