• exact fuel amounts
• towing of your disabled vehicle
• emergency travel expense reimbursement
• travel planning benefits

Using roadside assistance

Complete the roadside assistance identification card and place it in your
wallet for quick reference. In the United States, this card is found in the
Owner Guide portfolio in the glove compartment. In Canada, the card is
found in the Owner Information Guide in the glove compartment.

U.S. Ford or Mercury vehicle customers who require roadside assistance,
call 1–800–241–3673; Lincoln vehicle customers call 1–800–521–4140.

Canadian customers who require roadside assistance, call
1–800–665–2006.

If you need to arrange roadside assistance for yourself, Ford Motor
Company will reimburse a reasonable amount. To obtain reimbursement
information, U.S. Ford or Mercury vehicles customers call
1–800–241–3673; Lincoln vehicle customers call 1–800–521–4140.

Canadian customers who need to obtain reimbursement information, call
1–800–665–2006.

Roadside coverage beyond basic warranty

In the United States, you may purchase additional roadside assistance
coverage beyond this period through the Ford Auto Club by contacting
your authorized dealer.

Similarly in Canada, for uninterrupted Roadside Assistance coverage, you
may purchase extended coverage prior to your Basic Warranty’s Roadside
Assistance expiring. For more information and enrollment, contact
1–877–294–2582 or visit our website at www.ford.ca.

HAZARD FLASHER CONTROL

The hazard flasher is located on the
instrument panel by the radio. The
hazard flashers will operate when
the ignition is in any position or if
the key is not in the ignition.

Push in the flasher control and all
front and rear direction signals will

2007 Monterey (mty)
Owners Guide (post-2002-fmt)
USA
(fus)

Roadside Emergencies

225

-------------------------------------------------------------------------------------------------------------------------------------------------------------

flash. Press the flasher control again to turn them off. Use it when your
vehicle is disabled and is creating a safety hazard for other motorists.

Note: With extended use, the flasher may run down your battery.

FUEL PUMP SHUT-OFF SWITCH

This device stops the electric fuel pump from sending fuel to the engine
when your vehicle has had a substantial jolt.

After an accident, if the engine cranks but does not start, this switch
may have been activated.

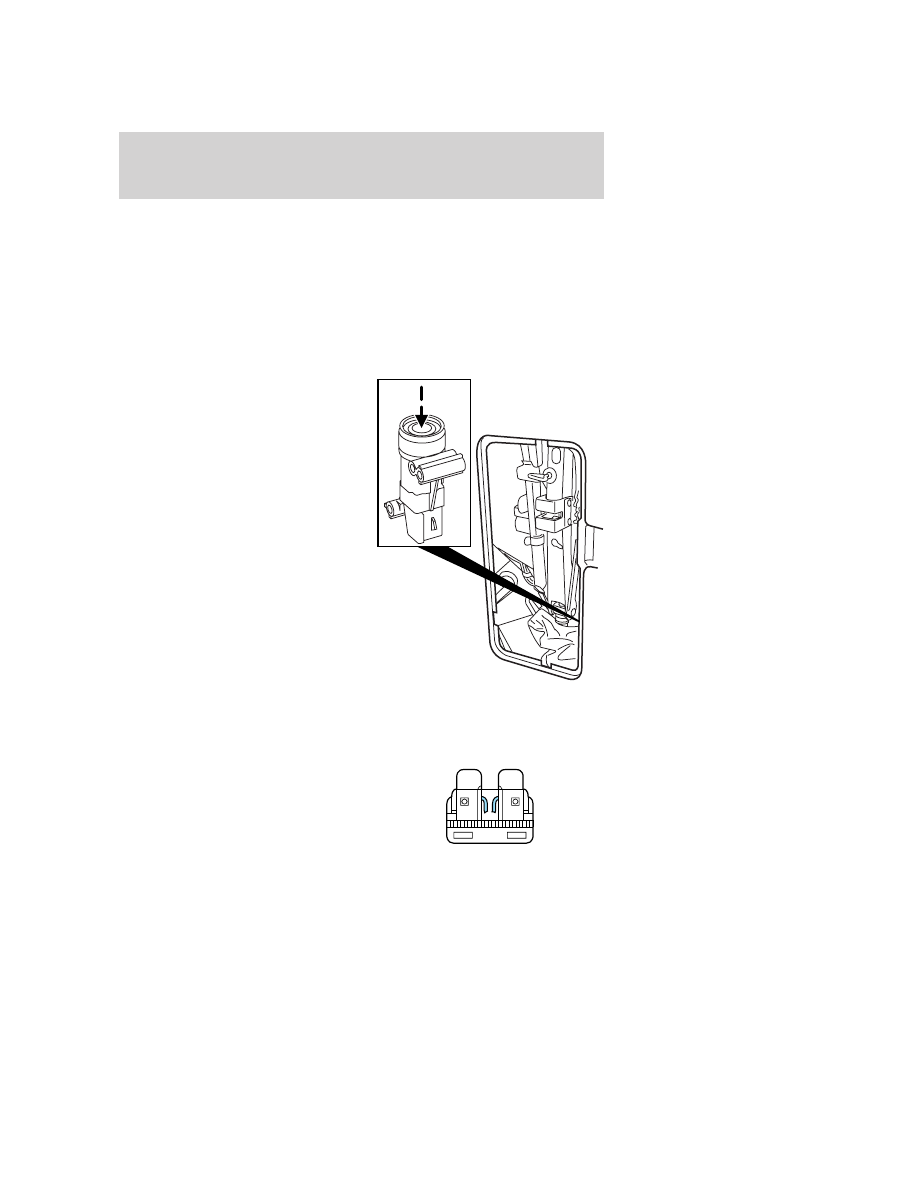

This switch is located behind the
service panel on the right side of
the cargo area.

To reset the switch:

1. Turn the ignition OFF.

2. Check the fuel system for leaks.

3. If no leaks are apparent, reset the
switch by pushing in on the reset
button.

4. Turn the ignition ON.

5. Wait a few seconds and return
the key to OFF.

6. Make another check for leaks.

FUSES AND RELAYS

Fuses

If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.

15

2007 Monterey (mty)
Owners Guide (post-2002-fmt)
USA
(fus)

Roadside Emergencies

226

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Note: Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause severe wire
damage and could start a fire.

Standard fuse amperage rating and color

COLOR

Fuse

rating

Mini

fuses

Standard

fuses

Maxi

fuses

Cartridge

maxi

fuses

Fuse link

cartridge

2A

Grey

Grey

3A

Violet

Violet

4A

Pink

Pink

5A

Tan

Tan

7.5A

Brown

Brown

10A

Red

Red

15A

Blue

Blue

20A

Yellow

Yellow

Yellow

Blue

Blue

25A

Natural

Natural

30A

Green

Green

Green

Pink

Pink

40A

Orange

Green

Green

50A

Red

Red

Red

60A

Blue

Yellow

70A

Tan

Brown

80A

Natural

Black

Passenger compartment fuse panel

The fuse panel is located below and to the left of the steering wheel by
the brake pedal. Remove the panel cover to access the fuses. To remove
the fuse panel cover, pull up on the latch on the right or left side of the
cover.

To remove a fuse use the fuse puller tool provided on the fuse panel
cover.

2007 Monterey (mty)
Owners Guide (post-2002-fmt)
USA
(fus)

Roadside Emergencies

227

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The fuses are coded as follows:

Fuse/Relay

Location

Fuse Amp

Rating

Passenger Compartment Fuse

Panel Description

1

Relay

Accessory delay relay 1

2

Relay

Accessory delay relay 2

3

10A

Front wiper motor Run feed

4

5A

B+ feed to outside mirrors

5

20A

Vent window power feed/Radio
feed

6

5A

Driver door switch
illumination/Passenger door
switch illumination

7

10A

Rear wiper Run feed

8

10A

Cluster/Electronic Automatic
Temperature Control (EATC) B+
feed, DVD

9

10A

Passive Anti-theft System (PATS)
LED feed

10

5A

Auxiliary radio

11

5A

Auxiliary climate control
system/Power Liftgate
Module/Left and right power
sliding door module/Data Link
Connector (DLC)/Clock B+ feeds

2007 Monterey (mty)
Owners Guide (post-2002-fmt)
USA
(fus)

Roadside Emergencies

228

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Fuse/Relay

Location

Fuse Amp

Rating

Passenger Compartment Fuse

Panel Description

12

5A

Brake-Shift Interlock (BSI) Run
feed, Climate control system Run
feed

13

5A

Compass/Driver heated
seat/Passenger heated
seats/Reverse sensing
system/Power Liftgate
Module/Power sliding door Run
feeds

14

5A

Underhood fuse box Run feed,
Front blower Run feed

15

10A

Brake On-Off (BOO) switch B+

16

5A

Steering angle/Cluster/Power
sliding door and power liftgate
inhibit LED/Electrochromatic
mirror Run/Start/Tire Pressure
Monitoring System (TPMS)

17

10A

Restraint Control Module
(RCM)/Passenger Air bag Disable
Indicator (PADI)/Passenger
Occupant Detection System
(PODS) Run/Start

18

10A

Anti-lock Brake System (ABS)
module/Brake pressure
switch/Speed control Run/Start

19

5A

PATS/Cluster/Air bag
LED/Powertrain Control Module
(PCM) relay Run/Start

20

10A

Liftgate Start feed, Radio Start
feed

21

10A

Starter relay power START

2007 Monterey (mty)
Owners Guide (post-2002-fmt)
USA
(fus)

Roadside Emergencies

229

-------------------------------------------------------------------------------------------------------------------------------------------------------------

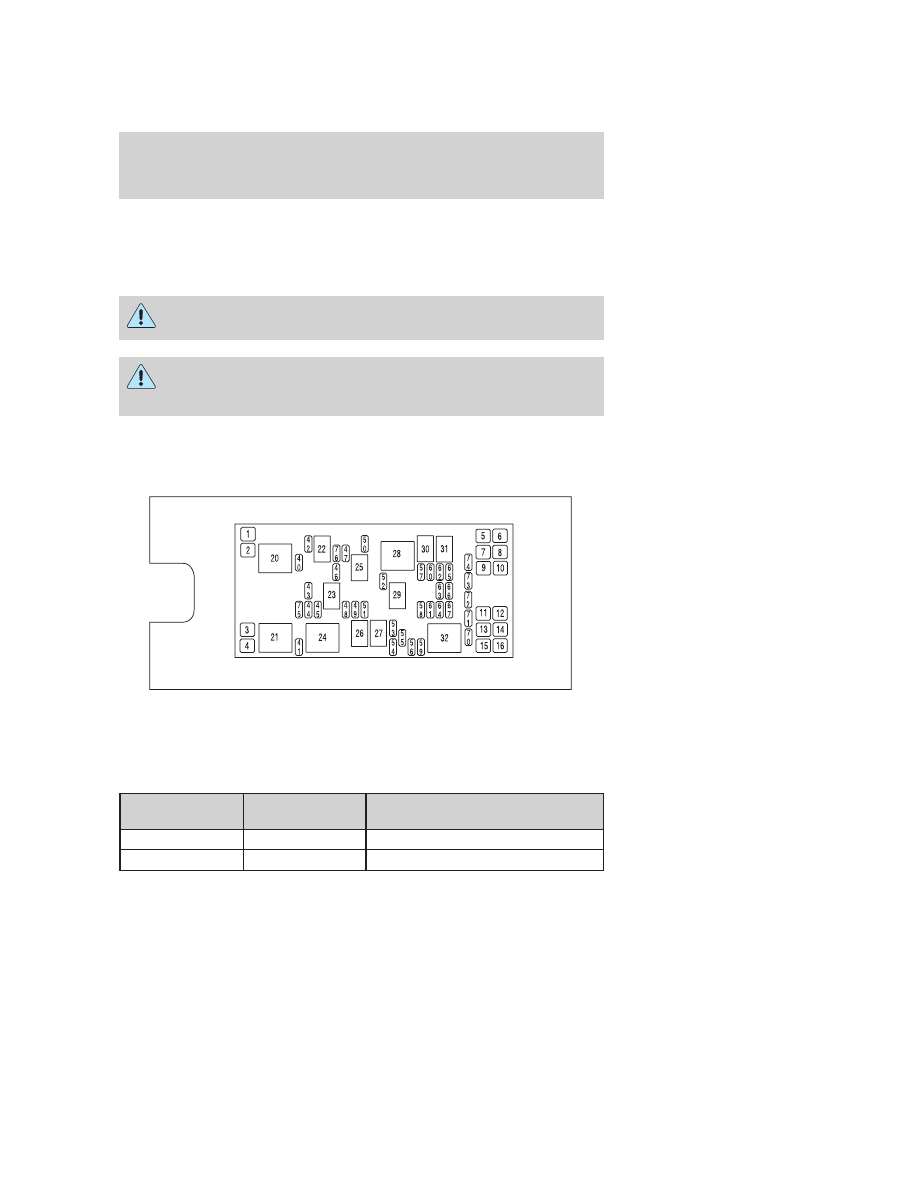

Power distribution box

The power distribution box is located in the engine compartment. The
power distribution box contains high-current fuses that protect your
vehicle’s main electrical systems from overloads.

Always disconnect the battery before servicing high current
fuses.

To reduce risk of electrical shock, always replace the cover to
the Power Distribution Box before reconnecting the battery or

refilling fluid reservoirs.

If the battery has been disconnected and reconnected, refer to the
Battery section of the Maintenance and Specifications chapter.

The cover for the power distribution box can be removed by releasing
the tab on the back left corner of the cover, then pulling the cover up.

The high-current fuses are coded as follows:

Fuse/Relay

Location

Fuse Amp

Rating

Power Distribution Box

Description

1

Not used

2

30A**

Right cooling fan

2007 Monterey (mty)
Owners Guide (post-2002-fmt)
USA
(fus)

Roadside Emergencies

230

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Fuse/Relay

Location

Fuse Amp

Rating

Power Distribution Box

Description

3

30A**

Left cooling fan

4

30A**

Starter solenoid

5

30A**

Right-hand power sliding door

6

30A**

SJB accessory #2 (driver power
window)

7

30A**

Auxiliary blower motor

8

40A**

Anti-lock Brake System (ABS) #2
(coil power)

9

30A**

Power liftgate

10

30A**

SJB accessory #1 (passenger
window, radio, vent windows)

11

30A**

Left power seat/heated seat

12

40A**

ABS #1 (pump motor)

13

40A**

Rear defroster

14

30A**

Front climate control system
blower motor

15

30A**

Right power seat/heated seat

16

30A**

Left-hand power sliding door

20

Mini relay

Powertrain Control Module (PCM)
power

21

Mini relay

Horn

22

Micro relay

A/C clutch

23

Micro relay

High beams

24

Mini relay

Starter

25

Micro relay

Fuel pump

26

Micro relay

Fog lamps

27

Not used

28

Mini relay

Auxiliary blower

29

Micro relay

Trailer park lamps

30

Micro relay

Left trailer stop/turn lamps

31

Micro relay

Right trailer stop/turn lamps

32

Mini relay

Rear defroster

2007 Monterey (mty)
Owners Guide (post-2002-fmt)
USA
(fus)

Roadside Emergencies

231

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Fuse/Relay

Location

Fuse Amp

Rating

Power Distribution Box

Description

40

15A*

Engine #1 (A/C relay coil, IMRC,
HEGO sensors, Canister purge,
Transmission module)

41

25A*

Horn

42

10A*

A/C clutch

43

15A*

Engine #2 (Cooling fan relays,
Injectors, PCM, MAF sensor, IAC,
Ignition coil, ESM)

44

10A*

Heated PCV

45

15A*

High beams

46

20A*

Trailer stop/turn lamps

47

15A*

Fuel pump, Fuel pump shut-off
switch

48

15A*

Fog lamps

49

10A*

PCM KAP, Canister vent

50

10A*

Alternator

51

10A*

Adjustable pedals (non-memory)
or memory module

52

20A*

Trailer tow park lamps

53

10A*

Heated mirrors

54

30A*

Front wiper motor

55

25A*

Rear wiper motor

56

30A*

Premium sound radio

57

Not used

58

30A*

SJB #1 – Center High-Mounted
Stop Lamp (CHMSL), License
plate lamps, OBD II, Dome lamp,
Auxiliary blend doors, Switch
illumination (feeds F–8, F–9, F–10
and F–11)

59

20A*

Radio (non-premium)

60

30A*

SJB #4 – Back-up lamps, Door
locks

2007 Monterey (mty)
Owners Guide (post-2002-fmt)
USA
(fus)

Roadside Emergencies

232

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Fuse/Relay

Location

Fuse Amp

Rating

Power Distribution Box

Description

61

Not used

62

30A*

SJB #3 – Right cornering/auxiliary
lamps, Right low beam, Left front
park/turn lamps, Left rear
park/stop/turn lamps, Instrument
panel courtesy lamps, Step well
lamps, Left signal mirror, Clock,
Cluster, Message center (SJB
F–15), Switch illumination for:
overhead console, DVD/Rear
climate control system, Headlamp
switch illumination, Climate
control illumination

63

20A*

Instrument panel power point,
Cigar lighter

64

20A*

Ignition switch #1 feed

65

30A*

SJB #2 – Left cornering/auxiliary
lamps, Left low beam, Right front
park/turn lamps, Right rear
park/stop/turn lamps, Puddle
lamps, Mirror signals, Visors, 2nd
and 3rd row lamps, Cargo lamp,
Defroster indicator

66

20A*

2nd and 3rd row seat power
points

67

20A*

Ignition switch #2 feed

70

Not used

71

Not used

72

Not used

73

Not used

74

Not used

75

Diode

PCM

76

Diode

A/C clutch

* Mini Fuse ** Cartridge Fuse

2007 Monterey (mty)
Owners Guide (post-2002-fmt)
USA
(fus)

Roadside Emergencies

233

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Auxiliary relay box (cooling fans)

The relay box is located in the engine compartment by the radiator.

Fuse/Relay

location

Fuse amp

rating

Description

1

Cooling fan relay #4

2

Cooling fan relay #5

3

Cooling fan relay #3

4

Cooling fan relay #1

5

Cooling fan relay #2

6

40A*

Right-hand cooling fan motor (Vehicles with
trailer tow package only)

7

15A**

Low-speed cooling fan circuit breaker
(Vehicles with trailer tow package only)

8

40A*

Left-hand cooling fan motor (Vehicles with
trailer tow package)

10A**

Low-speed cooling fan circuit breaker
(Vehicles without trailer tow package)

* Maxi fuse **Circuit breaker

CHANGING A FLAT TIRE

If you get a flat tire while driving:
• do not brake heavily.
• gradually decrease the vehicle’s speed.
• hold the steering wheel firmly.
• slowly move to a safe place on the side of the road.
• If your low tire warning light is on, refer to Low tire warning in this

chapter.

2007 Monterey (mty)
Owners Guide (post-2002-fmt)
USA
(fus)

Roadside Emergencies

234

-------------------------------------------------------------------------------------------------------------------------------------------------------------

The use of tire sealants may damage your tires. The use of tire
sealants may also damage your Tire Pressure Monitoring System

and should not be used.

Your vehicle is equipped with a Tire Pressure Monitoring System.
Refer to Tire Pressure Monitoring System (TPMS) in the

Tires, Wheels and Loading chapter for important information. If the
tire pressure monitor sensor becomes damaged, it will no longer
function.

Dissimilar spare tire/wheel information

Failure to follow these guidelines could result in an increased
risk of loss of vehicle control, injury or death.

If you have a dissimilar spare tire/wheel, then it is intended for
temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire/wheel that is the same size
and type as the road tires and wheels that were originally provided by
Ford. If the dissimilar spare tire or wheel is damaged, it should be
replaced rather than repaired.

A dissimilar spare tire/wheel is defined as a spare tire and/or wheel that
is different in brand, size or appearance from the road tires and wheels
and can be one of three types:

1. T-type mini-spare: This spare tire begins with the letter “T” for tire
size and may have “Temporary Use Only” molded in the sidewall

2. Full-size dissimilar spare with label on wheel: This spare tire has
a label on the wheel that states: “THIS TIRE AND WHEEL FOR
TEMPORARY USE ONLY”

When driving with one of the dissimilar spare tires listed above, do not:
• Exceed 50 mph (80 km/h)
• Load the vehicle beyond maximum vehicle load rating listed on the

Safety Compliance Label

• Tow a trailer
• Use snow chains on the end of the vehicle with the dissimilar spare

tire

• Use more than one dissimilar spare tire at a time

2007 Monterey (mty)
Owners Guide (post-2002-fmt)
USA
(fus)

Roadside Emergencies

235

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• Use commercial car washing equipment
• Try to repair the dissimilar spare tire
Use of one of the dissimilar spare tires listed above at any one wheel
location can lead to impairment of the following:
• Handling, stability and braking performance
• Comfort and noise
• Ground clearance and parking at curbs
• Winter weather driving capability
• Wet weather driving capability
For vehicles equipped with 4WD, it is not recommended that the vehicle
be operated in 4WD modes with a temporary emergency spare tire. If
4WD operation is necessary, do not operate above speeds of 10 mph
(16 km/h) or for distances above 50 miles (80 km).

3. Full-size dissimilar spare without label on wheel

When driving with the full-size dissimilar spare tire/wheel, do not:
• Exceed 70 mph (113 km/h)
• Use more than one dissimilar spare tire/wheel at a time
• Use commercial car washing equipment
• Use snow chains on the end of the vehicle with the dissimilar spare

tire/wheel

The usage of a full-size dissimilar spare tire/wheel can lead to
impairment of the following:
• Handling, stability and braking performance
• Comfort and noise
• Ground clearance and parking at curbs
• Winter weather driving capability
• Wet weather driving capability
• All-Wheel driving capability (if applicable)
• Load leveling adjustment (if applicable)
When driving with the full-size dissimilar spare tire/wheel additional
caution should be given to:
• Towing a trailer
• Driving vehicles equipped with a camper body

2007 Monterey (mty)
Owners Guide (post-2002-fmt)
USA
(fus)

Roadside Emergencies

236

-------------------------------------------------------------------------------------------------------------------------------------------------------------

• Driving vehicles with a load on the cargo rack
Drive cautiously when using a full-size dissimilar spare tire/wheel and
seek service as soon as possible.

Location of the spare tire and tools

Note: The tire pressure monitoring system (TPMS) indicator light will
illuminate when the spare is in use. To restore the full functionality of
the TPMS system, all road wheels equipped with the tire pressure
monitoring sensors must be mounted on the vehicle

Have a flat tire serviced by an authorized dealer in order to prevent
damage to the TPMS sensor, refer to Tire Pressure Monitoring System
(TPMS)
in the Tires, Wheels and Loading chapter. Replace the spare
tire with a road tire as soon as possible.

The spare tire and tools for your vehicle are stowed in the following
locations:

Item

Location

Spare tire

Under the vehicle, just forward of
the rear bumper.

Jack

Behind the access panel located
on the right rear quarter panel
interior trim.

Jack handle

Attached to the jack with a clip.

Flat tire tether, wing screw

Inside tire tether kit, next to jack.

Removing the jack and tools

1. Locate the access panel on the interior trim. Rotate the panel
retaining clip and remove the panel.

2. Remove the jack and lug nut wrench by turning the thumbscrew
counterclockwise to relieve tension against the stowage bracket.

2007 Monterey (mty)
Owners Guide (post-2002-fmt)
USA
(fus)

Roadside Emergencies

237

-------------------------------------------------------------------------------------------------------------------------------------------------------------

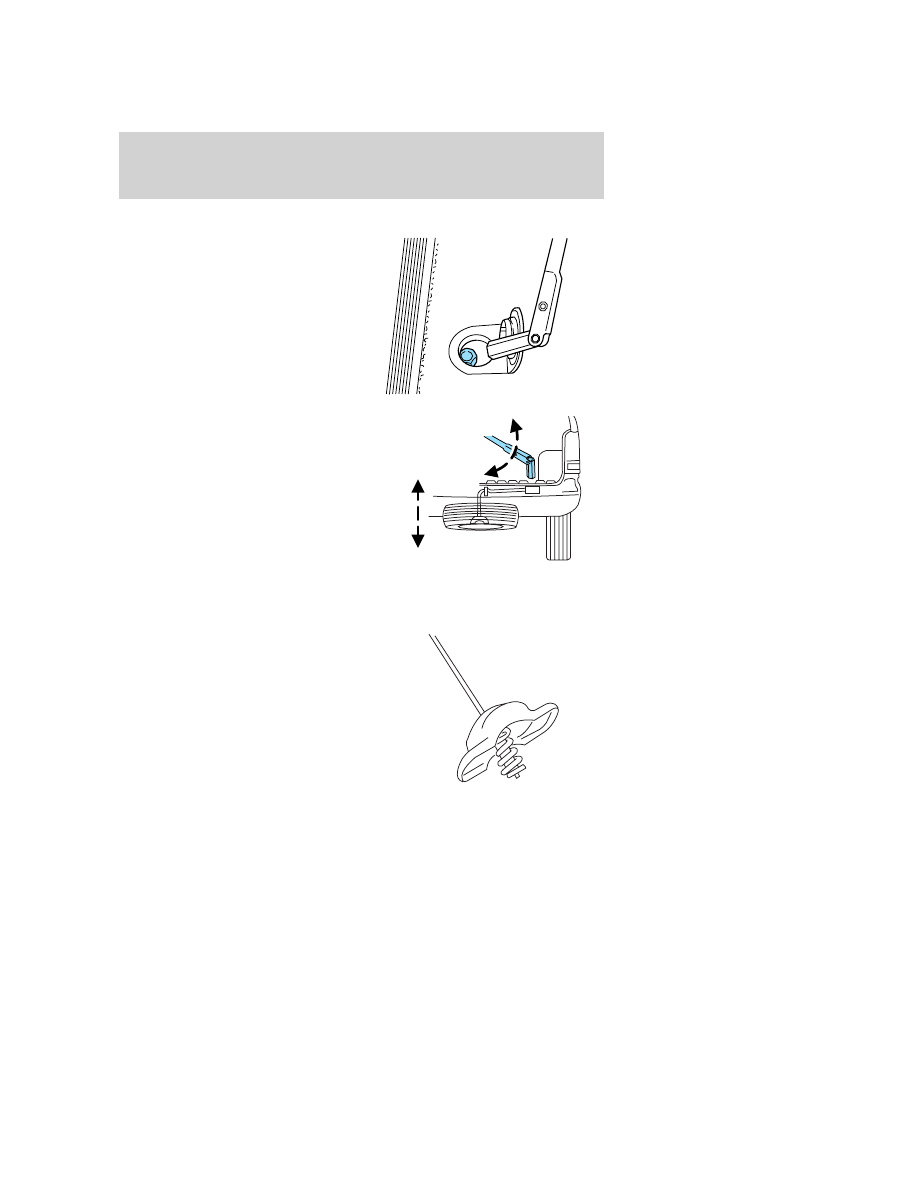

Removing the spare tire

1. Open liftgate and lift flap in the
carpeting on the rear tub cargo floor
to expose the hex nut. Insert the
lug nut wrench on the hex nut in
cargo floor.

2. Turn the wrench
counterclockwise until cable is slack
and tire can be slid rearward.

3. Remove the primary retainer from
the center of the tire.

Note: Do not stow the full size tire or any flat tire under the vehicle.

Stowing the primary tether

Note: If no tire is to be stowed
under the vehicle, raise the primary
tether by turning the wrench
clockwise until the hex nut ratchets.

2007 Monterey (mty)
Owners Guide (post-2002-fmt)
USA
(fus)

Roadside Emergencies

238

-------------------------------------------------------------------------------------------------------------------------------------------------------------

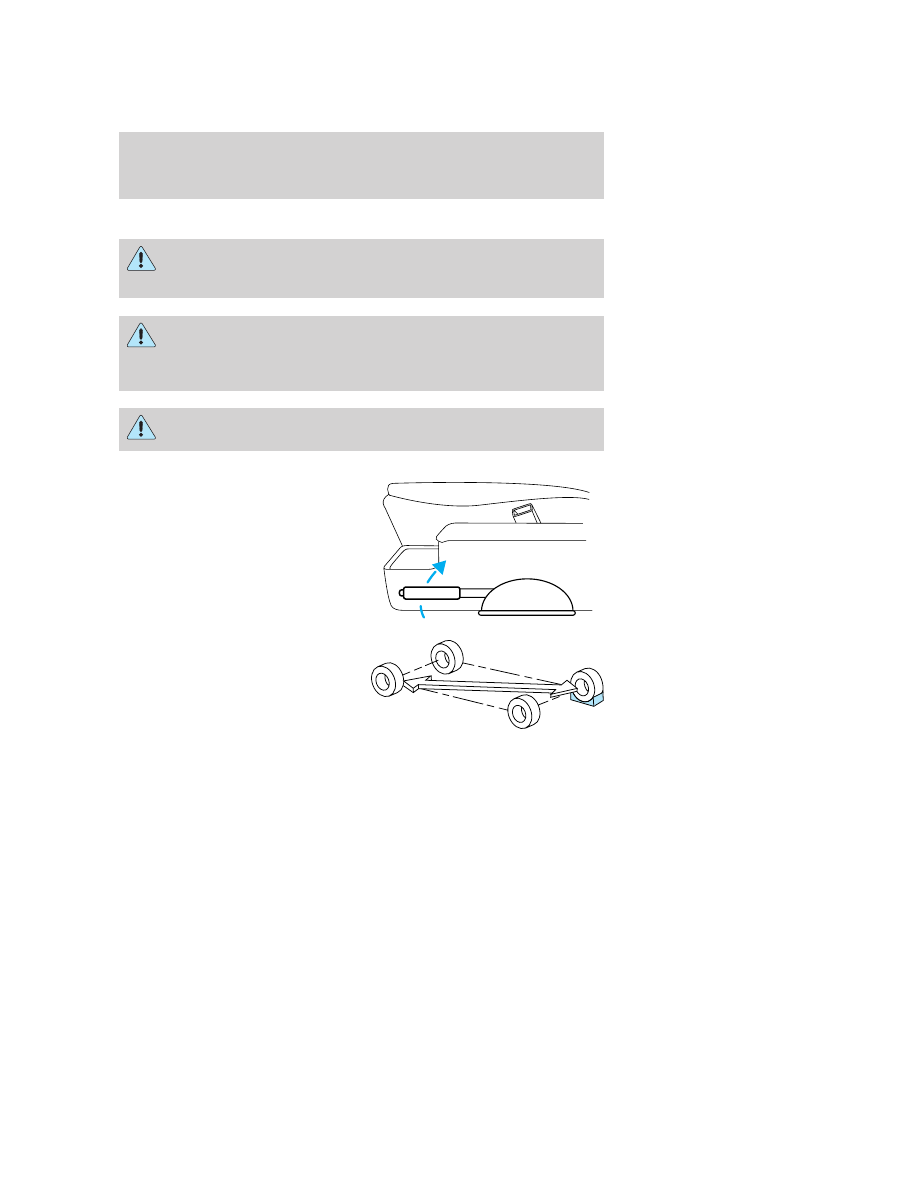

Tire change procedure

When one of the front wheels is off the ground, the transaxle
alone will not prevent the vehicle from moving or slipping off the

jack, even if the vehicle is in P (Park).

To help prevent the vehicle from moving when you change a tire,
be sure the parking brake is set, then block (in both directions)

the wheel that is diagonally opposite (other side and end of the
vehicle) to the tire being changed.

If the vehicle slips off the jack, you or someone else could be
seriously injured.

1. Park on a level surface, activate
hazard flashers and set parking
brake.

2. Place gearshift lever in P (Park),
turn engine off, and block the
diagonally opposite wheel.

3. Remove the spare tire, jack and
lug wrench.

2007 Monterey (mty)
Owners Guide (post-2002-fmt)
USA
(fus)

Roadside Emergencies

239

-------------------------------------------------------------------------------------------------------------------------------------------------------------

4. Removing the optional wheel
cover or center ornament:
• To remove a bolt-on wheel cover

(if equipped) loosen the plastic
nuts on the center ornament with
the wheel nut wrench. Then,
remove the wheel cover with the
tapered end of the wheel nut
wrench.

• Remove the center ornament (if

equipped) from the wheel with the tapered end of the wheel nut
wrench. Insert and twist the handle, then pry against the wheel.

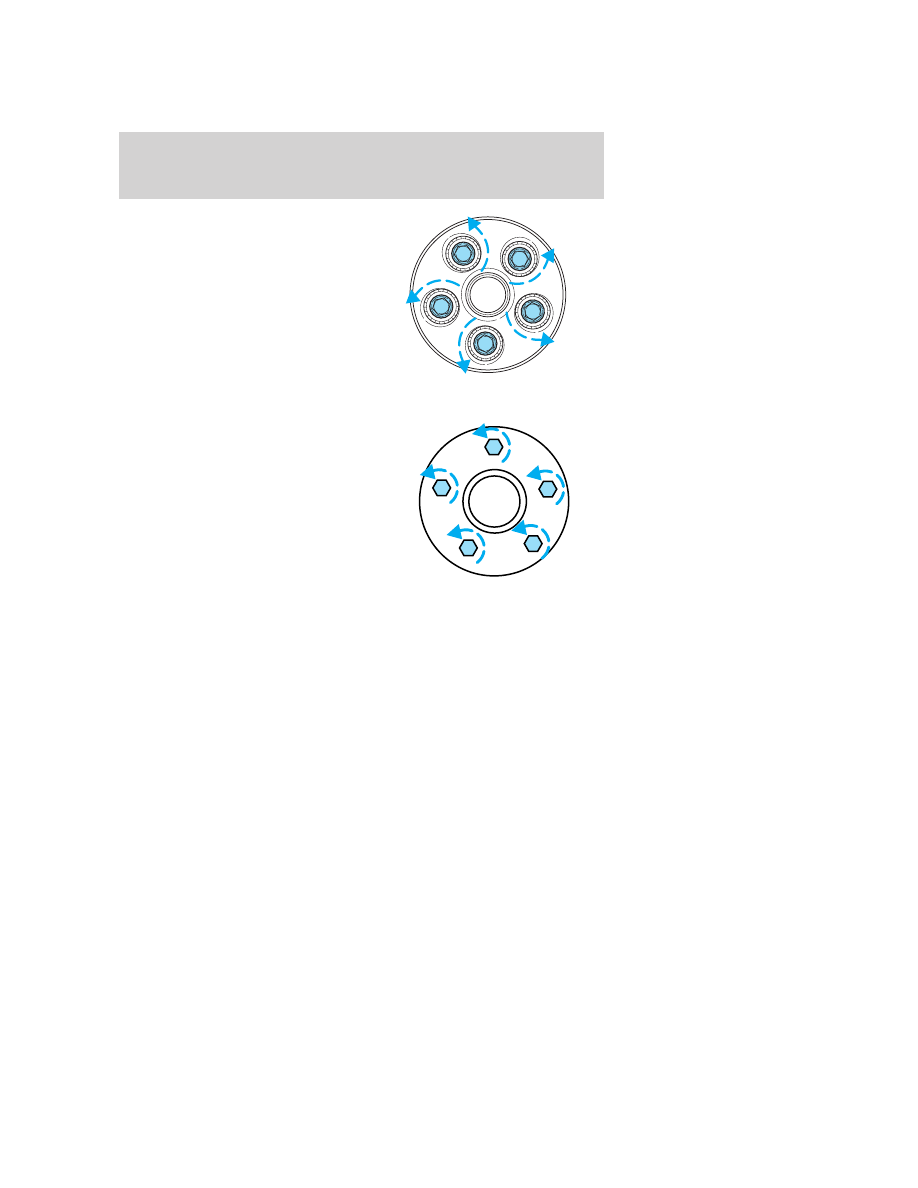

5. Loosen each wheel lug nut
one-half turn counterclockwise but
do not remove them until the wheel
is raised off the ground.

2007 Monterey (mty)
Owners Guide (post-2002-fmt)
USA
(fus)

Roadside Emergencies

240

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     13      14      15      16     ..
