MOTORCRAFT PARTS - 6.7L DIESEL

Motorcraft Part number

Component

FL-2051S

Engine oil filter

FA-1909

Foam pre-filter

FA-1902

Air filter

FG-1147

Fuel filter

BXT-65-750

Battery (Two)

WW-2242

Windshield wiper blade

FP-79

Cabin air filter

FT-187

Transmission filter

For scheduled maintenance, we recommend Motorcraft® replacement parts available
at your Ford dealer or at fordparts.com. These parts meet or exceed Ford Motor Company’s
specifications and are engineered for your vehicle. Use of other parts may impact vehicle
performance, emissions and durability. Your warranty may be void for any damage related
to use of other parts.

If a Motorcraft® oil filter is not available, use an oil filter that meets industry performance
specification SAE/USCAR-36.

415

VEHICLE IDENTIFICATION
NUMBER

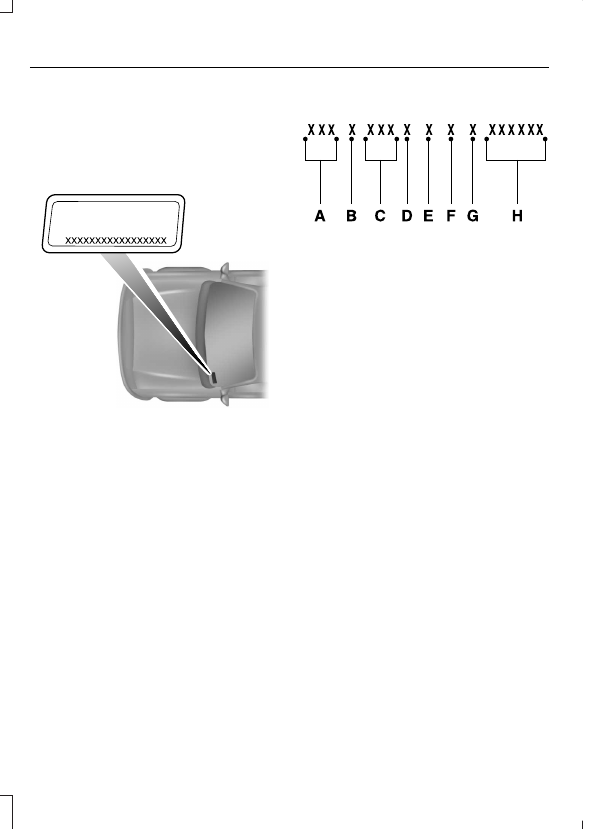

The vehicle identification number is
located on the left-hand side of the
instrument panel.

E142476

Please note that in the graphic, XXXX is
representative of your vehicle identification
number.

The Vehicle Identification Number contains
the following information:

E142477

World manufacturer identifier

A

Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations

B

Make, vehicle line, series, body
type

C

Engine type

D

Check digit

E

Model year

F

Assembly plant

G

Production sequence number

H

416

VEHICLE CERTIFICATION
LABEL

E167469

The National Highway Traffic Safety
Administration Regulations require that a
Safety Compliance Certification Label be
affixed to a vehicle and prescribe where
the Safety Compliance Certification Label
may be located. The Safety Compliance
Certification Label shall be affixed to either
the door hinge pillar, the door latch post,
or the edge of the door near the door latch,
next to the driver's seating position.

TRANSMISSION CODE
DESIGNATION

E167814

The transmission code is on the Safety
Compliance Certification Label. The
following table shows the transmission
code along with the transmission
description.

Code

Description

P

Six -speed automatic transmission 6R140

S

Six -speed automatic transmission 6R100

W

Six -speed automatic transmission 6R140W

417

CAPACITIES AND SPECIFICATIONS - 6.2L

Capacities

WARNING

The air conditioning refrigerant system contains refrigerant under high pressure.
Only qualified personnel should service the air conditioning refrigerant system.
Opening the air conditioning refrigerant system can cause personal injury.

Capacity

Item

7.0 qt (6.6 L)

Engine oil (with oil filter)

21.3 qt (20.2 L)

Engine coolant

Between MIN and MAX on brake fluid

reservoir

Brake fluid

2.7 qt (2.6 L)

Front axle

3.3–3.5 qt (3.1–3.3 L)

Rear axle-10.5 inch (E-Locker)

3.5–3.6 qt (3.3–3.4 L)

Rear axle-10.5 inch (non E-Locker)

3.8 qt (3.63 L)

Rear axle-Dana M275

4.5 qt (4.26 L)

*

Rear axle-Dana M300

16.7 qt (15.8 L)

**

Automatic transmission fluid (6R100)

17.4 qt (16.5 L)

**

Automatic transmission fluid (6R140)

1.9 qt (1.8 L)

Transfer case fluid

Fill as required

Windshield washer fluid

26.5 gal (100.3 L)

Fuel tank (incomplete vehicle, middle
location)

34 gal (128.7 L)

Fuel tank (All except 176 inch wheelbase
and incomplete vehicles)

48 gal (181.7 L)

Fuel tank (176 inch wheelbase)

40 gal (151.4 L)

Fuel tank (incomplete vehicle, Aft- axle -
location)
