Ford Galaxy / Ford S-MAX. Manual - part 568

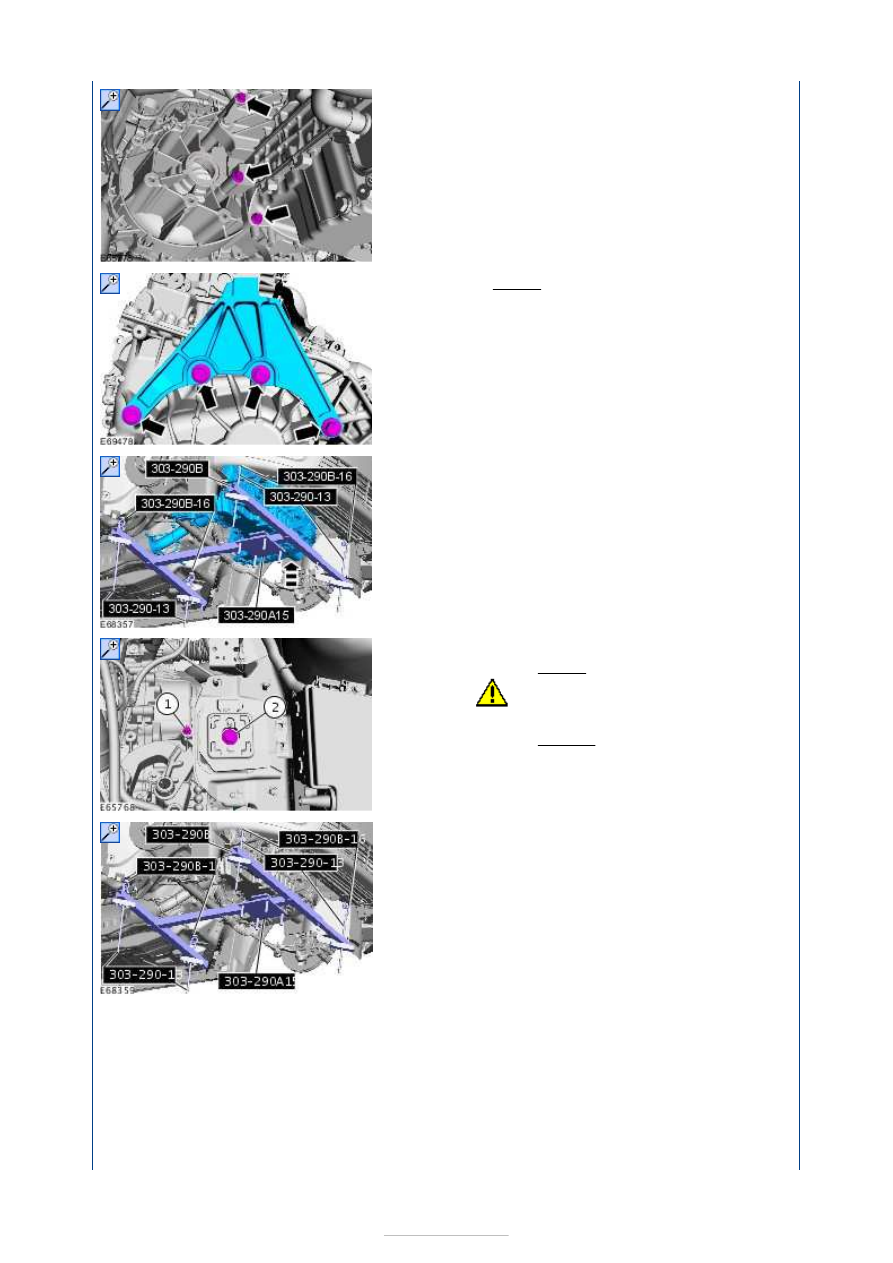

10. Torque: 80 Nm

11. Special Tool(s):

303-290B

303-290-13

303-

290A-15

303-290B-16

12.

1. Torque: 24 Nm

CAUTION: Make sure that a new

bolt is installed.

Torque:

133 Nm

13. Remove the Special Tool(s):

303-290B

303-290-

303-290A-15

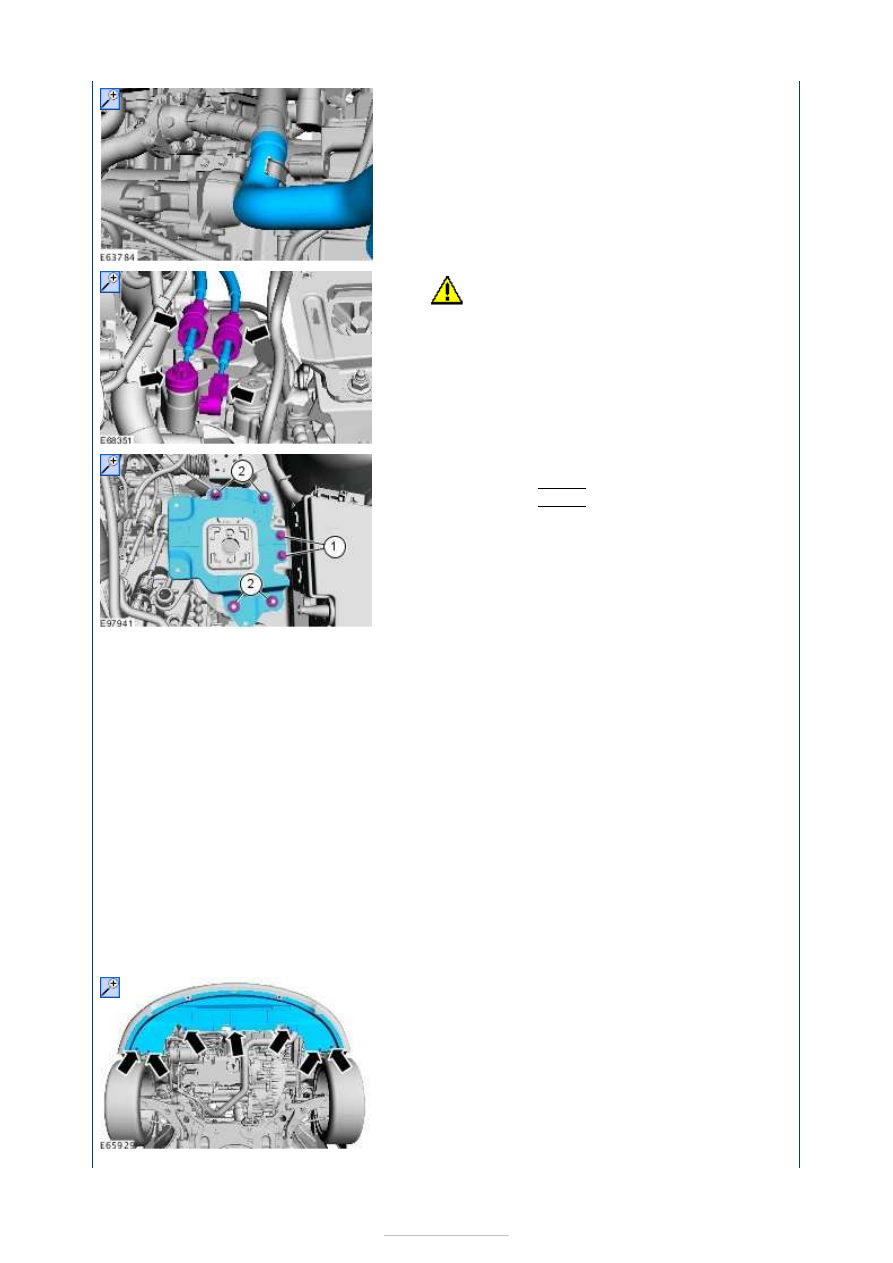

303-290B-16

14. Install the following items:

1. Refer to:

Front Halfshaft LH

(205-04 Front

Drive Halfshafts, Removal and
Installation).

2. Refer to:

Front Halfshaft RH

(205-04 Front

Drive Halfshafts, Removal and
Installation).

3. Refer to:

Front Subframe

(502-00 Uni-

Body, Subframe and Mounting System,

Removal and Installation).

15.

NOTE: Make sure that the exhaust flexible
pipe is not twisted.

Coat the studs with grease.

Material:

Grease KS-PS (SA-M1C9107-A / YS5J-

M1C9107-AA)

Torque:

48 Nm

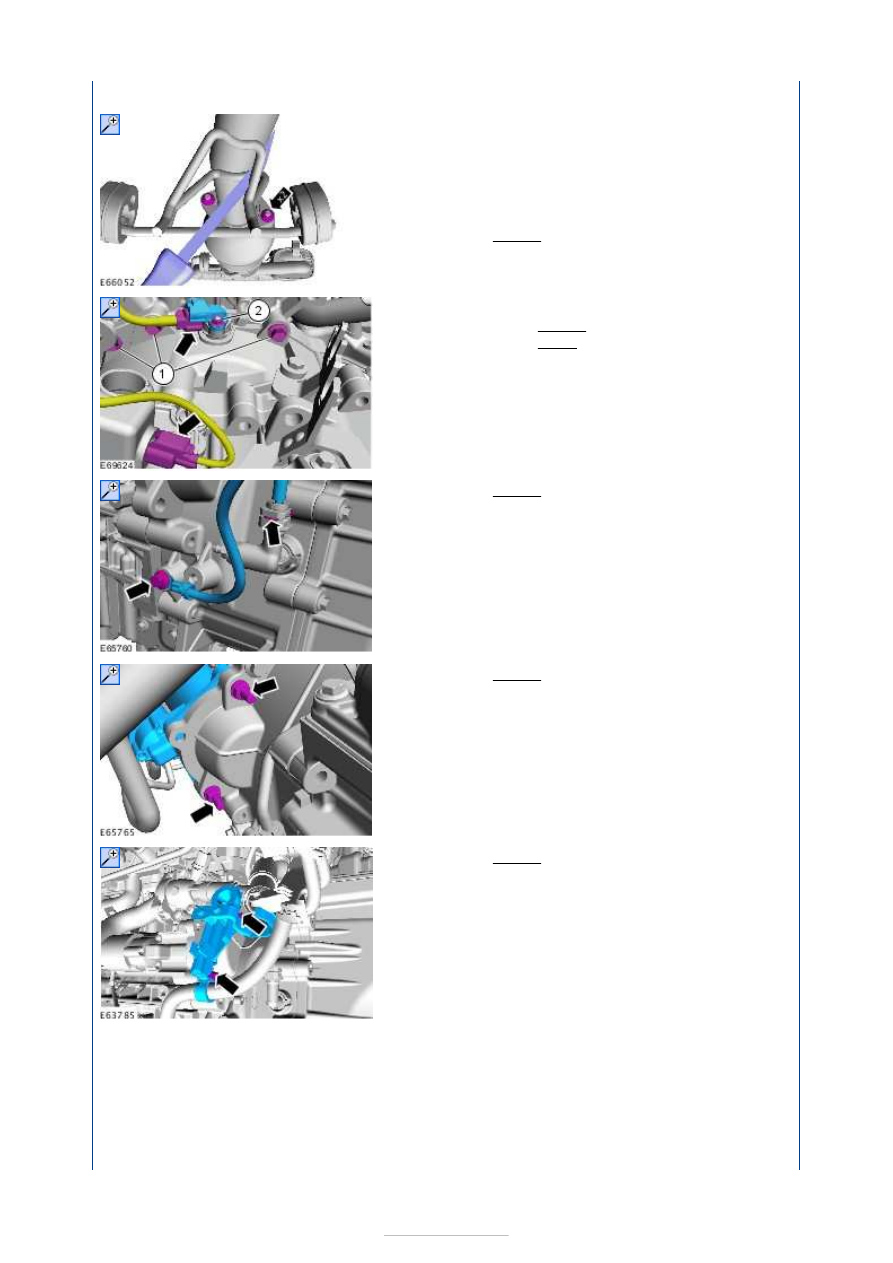

16.

1. Torque: 48 Nm
2. Torque: 9 Nm

17. Torque: 25 Nm

18. Torque: 25 Nm

19. Torque: 10 Nm

20.

21.

CAUTION: The gearshift cables must not

be kinked or twisted.

22.

1. Torque: 25 Nm
2. Torque: 48 Nm

23. Refer to:

Gearshift Cable Adjustment - Vehicles

With: 6-Speed Manual Transaxle (M66)

(308-00

Manual Transmission/Transaxle and Clutch -
General Information, General Procedures).

24. Install the following items:

1. Refer to:

Battery

(414-01 Battery,

Mounting and Cables, Removal and
Installation).

2. Refer to:

Air Cleaner

(303-12C Intake Air

Distribution and Filtering - 2.5L Duratec
(162kW/220PS) - VI5, Removal and
Installation).

25. Check the transmission fluid fill level.

Refer to:

Transmission Draining and Filling - 2.5L

Duratec (162kW/220PS) - VI5

(308-03C Manual

Transmission/Transaxle - Vehicles With: 6-Speed
Manual Transaxle - M66, General Procedures).

26.

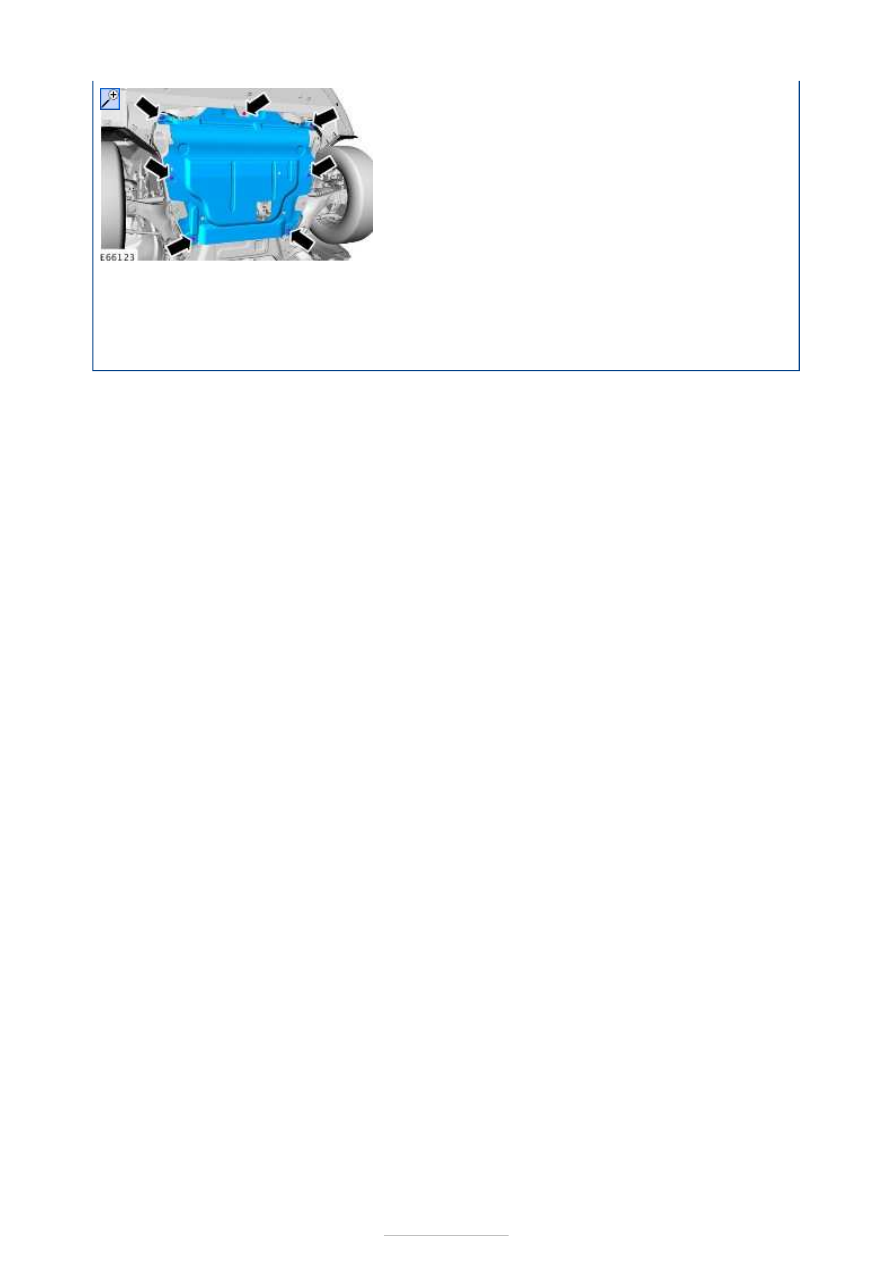

27.

28. Initialize the window regulator motors.

Refer to:

Door Window Motor Initialization

(501-

11 Glass, Frames and Mechanisms, General
Procedures).
