9. Detach and secure to one side.

10.

CAUTION: Make sure that all openings

are sealed.

11.

12. Remove subframe from vehicle.

Refer to:

Front Subframe

(502-00 Uni-Body,

Subframe and Mounting System, Removal and
Installation).

13. Remove the axle shafts.

Refer to:

Front Halfshaft LH

(205-04 Front Drive

Halfshafts, Removal and Installation).
Refer to:

Front Halfshaft RH

(205-04 Front Drive

Halfshafts, Removal and Installation).

14.

15.

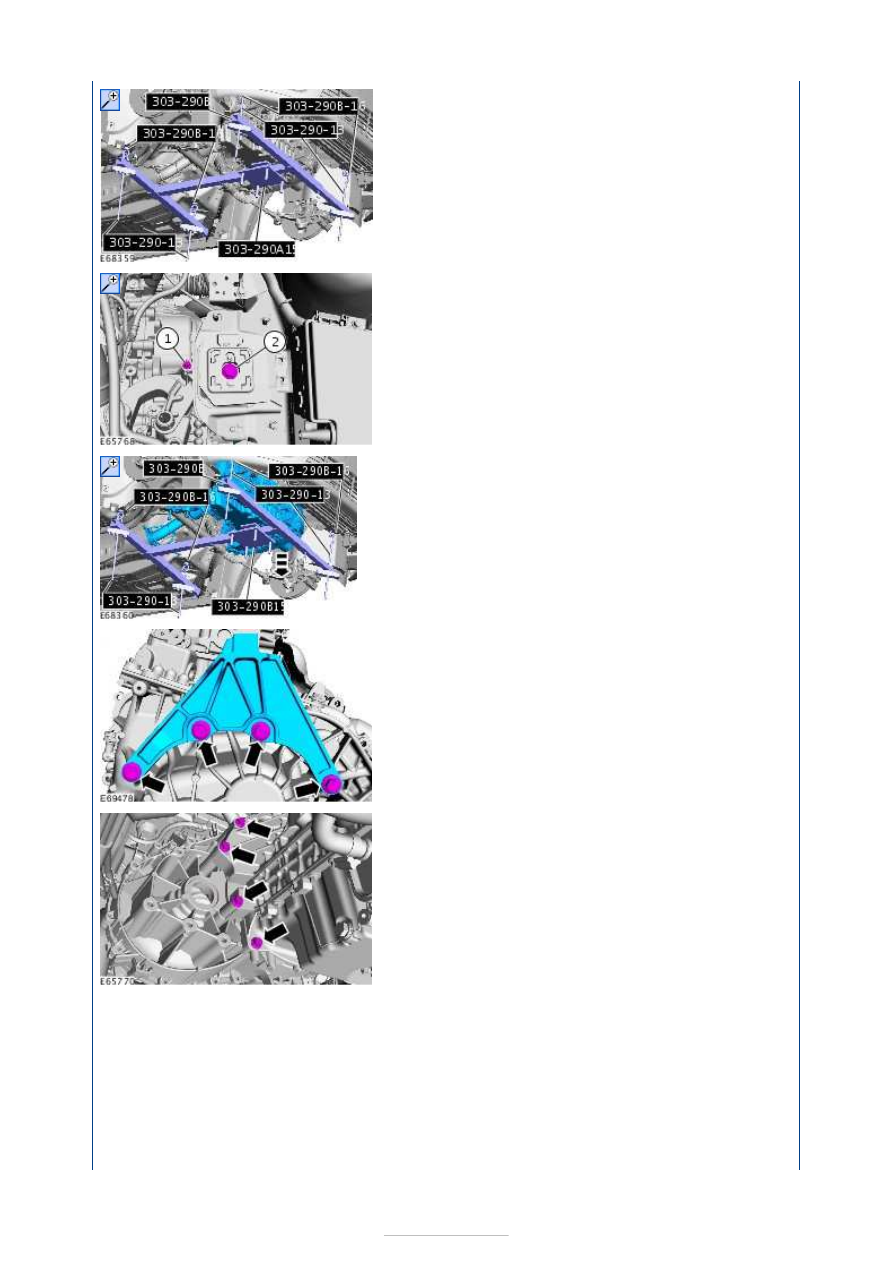

16. Special Tool(s):

303-290B

303-290-13

303-

290A-15

303-290B-16

17.

2. Discard the bolt.

18. Special Tool(s):

303-290B

303-290-13

303-

290A-15

303-290B-16

19.

20.

21.

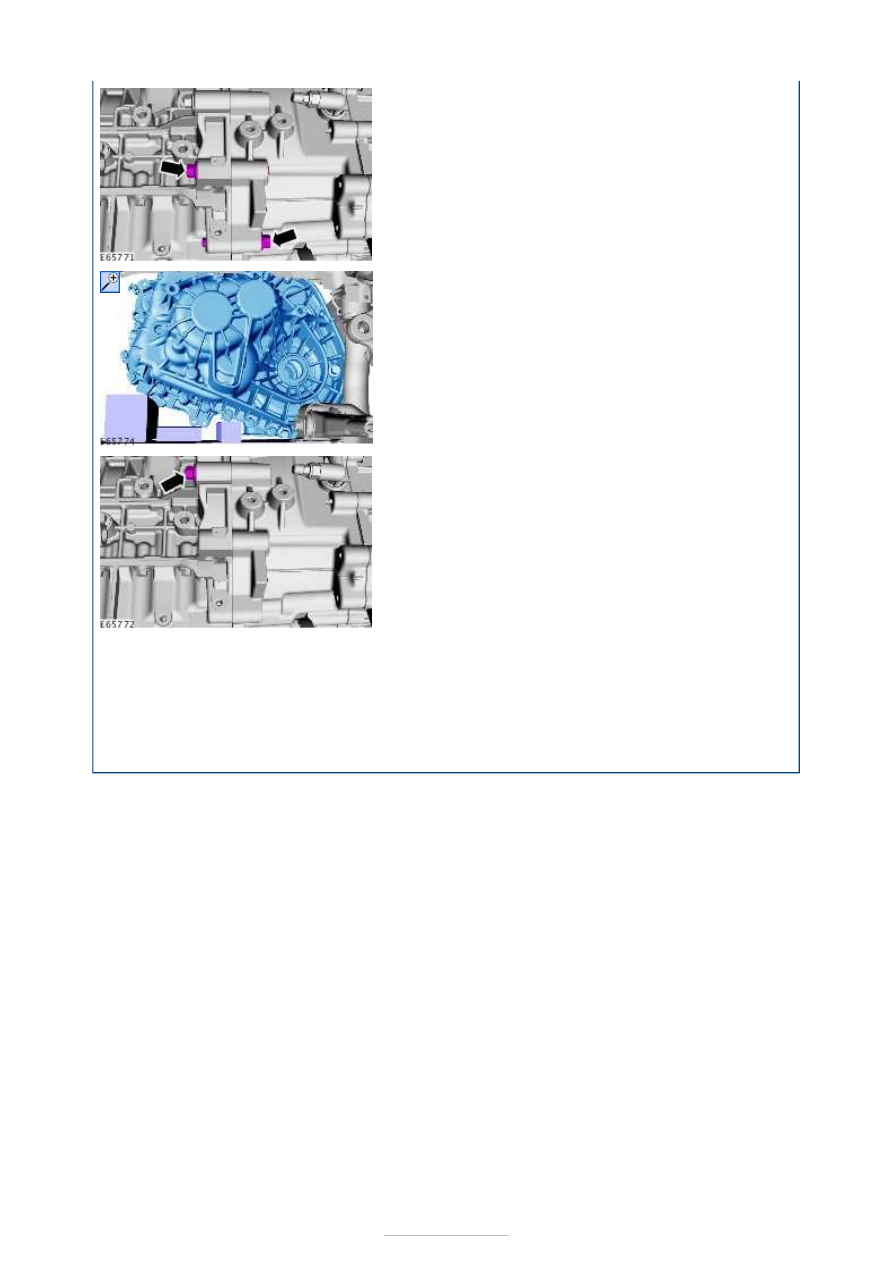

22. Support the transmission with wooden blocks.

General Equipment:

Transmission jack

23.

24.

Support the transmission using the
transmission jack and remove.
Rotate the transmission approximately 30
degrees counterclockwise during removal.

General Equipment:

Transmission jack
