Ford Galaxy / Ford S-MAX. Manual - part 469

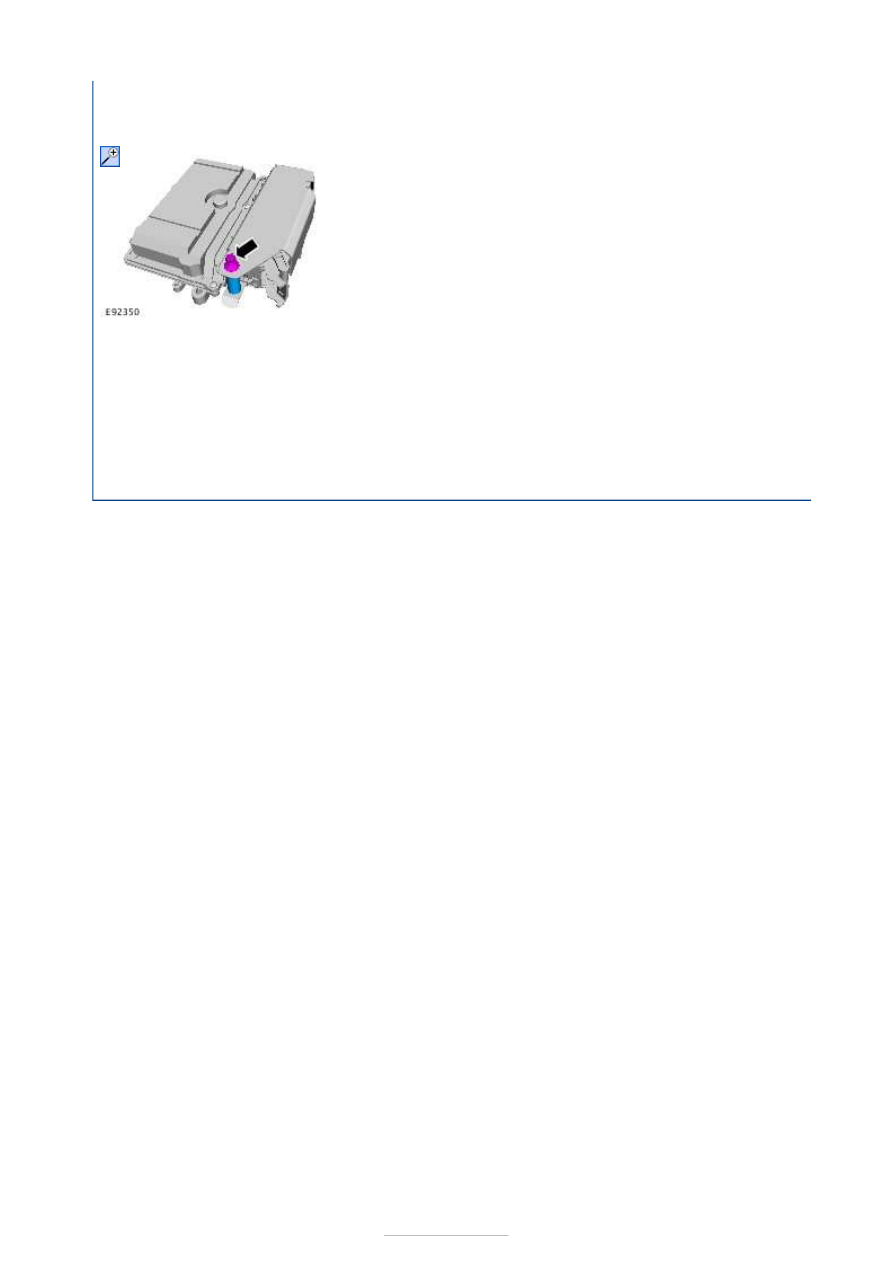

Vehicles with PCM security shield

All vehicles

1. To install, reverse the removal procedure.

2. Tighten the shear bolt until the head is sheared off.

NOTE: This step is only necessary when installing a
new component.

Upload the PCM and throttle body configuration
information into the PCM, using the Programmable
Modules Installation routine.

General Equipment:

Ford diagnostic equipment

Electronic Engine Controls - 2.5L Duratec
(162kW/220PS) - VI5 - Camshaft Position
(CMP) Sensor

S-MAX/Galaxy 2006.5 (02/2006-)

Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Installation

1. Refer to:

Battery Disconnect and Connect

(414-

01 Battery, Mounting and Cables, General
Procedures).

CAUTION: Make sure that the inside of

the pipe ends are clean and free of oil
residue.

CAUTION: Make sure that the inside of

the pipe ends are clean and free of oil
residue.

1. Torque: 10 Nm
2. Torque: 4 Nm
3. Torque: 10 Nm

4. Torque: 10 Nm

5. Torque: 10 Nm

NOTE: Make sure that the sensor housing is
clean and free of foreign material.

To install, reverse the removal procedure.

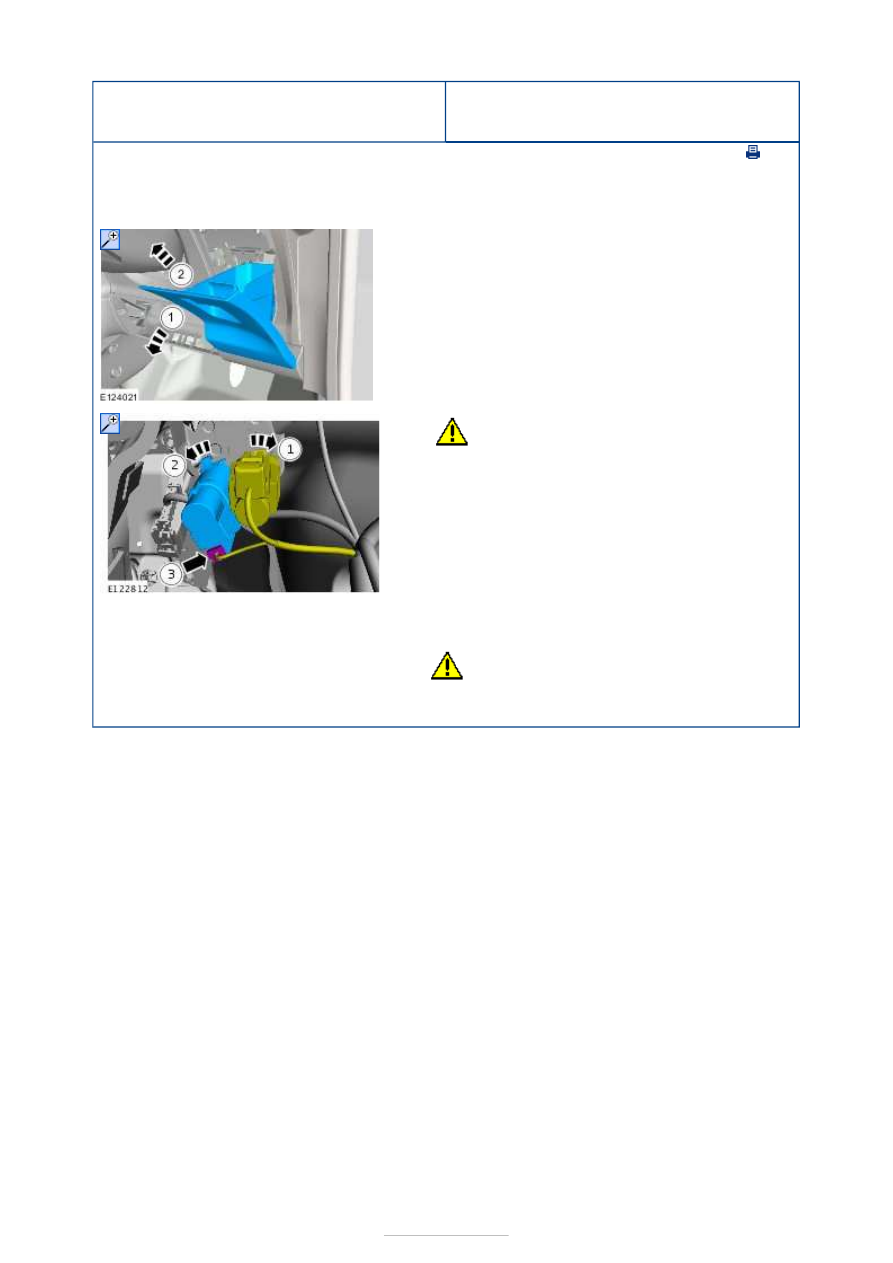

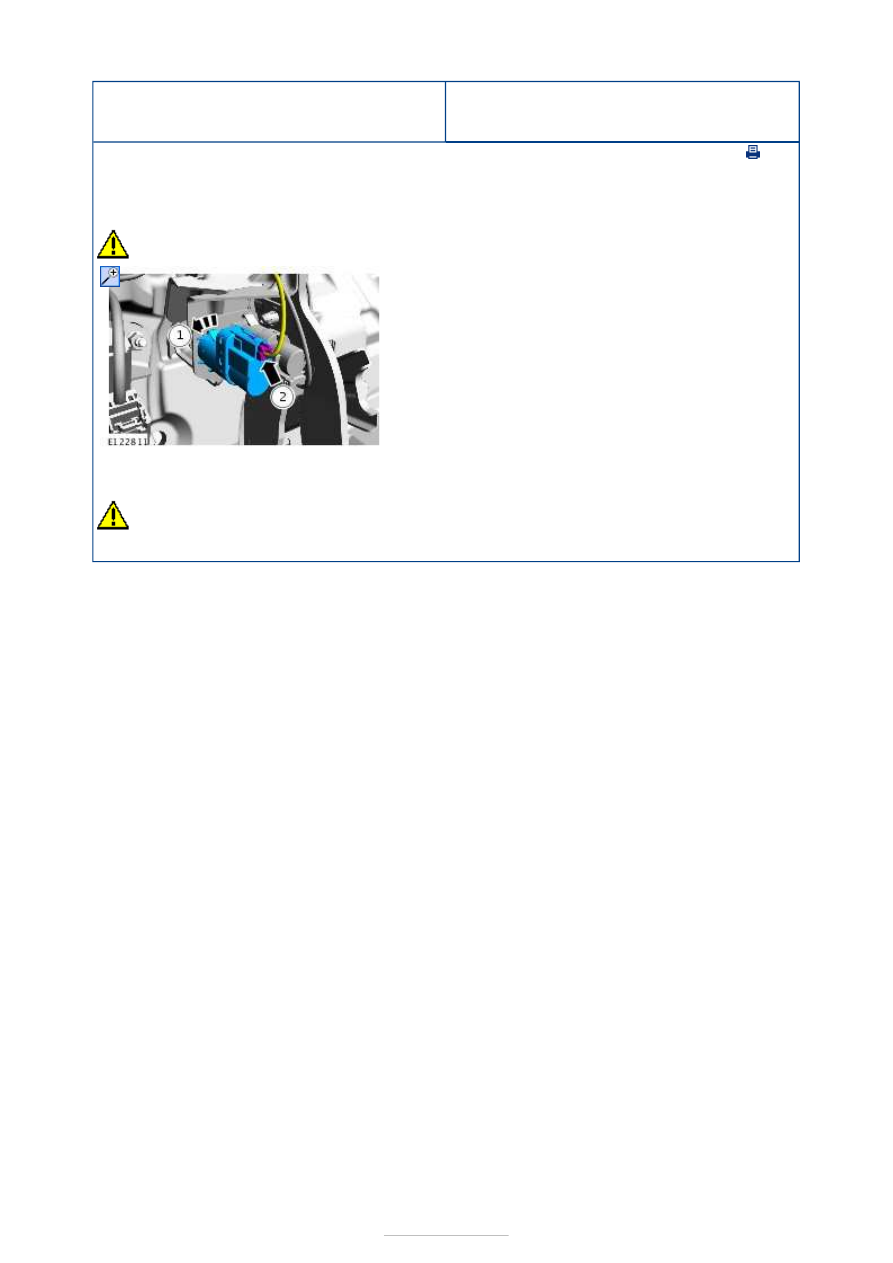

Electronic Engine Controls - 2.5L Duratec
(162kW/220PS) - VI5 - Brake Pedal
Position (BPP) Switch—LHD FWD

S-MAX/Galaxy 2006.5 (02/2006-)

Removal and Installation

Removal

CAUTION: Make sure that the brake pedal remains in the rest position.

Installation

CAUTION: Make sure that the brake pedal remains in the rest position.

1. To install, reverse the removal procedure.

Electronic Engine Controls - 2.5L Duratec
(162kW/220PS) - VI5 - Brake Pedal
Position (BPP) Switch—RHD FWD

S-MAX/Galaxy 2006.5 (02/2006-)

Removal and Installation

Removal

Installation

CAUTION: Make sure that the brake

pedal remains in the rest position.

CAUTION: Make sure that the brake

pedal remains in the rest position.

To install, reverse the removal procedure.
