Ford Galaxy / Ford S-MAX. Manual - part 468

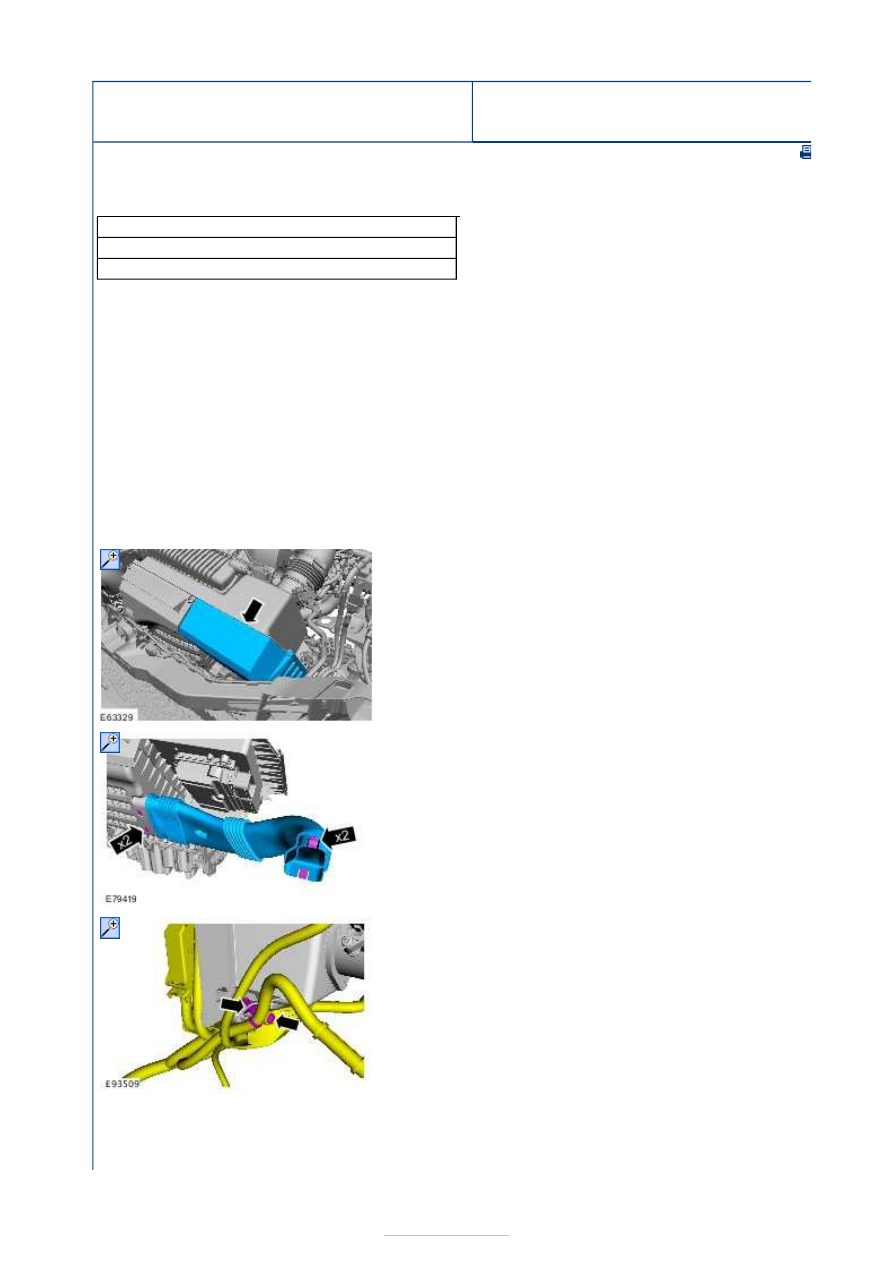

Electronic Engine Controls - 2.5L Duratec
(162kW/220PS) - VI5 - Knock Sensor
(KS)

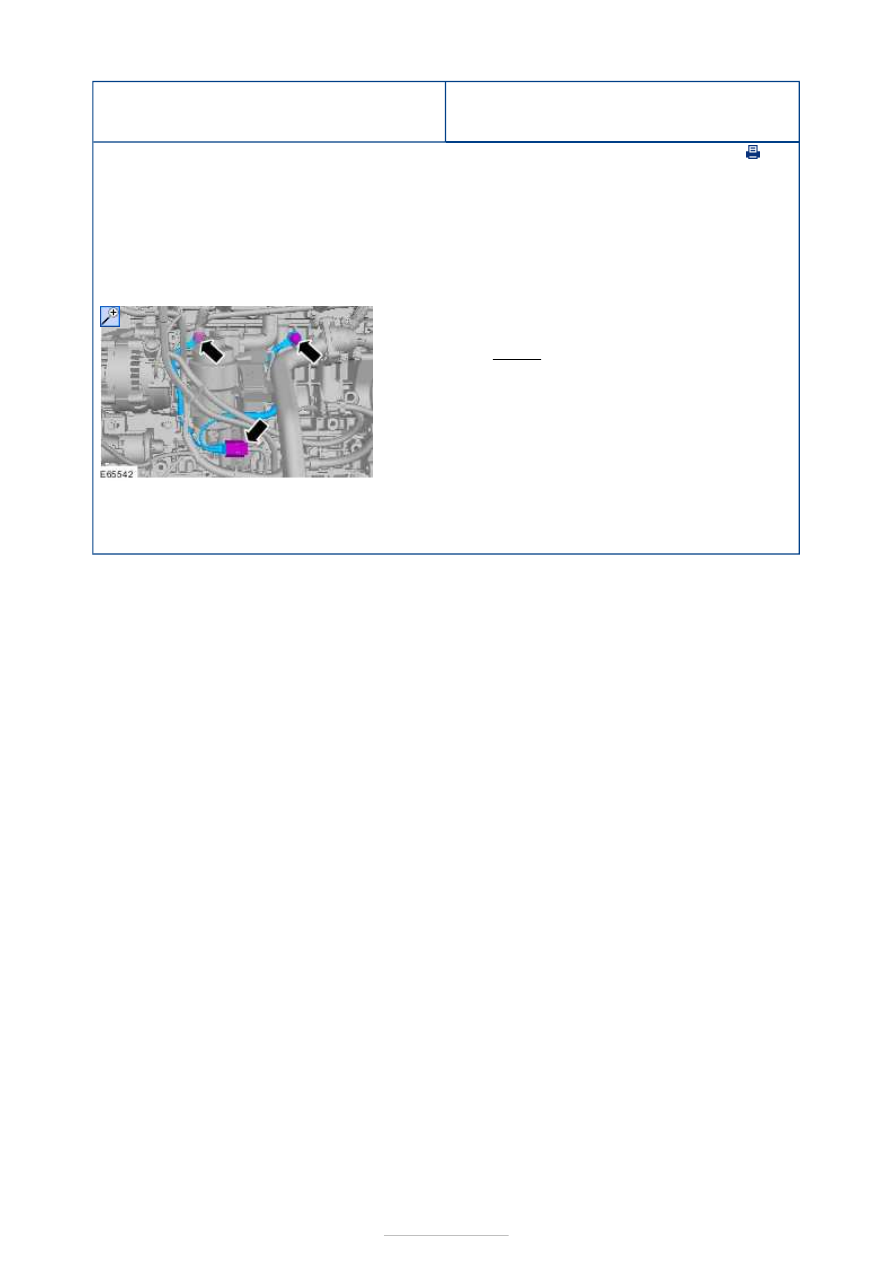

S-MAX/Galaxy 2006.5 (02/2006-)

Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Installation

1. Refer to:

Air Cleaner

(303-12C Intake Air

Distribution and Filtering - 2.5L Duratec
(162kW/220PS) - VI5, Removal and Installation).

NOTE: Make sure that the sensor is installed
in the same location as when removed.

Torque:

20 Nm

1. To install, reverse the removal procedure.

Electronic Engine Controls - 2.5L Duratec

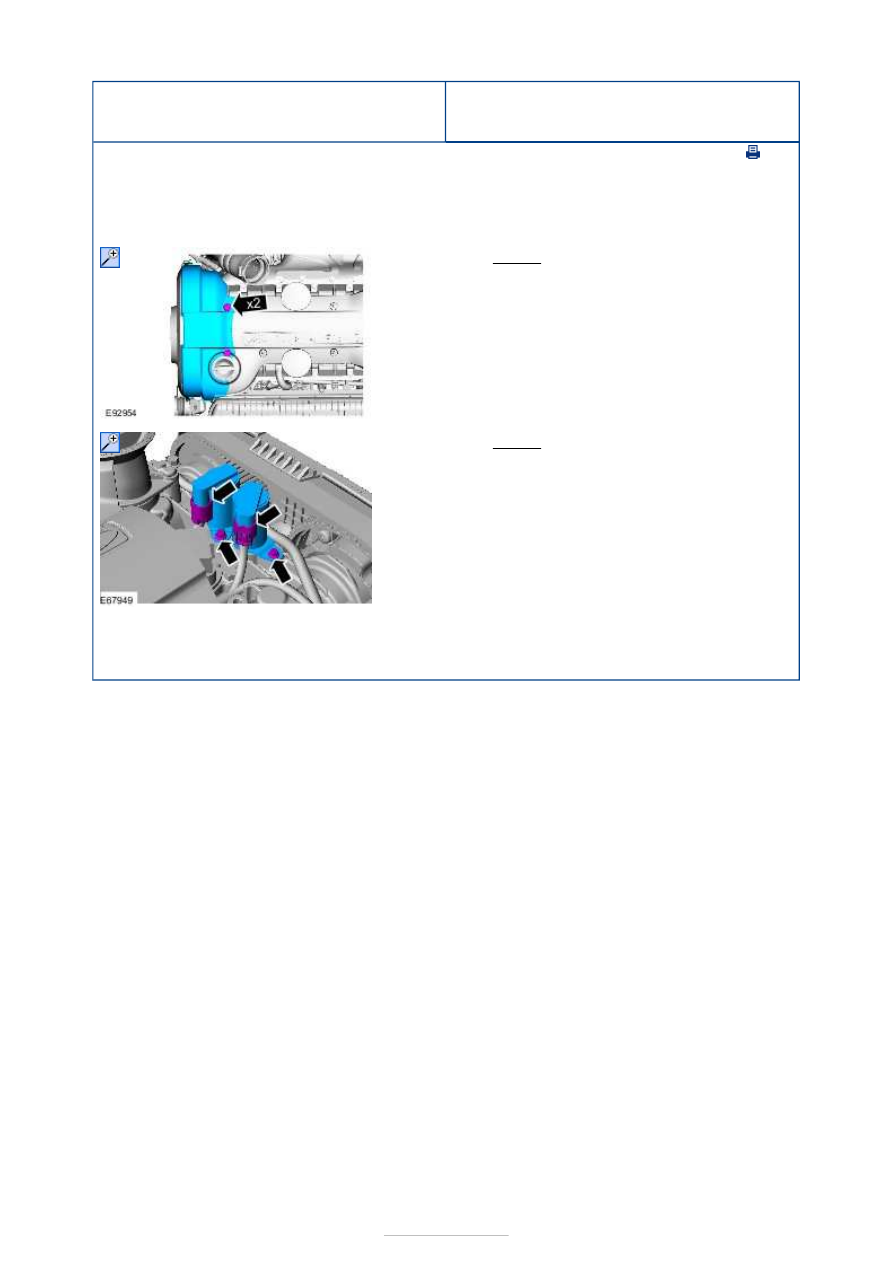

(162kW/220PS) - VI5 - Variable Valve
Timing (VVT) Oil Control Solenoid

S-MAX/Galaxy 2006.5 (02/2006-)

Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Installation

1. Torque: 10 Nm

2. Torque: 10 Nm

1. To install, reverse the removal procedure.

Electronic Engine Controls - 2.5L Duratec
(162kW/220PS) - VI5 - Powertrain Control
Module (PCM)

S-MAX/Galaxy 2006.5 (02/2006

Removal and Installation

General Equipment

Removal

NOTE: Removal steps in this procedure may contain installation details.

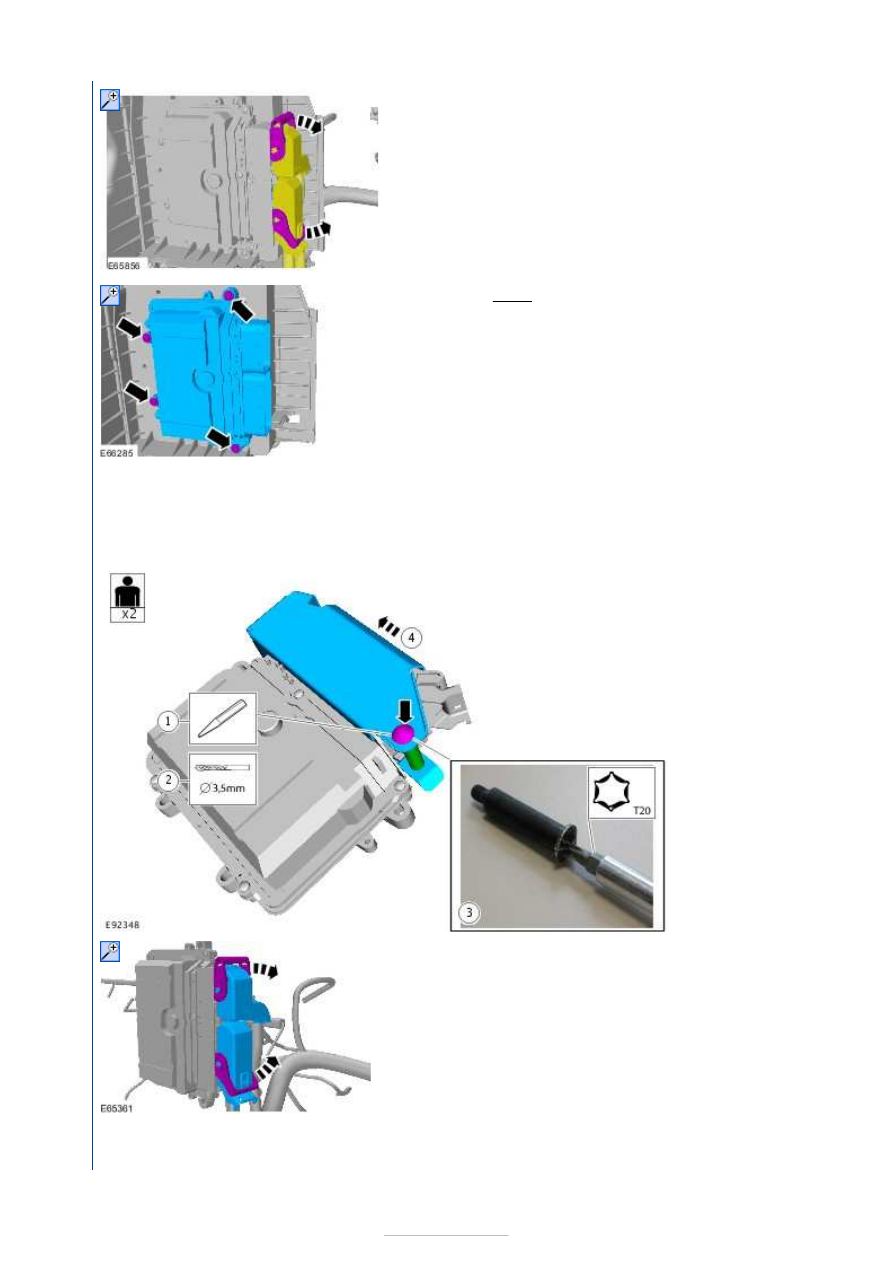

Vehicles without PCM security shield

3.5 mm drill bit
Center punch
Ford diagnostic equipment

NOTE: This step is only necessary when installing a
new component.

Download the PCM and throttle body configuration
information into the diagnostic tool, using the
Programmable Modules Installation routine.

General Equipment:

Ford diagnostic equipment

2. Refer to: Battery Disconnect and Connect (414-01

Battery, Mounting and Cables, General Procedures).

Vehicles with PCM security shield

Installation

7. Torque: 7 Nm

8. Refer to: Air Cleaner (303-12 Intake Air Distribution and

Filtering - 2.5L Duratec-ST (VI5), Removal and
Installation).

1. General

Equipment:

Center
punch

2. General

Equipment:

3.5 mm
drill bit

10.
