Ford Galaxy / Ford S-MAX. Manual - part 88

Anti-Lock Control - Stability Assist -
Steering Wheel Rotation Sensor

S-MAX/Galaxy 2006.5 (02/2006-)

Removal and Installation

1. Refer to:

Clockspring

(501-20B Supplemental

Restraint System, Removal and Installation).

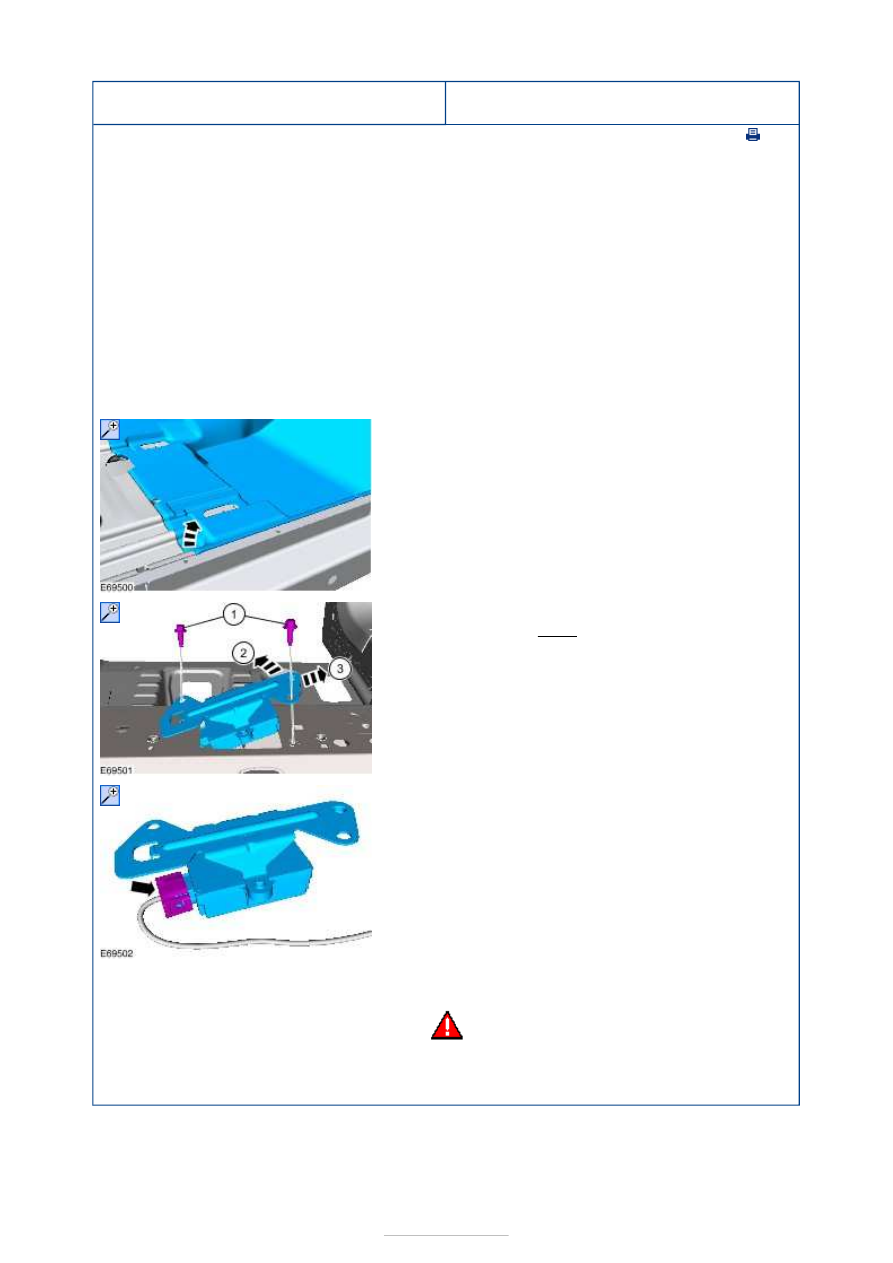

Anti-Lock Control - Stability Assist - Yaw
Rate Sensor and Accelerometer

S-MAX/Galaxy 2006.5 (02/2006-)

Removal and Installation

Removal

NOTE: Removal steps in this procedure may contain installation details.

Installation

1. Remove the following items:

1. Remove the right-hand front seat.

Refer to:

Front Seat

(501-10 Seating,

Removal and Installation).

2. Remove the right-hand B-pillar trim panel.

Refer to:

B-Pillar Trim Panel

(501-05

Interior Trim and Ornamentation, Removal
and Installation).

1. Torque: 9 Nm

WARNING: Make sure that the yaw rate

sensor and accelerometer assembly is
correctly located.

To install, reverse the removal procedure.

Steering System - General Information -
Specifications

S-MAX/Galaxy 2006.5 (02/2006-)

Lubricants, Fluids, Sealers and Adhesives

Steering Wheel Free play

Turning Effort Test

Fluids

Hydraulic Fluid with the specification WSS-M2C204-A2 (green fluid) can also be used to top up
or fill steering systems that are filled with Hydraulic Fluid with the specification 98SX-M2C195-
AB (red fluid).

Measured at the steering wheel outer rim with the engine running

±3

Effort (Nm)

Effort (lb-in)

Turning effort

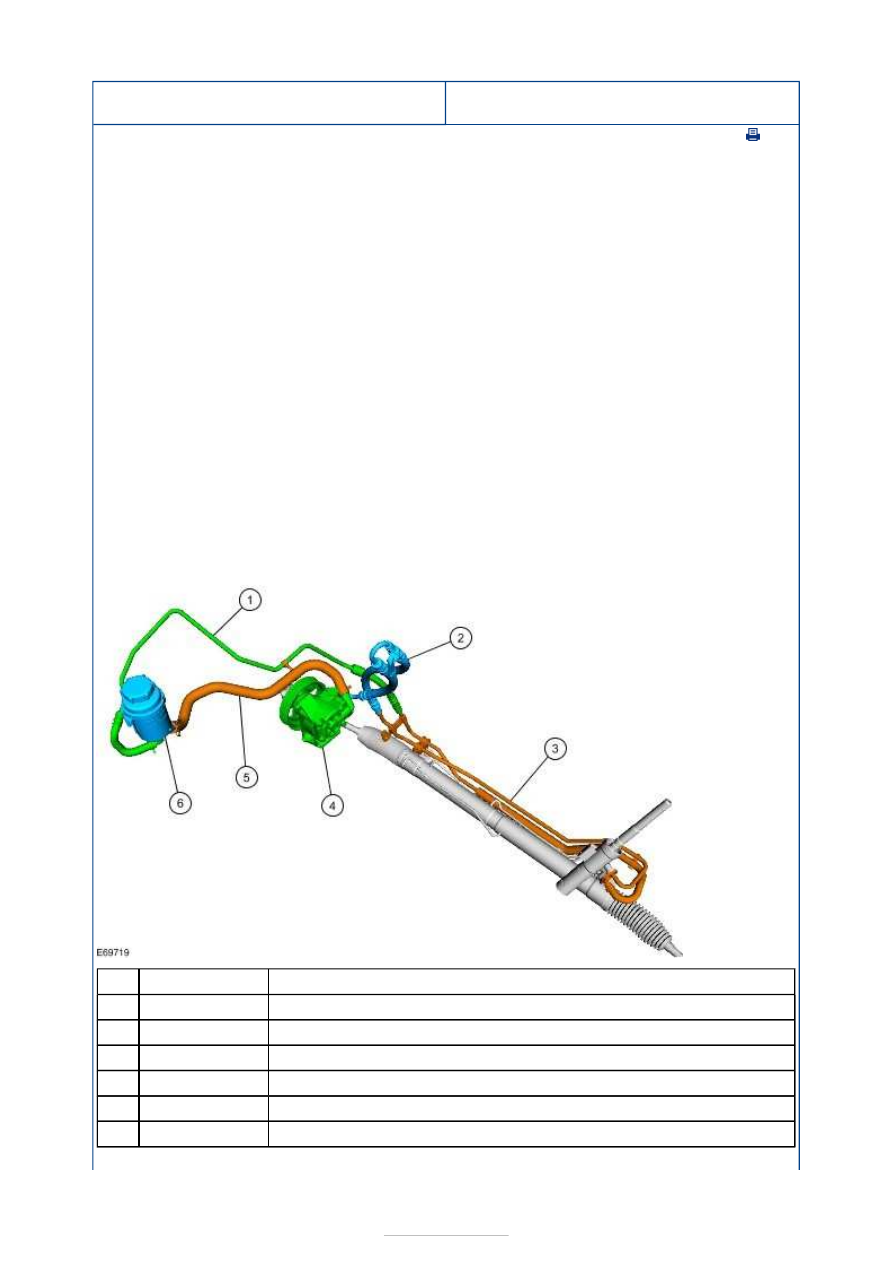

Steering System - General Information -
Steering System

S-MAX/Galaxy 2006.5 (02/2006-)

Description and Operation

1.8L Duratorq-TDCi (Kent) Diesel

Description

Power steering fluid return line

Power steering fluid pressure line

Steering gear pressure line and return line

Power steering pump

Power steering fluid supply line

Power steering fluid reservoir

2.0L Duratec-HE (MI4)

Item

Part Number
