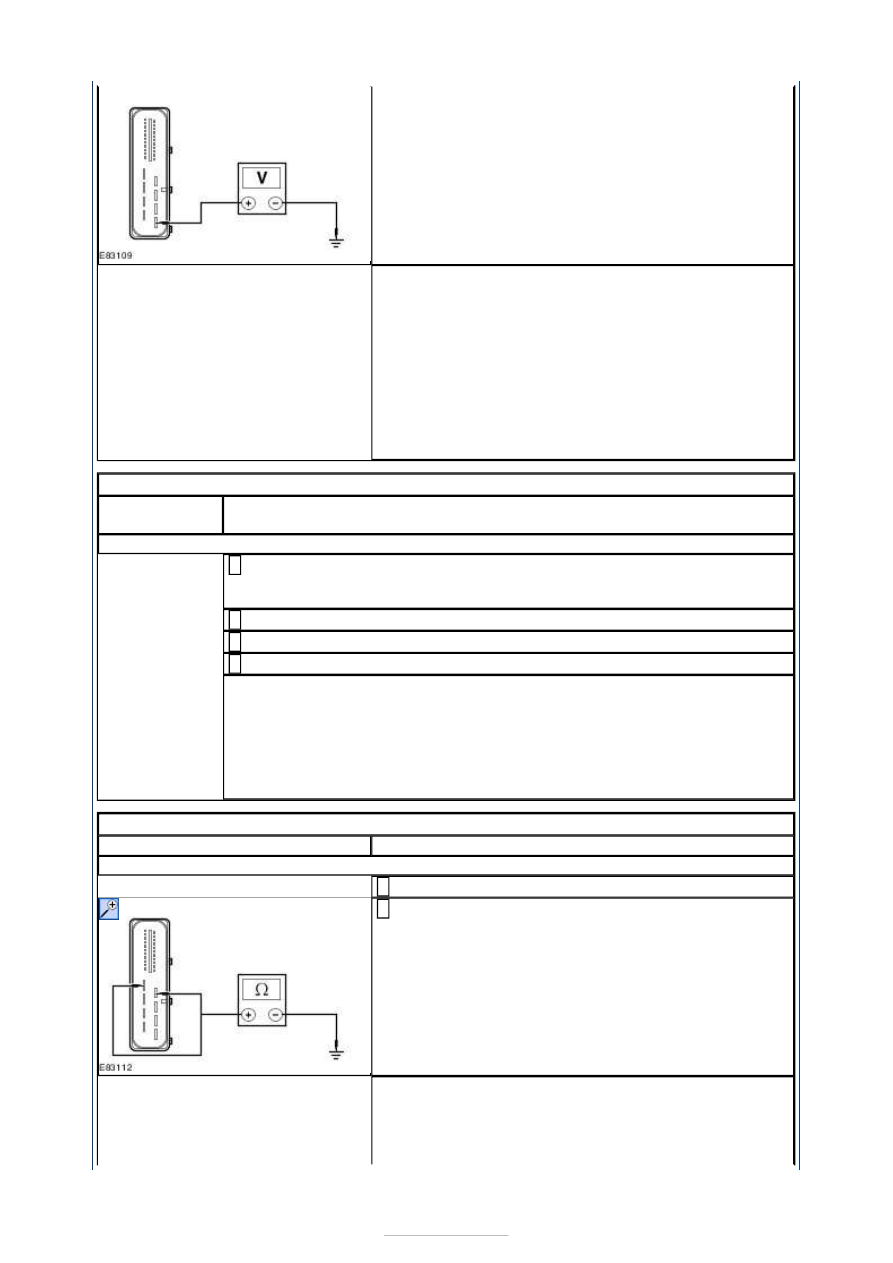

EPB module C4CB01 pin 15, circuit C_SBR02A
(YE/RD), harness side and ground.

Is any voltage present?
Yes

Check the charging system.
REFER to: Charging System (414-00 Charging
System - General Information, Diagnosis and
Testing).
REPEAT the self-test, CLEAR the DTCs.

REPAIR circuit C_SBR02A (YE/RD) or circuit
C_SBR03A (BU/RD). REPEAT the self-test, CLEAR the
DTCs.

PINPOINT TEST F : DTC C2006.95: LEFT ACTUATOR FAULT

TEST

CONDITIONS

DETAILS/RESULTS/ACTIONS

F1: CHECK THE BRAKE DISC AND PADS

Remove the wheel and tire.
REFER to: Wheel and Tire (204-04 Wheels and Tires, Removal and

Installation).

Connect WDS.

Select 'Service' mode and retract brake pads.

CHECK the brake disc and brake pads.

Are the brake disc and brake pads OK?
Yes

REFER to: Parking Brake Release Actuator (206-05 Parking Brake and
Actuation, Removal and Installation).

REFER to: Brake Pads - Vehicles With: Electronic Parking Brake (206-04
Rear Disc Brake, Removal and Installation).

PINPOINT TEST G : DTC C2007.01/18: RIGHT MOTOR FAULT

TEST CONDITIONS

DETAILS/RESULTS/ACTIONS

G1: CHECK THE PARKING BRAKE RELEASE ACTUATOR MOTOR CIRCUIT

Disconnect EPB Module C4CB01.

Measure the resistance between the EPB module
C4CB01 pin 12, circuit CCB18B (YE/GY), harness side

and the EPB module C4CB01 pin 27, circuit CCB19A
(GN/BN), harness side

Is the resistance greater than 10,000 ohms?
Yes

GO to G2

REPEAT the self-test, CLEAR the DTCs. If the DTC
remains

GO to G2

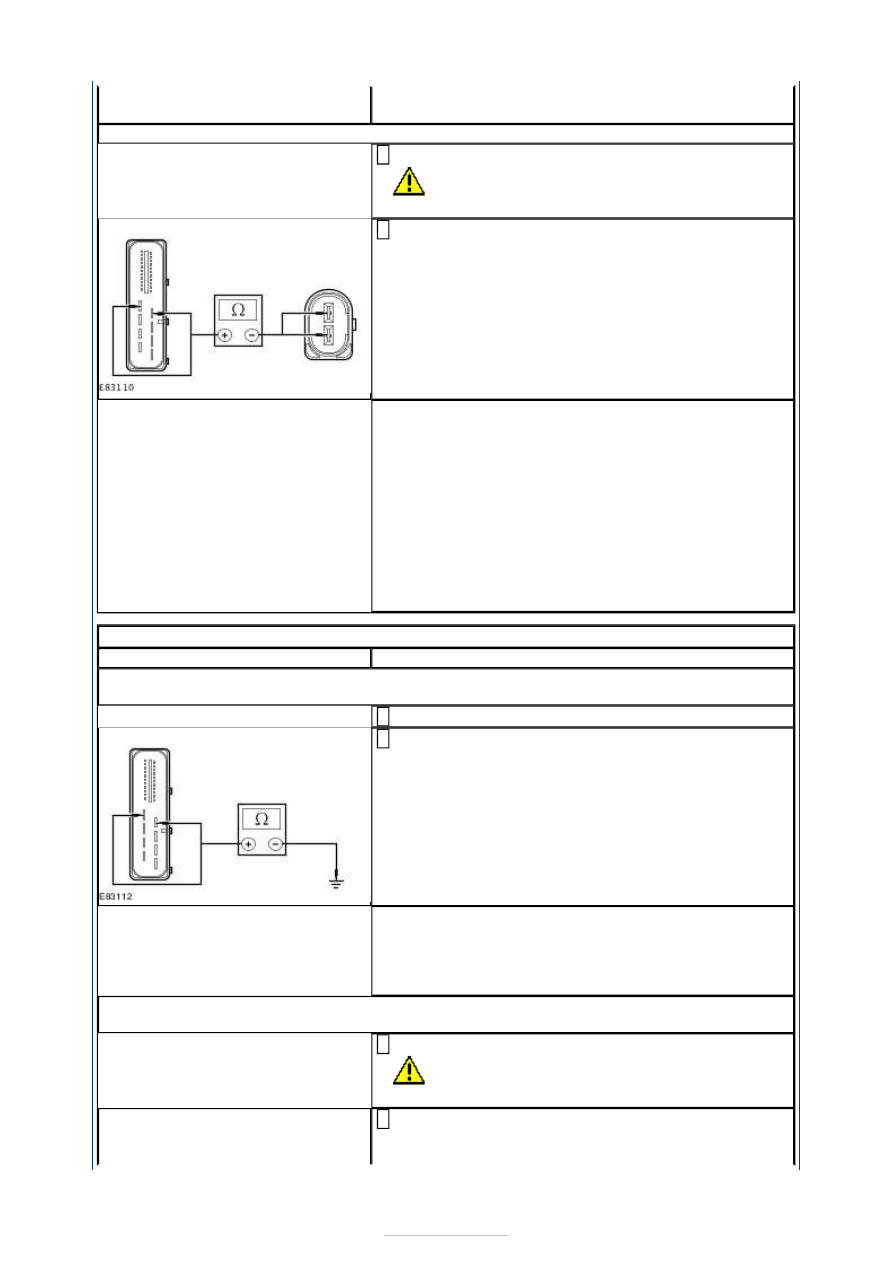

G2: CHECK THE PARKING BRAKE RELEASE ACTUATOR CIRCUITS

Disconnect Parking Brake Release Actuator C4CB07.

CAUTION: Make sure that the area around the

component is clean and free of foreign material.

Measure the resistance between the:

EPB module C4CB01 pin 12, circuit CCB18B
(YE/GY), harness side and the parking brake
release actuator C4CB07 pin 1, circuit CCB18A
(YE/GY), harness side.
EPB module C4CB01 pin 27, circuit CCB19A
(GN/BN), harness side and the parking brake
release actuator C4CB07 pin 2, circuit CCB19B
(GN/BN), harness side.

Are the resistances less than 2 ohms?
Yes

INSTALL a new parking brake release actuator.
REFER to: Parking Brake Release Actuator (206-05
Parking Brake and Actuation, Removal and
Installation).
REPEAT the self-test, CLEAR the DTCs.

REPAIR circuit CCB18A (YE/GY), or circuit CCB18B
(YE/GY), or circuit CCB19A (GN/BN), or circuit
CCB19B (GN/BN). REPEAT the self-test, CLEAR the
DTCs.

PINPOINT TEST H : DTC C2007.11: RIGHT MOTOR FAULT

TEST CONDITIONS

DETAILS/RESULTS/ACTIONS

H1: CHECK THE PARKING BRAKE RELEASE ACTUATOR MOTOR FOR A SHORT TO
GROUND

Disconnect EPB Module C4CB01.

Measure the resistance between the:

EPB module C4CB01 pin 12, circuit CCB18B
(YE/GY), harness side and ground.
EPB module C4CB01 pin 27, circuit CCB19A
(GN/BN), harness side and ground.

Are the resistances greater than 10,000 ohms?
Yes

REPEAT the self-test, CLEAR the DTCs.

GO to H2

H2: CHECK THE PARKING BRAKE RELEASE ACTUATOR CIRCUITS FOR A SHORT TO
GROUND

Disconnect Parking Brake Release Actuator C4CB07.

CAUTION: Make sure that the area around the

component is clean and free of foreign material.

Measure the resistance between the:

EPB module C4CB01 pin 12, circuit CCB18B
(YE/GY), harness side and ground.
EPB module C4CB01 pin 27, circuit CCB19A
(GN/BN), harness side and ground.

Are the resistances greater than 10,000 ohms?
Yes

INSTALL a new parking brake release actuator.
REFER to: Parking Brake Release Actuator (206-05
Parking Brake and Actuation, Removal and
Installation).
REPEAT the self-test, CLEAR the DTCs.

REPAIR circuit CCB18A (YE/GY), or circuit CCB18B
(YE/GY), or circuit CCB19A (GN/BN), or circuit
CCB19B (GN/BN). REPEAT the self-test, CLEAR the
DTCs.

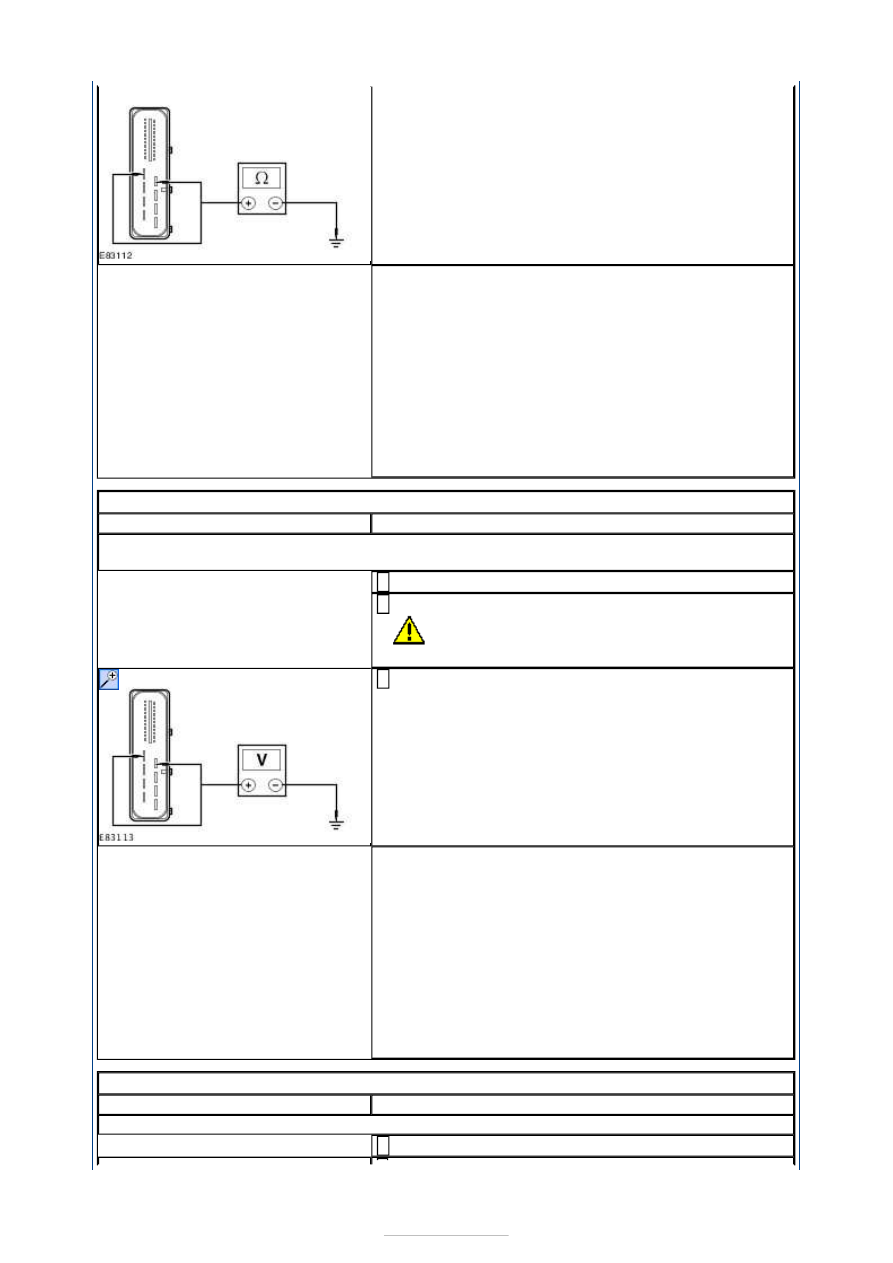

PINPOINT TEST I : DTC C2007.12: RIGHT MOTOR FAULT

TEST CONDITIONS

DETAILS/RESULTS/ACTIONS

I1: CHECK THE PARKING BRAKE RELEASE ACTUATOR CIRCUITS FOR A SHORT TO
BATTERY

Disconnect EPB Module C4CB01.

Disconnect Parking Brake Release Actuator C4CB07.

CAUTION: Make sure that the area around the

component is clean and free of foreign material.

Measure the voltage between the:

EPB module C4CB01 pin 12, circuit CCB18B
(YE/GY), harness side and ground.
EPB module C4CB01 pin 27, circuit CCB19A
(GN/BN), harness side and ground.

Is any voltage present?
Yes

REPAIR circuit CCB18A (YE/GY), or circuit CCB18B
(YE/GY), or circuit CCB19A (GN/BN), or circuit
CCB19B (GN/BN). REPEAT the self-test, CLEAR the
DTCs.

REPEAT the self-test, CLEAR the DTCs. If the DTC
remains, INSTALL a new EPB module.
REFER to: Parking Brake Module (206-05 Parking
Brake and Actuation, Removal and Installation).
REPEAT the self-test, CLEAR the DTCs.

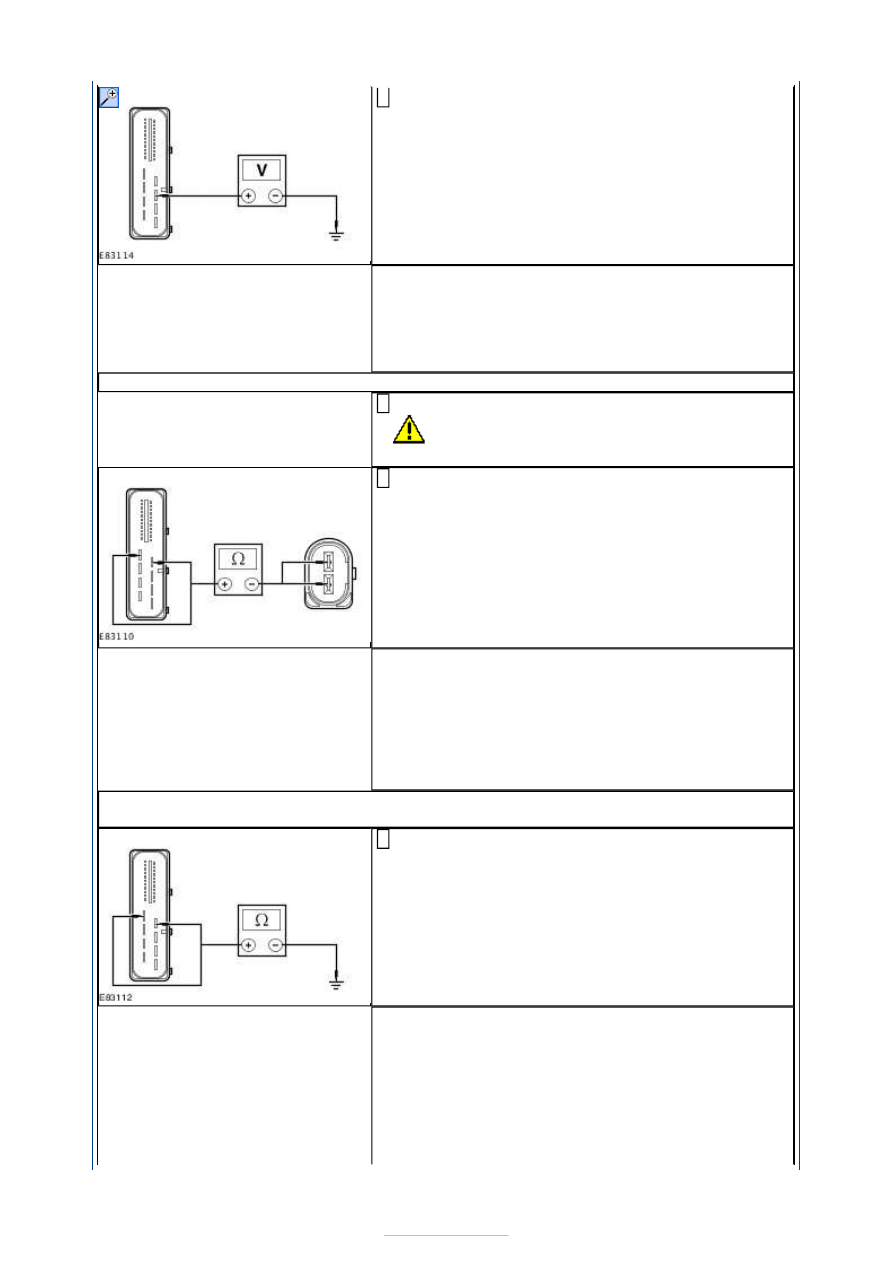

PINPOINT TEST J : DTC C2007.13: RIGHT MOTOR FAULT

TEST CONDITIONS

DETAILS/RESULTS/ACTIONS

J1: CHECK THE EPB MODULE SUPPLY CIRCUIT

Disconnect EPB Module C4CB01.

Measure the voltage between the EPB module
C4CB01 pin 13, circuit C_SBR03A (BU/RD), harness

side and ground.

Is the voltage greater than 10 volts?
Yes

GO to J2

REPAIR circuit C_SBR03A (BU/RD). REPEAT the self-
test, CLEAR the DTCs.

J2: CHECK THE PARKING BRAKE RELEASE ACTUATOR CIRCUITS CONTINUITY

Disconnect Parking Brake Release Actuator C4CB07.

CAUTION: Make sure that the area around the

component is clean and free of foreign material.

Measure the resistance between the:

Are the resistances less than 2 ohms?
Yes

GO to J3

REPAIR circuit CCB18A (YE/GY), or circuit CCB18B
(YE/GY), or circuit CCB19A (GN/BN), or circuit
CCB19B (GN/BN). REPEAT the self-test, CLEAR the
DTCs.

J3: CHECK THE PARKING BRAKE RELEASE ACTUATOR CIRCUITS FOR A SHORT TO
GROUND

Measure the resistance between the:

EPB module C4CB01 pin 12, circuit CCB18B
(YE/GY), harness side and ground.
EPB module C4CB01 pin 27, circuit CCB19A
(GN/BN), harness side and ground.

Are the resistances greater than 10,000 ohms?
Yes

INSTALL a new EPB module.
REFER to: Parking Brake Module (206-05 Parking
Brake and Actuation, Removal and Installation).
REPEAT the self-test, CLEAR the DTCs.

REPAIR circuit CCB18A (YE/GY), or circuit CCB18B
