2001 RANGER ELECTRIC VEHICLE
151-17

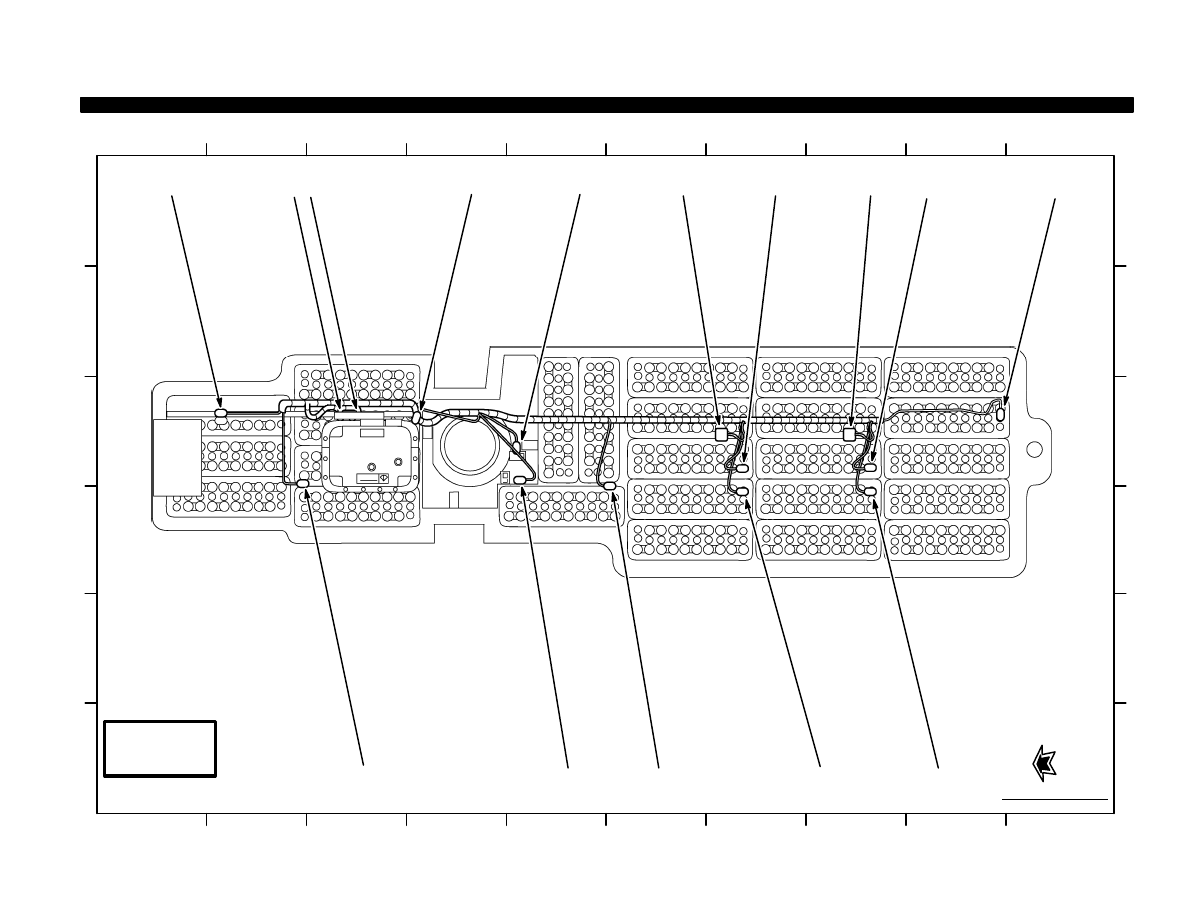

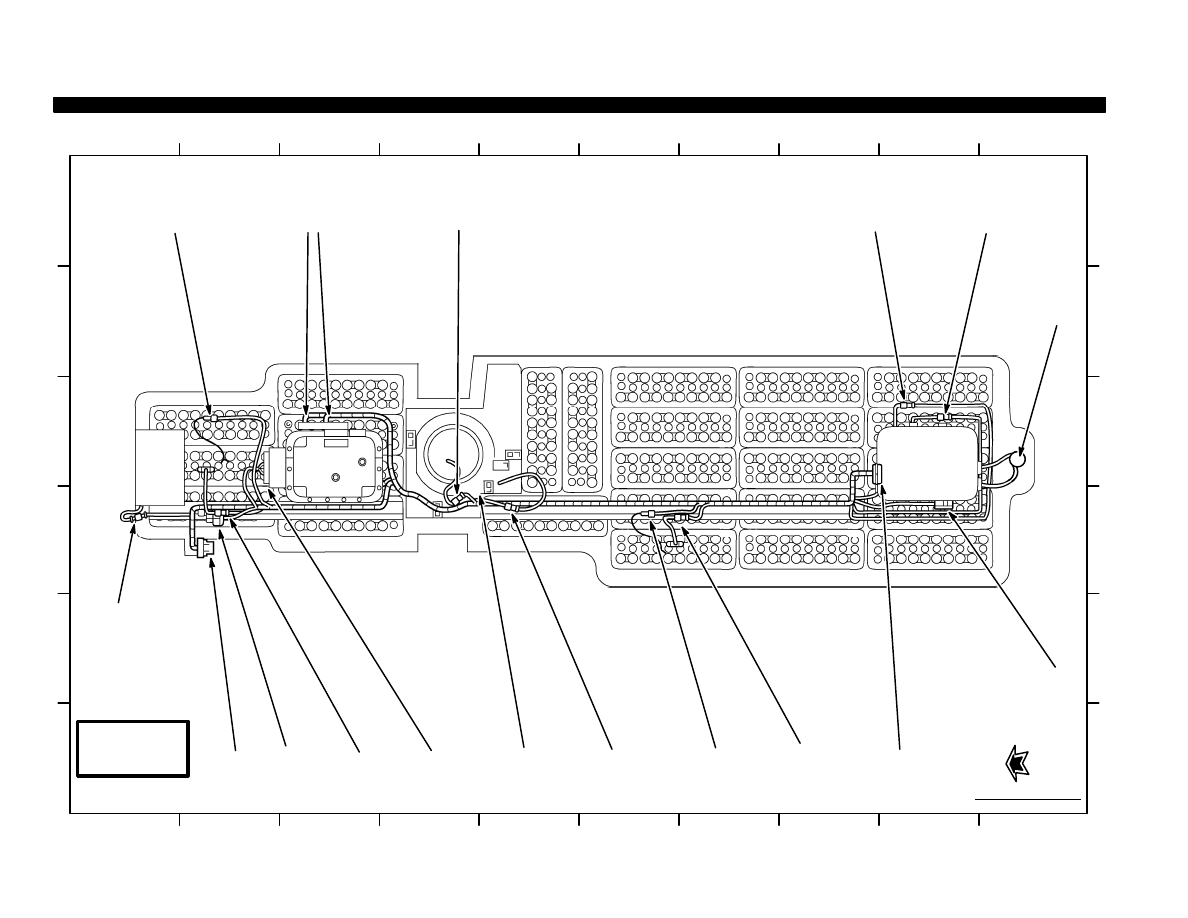

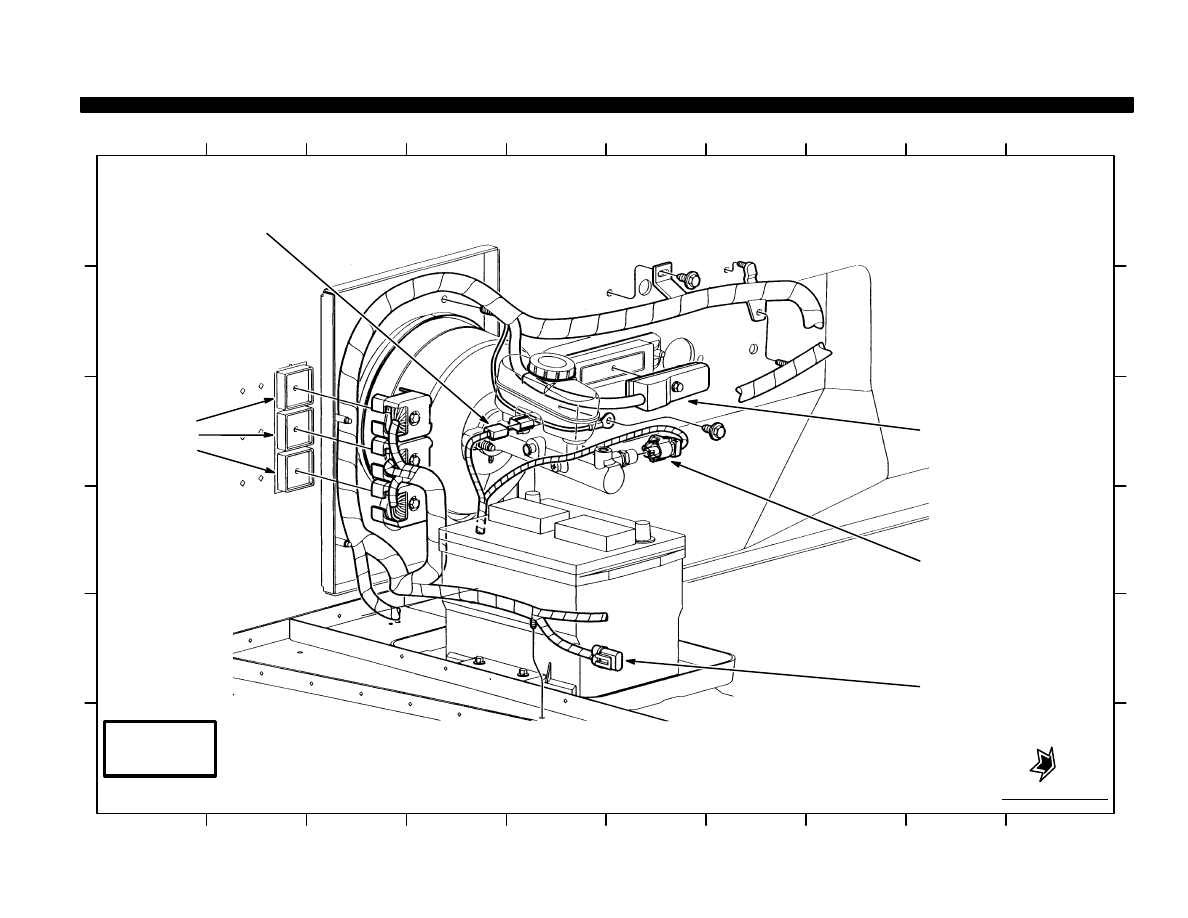

COMPONENT LOCATION VIEWS
2001 ELECTRIC RANGER
FCS–12887–01 (17 OF 29)
DO NOT USE
THIS ILLUSTRATION
AND GRID FOR
REPORTING VEHICLE
REPAIR LOCATIONS
FRONT OF VEHICLE

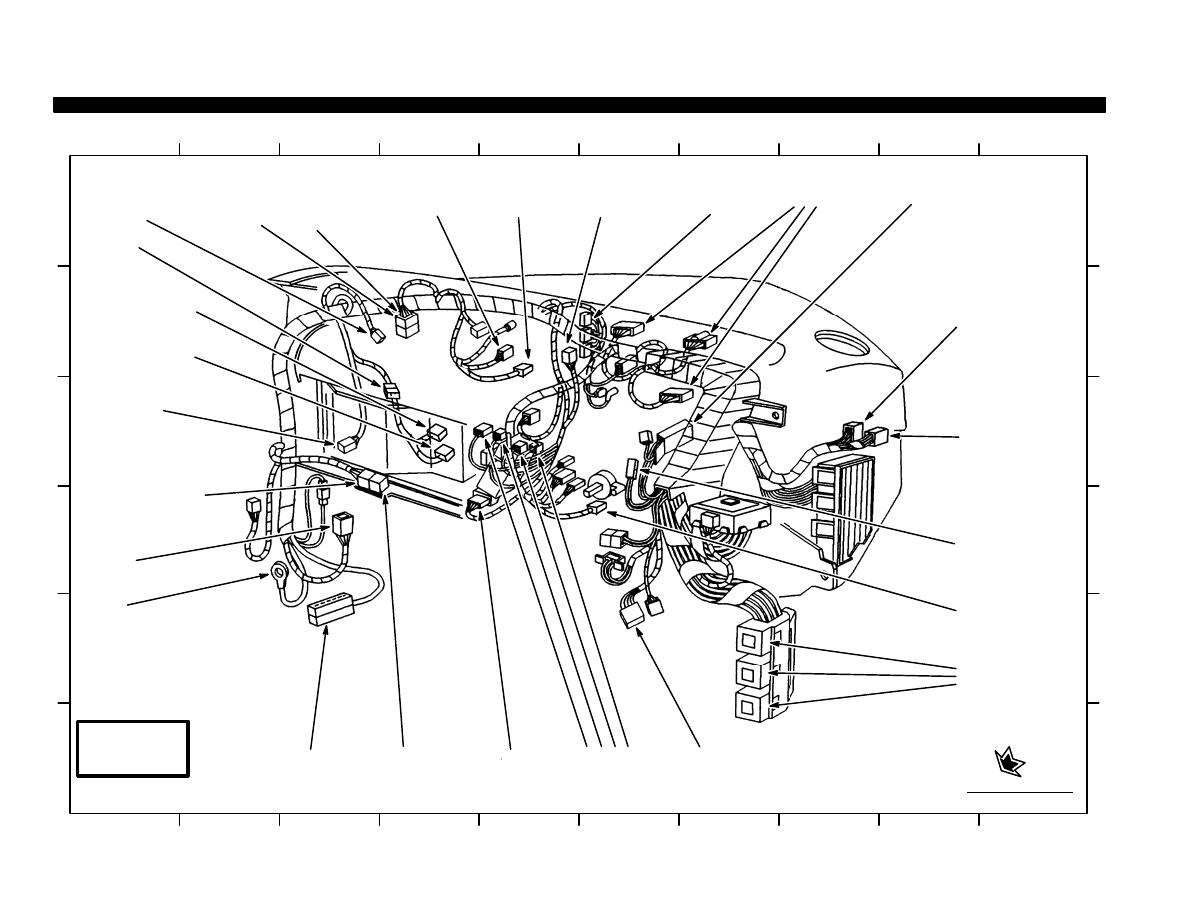

BEHIND INSTRUMENT PANEL
C242
PASSENGER AIR
BAG
1
2
3
4
5
6
7
8
9
10
B
C
D
E
F
A
A
B
C
D
E
F
1
2
3
4
5
6
7
8
9
10
C2994
RECIRCULATION
VACUUM SOLENOID
C2993
RECIRCULATION
VACUUM PRESSURE
SENSOR
C240
BLEND DOOR
ACTUATOR
C252M
C2999
G201
W/O 4X4 AND POWER
EQUIPMENT GROUP
C259
INTERIOR LAMP
RELAY
C250
AIR BAG
DIAGNOSTIC
MONITOR
C239
ACCESSORY
DELAY
RELAY
C256
PASSENGER
AIR BAG
DEACTIVATION
(PAD) SWITCH
C232, C233,
C234, C331
A/C HEATER
CONTROL
ASSEMBLY
C210
BRAKE PEDAL
POSITION
(BPP) SWITCH
C134,
C135,
C136
C2995
ACCELERATION
POSITION
SENSOR (APS)
C2990
STEERING
WHEEL SENSOR
C204
INSTRUMENT
ILLUMINATION
DIMMING
SWITCH
C205
MAIN LIGHT
SWITCH
C213
IGNITION
SWITCH
C214, C215, C216
INSTRUMENT
CLUSTER
C221
GENERIC
ELECTRONIC
MODULE (GEM)
C224
GENERIC
ELECTRICAL
MODULE (GEM)
C2997
IN-CAR
TEMPERATURE
SENSOR
C2998
FRESH/
RECIRCULATION
SELECT SWITCH
W/O POWER
DOOR LOCKS
C258
BATTERY SAVER
RELAY
W/POWER
DOOR LOCKS
C237
DRIVER’S
UNLOCK RELAY
