2001 RANGER ELECTRIC VEHICLE

150-7

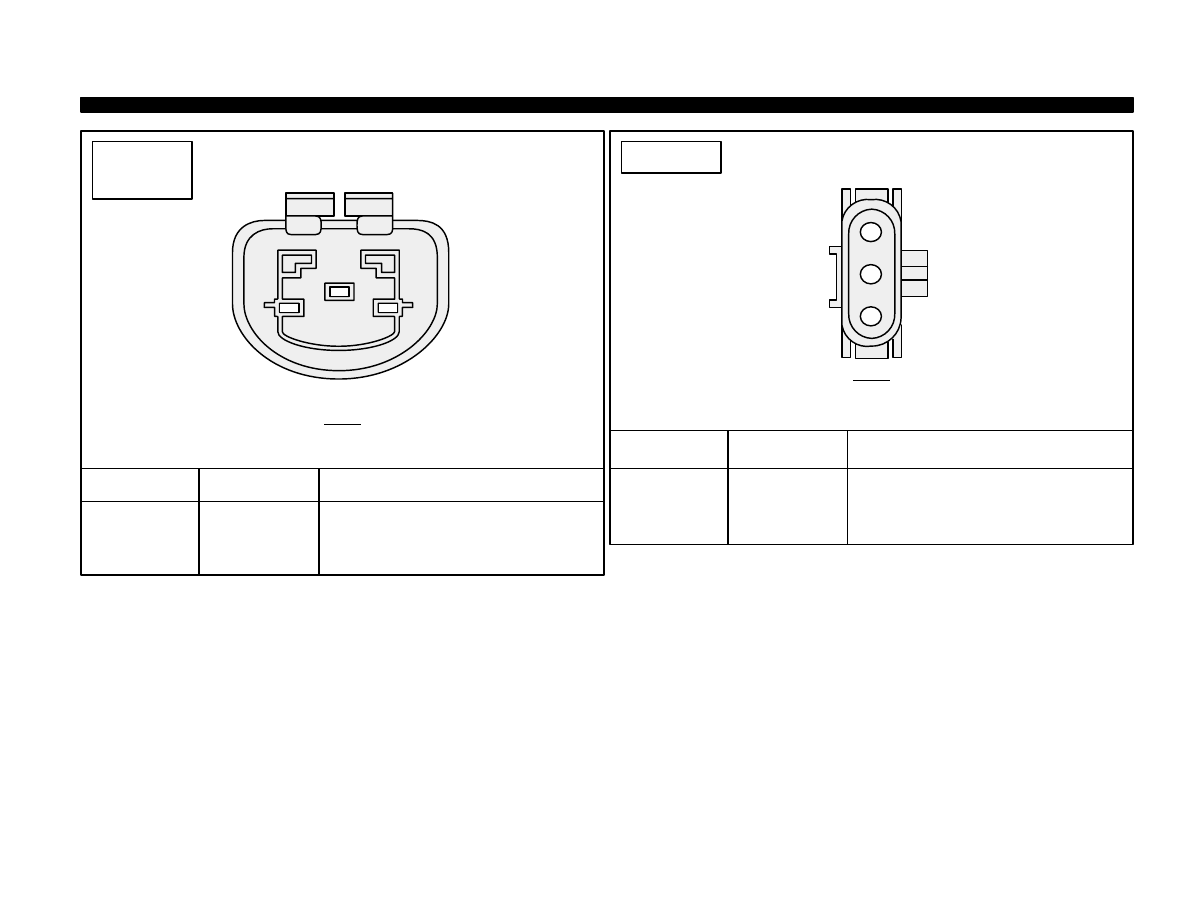

CONNECTOR FACES

1

2

3

57 (BK)

512 (TN/LG)

977 (VT/WH)

1

2

3

C137

PIN

CIRCUIT

CIRCUIT FUNCTION

BRAKE FLUID LEVEL SWITCH

Ground

Brake Indicator, Control

Brake Indicator, Control

1 (DB)

1

C144

PIN

CIRCUIT

CIRCUIT FUNCTION

HORN

Horn Switch Control

14290

14290

2001 RANGER ELECTRIC VEHICLE

150-8

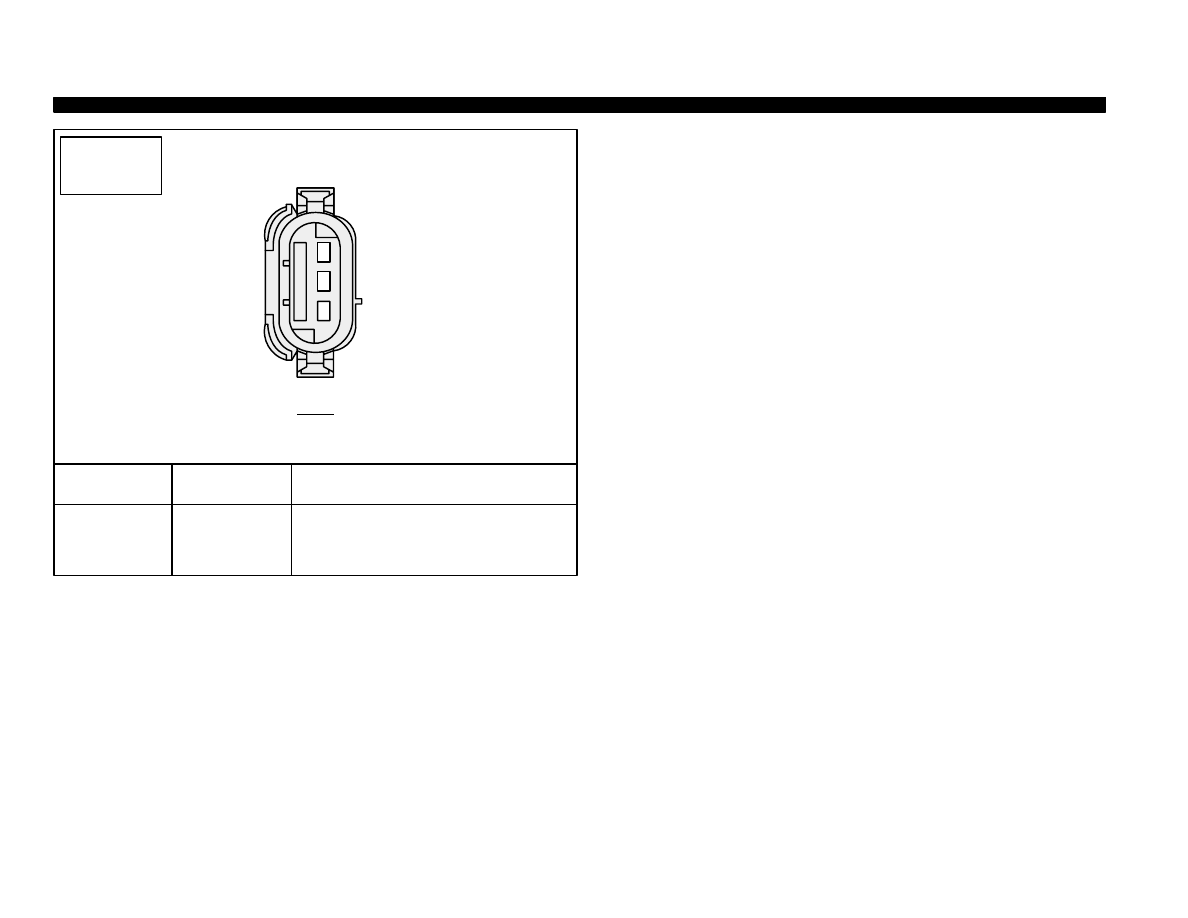

CONNECTOR FACES

12 (LG/BK)

57 (BK)

1055 (WH/LG)

1

2

3

C147

PIN

CIRCUIT

CIRCUIT FUNCTION

LEFT HEADLAMP

EXCEPT

POSTAL

Power, Hot with High Beams On

Ground

Headlamp, Left - Fused Feed

12 (LG/BK)

57 (BK)

1055 (WH/LG)

H

G

L

C147

PIN

CIRCUIT

CIRCUIT FUNCTION

LEFT HEADLAMP

POSTAL

Power, Hot with High Beams On

Ground

Headlamp, Left - Fused Feed

3

2

1

14290

14290

H

G

L

2001 RANGER ELECTRIC VEHICLE

150-9

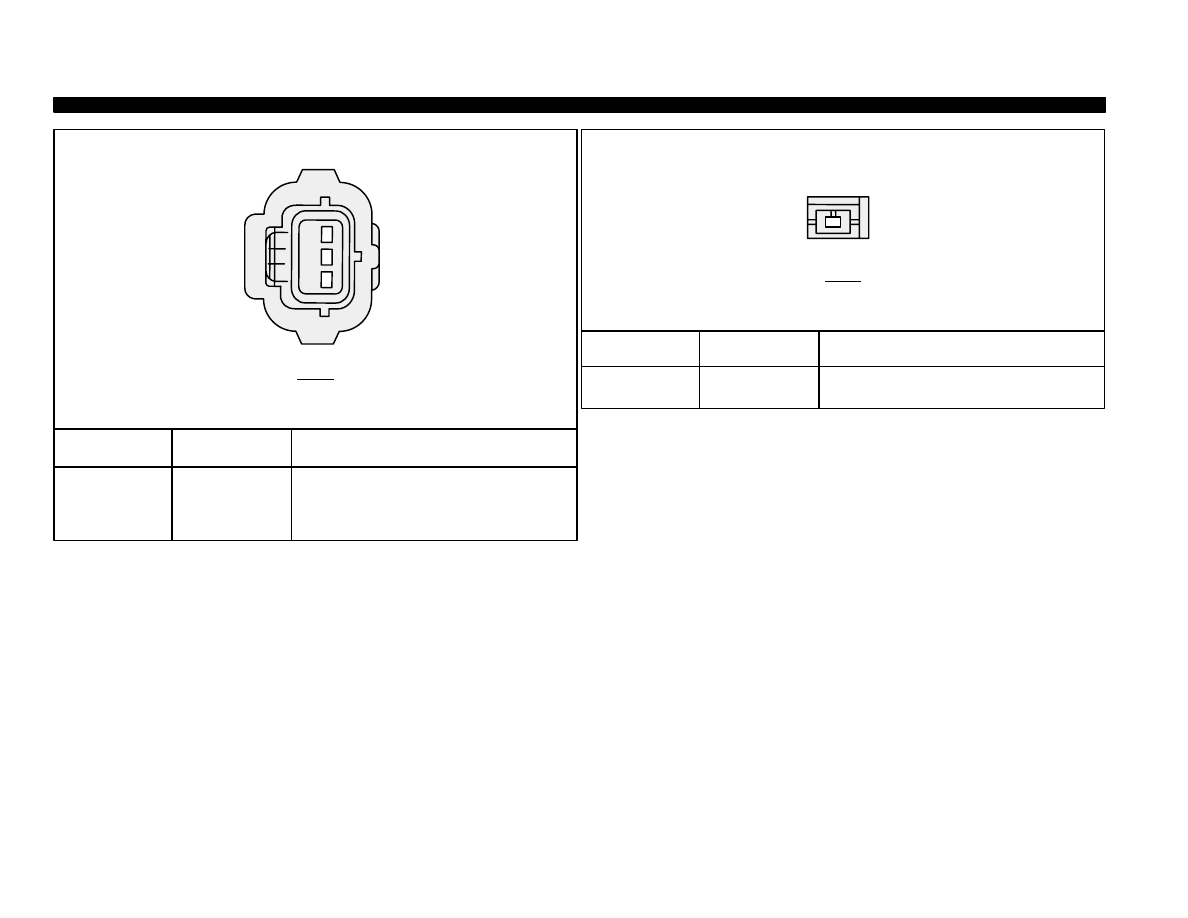

CONNECTOR FACES

57 (BK)

14(BN)

3 (LG/WH)

1

2

3

C148

PIN

CIRCUIT

CIRCUIT FUNCTION

LEFT FRONT PARK/TURN LAMP

Ground

Power, Exterior Lamps

Left Front Turn Lamps, Feed

14290

EXCEPT
POSTAL

3

2

1

2001 RANGER ELECTRIC VEHICLE

150-10

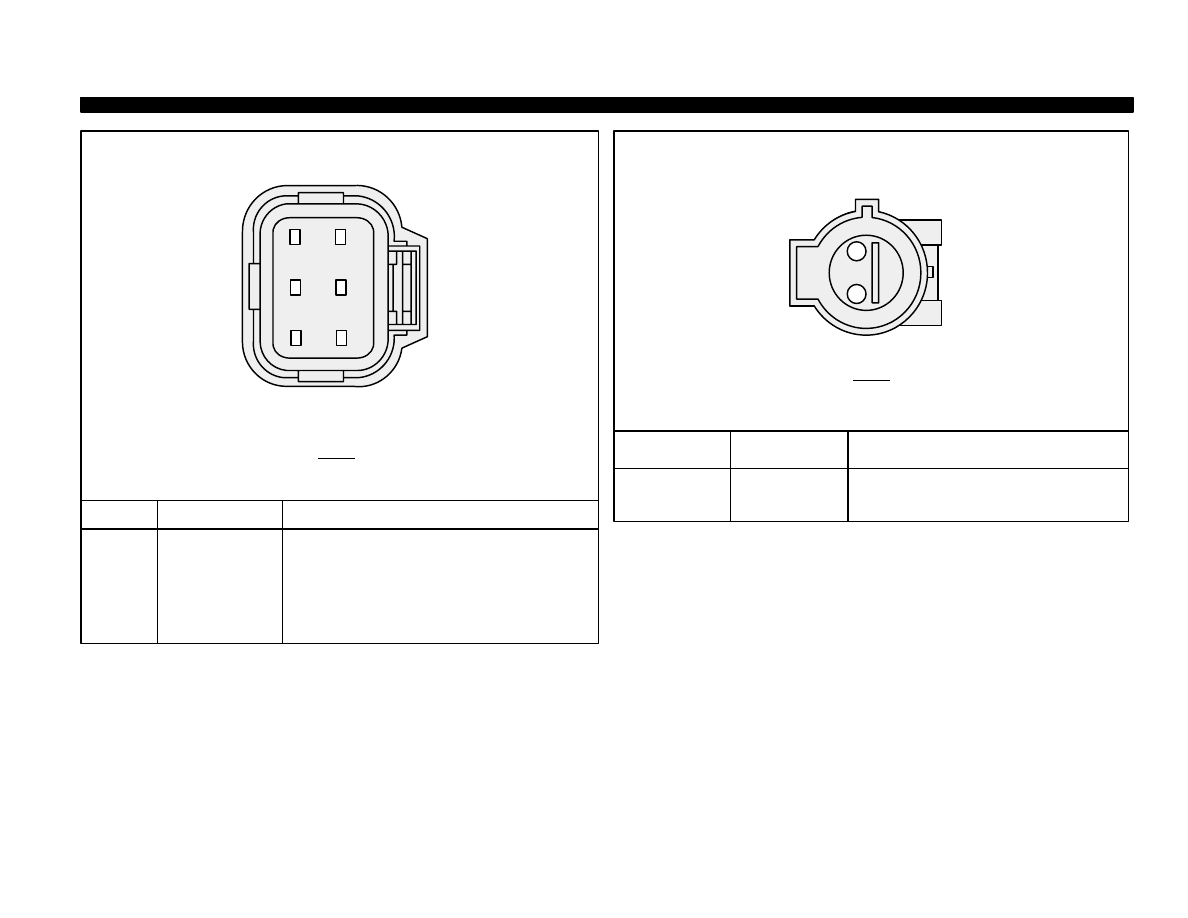

CONNECTOR FACES

C150

DAYTIME RUNNING LAMPS (DRL) MODULE

PIN

CIRCUIT

CIRCUIT FUNCTION

1

2

3

4

5

6

13 (RD/BK)

196 (DB/OG)

298 (PK/OG)

57 (BK)

12 (LG/BK)

977 (PK/WH)

Power Hot in Low and Pass

Power Hot at All Times

Power Hot in Run

Ground

High Beam Output

Brake Indicator Output

1

2

3

4

5

6

521 (TN/OG)

522 (TN/BK)

1

2

C151

PIN

CIRCUIT

CIRCUIT FUNCTION

LEFT FRONT ANTIĆLOCK BRAKE SENSOR

Left Front High Sensor

Left Front Low Sensor

14290

1

2
