2001 RANGER ELECTRIC VEHICLE

139-1

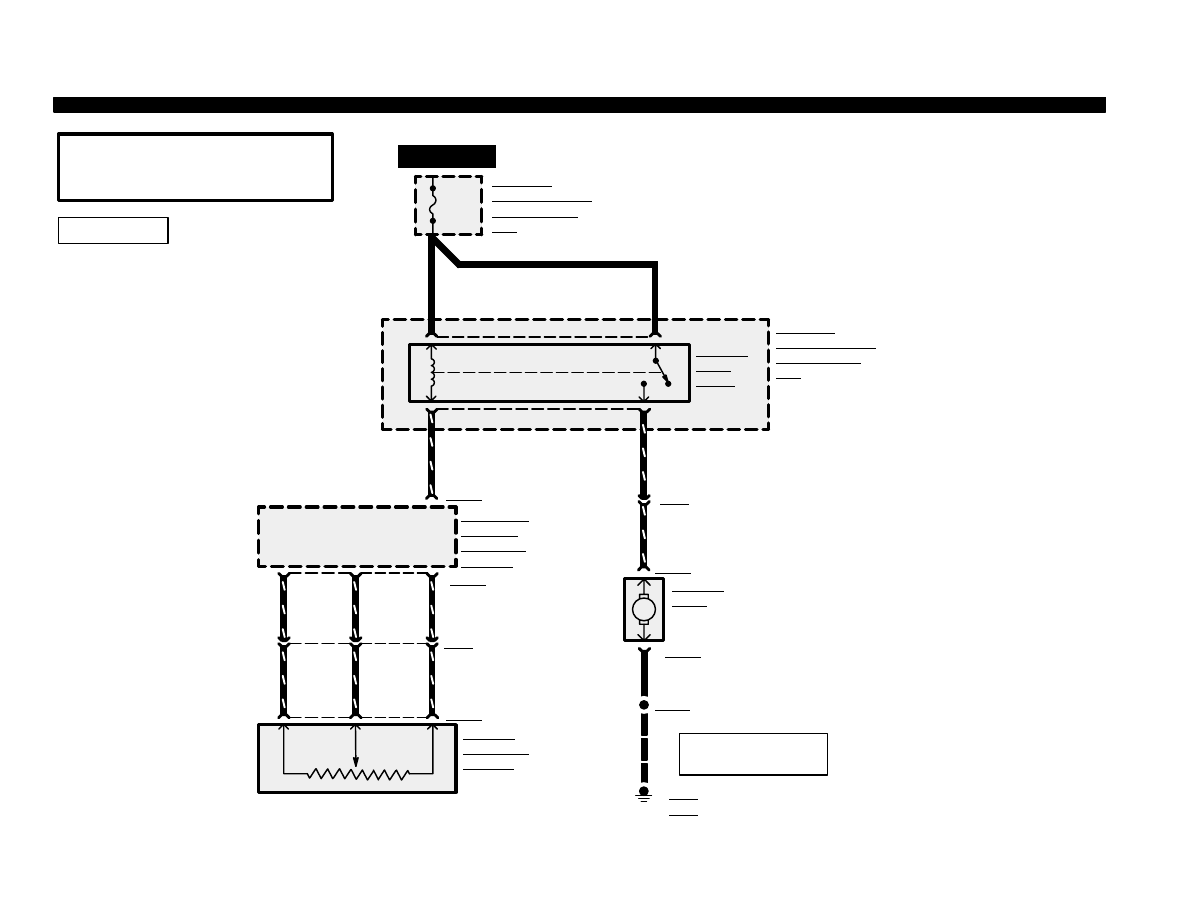

VACUUM SYSTEM

*

27

*13

20A

SEE GROUNDS

PAGES 10Ć4, 10Ć6, 10Ć12

HOT AT ALL TIMES

ELECTRIC

VEHICLE POWER

DISTRIBUTION

BOX (EVPDB)

PAGES 13Ć4, 13Ć19

576

DG

1

2

3021

GY/BK

C1945

30

89

INTERFACE

ADAPTER

ASSEMBLY (IAA)

MODULE

4

88

3033

BK/LB

3032

DB/LG

3034

LG/RD

C1945

C124

3033

BK/LB

3032

DB/LG

3034

LG/RD

C1997

VACUUM

PRESSURE

SENSOR

3

5

576

DG

VACUUM

PUMP

RELAY

ELECTRIC

VEHICLE POWER

DISTRIBUTION

BOX (EVPDB)

PAGES 13Ć4, 13Ć19

P

C124

3230

LB/OG

3230

LB/OG

C1996

VACUUM

PUMP

C1996

57

BK

S1999

*

G103

57

BK

12V

12V

0V

For diagnostic information, refer to

Section 206Ć07 of the Workshop

Manual.

* G105

* POSTAL

2001 RANGER ELECTRIC VEHICLE

139-2

VACUUM SYSTEM

2001 RANGER ELECTRIC VEHICLE

149-1

COMPONENT TESTING: INTRODUCTION

INTRODUCTION

Component testing procedures are provided to determine whether or not a

component operates properly.

Testing information for each component includes a schematic with compo-

nent terminal locations and step-by-step test procedures. Component termi-
nals are identified by:

1. the circuit number of the wires that connect to that terminal,

2. the wire insulation color, and

3. letters or numbers that may be marked on the component.

38    BK/OG   (B)

Circuit number
as shown on
schematics

Terminal as
marked on some
components

Wire
insulation
color

The component connector MUST BE REMOVED before testing. To test a

single circuit within the component, select that circuit under the column TO
TEST. If you wish to test the complete component, perform all tests.

Connect the tester to the terminals shown in the second column and oper-

ate the component as shown in the third column.

2001 RANGER ELECTRIC VEHICLE

149-2

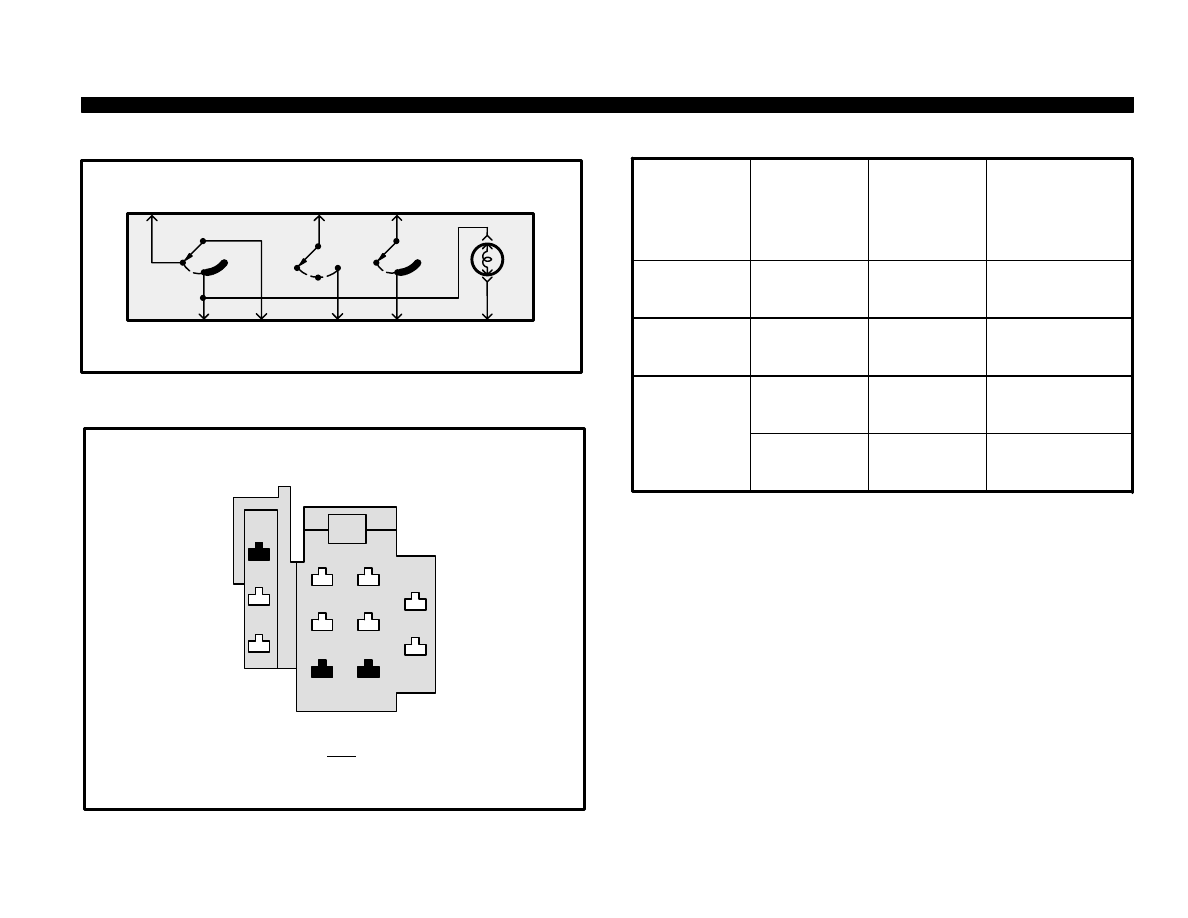

COMPONENT TESTING: MAIN LIGHT SWITCH (EXCEPT POSTAL)

Illumination
Circuit

5 and 3

1

COMPONENT TESTING PROCEDURE

TO

TEST

Connect Self-
Powered Test

Light or

Ohmmeter to

Terminals

Move Switch

to These

Positions

A Good Switch

Will Indicate

Park Lamp
Circuit

Off
Park
Head

Open Circuit
Closed Circuit
Closed Circuit

Headlamp
Circuit

6 and 2

Off
Park
Head

Open Circuit
Open Circuit
Closed Circuit

TERMINALS

5

9

4

3

8

7

11

10

6

2

HEAD

OFF

PARK

OFF

HEAD

PARK

HEAD

OFF

PARK

9

8

2

3

7

5

6

4

584

(YE)

196

(DB/OG)

195

(TN/WH)

484

(OG/BK)

19

(LB/RD)

15

(RD/YE)

14

(BN)

57

(BK)

C205

SCHEMATIC

4 and 9

Off
Park
Head

Open Circuit
Closed Circuit
Closed Circuit

4 and 8

Off
Park
Head

Closed Circuit
Open Circuit
Open Circuit
