Ford Ranger EV (2001 year). Manual - part 193

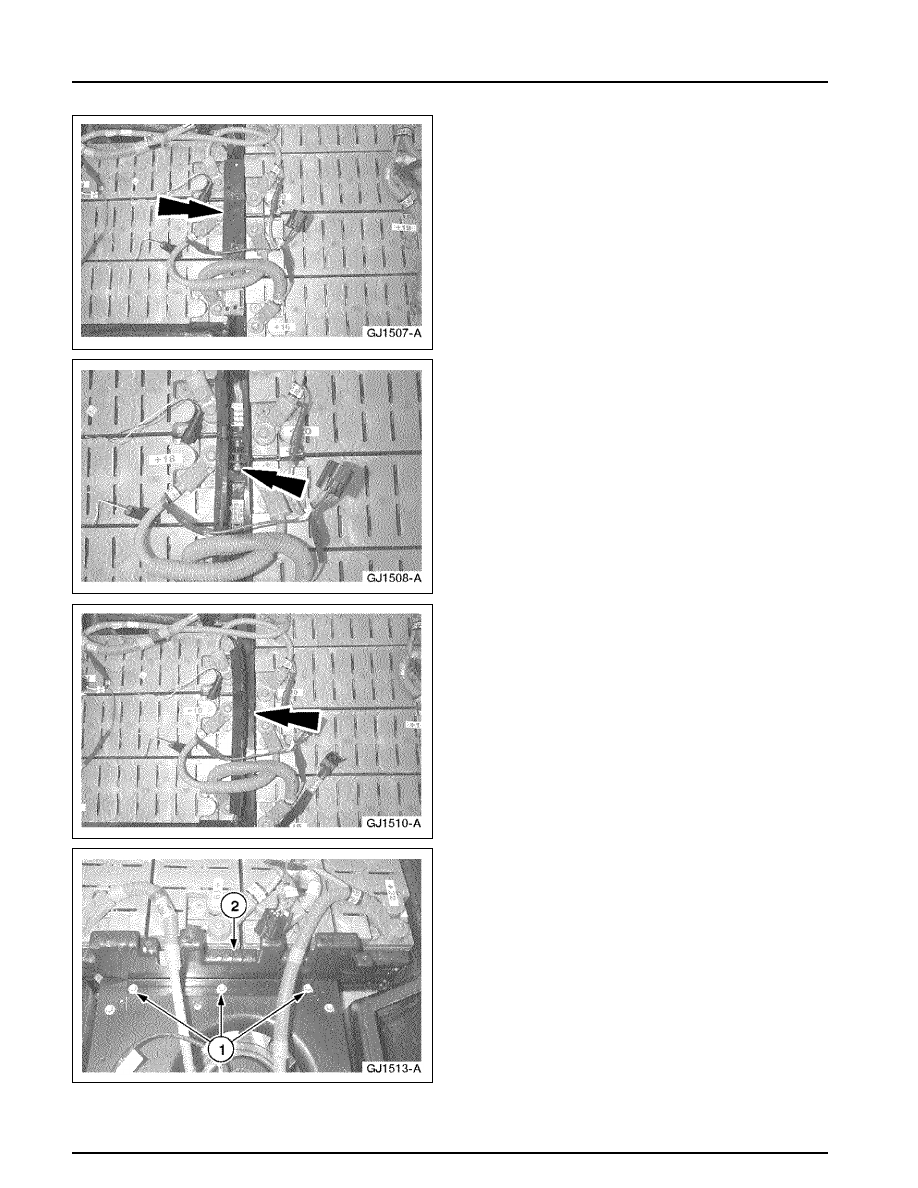

414-03B-168

High Voltage/Traction Battery — Nickel Metal Hydride

REMOVAL AND INSTALLATION (Continued)

9. Unclip the battery hold down tie bar cover.

10. Remove the battery hold down strap bolt and

pull the straps back off the battery hold down
tie bar.

11. Remove the battery hold down tie bar.

12. Remove the module hold down.

1 Remove the bolts.
2 Remove the hold down.

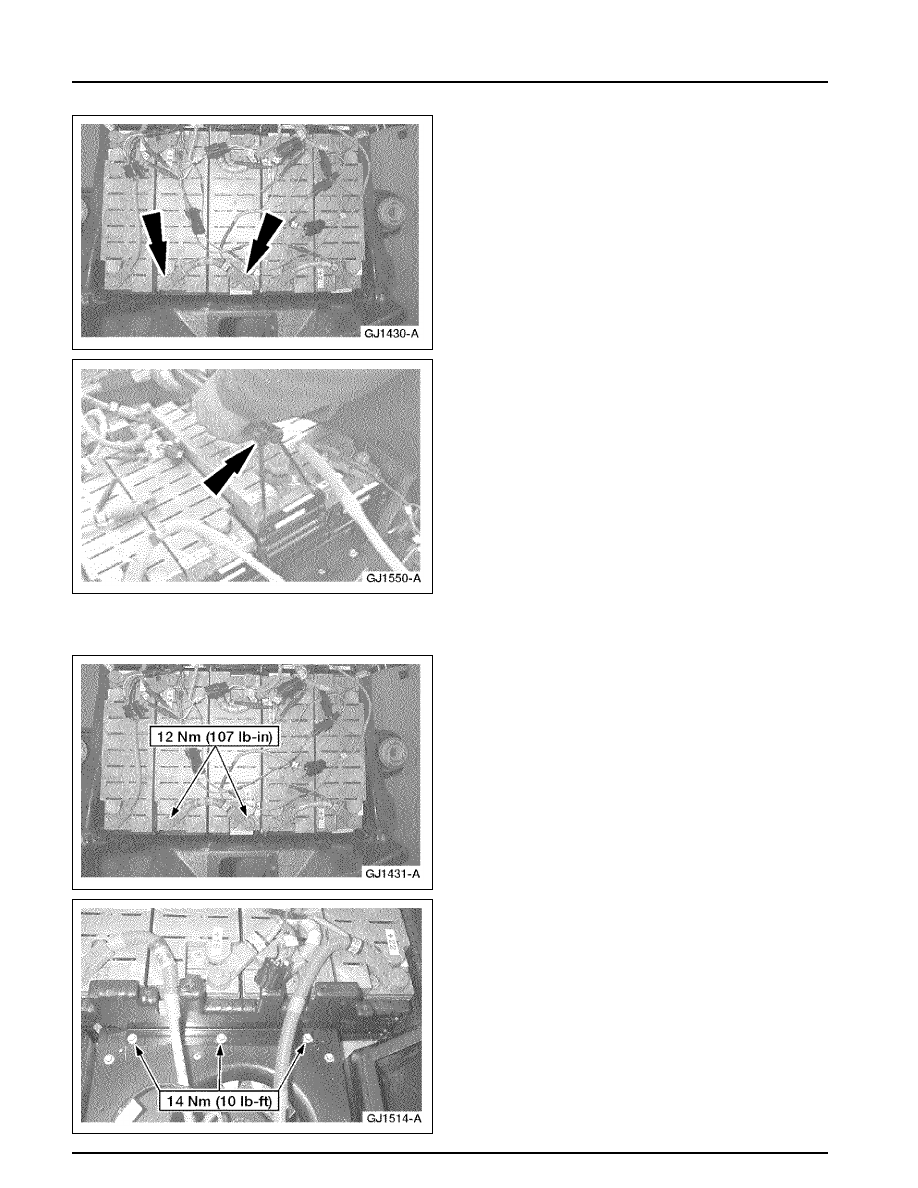

414-03B-169

High Voltage/Traction Battery — Nickel Metal Hydride

REMOVAL AND INSTALLATION (Continued)

13. Disconnect the necessary module.

•

Disconnect the HVJ cables and discard the
nuts.

14. Using the special tool, remove the module.

Installation

1. NOTE: The arrow on the battery hold down tie

bars must be pointed towards the front of the
traction battery.
To install, reverse the removal procedure.

•

Fill the high-voltage jumper connectors with
Nyogel after final tightening of the nuts.

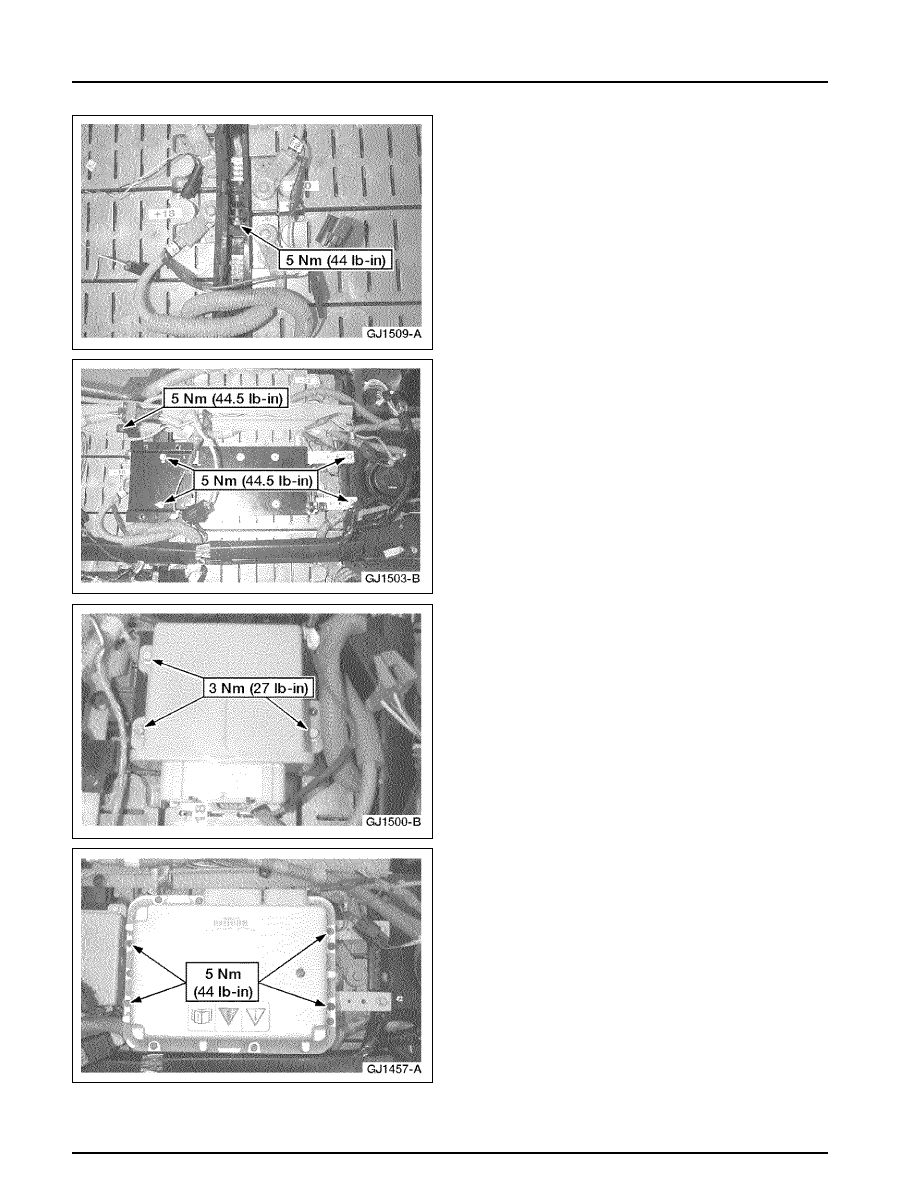

414-03B-170

High Voltage/Traction Battery — Nickel Metal Hydride

REMOVAL AND INSTALLATION (Continued)

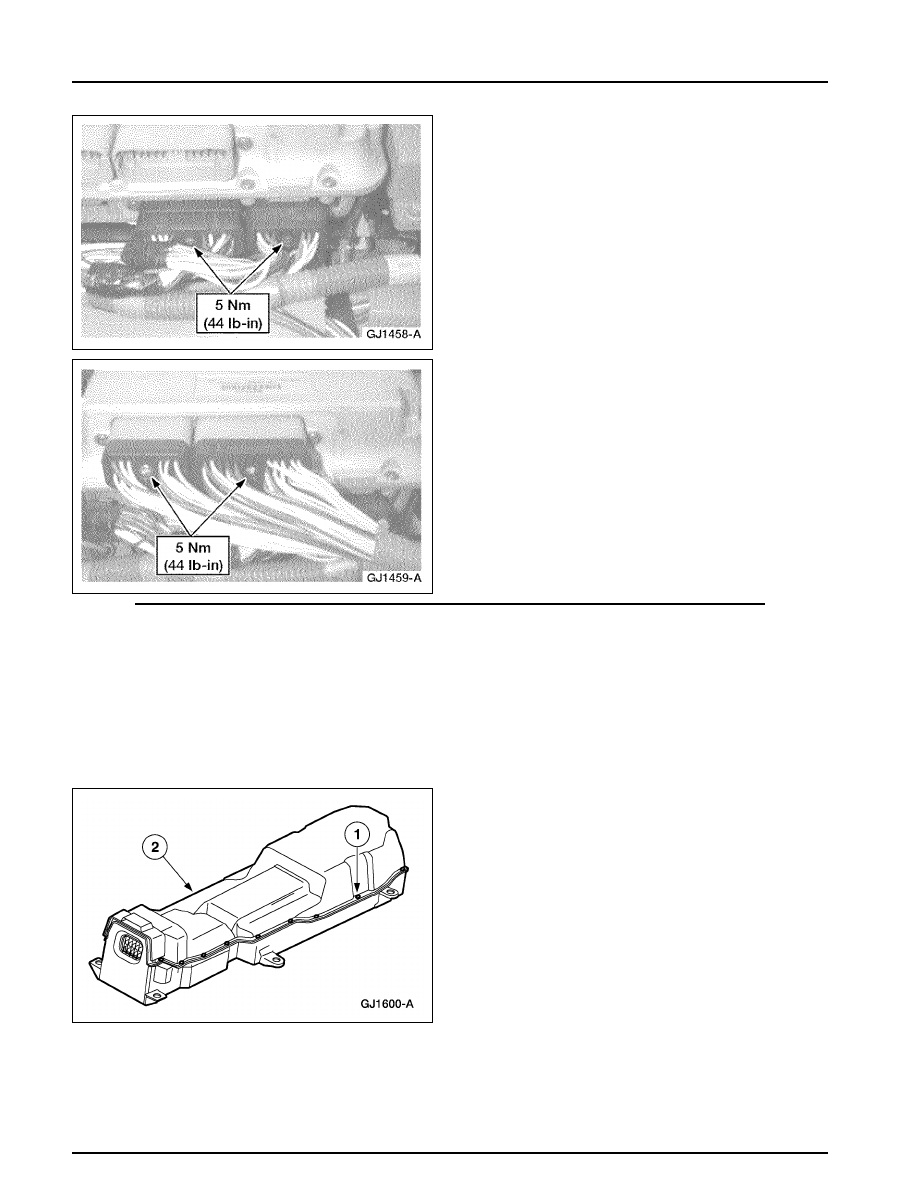

414-03B-171

High Voltage/Traction Battery — Nickel Metal Hydride

REMOVAL AND INSTALLATION (Continued)

Independent Observer Module — (IOM)

Removal

1. Remove the traction battery. Refer to

2. Remove the traction battery cover.

1 Remove the 22 bolts.
2 Remove the cover.
