Ford Ranger EV (2001 year). Manual - part 182

414-03B-124

High Voltage/Traction Battery — Nickel Metal Hydride

REMOVAL AND INSTALLATION (Continued)

Flow Through Blower

Removal

1. Remove the traction battery. Refer to

2. Remove the traction battery cover.

1 Remove the 22 bolts.
2 Remove the cover.

3. Remove the blower cover.

1 Remove the four bolts (two each side).
2 Remove the blower cover.

414-03B-125

High Voltage/Traction Battery — Nickel Metal Hydride

REMOVAL AND INSTALLATION (Continued)

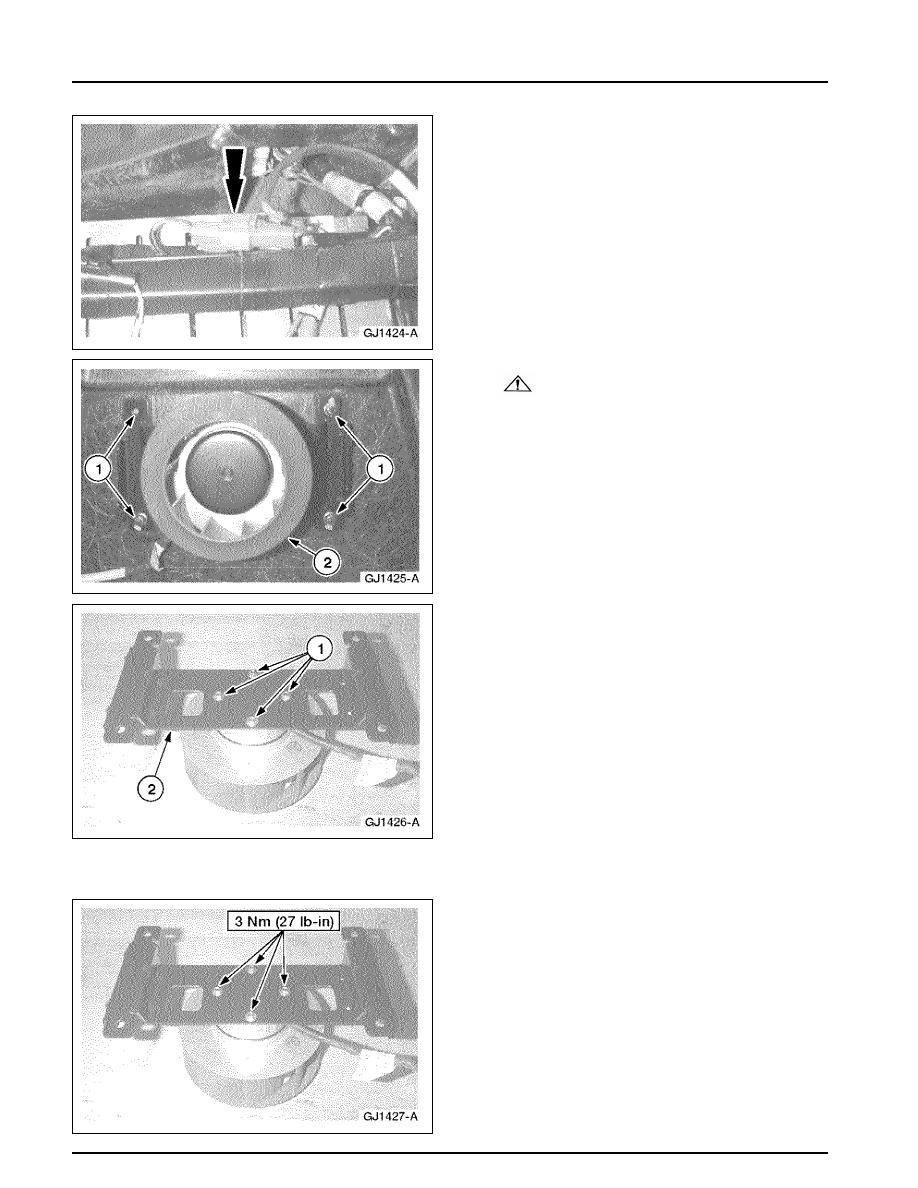

4. Disconnect the blower electrical connector.

CAUTION: The flow through blower is

very fragile and can easily be damaged if
mishandled.
Remove the flow through blower.
1 Remove the nuts.
2 Remove the blower.

6. Remove the flow through blower bracket.

1 Remove the bolts.
2 Remove the bracket.

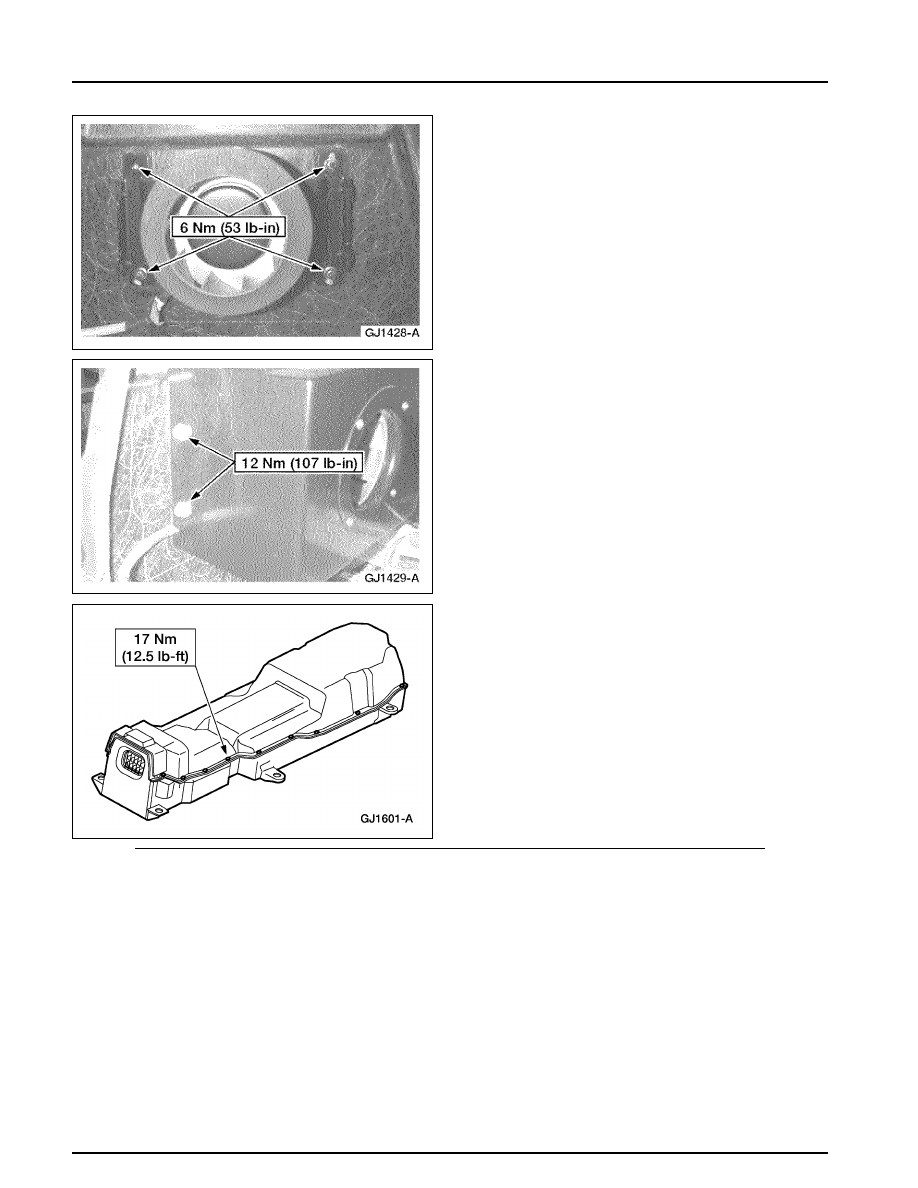

Installation

1. To install, reverse the removal procedure.

414-03B-126

High Voltage/Traction Battery — Nickel Metal Hydride

REMOVAL AND INSTALLATION (Continued)

Recirculating Blower

Removal

1. Remove the traction battery. Refer to

414-03B-127

High Voltage/Traction Battery — Nickel Metal Hydride

REMOVAL AND INSTALLATION (Continued)

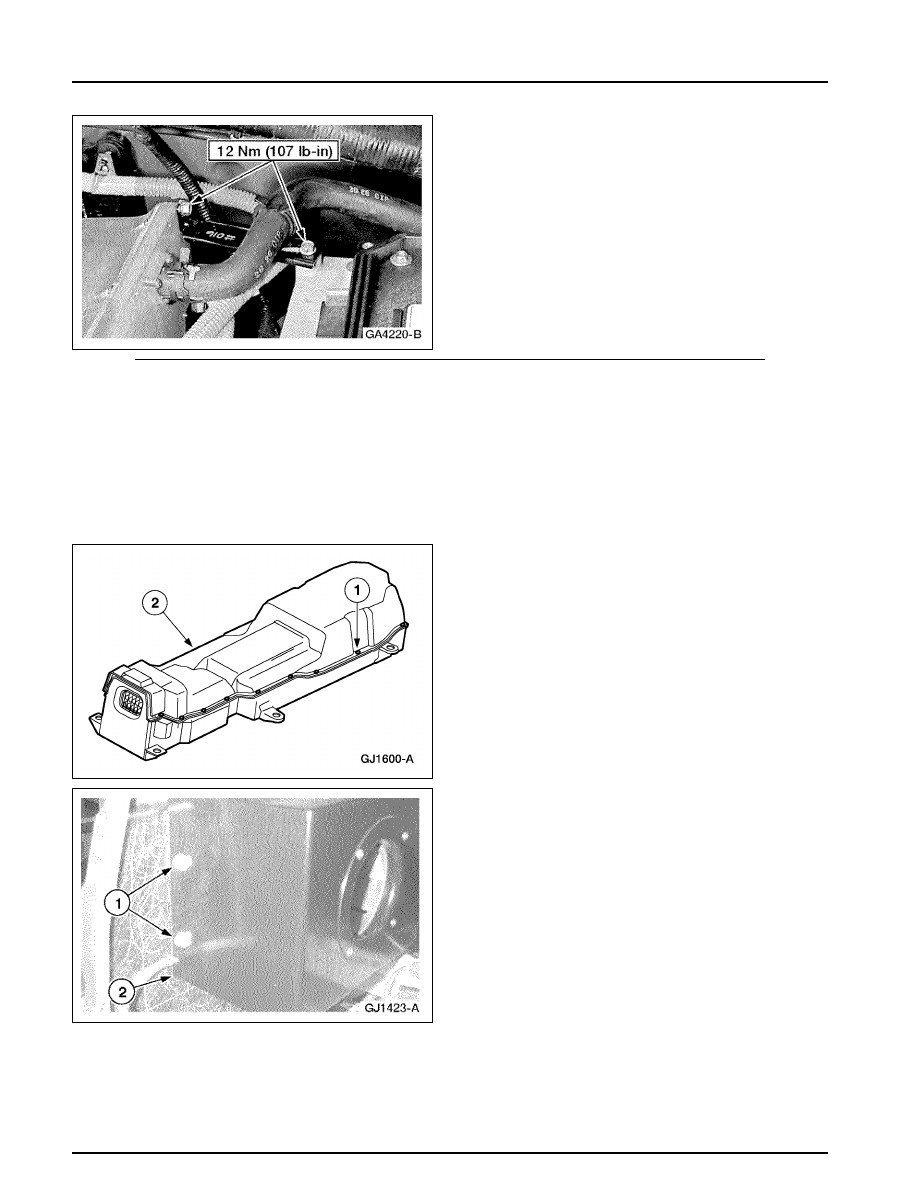

2. Remove the traction battery cover.

1 Remove the 22 bolts.
2 Remove the cover.

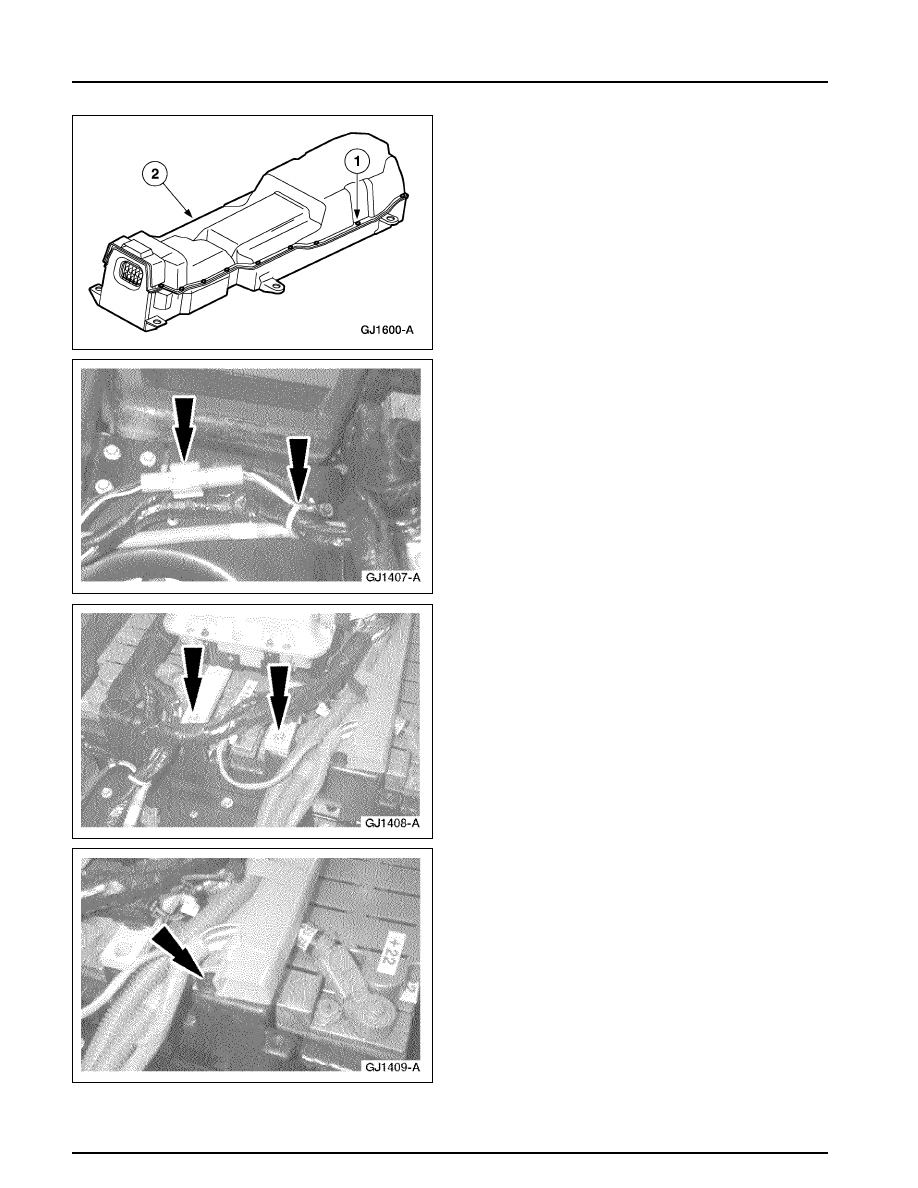

3. Disconnect the recirculating blower electrical

connector and cut the zip tie.

4. Remove the composite bar bolts.

5. Remove the high-voltage harness push pin.
