414-03B-96

High Voltage/Traction Battery — Nickel Metal Hydride

REMOVAL AND INSTALLATION (Continued)

Charge Inlet

Removal

1. Disconnect the traction battery auxiliary load

414-03B-97

High Voltage/Traction Battery — Nickel Metal Hydride

REMOVAL AND INSTALLATION (Continued)

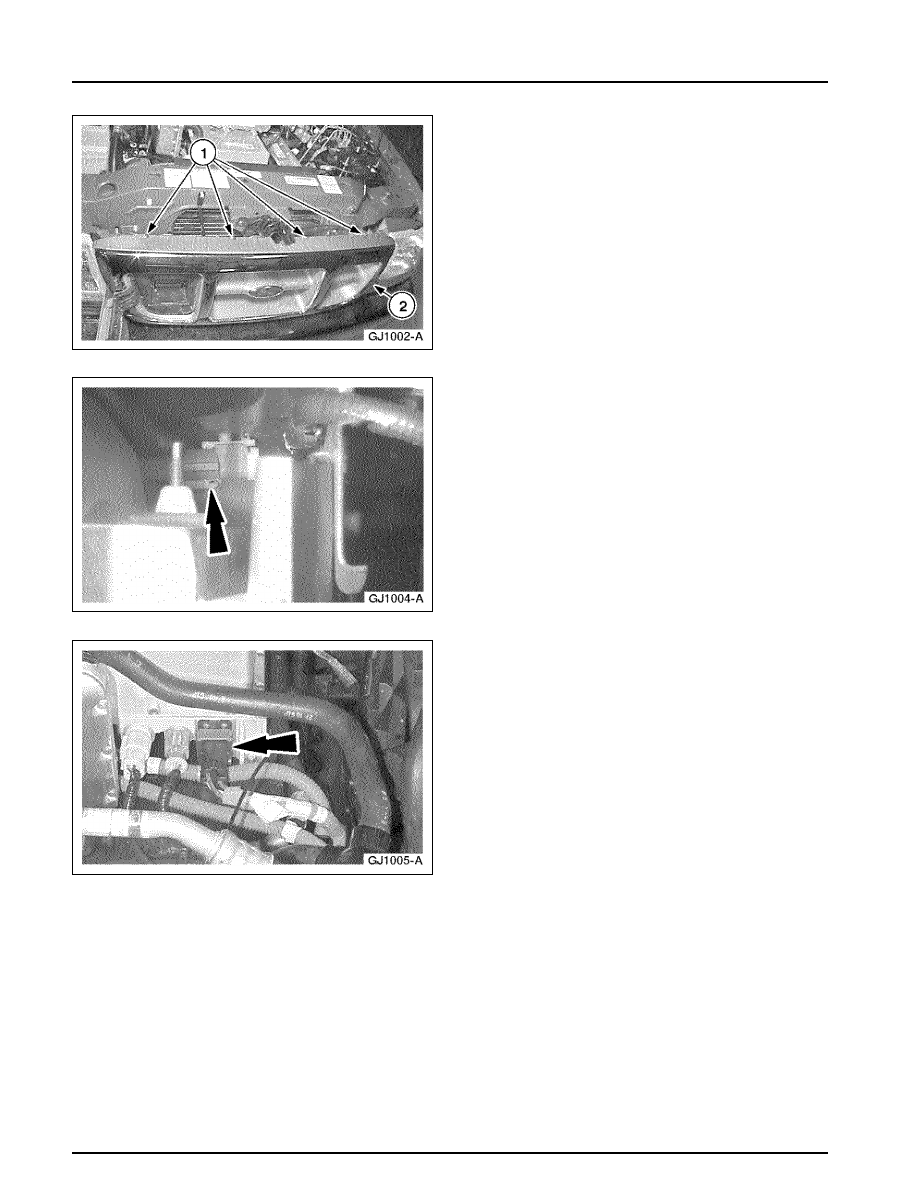

2. Remove the grille.

1 Remove the four screws.
2 Remove the grille.

3. NOTE: The low-voltage connector is located at

the rear of the charger inlet.
Disconnect the low-voltage electrical connector.

4. Disconnect the traction battery charger

high-voltage electrical connector.

•

Unclip the four wiring harness clips.

414-03B-98

High Voltage/Traction Battery — Nickel Metal Hydride

REMOVAL AND INSTALLATION (Continued)

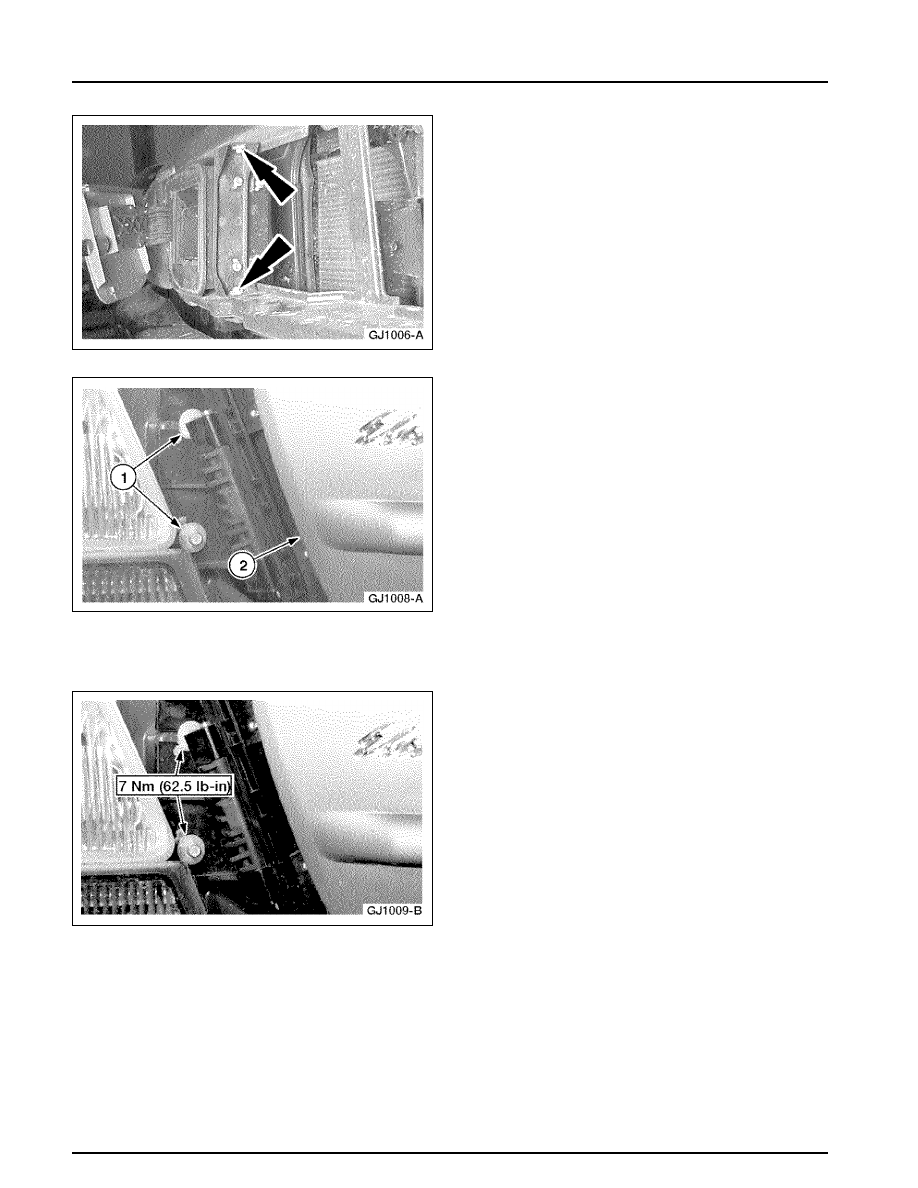

5. Remove the two charge bracket bolts.

6. Remove the charge inlet.

1 Loosen the two charge inlet bracket bolts.
2 Slide the charge inlet from behind the bolts

and remove.

Installation

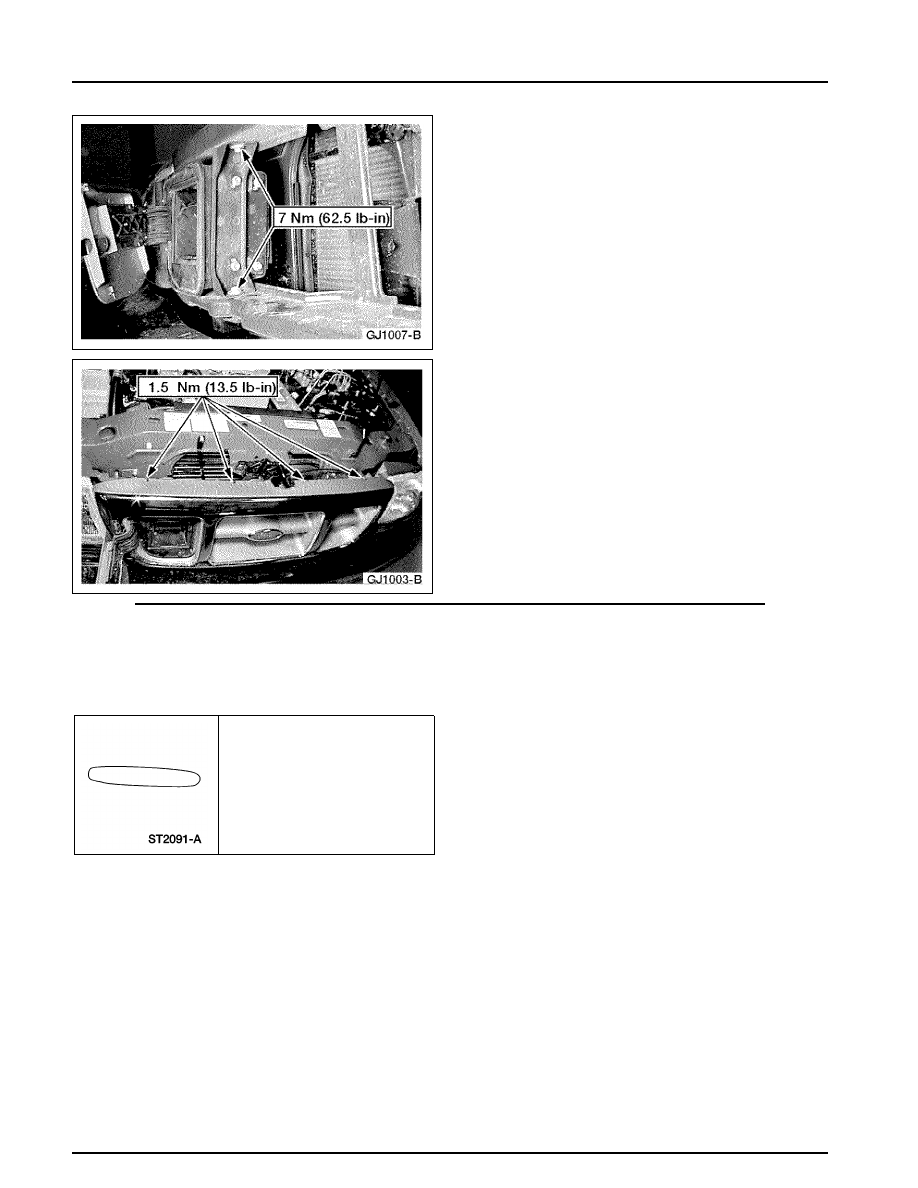

1. To install, reverse the removal procedure.

414-03B-99

High Voltage/Traction Battery — Nickel Metal Hydride

REMOVAL AND INSTALLATION (Continued)

Contactor Box

Special Tool(s)

Battery Terminal Cap Opener

418-F215

Removal

1. Remove the traction battery. Refer to
