High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY

Traction Battery Temperature Sensor

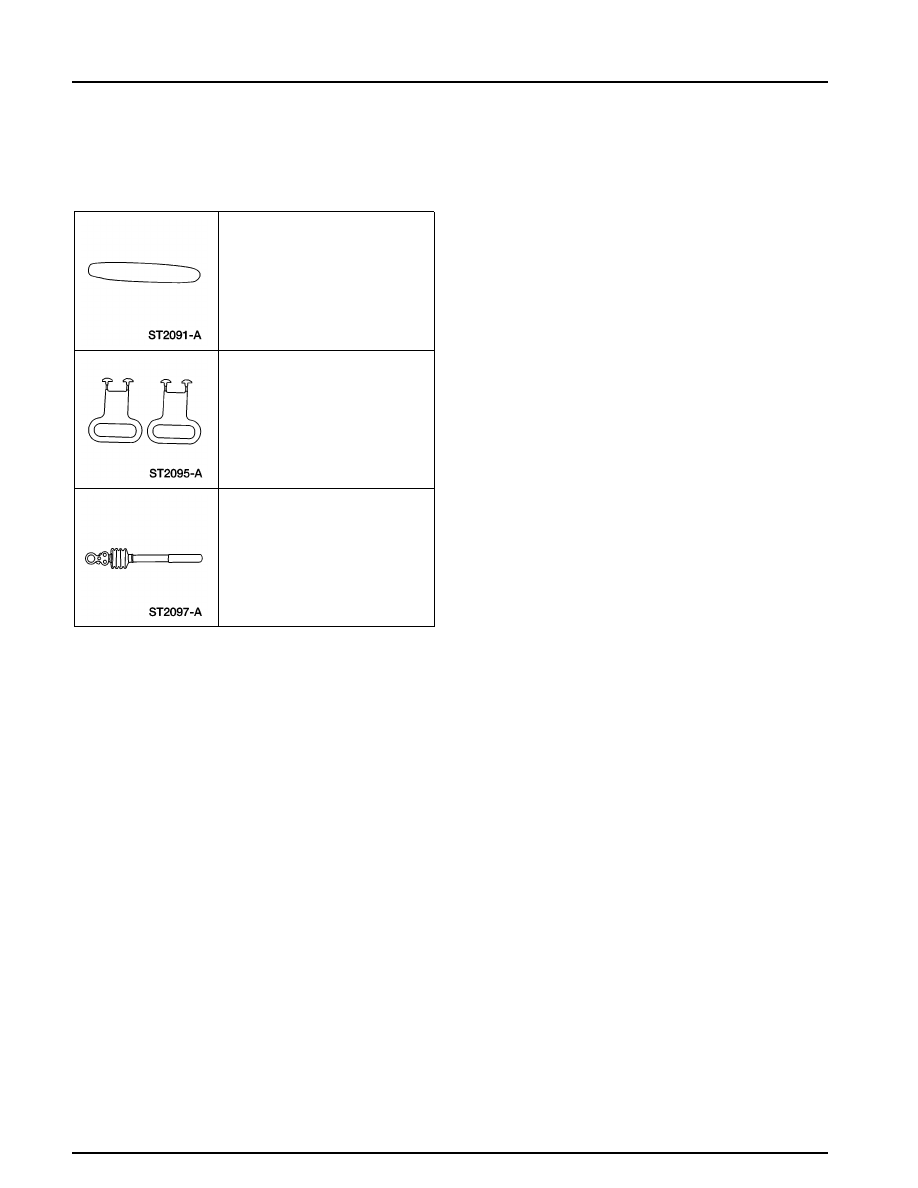

Special Tool(s)

Battery Terminal Cap Opener

418-F215

Battery Module Lifting Tool

418-F206

Battery Post Torque Wrench

307-026

414-03A-145

414-03A-145

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

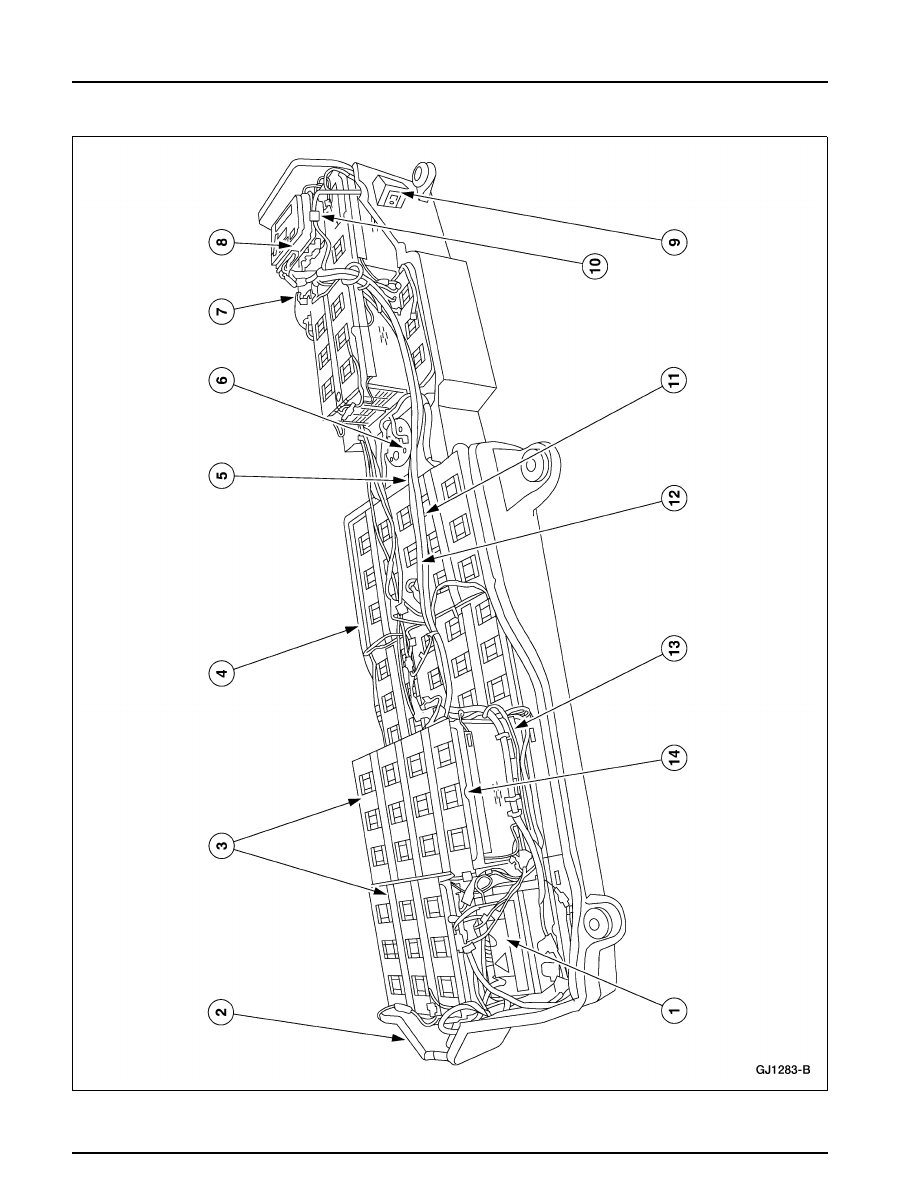

Traction Battery LH View

414-03A-146

414-03A-146

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

Item

Description

Item

Description

6

Upper Level Heating Elements

1

Battery Control Module (BCM)

7

Separator Plate

2

Contactor Box Harness

8

Low-Voltage Harness

3

High-Voltage (Sensor Lead) Harness

(10B694)

9

Traction Battery Cooling Fan Relay

4

Upper Level Battery Module

10

Traction Battery Cooling Fan

5

Contactor Box

11

76-Pin Connector

(Continued)

414-03A-147

414-03A-147

High Voltage/Traction Battery

DISASSEMBLY AND ASSEMBLY (Continued)

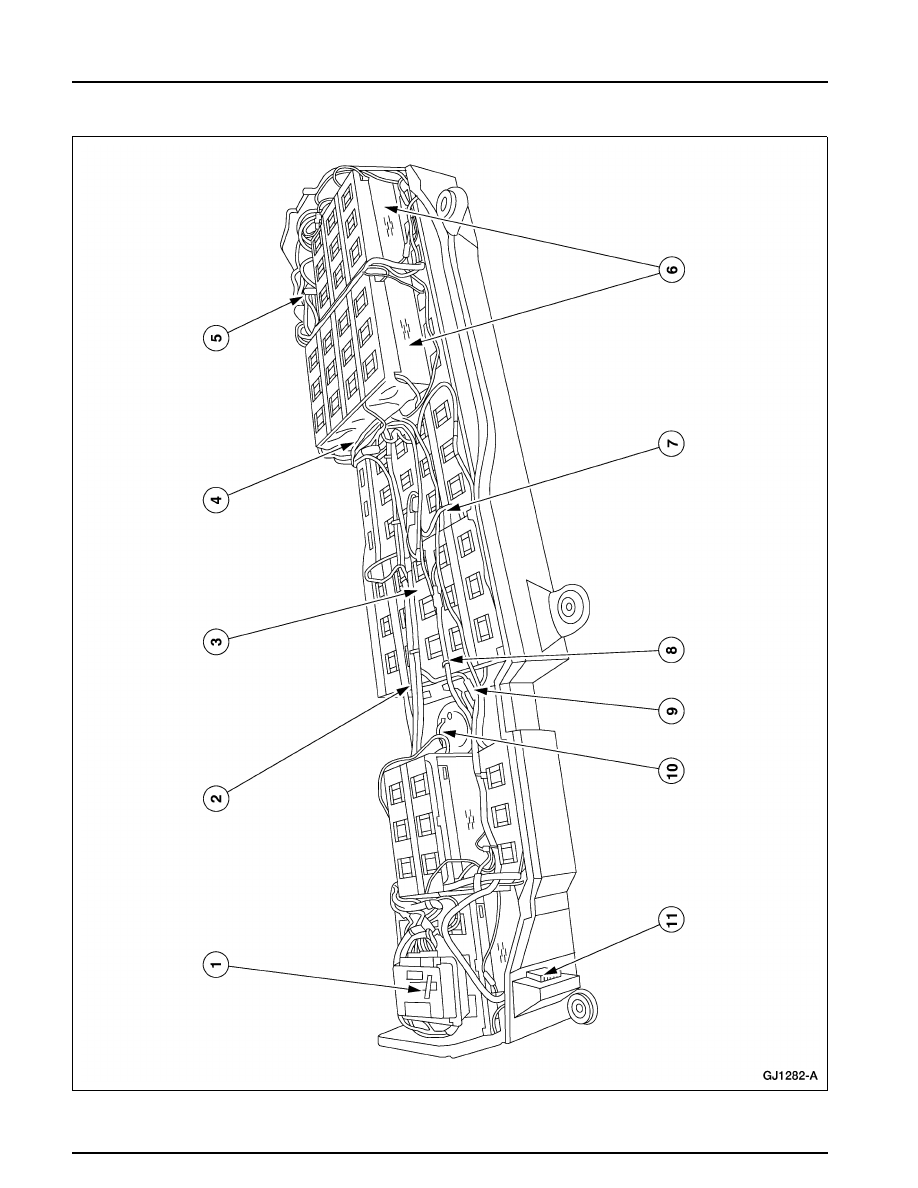

Traction Battery RH View
