Instrument Cluster

REMOVAL AND INSTALLATION (Continued)

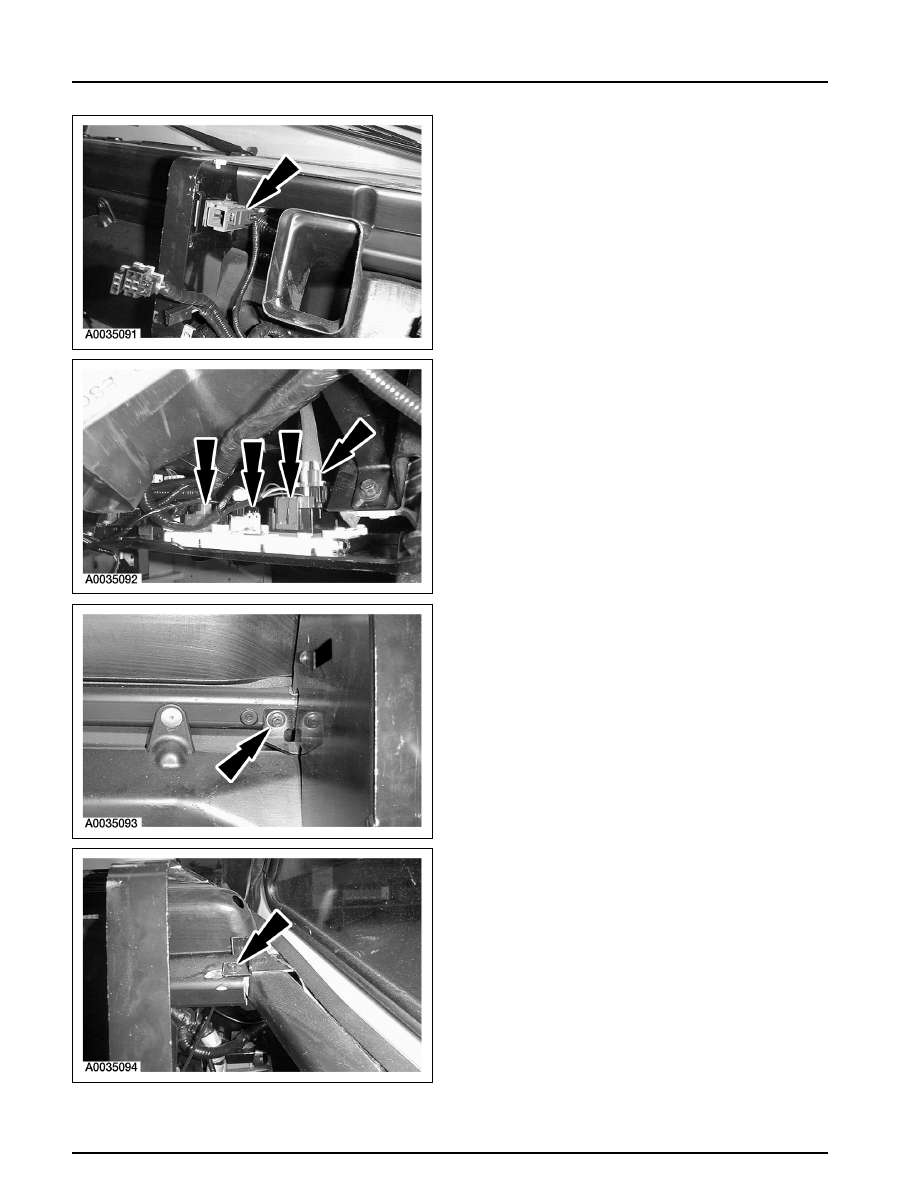

5. Disconnect the electrical connector.

6. Disconnect the heater control electrical and

vacuum connectors.

7. Remove the bolt.

8. NOTE: The foam seal around the RH register

vent may come off with the instrument panel. If
this happens, install a new foam seal.
Remove the bolt and the instrument panel
assembly.

413-01-37

413-01-37

Instrument Cluster

REMOVAL AND INSTALLATION (Continued)

9. To install, reverse the removal procedure.

•

Make sure the register vents move properly
side to side after installation.

414-02-1

414-02-1

Auxiliary Battery Charging

Manual Table of Contents

SECTION 414-02 Auxiliary Battery Charging

VEHICLE APPLICATION:

Ranger EV

CONTENTS

PAGE

SPECIFICATIONS ....................................................................................... 414-02-2

DESCRIPTION AND OPERATION

Auxiliary Battery Charging ........................................................................... 414-02-2

DIAGNOSIS AND TESTING

Auxiliary Battery Charging ........................................................................... 414-02-2

Electrical Schematic ............................................................................... 414-02-3
Inspection and Verification ........................................................................ 414-02-3
Pinpoint Tests ....................................................................................... 414-02-4
Symptom Chart ..................................................................................... 414-02-3

GENERAL PROCEDURES

Auxiliary Battery Capacity Test ..................................................................... 414-02-8
Auxiliary Battery Charging ........................................................................... 414-02-8

REMOVAL AND INSTALLATION

DC/DC Converter ..................................................................................... 414-02-9

414-02-2

414-02-2

Auxiliary Battery Charging

SPECIFICATIONS

Torque Specifications

Torque Specifications

Description

Nm

Lb-In

Description

Nm

Lb-In

Ground Strap Nut

12

107

Cable Nuts

12

107

High Voltage Power

2

18

Direct Current to Direct

9

80.5

Distribution Box (HVPDB)

Current (DC/DC) Hold-Down

Screws

Bolts

(Continued)

The DC/DC converter is capable of supplying up to

DESCRIPTION AND OPERATION

100 amps of current for operation of the vehicle’s

Auxiliary Battery Charging

12-volt systems. Voltage from the traction battery is

The charging of the auxiliary battery is done by the

stepped down to the 12 volts required for

direct current to direct current (DC/DC) converter,

low-voltage system operation, such as the  blower

which operates as an electrical alternator. The

motor, radio, and wipers. Heavy current demands

converter is located under the hood on the driver

cause the DC/DC converter to produce heat, which

side of the traction battery charger. The  auxiliary

is removed by the coolant that is circulated through

battery temperature sensor is located next to the

the DC/DC converter.

auxiliary battery to monitor the battery temperature.
Activation of the DC/DC converter is controlled by
the interface adapter assembly (IAA) module, which
operates the DC/DC converter  whenever the key is
in the ON position or when the vehicle is connected
to the power control station (PCS).

DIAGNOSIS AND TESTING

Auxiliary Battery Charging

Diagnostic Trouble Code (DTC) Definition

The following DTCs relate to the Auxiliary Battery
Charging System:

•

DTC B1317 Battery Voltage - High
— The interface adapter assembly (IAA) module

monitors the auxiliary battery voltage at pins
75, 76 (hot at all times). If the auxiliary
battery voltage increases above 16.5 volts, the
IAA module generates DTC B1317, disables
the direct current  to direct current (DC/DC)
converter, and enters a self-protecting state
similar to sleep mode. The IAA module will
reenable the DC/DC converter when the
auxiliary battery voltage decreases below
16.25 volts.
