413-01-32

413-01-32

Instrument Cluster

DIAGNOSIS AND TESTING (Continued)

PINPOINT TEST Y: DOOR AJAR INDICATOR DOES NOT OPERATE PROPERLY

TEST STEP

ACTION TO TAKE

Y1 CHECK IGNITION SWITCH STATES

•

Use New Generation STAR (NGS) Tester to monitor the PID

Yes =

GO to Y2.

IGN GEM while turning the ignition switch through the START, RUN,

OFF and ACC positions.

•

Do the PID values agree with the ignition switch position? No = REFER to Section 417-02 of

the 2001 Ranger Workshop

Manual.

Y2 RETRIEVE DIAGNOSTIC TROUBLE CODES (DTCs)

•

Retrieve and document continuous DTCs, clear continuous DTCs, and Yes = If DTC B1319, REFER to

carry out on-demand self-test. Section 417-02 of the 2001

Workshop Manual.
If DTC B1320, REFER to

Section 417-02 of the 2001

Workshop Manual.
If DTC B1322, REFER to

Section 417-02 of the 2001

Workshop Manual.
If DTC B1323, GO to Y3.
If DTC B1325, GO to Y8.
If DTC B1327, REFER to

Section 417-02 of the 2001

Workshop Manual.
If DTC B1330, REFER to

Section 417-02 of the 2001

Workshop Manual.
If DTC B1342, REPLACE

the GEM; REFER to

Section 419-10 of the 2001

Ranger Workshop Manual.

CLEAR the DTCs.

•

Are any DTCs recorded?

No =

GO to Y4.

Y3 CHECK DOOR AJAR INDICATOR OPERATION — MONITOR

THE PID DRAJR L

•

Monitor the PID DRAJR L.

Yes =

REPLACE the GEM;

REFER to the 2001 Ranger

Workshop Manual. CLEAR

the DTCs.

•

Toggle the active command AJAR LAMP ON and OFF.

No =

If the PID DRAJR L reads

•

Does the PID DRAJR L read OFF--- when the active command is

OFF O-G, GO to Y4.

OFF and read ON--- when the active command is ON?

If the PID DRAJR L reads

ON -B-, GO to Y8.

Y4 CHECK INSTRUMENT CLUSTER

•

With key OFF, disconnect instrument cluster C215.

Yes =

GO to Y5.

•

With key OFF, measure the resistance between instrument cluster printed

No =

CHECK the door ajar

circuit C215 terminal 9 and terminals 1, 12.

indicator bulb. REPLACE if

•

Are the resistances less than 5 ohms?

necessary. If the bulb is OK,

REPLACE the instrument

cluster.

Y5 CHECK POWER TO INSTRUMENT CLUSTER

(Continued)

413-01-33

413-01-33

Instrument Cluster

DIAGNOSIS AND TESTING (Continued)

PINPOINT TEST Y: DOOR AJAR INDICATOR DOES NOT OPERATE PROPERLY

TEST STEP

ACTION TO TAKE

•

With key ON, measure the voltage between pin 1 (LB wire), pin 12 (LB

Yes =

GO to Y6.

wire) on instrument cluster C215 and ground.

•

Is the voltage greater than 10 volts?

No =

REPAIR the LB wire(s) in

question.

Y6 CHECK CIRCUIT 627 (BK/O) FOR OPEN

•

With key OFF, disconnect GEM C221 and measure the resistance of the

Yes =

GO to Y7.

BK/O wire between pin 9 on instrument cluster C215 and pin 9 on GEM

C221.

•

Is the resistance less than 5 ohms?

No =

REPAIR the BK/O wire.

Y7 CHECK CIRCUIT 627 (BK/O) FOR SHORT TO GROUND

•

With key OFF, measure the resistance between pin 9 (BK/O wire) on

Yes =

REPLACE the GEM.

instrument cluster C215 and ground. REFER to Section 419-10 of

the 2001 Ranger Workshop

Manual. CLEAR the DTCs.

•

Is the resistance greater than 10,000 ohms?

No =

REPAIR the BK/O wire.

Y8 CHECK DOOR AJAR INDICATOR CONTROL CIRCUIT FOR

SHORT TO POWER

•

With key OFF, disconnect instrument cluster C215.

Yes =

GO to Y9.

•

With key ON, measure the voltage between pin 9 (BK/O wire) on

No =

REPLACE the instrument

instrument cluster C215 and ground.

cluster.

•

Is the voltage greater than 0 volts?

Y9 CHECK CIRCUIT 627 (BK/O) FOR SHORT TO POWER

•

With key OFF, disconnect GEM C221.

Yes =

REPAIR the BK/O wire.

•

With key ON, measure the voltage between pin 9 (BK/O wire) on

No =

REPLACE the GEM;

instrument cluster C215 and ground. REFER to Section 419-10 of

•

Is the voltage greater than 0 volts? the 2001 Ranger Workshop

Manual.

PINPOINT TEST Z: SEAT BELT INDICATOR DOES NOT OPERATE PROPERLY

TEST STEP

ACTION TO TAKE

Z1 CHECK IGNITION SWITCH STATES

•

Use New Generation STAR (NGS) Tester to monitor the PID

Yes =

GO to Z2.

IGN GEM while turning the ignition switch through the START, RUN,

OFF, and ACC positions.

•

Do the PID values agree with the ignition switch position? No = REFER to Section 417-02 of

the 2001 Ranger Workshop

Manual.

Z2 RETRIEVE DIAGNOSTIC TROUBLE CODES (DTCs)

•

Retrieve and document continuous DTCs, clear continuous DTCs, and

Yes =

If DTC B1426, GO to Z9.

carry out on-demand self-test.

If DTC B1428, GO to Z3.
If DTCs B1430 and B1462,

REFER to Section 413-09 of

the 2001 Workshop Manual.
If DTC B1342, REPLACE

the GEM; REFER to

Section 419-10 of the 2001

Ranger Workshop Manual.

CLEAR the DTCs.

•

Are any DTCs recorded?

No =

GO to Z3.

Z3 VERIFY SEAT BELT WARNING CHIME OPERATION

(Continued)

413-01-34

413-01-34

Instrument Cluster

DIAGNOSIS AND TESTING (Continued)

PINPOINT TEST Z: SEAT BELT INDICATOR DOES NOT OPERATE PROPERLY

TEST STEP

ACTION TO TAKE

•

With key ON, verify the seat belt warning chime operation.

Yes =

GO to Z4.

•

Does the seat belt warning chime operate? No = REFER to Section 413-09 of

the 2001 Ranger Workshop

Manual.

Z4 CHECK PID SBLTLMP WHILE TOGGLING ACTIVE COMMAND

SBLT LAMP

•

Monitor the PID SBLTLMP.

Yes =

REPLACE the GEM;

REFER to Section 419-10 of

the 2001 Ranger Workshop

Manual. CLEAR the DTCs.

•

Toggle the active command SBLT LAMP ON and OFF.

No =

If the PID SBLTLMP reads

•

Does the PID SBLTLMP agree with the active command mode?

OFF O-G, GO to Z5.
If the PID SBLTLMP reads

ON -B-, GO to Z9.

Z5 CHECK INSTRUMENT CLUSTER

•

With key OFF, disconnect instrument cluster C216.

Yes =

GO to Z6.

•

With key OFF, measure the resistance between instrument cluster printed

No =

CHECK the seat belt

circuit C216 terminal 4 and terminal 10.

indicator bulb. REPLACE if

•

Is the resistance less than 5 ohms?

necessary. If the bulb is OK,

REPLACE the instrument

cluster.

Z6 CHECK POWER TO INSTRUMENT CLUSTER

•

With key ON, measure the voltage between pin 4 (Y wire) on instrument Yes =

GO to Z7.

cluster C216 and ground.

•

Is the voltage greater than 10 volts?

No =

REPAIR the Y wire.

Z7 CHECK CIRCUIT 871 (Y) FOR OPEN

•

With key OFF, disconnect GEM C221 and measure the resistance of the

Yes =

GO to Z8.

Y wire between pin 10 on instrument cluster C216 and pin 12 on GEM

C221.

•

Is the resistance less than 5 ohms?

No =

REPAIR the Y wire.

Z8 CHECK CIRCUIT 871 (Y) FOR SHORT TO GROUND

•

With key OFF, measure the resistance between pin 10 (Y wire) on

Yes =

REPLACE the GEM.

instrument cluster C216 and ground. REFER to Section 419-10 of

the 2001 Ranger Workshop

Manual. CLEAR the DTCs.

•

Is the resistance greater than 10,000 ohms?

No =

REPAIR the Y wire.

Z9 CHECK SEAT BELT INDICATOR CONTROL CIRCUIT FOR

SHORT TO POWER

•

With key OFF, disconnect instrument cluster C216.

Yes =

GO to Z10.

•

With key ON, measure the voltage between pin 10 (Y wire) on

No =

REPLACE the instrument

instrument cluster C216 and ground.

cluster.

•

Is the voltage greater than 0 volts?

Z10 CHECK CIRCUIT 871 (Y) FOR SHORT TO POWER

•

With key OFF, disconnect GEM C221.

Yes =

REPAIR the Y wire.

•

With key ON, measure the voltage between pin 10 (Y wire) on

No =

REPLACE the GEM;

instrument cluster C216 and ground. REFER to Section 419-10 of

•

Is the voltage greater than 0 volts? the 2001 Ranger Workshop

Manual.

413-01-35

413-01-35

Instrument Cluster

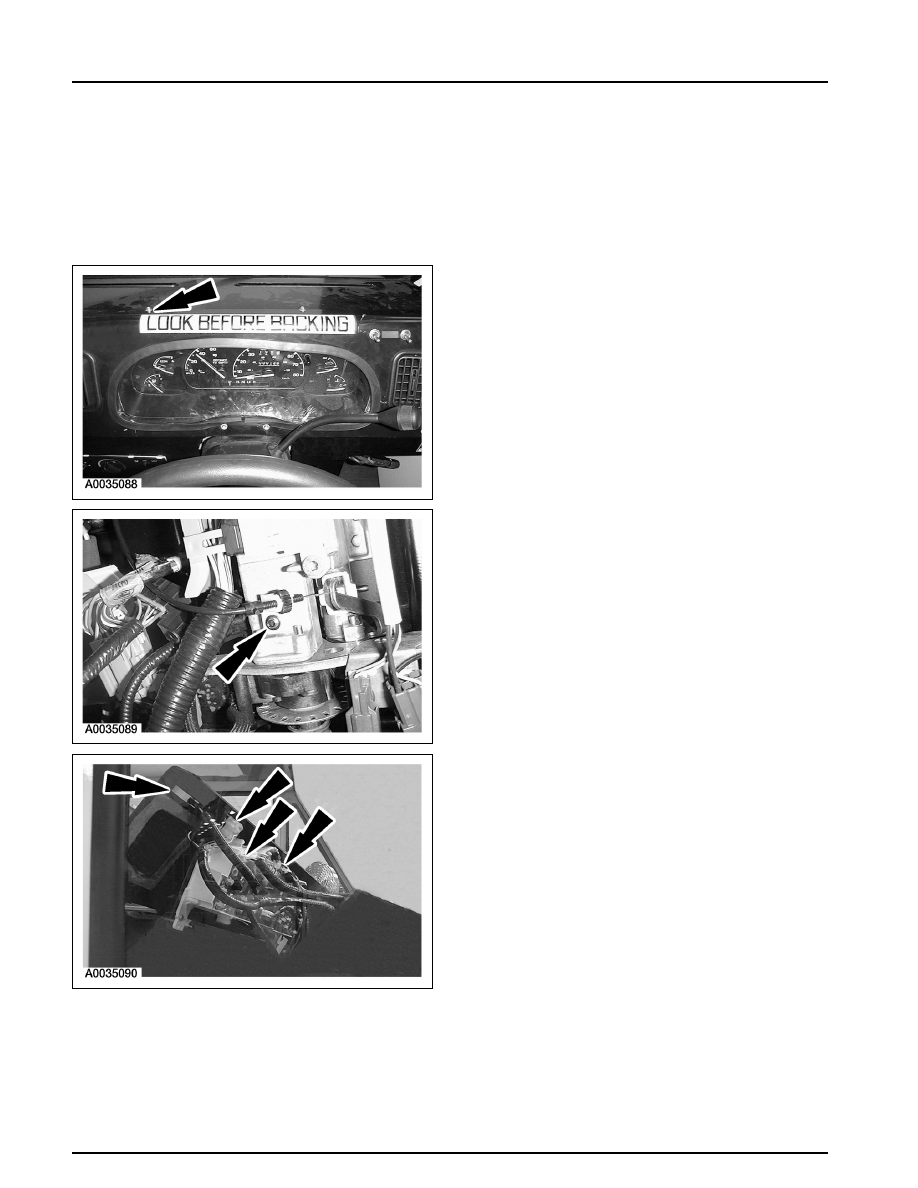

REMOVAL AND INSTALLATION

Instrument Cluster —Postal Ranger EV

Removal and Installation

1. Disconnect the auxiliary battery ground cable.

2. Remove the eight instrument panel screws.

3. Remove the bolt, disconnect the gear indicator

cable and position aside.

4. NOTE: Only four connectors are shown.

Disconnect all of the electrical connectors and
remove the instrument cluster.
