Ford Ranger EV (2001 year). Manual - part 71

310-02-7

310-02-7

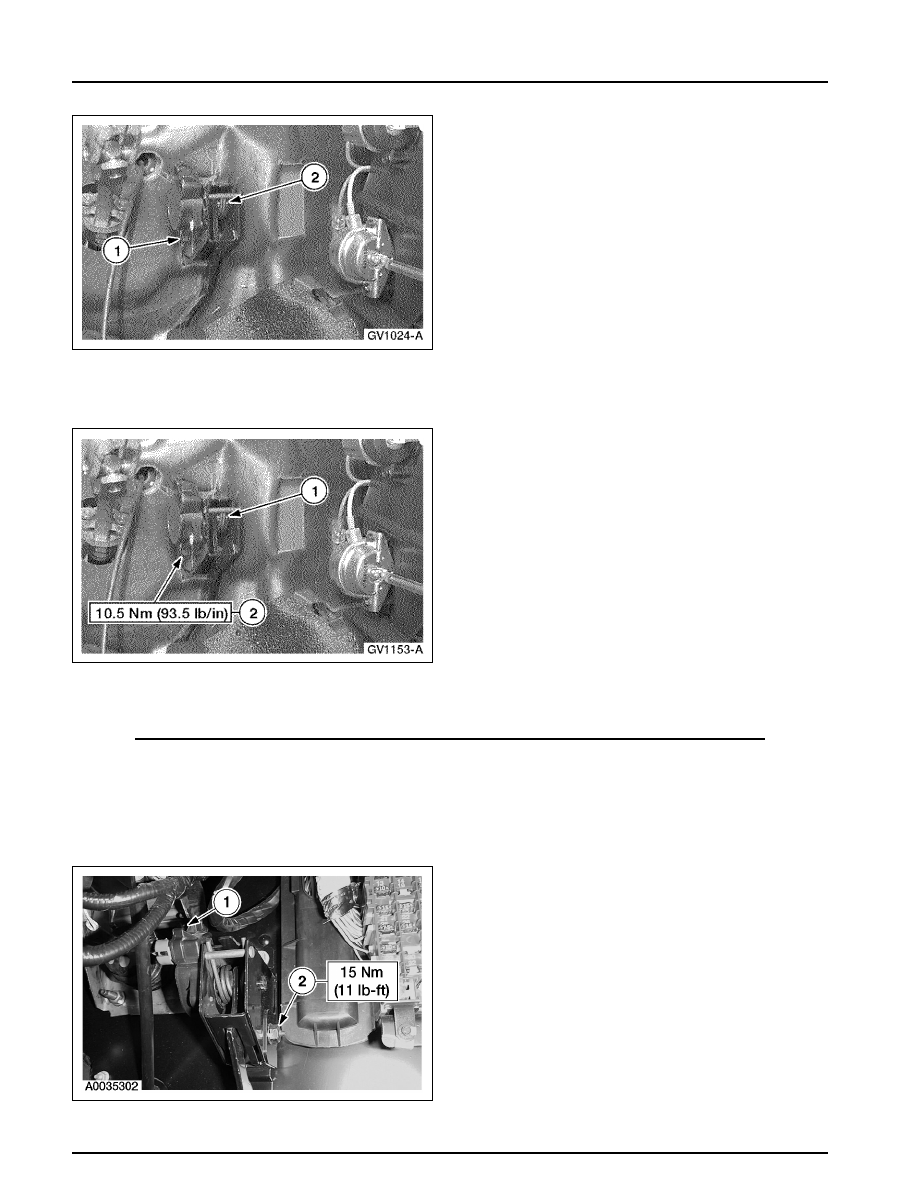

Acceleration Control

REMOVAL AND INSTALLATION (Continued)

2. Remove the position sensor.

1 Remove the bolt.
2 Swing the sensor up and off the clip and

remove the sensor.

Installation

1. Install the position sensor.

1 Position the sensor on the clip and swing it

into position.

2 Install the bolt.

2. Connect the electrical connector.

Acceleration Position Sensor —Postal Ranger EV

Removal and Installation

1. NOTE: The acceleration postion sensor is

serviced as an assembly with the accelerator
pedal.
Remove the accelerator pedal assembly.
1 Disconnect the electrical connector.
2 Remove the bolt.

310-02-8

310-02-8

Acceleration Control

REMOVAL AND INSTALLATION (Continued)

2. To install, reverse the removal procedure.

412-01-1

Manual Table of Contents

GROUP

Electrical

4

SECTION TITLE

PAGE

Air Distribution and Filtering ....................................................................................................

412-01-1

Heating and Ventilation .............................................................................................................

412-02-1

Air Conditioning .........................................................................................................................

412-03-1

Control Components .................................................................................................................

412-04-1

Instrument Cluster .....................................................................................................................

413-01-1

Auxiliary Battery Charging........................................................................................................

414-02-1

High Voltage/Traction Battery ...............................................................................................

414-03A-1

High Voltage/Traction Battery — Nickel Metal Hydride ......................................................

414-03B-1

Module Communications Network ...........................................................................................

418-00-1

SECTION 412-01 Air Distribution and Filtering

VEHICLE APPLICATION:

Ranger EV

CONTENTS

PAGE

SPECIFICATIONS .......................................................................................

412-01-2

DESCRIPTION AND OPERATION

Air Distribution and Filtering .........................................................................

412-01-2

REMOVAL AND INSTALLATION

Air Filter.................................................................................................

412-01-2

Air Filter —Postal Ranger EV .......................................................................

412-01-7

412-01-2

412-01-2

Air Distribution and Filtering

SPECIFICATIONS

Torque Specifications

Description

Nm

Lb-Ft

Lb-In

Blower Motor Screws

1.75

15.5

—

Reservoir Bolts and

7

62.5

—

Nuts
ABS Control Bracket

11

—

8

Bolts

The air filter is made from a pleated woven material

DESCRIPTION AND OPERATION

that offers minimal restriction to airflow. The filter

Air Distribution and Filtering

is located in the evaporator assembly behind the

The heating and cooling system on the Electric

blower motor. To ensure maximum climate control

Ranger uses an air filter to clean the air before it is

performance, the filter must be changed  annually.

allowed to pass through the heater core. The heater
core uses electrical resistance to heat the air. Due to
the high temperatures associated  with the heater
core, proper air filtration is essential.

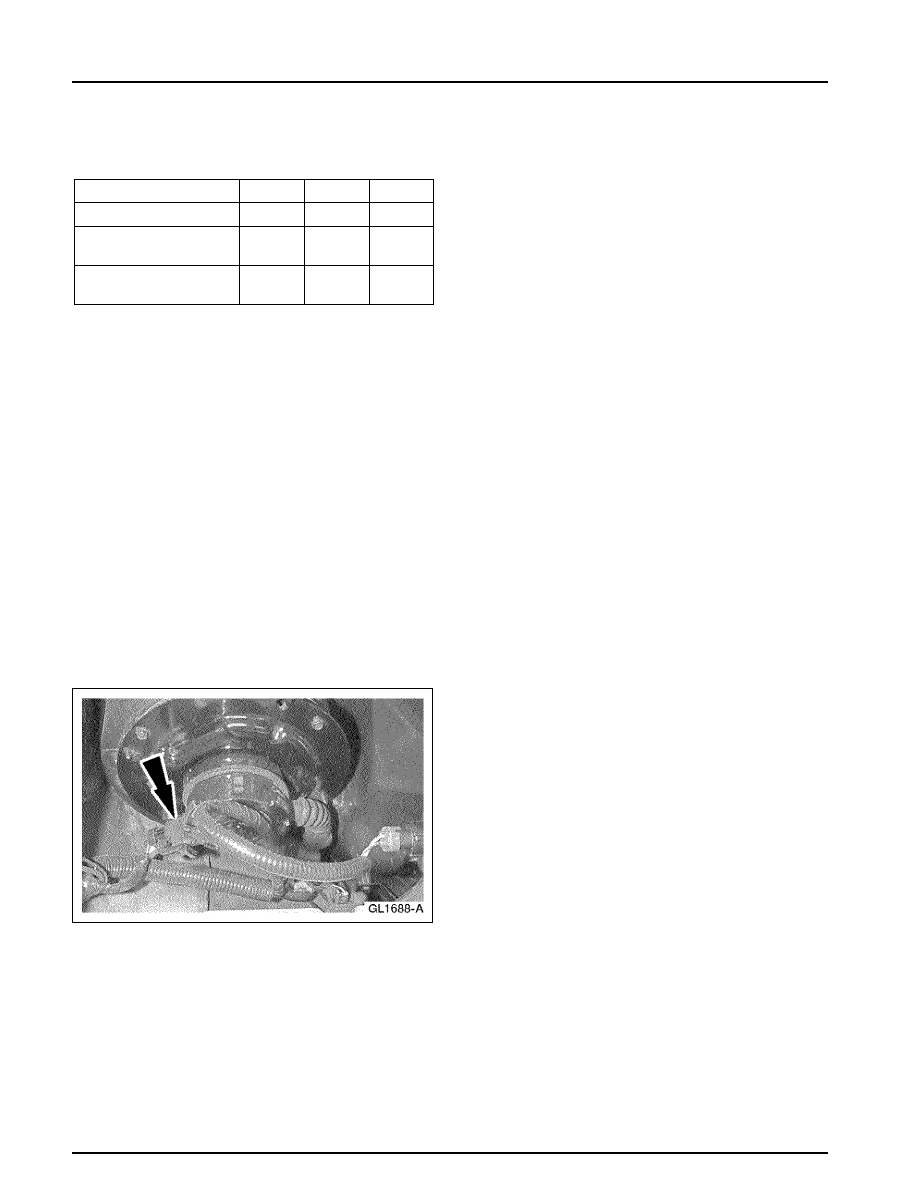

REMOVAL AND INSTALLATION

Air Filter

1. Disconnect the blower motor electrical

connector.
