Ford Ranger EV (2001 year). Manual - part 63

303-14-8

303-14-8

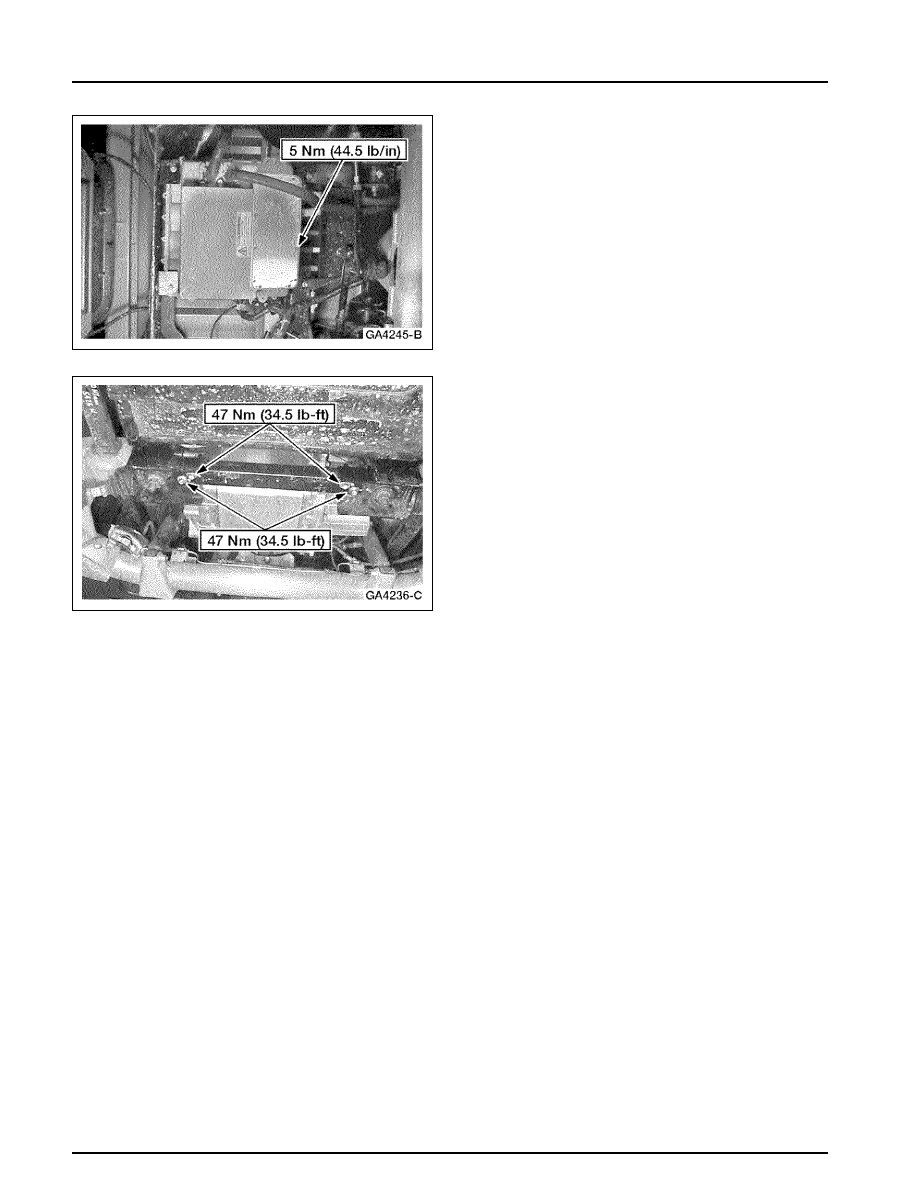

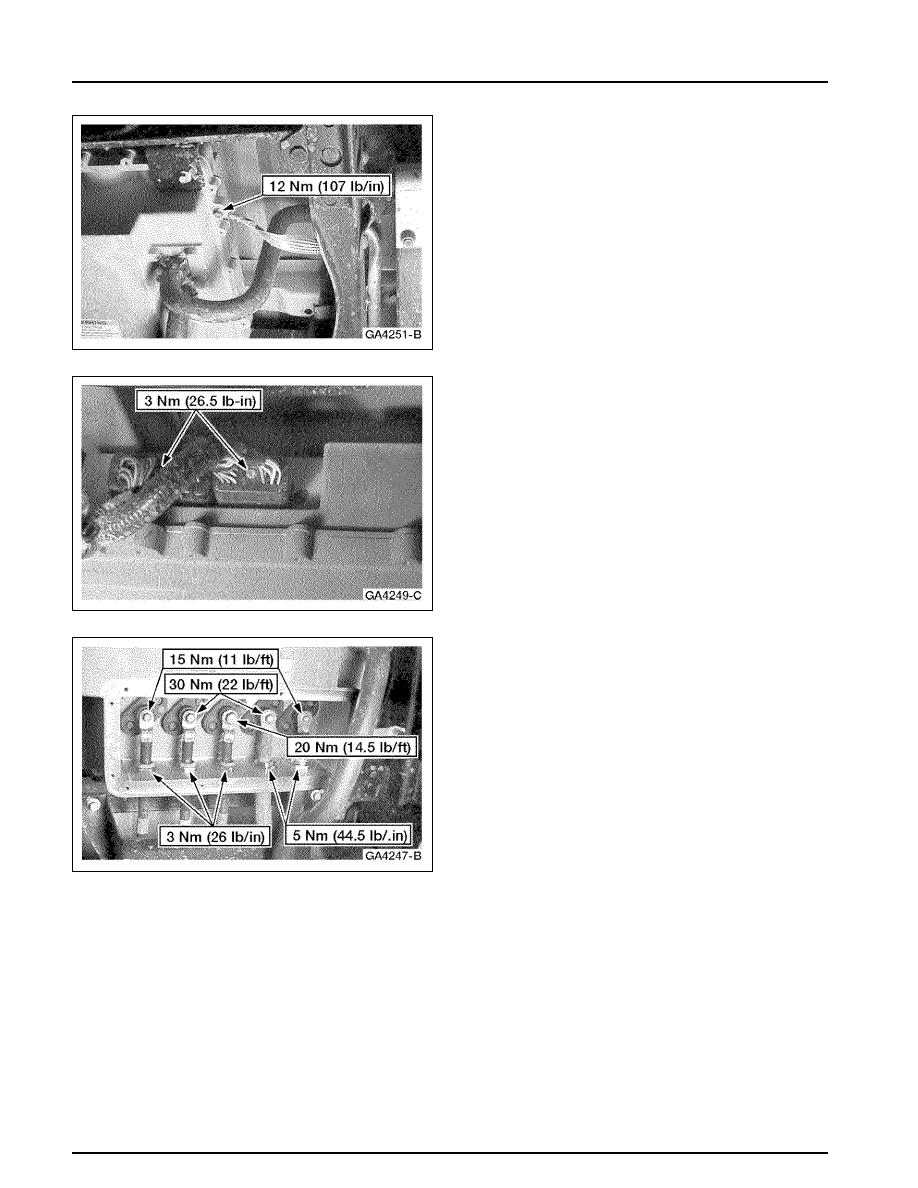

Electric Motor Management

REMOVAL AND INSTALLATION (Continued)

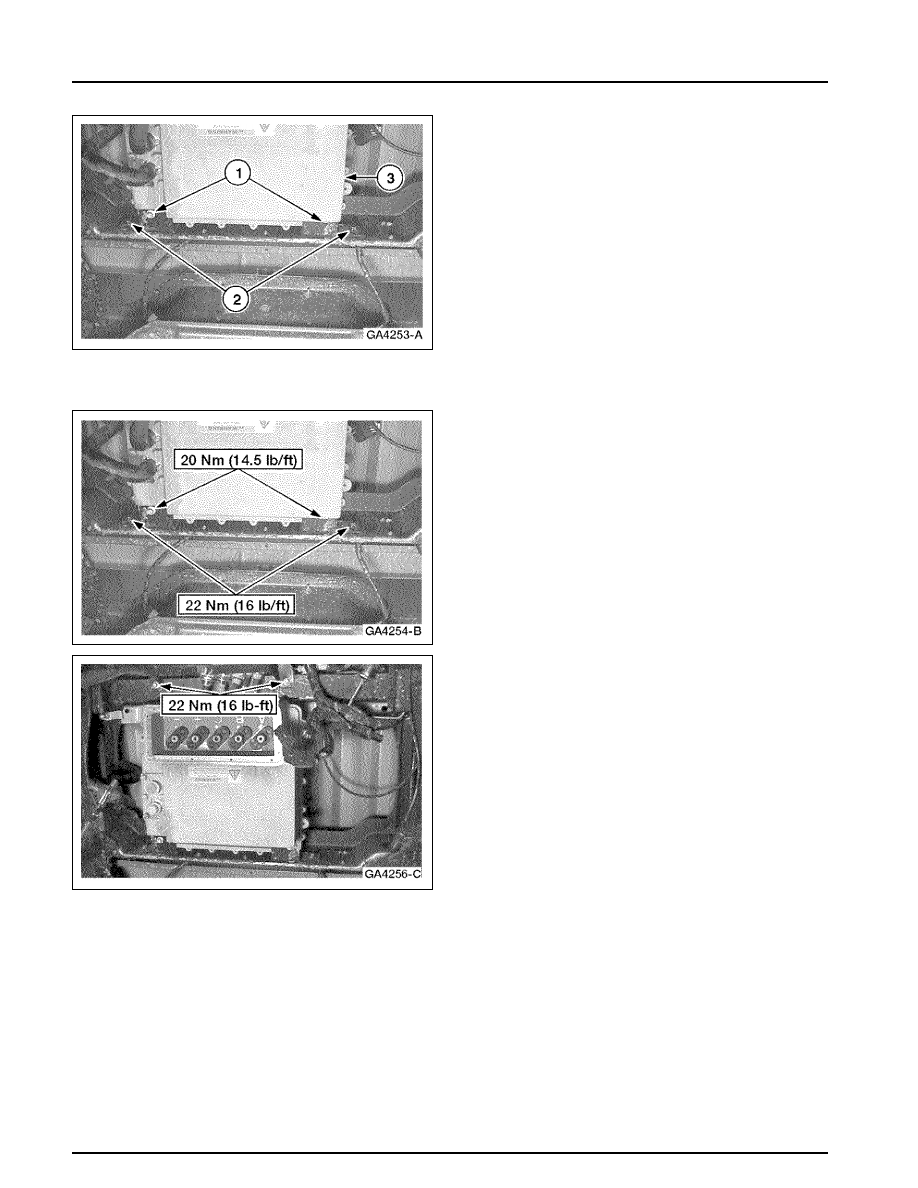

7. Remove the TIM.

1 Loosen the TIM bracket bolts.
2 Remove the bracket to frame bolts.
3 Remove the TIM.

Installation

1. To install, reverse the removal procedure.

1 If excessive amounts of coolant were lost

during the removal procedure, bleed the
cooling system. Refer to

 Section 303-03

.

303-14-9

303-14-9

Electric Motor Management

REMOVAL AND INSTALLATION (Continued)

303-14-10

303-14-10

Electric Motor Management

REMOVAL AND INSTALLATION (Continued)

307-05-1

307-05-1

Automatic Transaxle External Controls

Manual Table of Contents

SECTION 307-05 Automatic Transaxle External Controls

VEHICLE APPLICATION:

Ranger EV

CONTENTS

PAGE

SPECIFICATIONS ....................................................................................... 307-05-2

DESCRIPTION AND OPERATION

Automatic Transaxle External Controls ............................................................ 307-05-2

DIAGNOSIS AND TESTING

Digital Transmission Range (DTR) Sensor ....................................................... 307-05-2

Electrical Schematic ............................................................................... 307-05-2
Inspection and Verification ........................................................................ 307-05-2
Pinpoint Tests ....................................................................................... 307-05-4
Symptom Chart ..................................................................................... 307-05-3

GENERAL PROCEDURES

Digital Transmission Range (DTR) Sensor Alignment ........................................ 307-05-11
PRNDE Shifter Adjustment ........................................................................ 307-05-10

REMOVAL AND INSTALLATION

Digital Transmission Range (DTR) Sensor ..................................................... 307-05-16
Motor/Transaxle Shift Cable ....................................................................... 307-05-14
