Ford Ranger EV (2001 year). Manual - part 54

303-01-10

303-01-10

Basic Motor/Transaxle

GENERAL PROCEDURES (Continued)

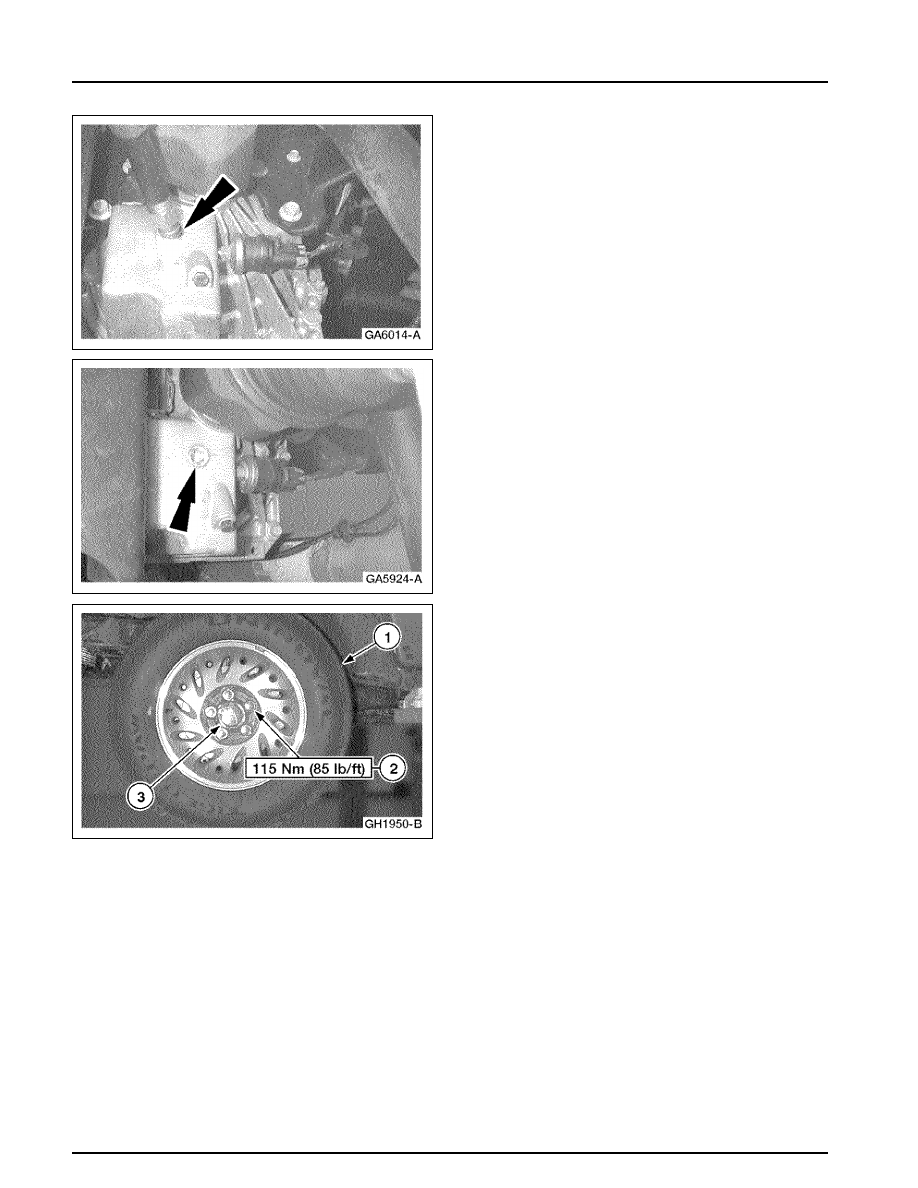

13. Add one quart of Tribolube oil. Fill the

transaxle using a clean funnel and hose.

14. Install the fill plug.

15. Install the wheel.

1 Position the wheel.
2 Install the lug nuts.
3 Install the center cap.

REMOVAL AND INSTALLATION

Motor/Transaxle

Removal

1. Disconnect the traction battery two-pin

high-voltage connector. Refer to

 Section

100-05

.

2. Discharge the traction inverter module (TIM)

capacitors. Refer to

 Section 100-05

.

303-01-11

303-01-11

Basic Motor/Transaxle

REMOVAL AND INSTALLATION (Continued)

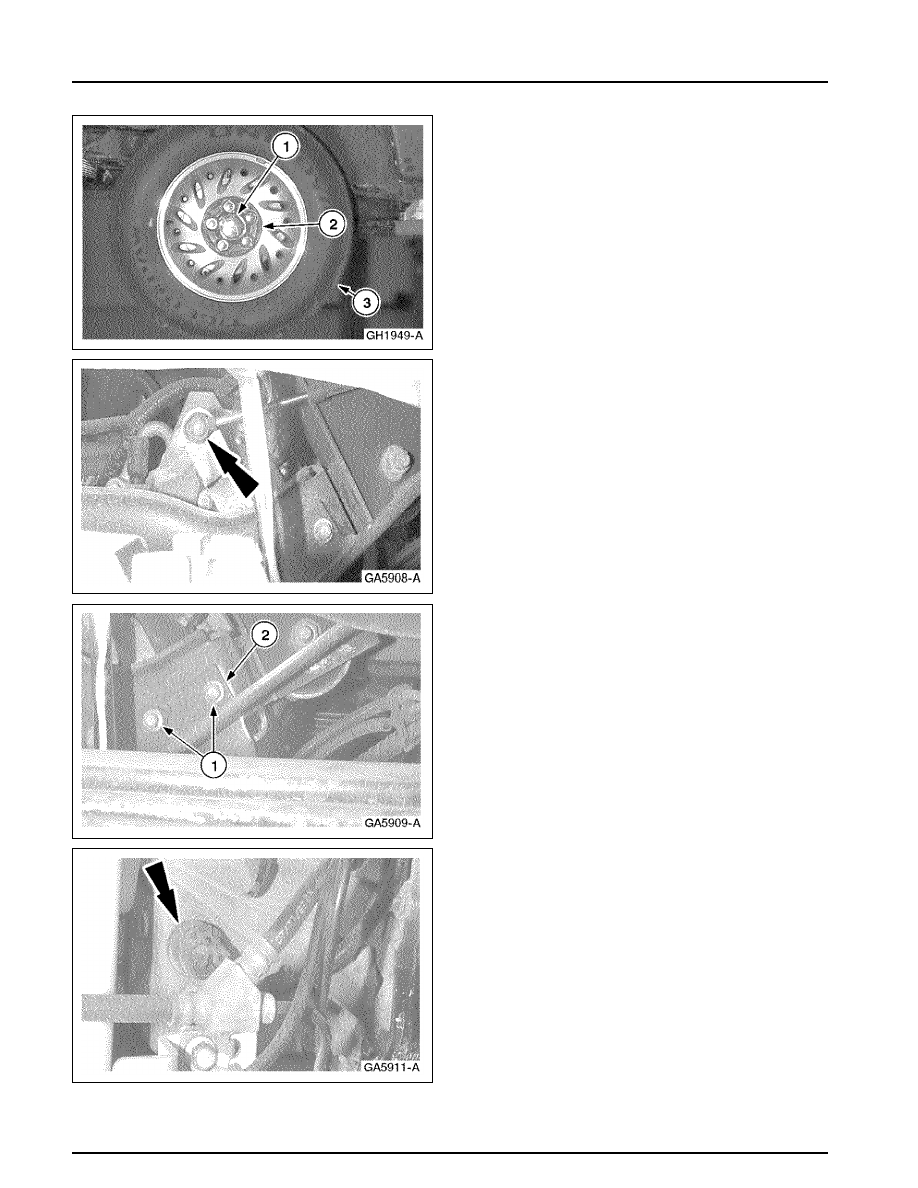

3. Remove the LH and RH rear wheels.

1 Remove the center cap.
2 Remove the lug nuts.
3 Remove the wheel.

4. Disconnect the shift cable.

5. Position the shift cable bracket aside.

1 Remove the bolts.
2 Position the shift cable bracket aside.

6. Disconnect the oil pressure switch electrical

connector from the LH side of the
motor/transaxle.

303-01-12

303-01-12

Basic Motor/Transaxle

REMOVAL AND INSTALLATION (Continued)

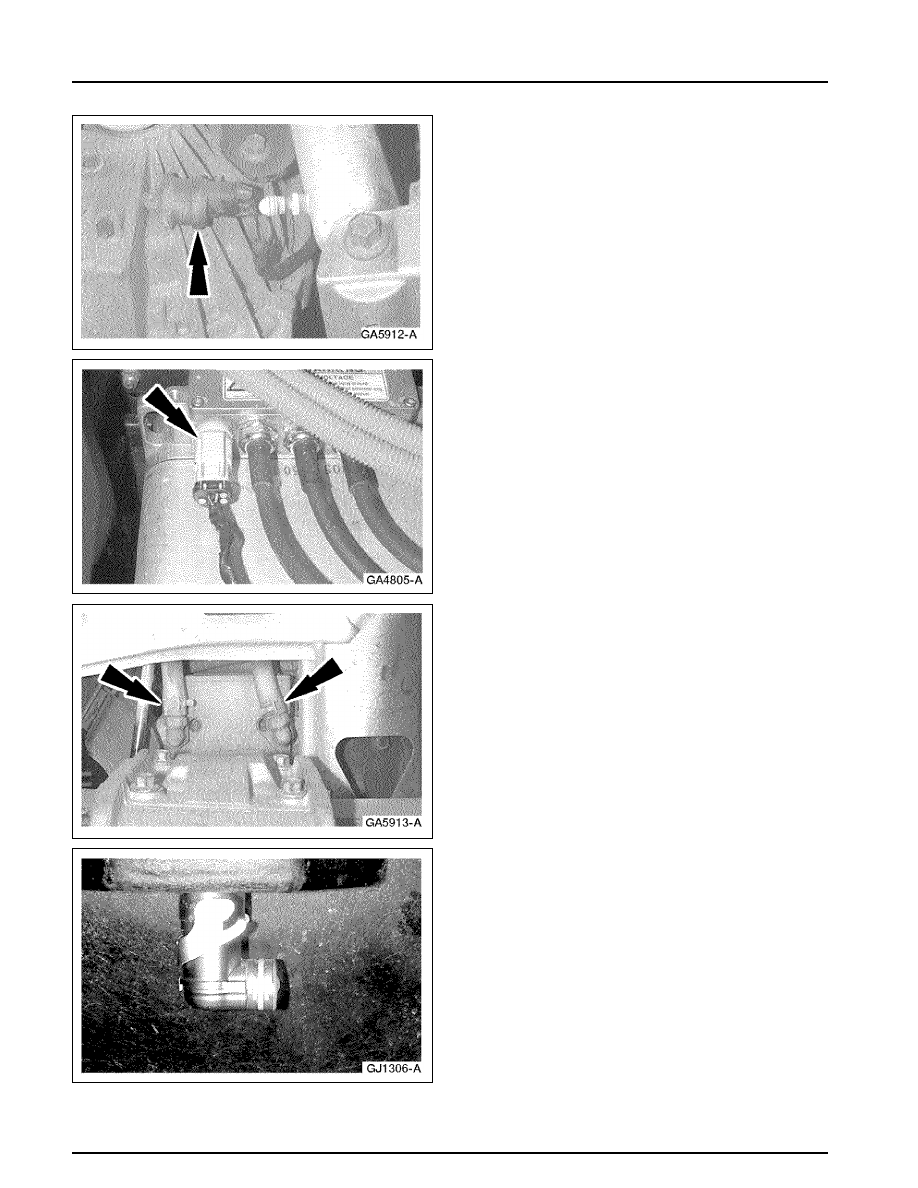

7. Disconnect the oil pump electrical connector

from the front LH side of the transaxle.

8. NOTE: The electrical connector is not visible

from the underneath the vehicle. The connector
is shown with the box off the pickup for clarity.
Disconnect the motor/transaxle electrical
connector from the top RH side of the
motor/transaxle by pressing on top tab and
pulling out.

9. NOTE: Clamp off the hoses prior to

disconnection to avoid coolant loss.
Disconnect the motor/transaxle coolant hoses.

10. Install the Traction Battery High Voltage

Lockout and Diagnostic Tool.

303-01-13

303-01-13

Basic Motor/Transaxle

REMOVAL AND INSTALLATION (Continued)

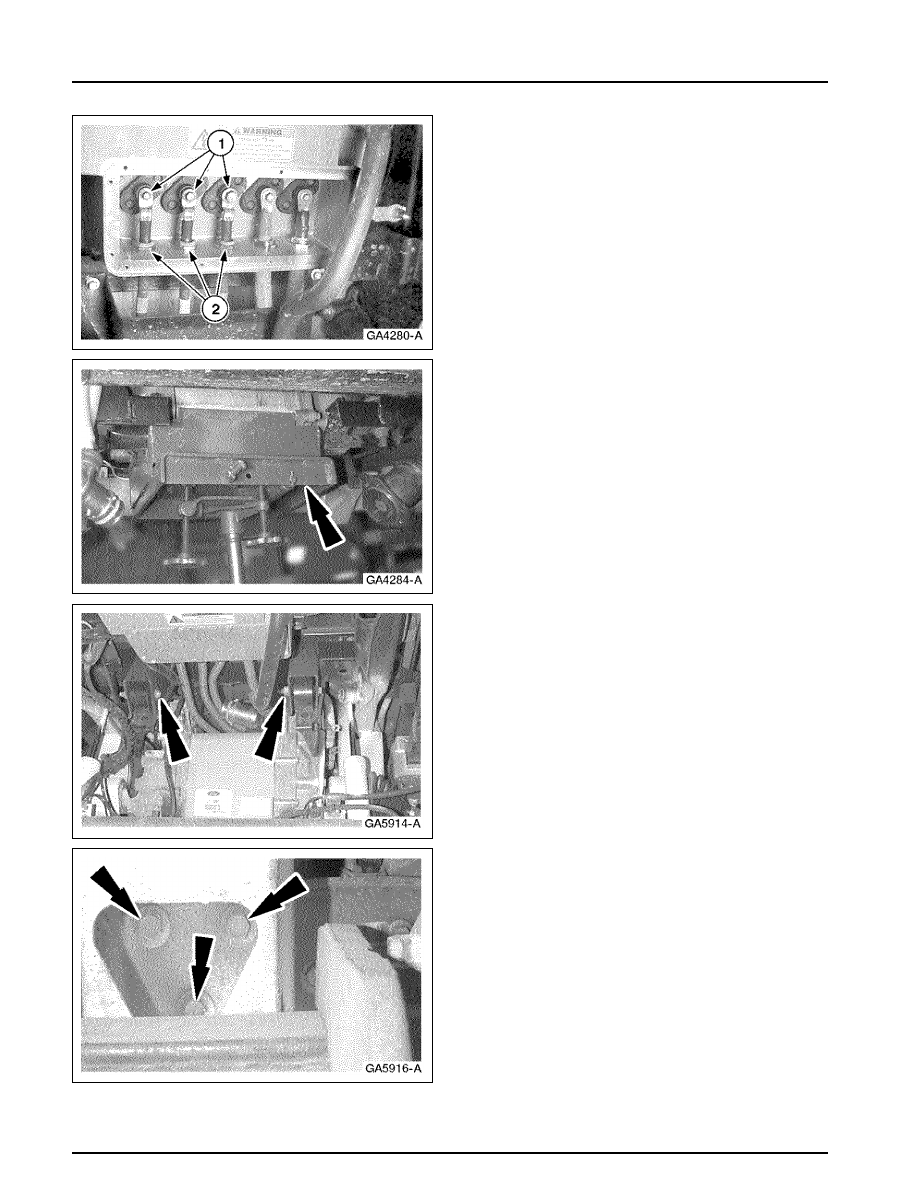

11. Disconnect the TIM to motor/transaxle electrical

cables.
1 Remove the nuts.
2 Remove the sleeve nuts and slide the cables

out of the TIM.

12. Support the motor/transaxle using a high lift

jack.

•

Strap the motor/transaxle to the high lift
jack to secure the motor/transaxle.

13. Remove the two rear mount bolts.

14. NOTE: LH shown, RH similar.

Remove the three LH and RH mounting bracket
bolts.
