SECTION 501-30 Rear End Sheet Metal Repairs
PAGE
CONTENTS
REMOVAL AND INSTALLATION
501-30-2
Quarter Panel LH — 4-Door...............................................................................................
501-30-15
Quarter Panel LH — 5-Door...............................................................................................
501-30-23
Water Drain Panel..............................................................................................................
501-30-29
Water Drain Panel — 4-Door..............................................................................................
501-30-32
Water Drain Panel Reinforcement......................................................................................
501-30-38
Rear Wheelhouse Outer — 4-Door....................................................................................
501-30-43
Rear Wheelhouse Outer — 5-Door....................................................................................
501-30-48
Inner Quarter Panel and Wheelhouse — 4-Door...............................................................
501-30-56
Inner Quarter Panel and Wheelhouse — 5-Door...............................................................
501-30-63
Back Panel and Reinforcement — 4-Door.........................................................................
501-30-67
Back Panel and Reinforcement — 5-Door.........................................................................
501-30-76
Rear Lamp Mounting Panel — 4-Door...............................................................................
501-30-81
Rear Floor Panel.................................................................................................................
501-30-90
Rear Side Member Section................................................................................................
501-30-
1
Rear End Sheet Metal Repairs
501-30-
1
.
VEHICLE APPLICATION:
Quarter Panel LH — 4-Door
Materials
Specification
Name
WSS-M11P57-A5
Windshield Adhesive Kit
General Equipment
6 mm Drill Bit
General Equipment
Air Body Saw
Hot Air Gun
Metal Inert Gas (MIG) Welding Equipment
Resistance Spotwelding Equipment
Spot weld drill Bit
Removal
1.
Liftgate
•
• Rear Lamp
• Rocker Panel Trim
• Front and Rear Door
• Rear Wheel Arch Trim
• Tank Filler Flap and Tank Filler
•
Refer to: Liftgate Trim Panel
(501-05 Interior
Trim and Ornamentation, Removal and
Installation).
Refer to: Rear Seat Cushion
(501-10 Seating,
Removal and Installation).
Refer to: Rear Seat Backrest
(501-10
Seating, Removal and Installation).
Refer to: Rear Bumper Cover - 4-Door
(501-19 Bumpers, Removal and
Installation).
Refer to: Rear Quarter Trim Panel
(501-05
Interior Trim and Ornamentation, Removal
and Installation).
Refer to: C-Pillar Trim Panel - 4-Door
(501-05
Interior Trim and Ornamentation, Removal
and Installation).
Refer to: Loadspace Trim Panel - 4-Door
(501-05 Interior Trim and Ornamentation,
Removal and Installation).
• Reposition the carpeting and the wiring
harness away from the working area.
2.

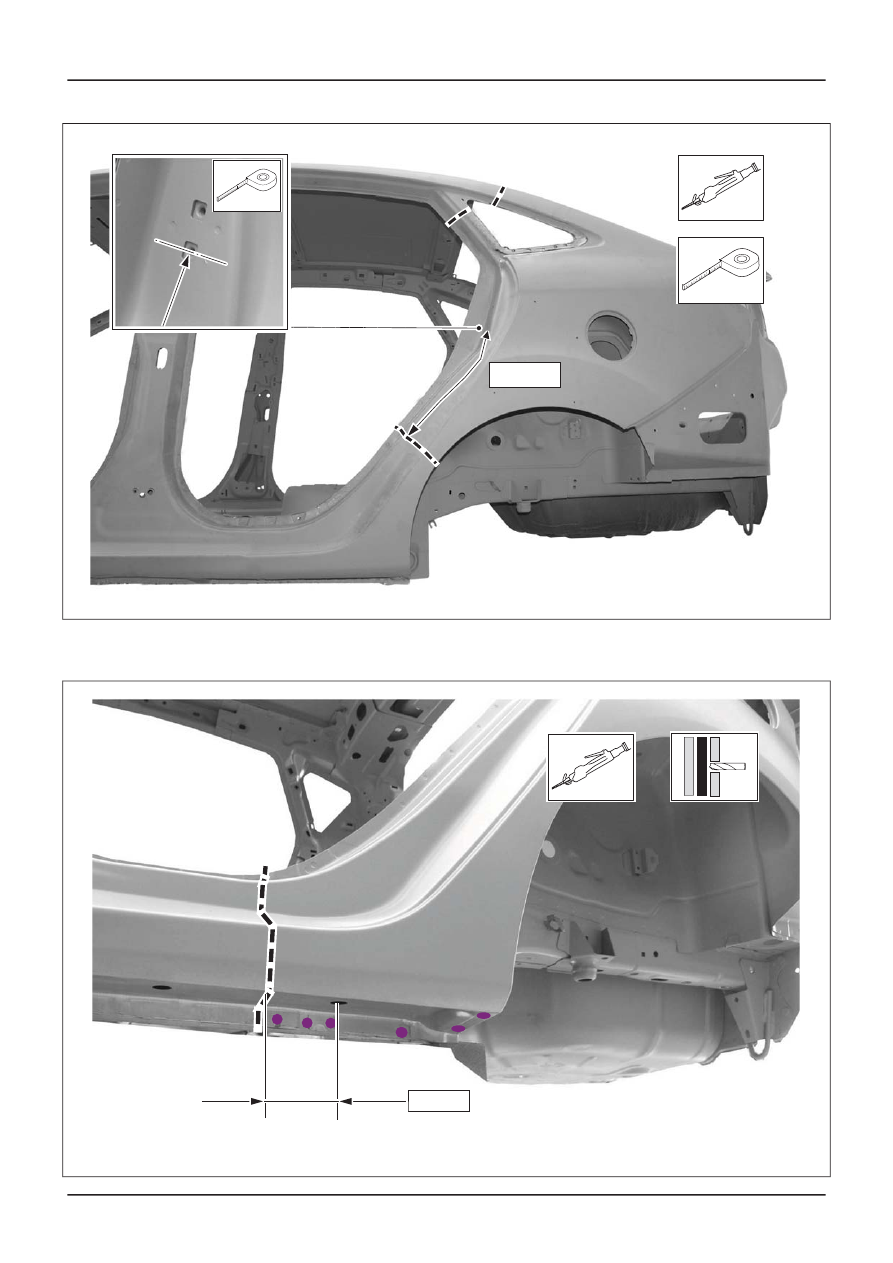

Partial Replacement - Quarter Panel - Cut
Line Options
•

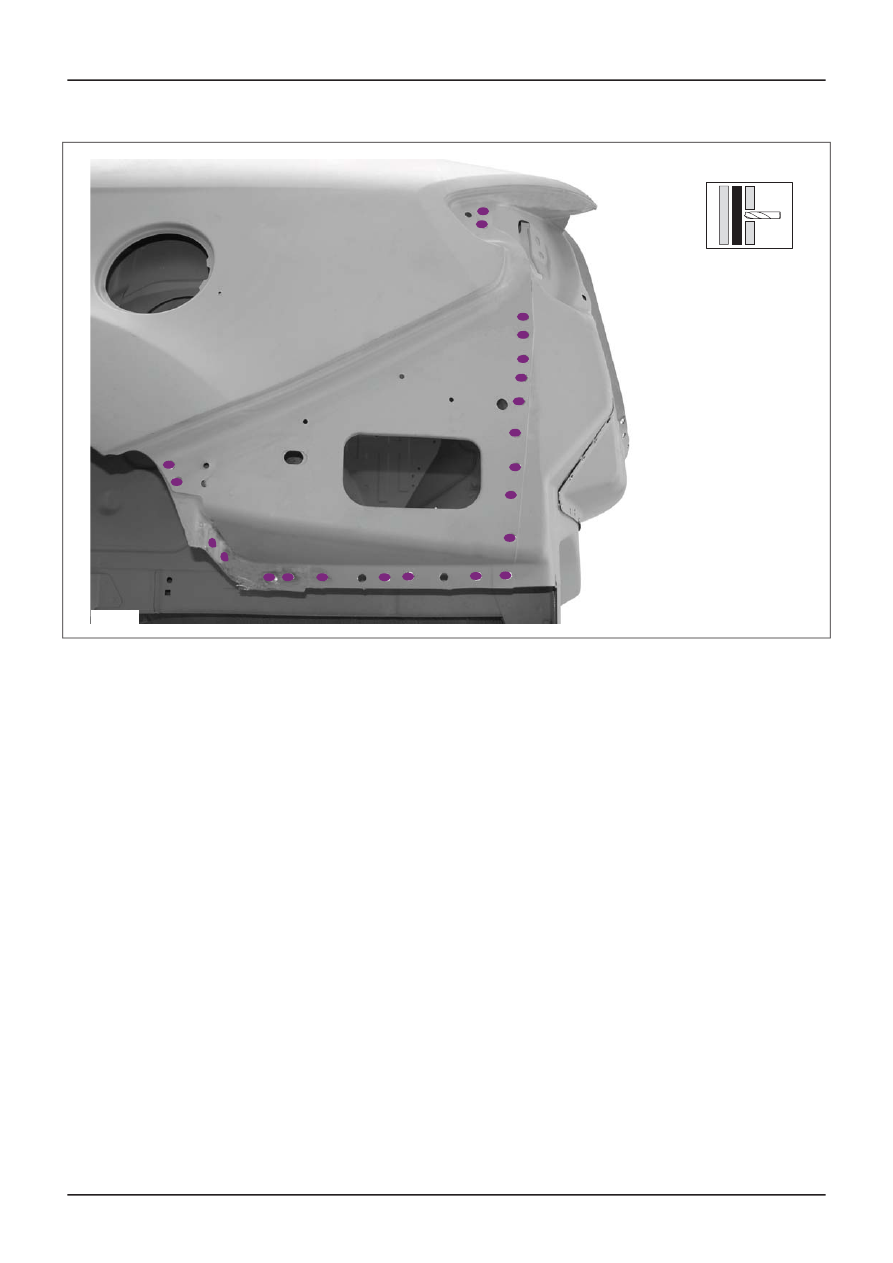

G1133600en
501-30-
2
Rear End Sheet Metal Repairs
501-30-
2
REMOVAL AND INSTALLATION
