Ford Fiesta (2011 year). Manual - part 131
Rocker Panel Inner Reinforcement
General Equipment
Air Body Saw
Metal Inert Gas (MIG) Welding Equipment
General Equipment
Resistance Spotwelding Equipment
Spot weld drill Bit
Removal
1.
Refer to: Tools and Equipment for Body Repairs
(501-25 Body Repairs - General Information,
Description and Operation).
2.
Refer to: A-Pillar Assembly
(501-29 Side
Panel Sheet Metal Repairs, Removal and
Installation).
•
•
Refer to: A-Pillar Outer Panel
(501-29 Side
Panel Sheet Metal Repairs, Removal and
Installation).
• Rocker Panel
• Door Hinges
• Front and Rear Door
• Front Wheel Arch Trim
• Rear Wheel Arch Trim
• A- B- and C-Pillar Trim
Refer to: A-Pillar Trim Panel
(501-05 Interior
Trim and Ornamentation, Removal and
Installation).
Interior Trim and Ornamentation, Removal
and Installation).
Refer to: C-Pillar Trim Panel - 5-Door
(501-05
Interior Trim and Ornamentation, Removal
and Installation).
• Rocker Panel Trim
•
Refer to: Front Seat
(501-10 Seating,
Removal and Installation).
Refer to: Rear Seat Cushion
(501-10 Seating,
Removal and Installation).
Refer to: Rear Seat Backrest
(501-10
Seating, Removal and Installation).
• Reposition the carpeting and the wiring
harness away from the working area.

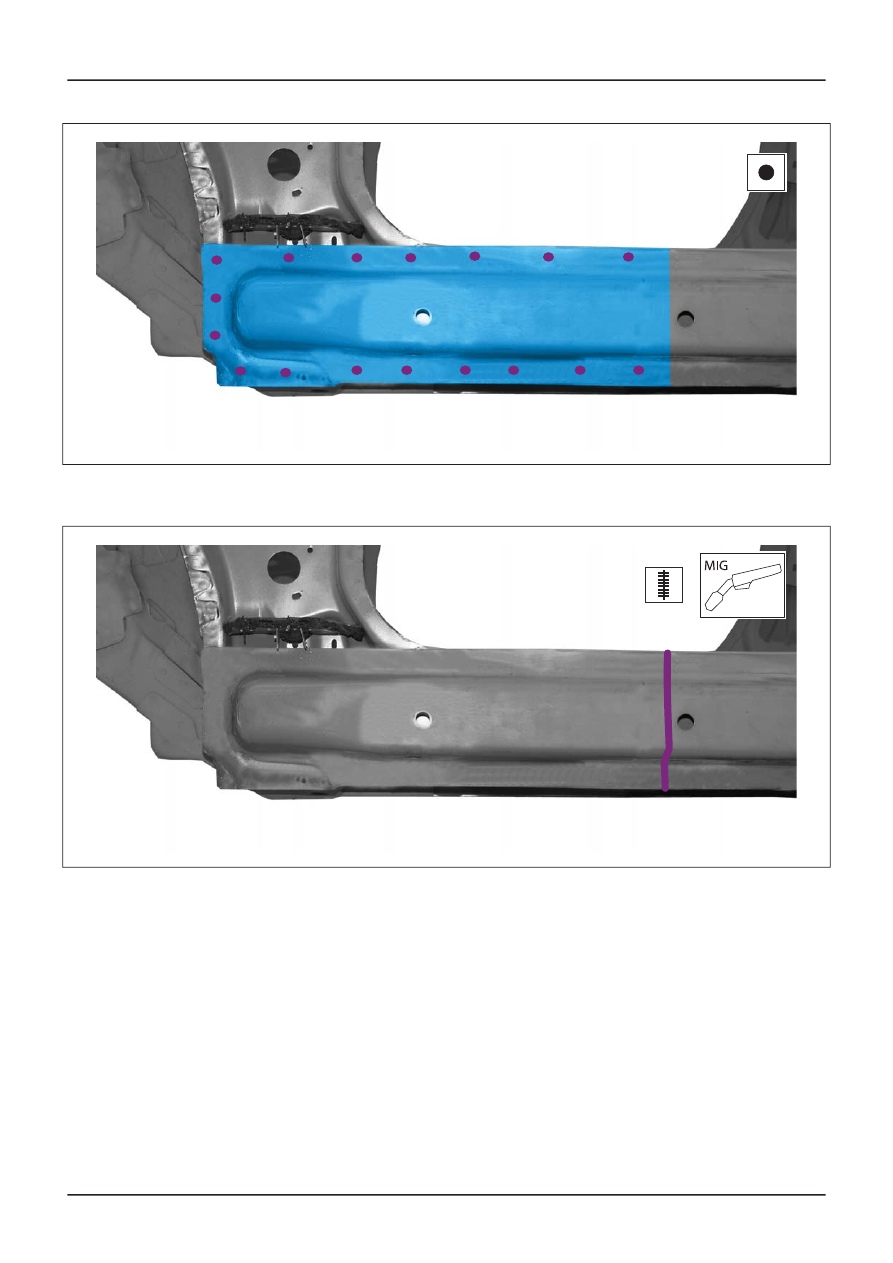

3.

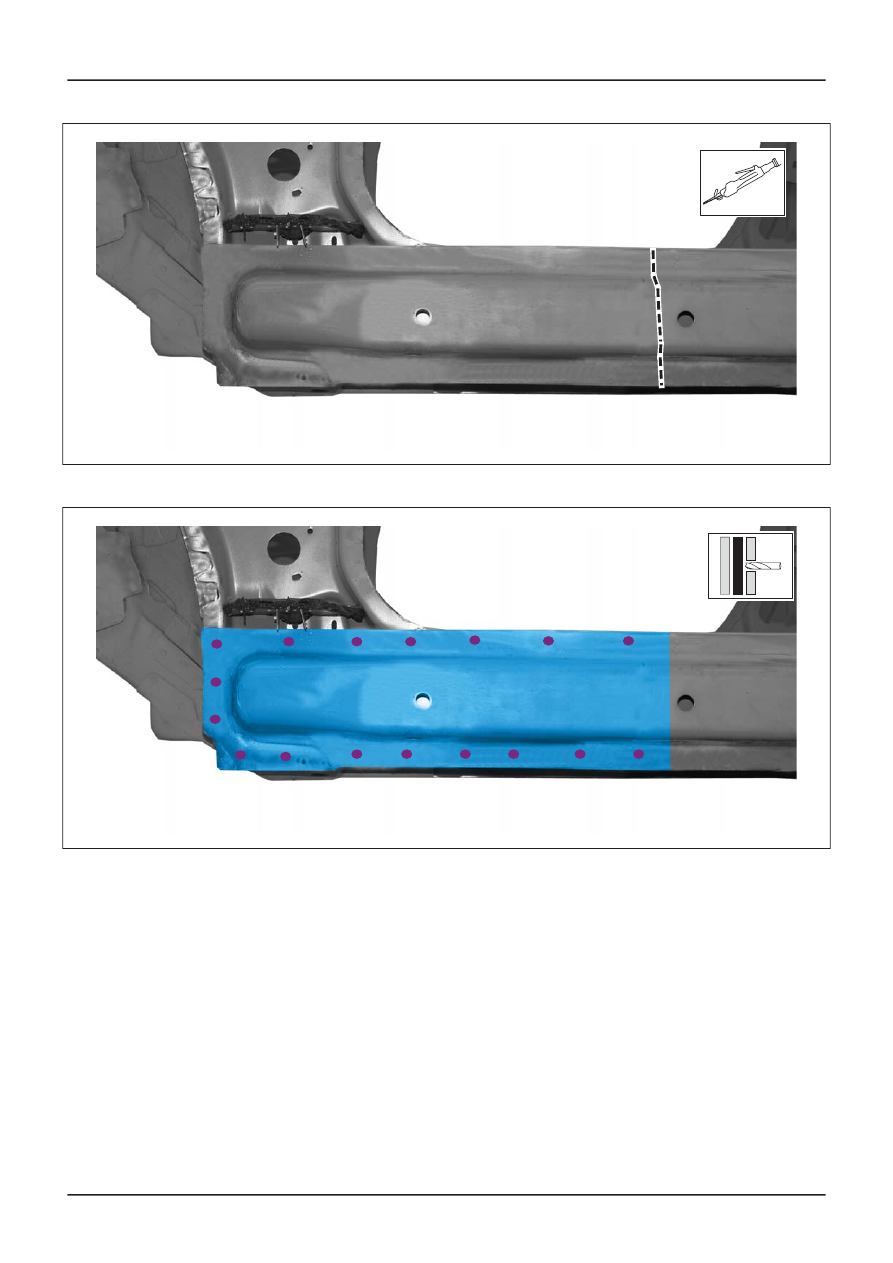

General Equipment: Air Body Saw
•
G1183451en
501-29-
25
Side Panel Sheet Metal Repairs
501-29-
25
REMOVAL AND INSTALLATION
Refer to: B-Pillar Trim Panel - 5-Door
(501-05
