Rear Safety Belt Retractor

Removal

NOTE: Removal steps in this procedure may
contain installation details.

1.

Refer to: Health and Safety Precautions (100-00

General Information, Description and
Operation).

5-door

2.

E105050

3.

E105051

All vehicles

4.

E105052

5. Torque: 45 Nm

E105053

6. Torque: 45 Nm

G1087429en

501-20A-

8

Safety Belt System

501-20A-

8

REMOVAL AND INSTALLATION

201

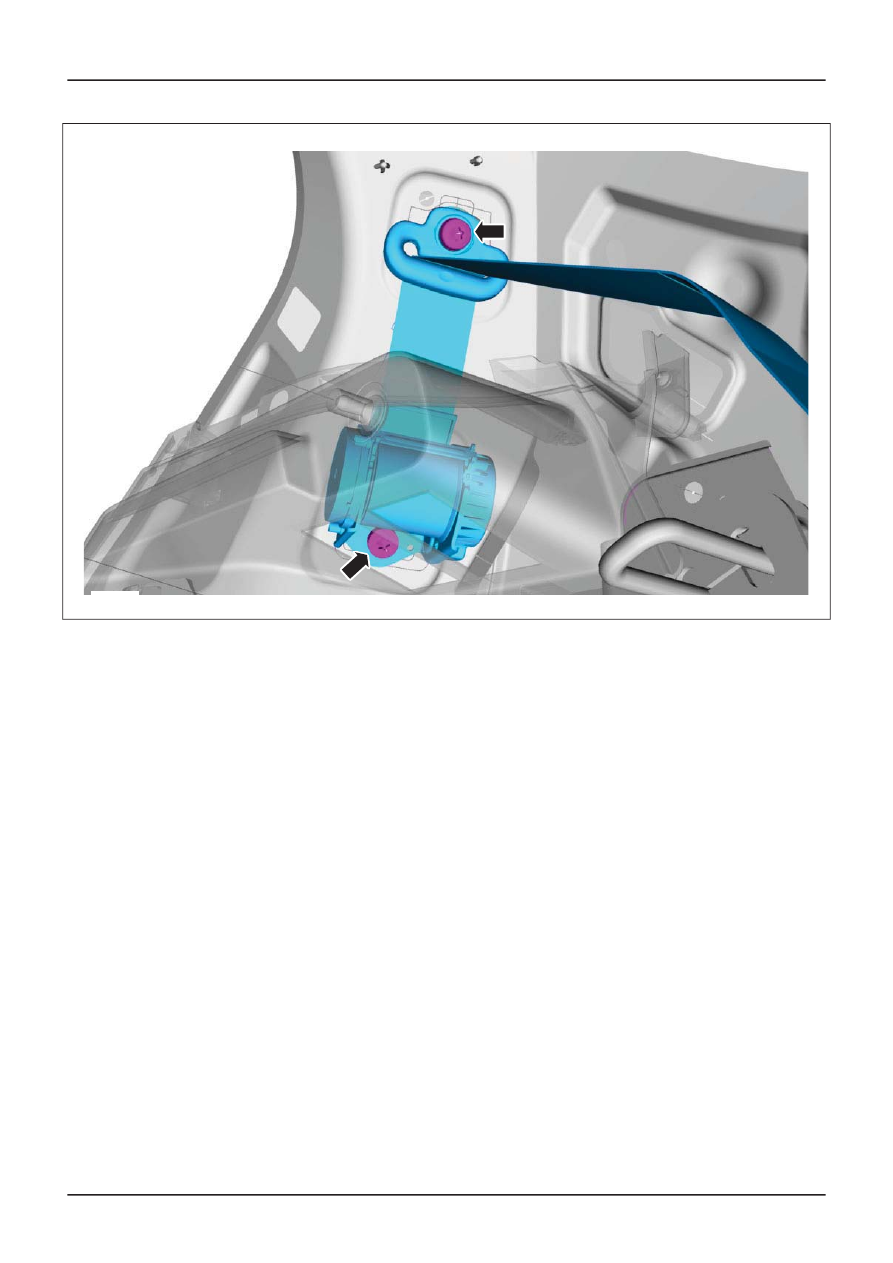

E105054

Installation

1. To install, reverse the removal procedure.

G1087429en

501-20A-

9

Safety Belt System

501-20A-

9

REMOVAL AND INSTALLATION

201

Rear Safety Belt Buckle

Removal

1.

Refer to: Rear Center Safety Belt

(501-20

Safety

Belt System, Removal and Installation).

Installation

1. To install, reverse the removal procedure.

G1087431en

501-20A-

10

Safety Belt System

501-20A-

10

REMOVAL AND INSTALLATION

201

Rear Center Safety Belt

Removal

NOTE: Removal steps in this procedure may
contain installation details.

1.

Refer to: Health and Safety Precautions

(100-00

General Information, Description and

Operation).

2.

E105067

3. Torque: 45 Nm

E105231

Installation

1. To install, reverse the removal procedure.

G1088808en

501-20A-

11

Safety Belt System

501-20A-

11

REMOVAL AND INSTALLATION

201
