Ford Fiesta (2011 year). Manual - part 23

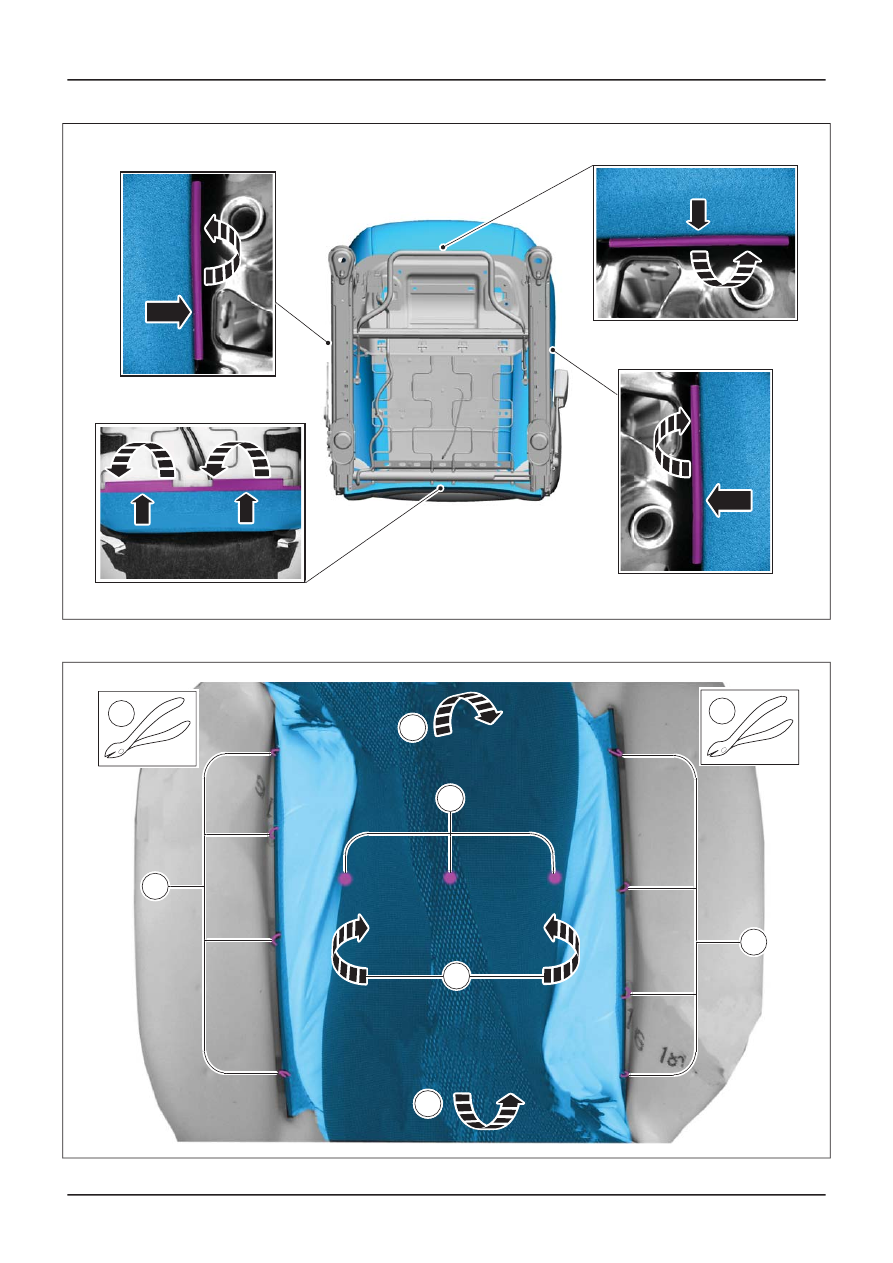

E103719

x2

x2

5.

If equipped.

4.

E102236

1

2

2

4

3

3

2

4

G1082648en

501-10-

8

Seating

501-10-

8

REMOVAL AND INSTALLATION

201

Installation

1. To install, reverse the removal procedure.

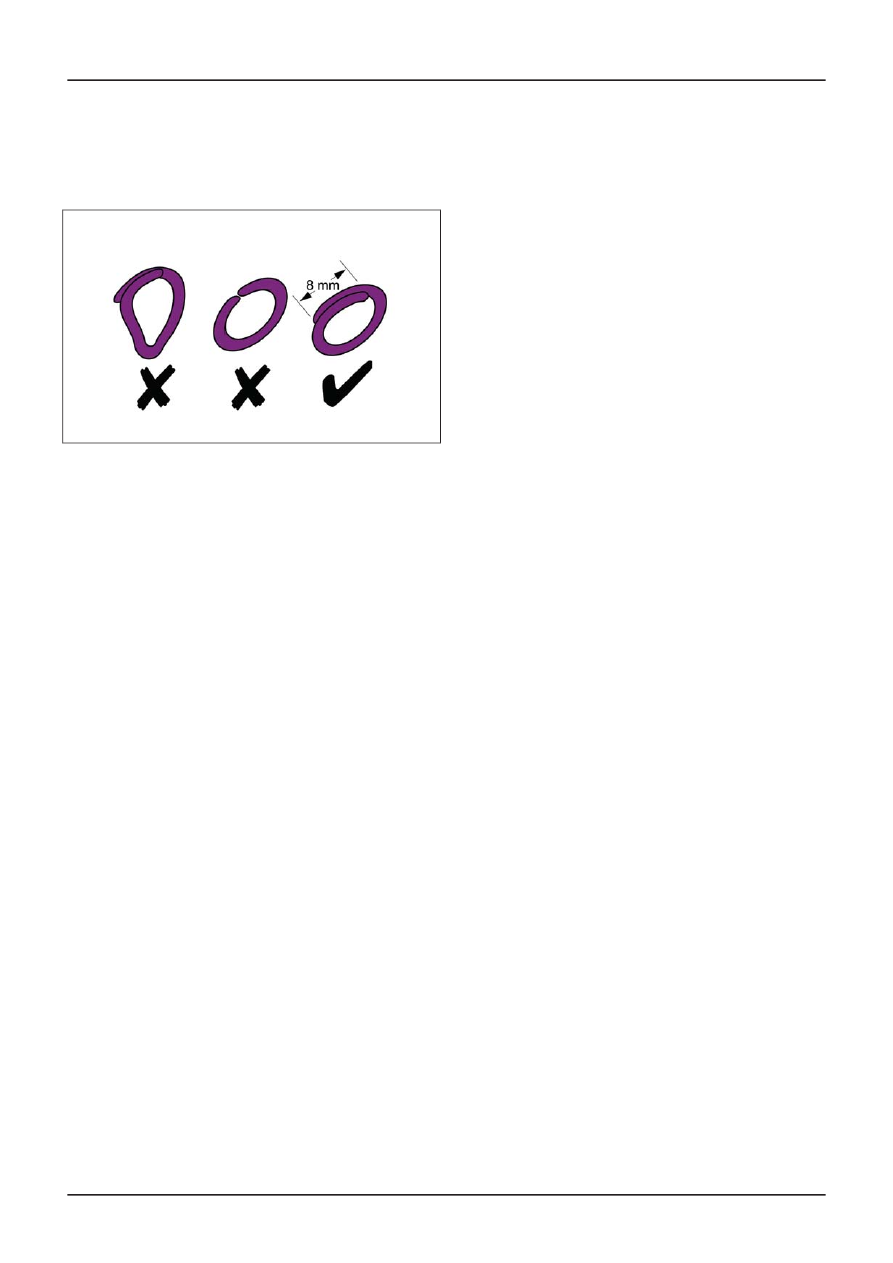

2. General Equipment: Hog Ring Plier

V4001063

G1082648en

501-10-

9

Seating

501-10-

9

REMOVAL AND INSTALLATION

201

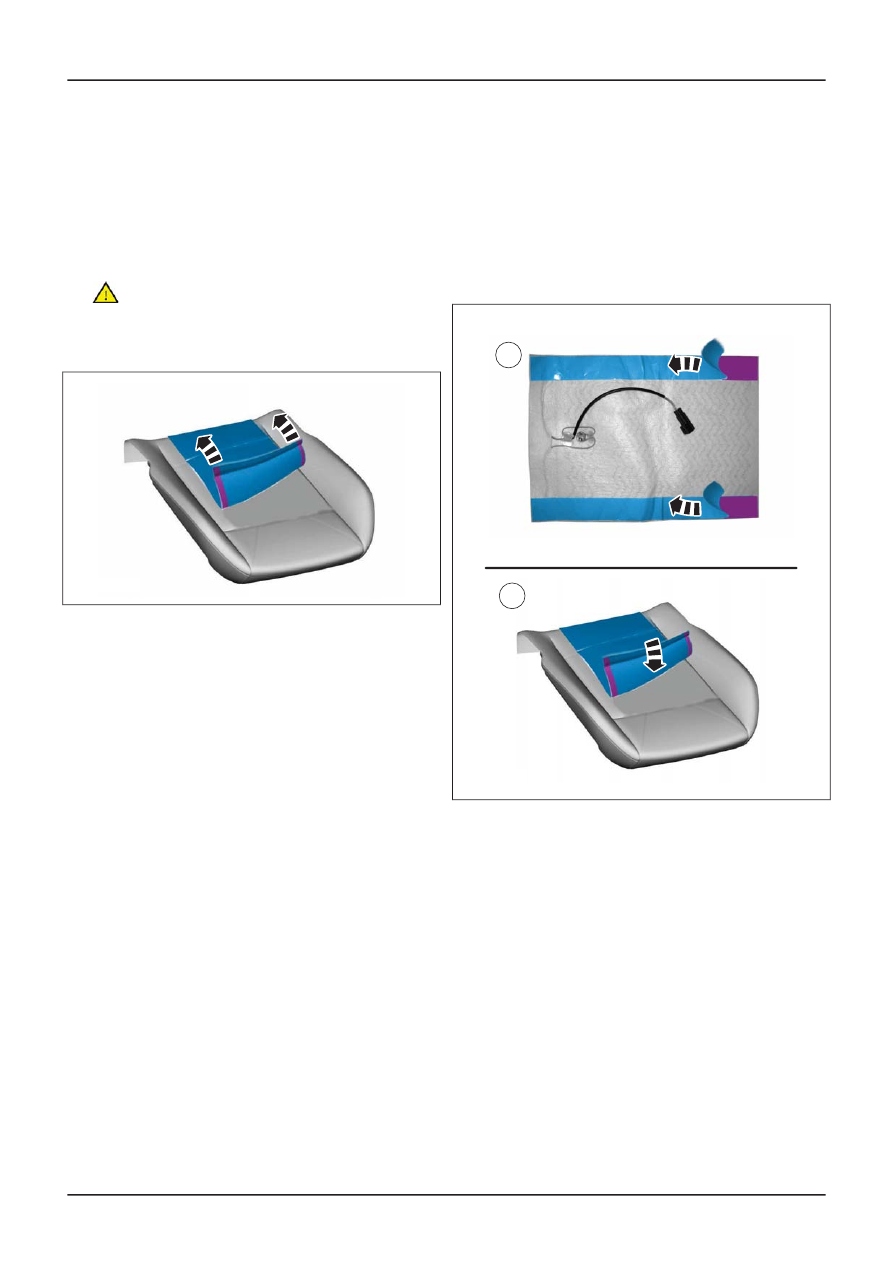

Front Seat Cushion Heater Mat(33 401 0; 33 401 4)

Removal

1.

Refer to:

Front Seat Cushion Cover

(501-10

Seating, Removal and Installation).

2.

CAUTION: Touching the adhesive
surface will impair rebonding.

NOTE: Note the position of the component
before removal.

E107546

Installation

1.

NOTE: This step is only necessary when
installing a new component.

1.

NOTE: Make sure that these components
are installed to the noted removal position.

1

2

E107545

2.

Refer to: Front Seat Cushion Cover

(501-10

Seating, Removal and Installation).

G1082654en

501-10-

10

Seating

501-10-

10

REMOVAL AND INSTALLATION

201

Front Seat Cushion(40 104 0)

Removal

NOTE: Removal steps in this procedure may
contain installation details.

1.

Refer to: Front Seat Cushion Cover

(501-10

Seating, Removal and Installation).

2. If equipped.

Refer to: Front Seat Cushion Heater Mat

(501-10 Seating, Removal and Installation).

3. If equipped.

Refer to: Seat Occupant Sensor

(501-10

Seating, Removal and Installation).

Installation

1. To install, reverse the removal procedure.

G1082651en

501-10-

11

Seating

501-10-

11

REMOVAL AND INSTALLATION

201
