Body Electronics Module (BEM)
419-10-20
DIAGNOSIS AND TESTING (Continued)
Pin Number(s)
Circuit Designation/Description
Normal Condition/Measurement
J1/1
19J (BL/RD)
De-energised: 0-2.2
Graphics illumination feed
Energised: 8.0-12.0
Level: H
J1/2
14KC (BR)
De-energised: 0-2.2
Park lamp Fuse
Energised: 8.0-12.0
Level: H & L
J1/3
25 (GR/VLT)
De-energised:

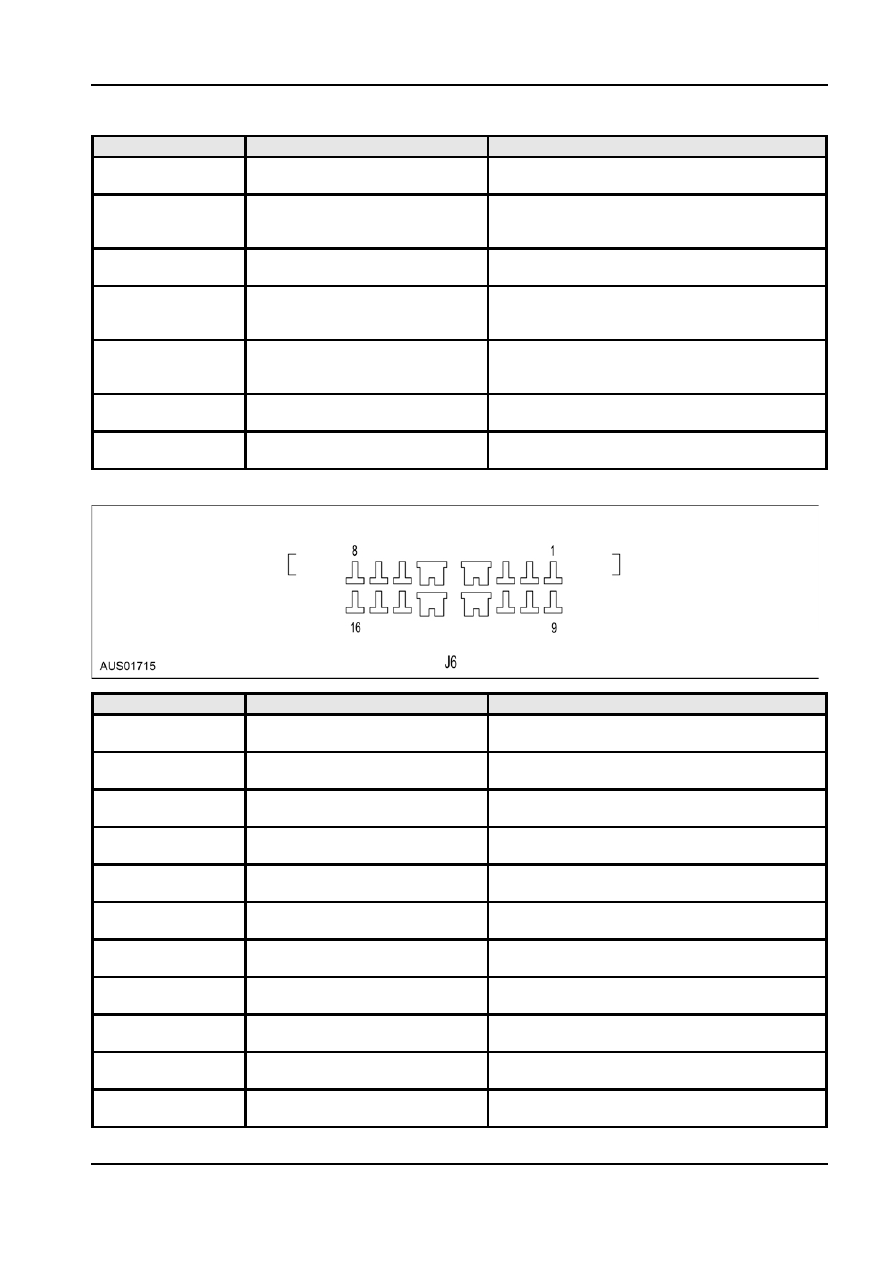

J6/2
Transceiver ground
Energised: 12-1.0
Level: H & L
J6/3
23 (RD/YLW)
De-energised: Less than 1.0
Transceiver Supply
Energised: Greater than 10.0
Level: H & L
J1/5
57CP (BLK)
De-energised: 0
Auto Headlamp relay ground
Energised: 0
Level: H
J1/7
24 (BL/ORG)
De-energised: <5.2
J6/1
Transceiver RX Data
Energised: >11
Level: H & L
J1/8
340 (BLK/LT GR)
De-energised: Data
J6/9
Transceiver TX Data
Energised: Data
Level: H & L
J1/9
170 (RD)
De-energised: <5.2
Boot/Tailgate release switch
Energised: >11
Level: H & L
J1/10
16HB 16C (RD/GR)
De-energised: <2.2
J6/5
BEM Tila
Energised: >8.0
Level: H & L
J1/11
627 (BLK/ORG)
De-energised: <5.2
Rear right hand passenger door
Energised: >11
ajar switch
Level: H & L
J1/12
630 (BLK/RD)
De-energised: <5.2
Rear left hand passenger door ajar Energised: >11
switch
Level: H & L
J1/13
629 (WHT/RD)
De-energised: <5.2
Front passenger door ajar switch Energised: >11
Level: H & L
J1/14
628 (WHT)
De-energised: <5.2
Front drivers door ajar switch
Energised: >11
Level: H & L
J1/15
Digital spare 1
Level: Optional
J1/16
341 (ORG)
Level: H & L, Optional
Digital spare 2
J1/17
26 (WHT)
De-energised: <5.2
Boot/Tailgate ajar switch
Energised: >11
Level: H & L
J1/18
234D (WHT/BLU)
De-energised: <5.2
Twilight sensor PWM
Energised: >11
Level: H
J1/19
590C (GR/WHT)
De-energised: <5.2
Front intermittent wiper switch
Energised: >11
Level: H & L
J1/20
82 (PNK/YLW)
De-energised: <5.2
Washer fluid level switch
Energised: >11
Level: H
