Ford Falcon. Manual - part 392

419-08-3 Cellular

Phone 419-08-3

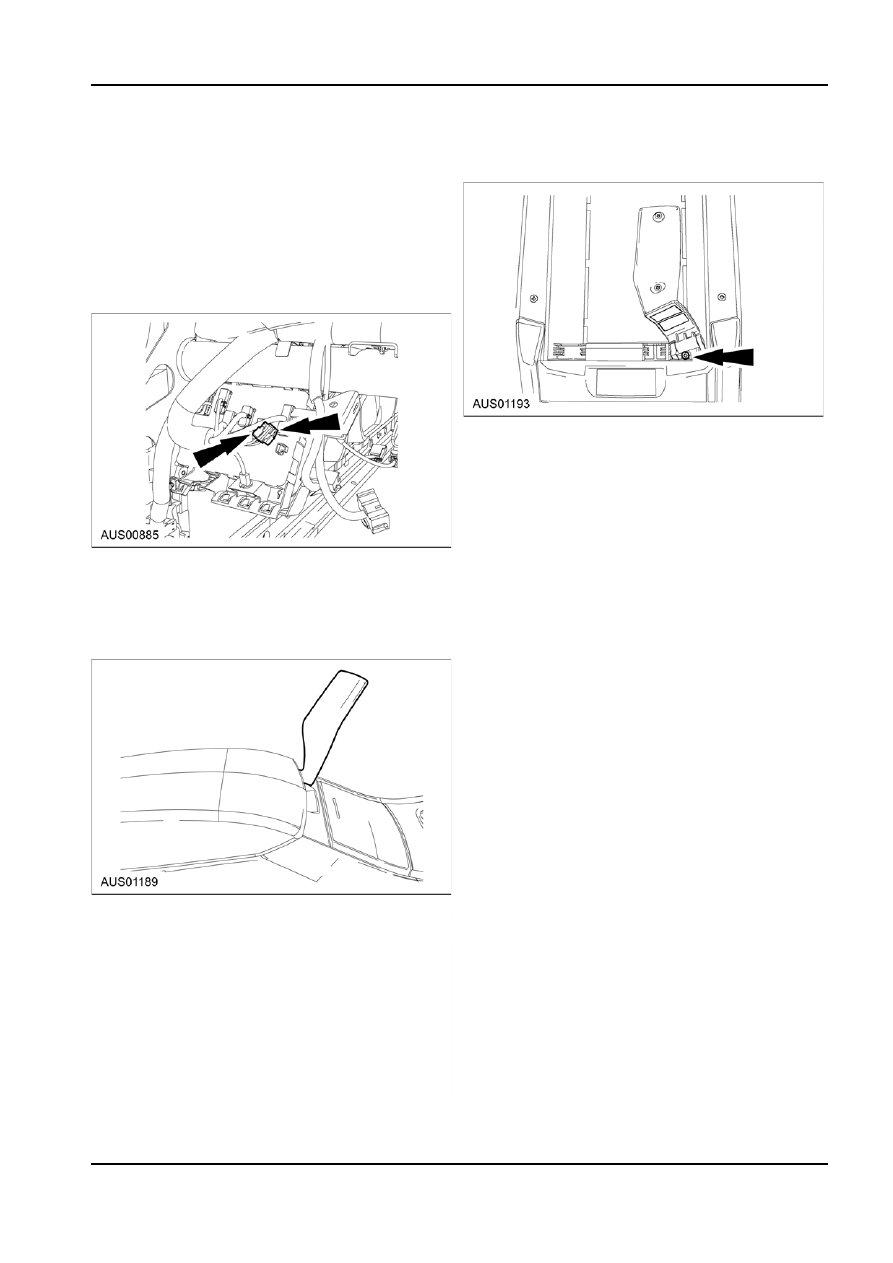

DESCRIPTION AND OPERATION

2.  Storage of the hands free phone system in the

Mobile Telephone Wiring

console whilst not in use.

All Falcon models are supplied with mobile telephone

wiring to facilitate installation of mobile telephones

including a mute function to interrupt the radio. All

models have wiring to facilitate mobile phone audio

interface to the radio. This feature enables the phone

audio to operate through the vehicles speakers.
The two connectors are located behind the fuse panel

on the right hand side of the instrument panel.

Mobile Telephone Platform

The cellular phone attaches to the centre console

through the phone platform to allow:
1.  Access to the phone, suitable for hands free use.

G34330 en

419-08-4 Cellular

Phone 419-08-4

DIAGNOSIS AND TESTING

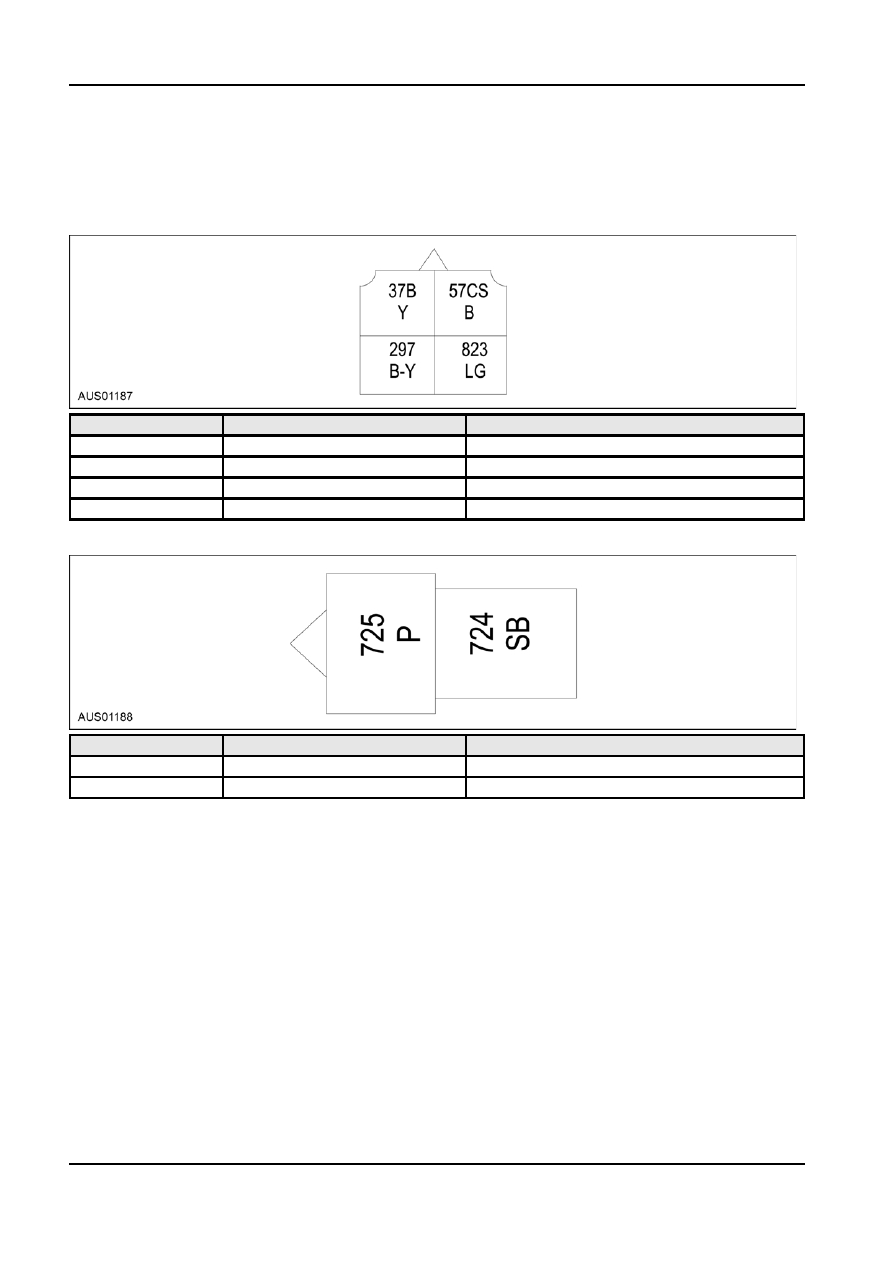

Cellular Phone

Connector Circuit Reference

Mobile Phone C-192

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

297 Accessory +VE —

57CS

Ground

—

37A Battery 12V —
823

Mute

—

Mobile Phone C-204

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

724

Audio Input —

—

725

Audio Input +

—

G34333 en

419-08-5 Cellular

Phone 419-08-5

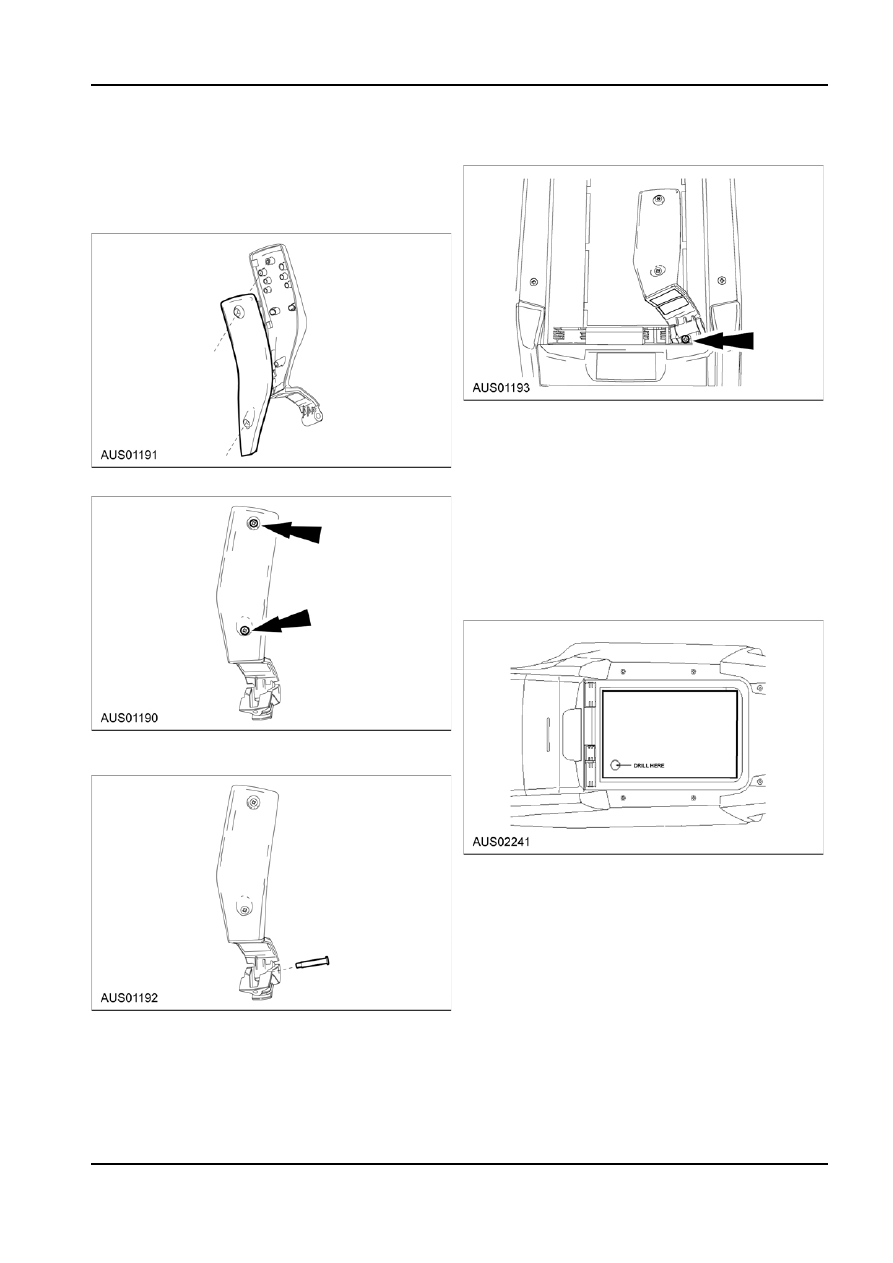

REMOVAL AND INSTALLATION

Mobile Telephone Platform

4.  Screw the bracket into the console body.

Removal and Installation
1.  Join the front and back plates together by using

the screw bosses as a guide.

5.  Replace the console bump stops currently fitted

with new larger bumps stops provided.

6.  To remove, unscrew bracket mounting to console.

2. Screw

plates

together.

Mobile Telephone Kit

Removal and Installation
1.  Fit presenter arm to console (with phone holder

attached as per the above instructions).

2.  Drill hole (diameter 25mm), using template

provided (see overleaf), in base of console

directly in line of presenter arm mounting.

3.  Assemble the arm to the mounting bracket using

the pin provided.

3.  Move passenger seat forward and remove bolt at

rear of console, clipping in console wing LHS.

4.  Unclip and remove "T" bar surround then unscrew

and remove left and right console wings and

tissue box holder.

G34331 en

419-08-6 Cellular

Phone 419-08-6

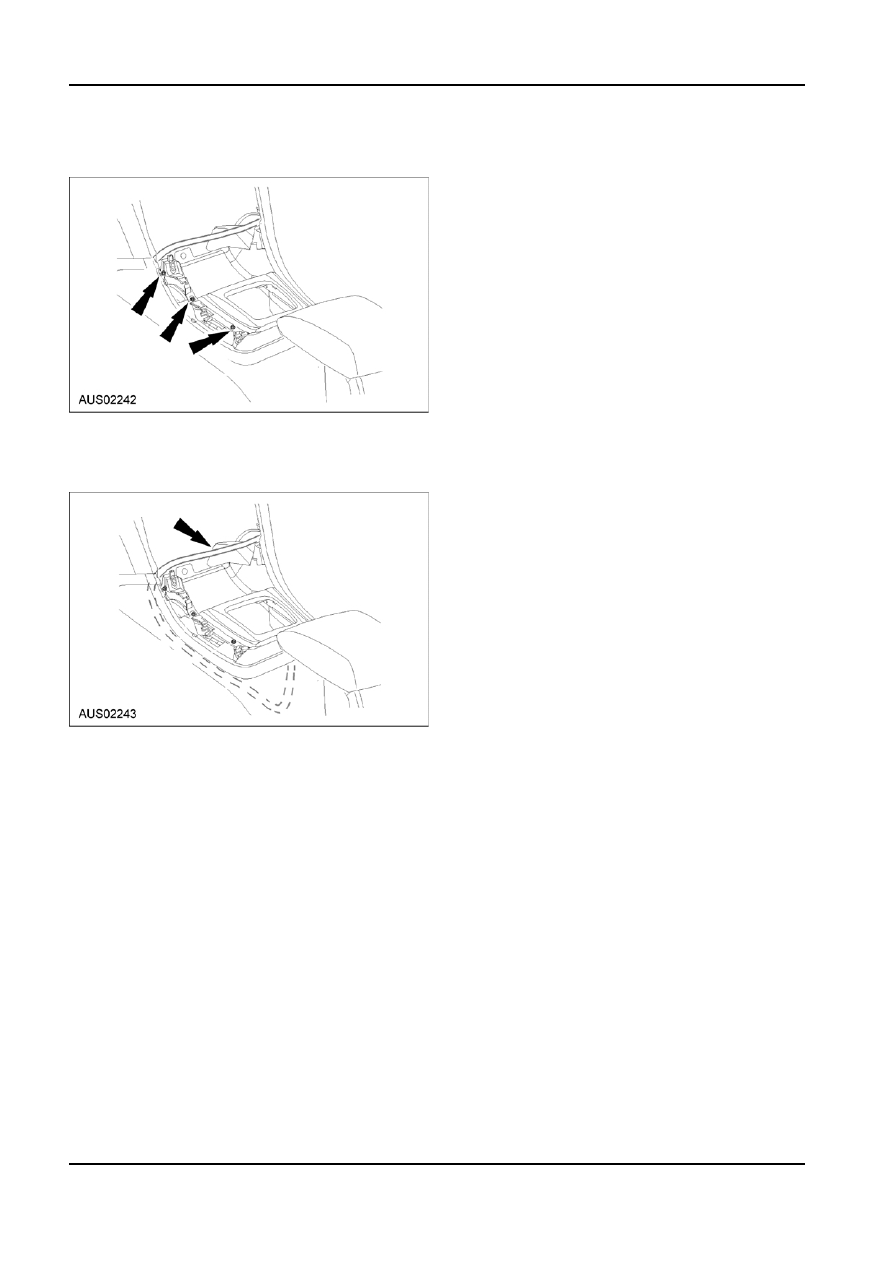

REMOVAL AND INSTALLATION (Continued)

5.  Loosen hardware as indicated to allow flexibility in

the console side panel.

6.  Feed wiring through the drilled hole in the console

floor (concealing hole made under carpet) to

reach under console side. Feed wiring forward to

front of console.

7.  Conceal wiring under console side.
8.  Feed wiring through to wiring connector C192 &

C204 as shown in Wiring - General Information -

Component location views 700-06-00-1.

G34331 en
