419-07-13 Satellite

Navigation 419-07-13

DIAGNOSIS AND TESTING (Continued)

PINPOINT TEST O : THE DIRECTION OF TRAVEL AND THE MOVEMENT OF THE VEHICLE’S

CURRENT POSITION MARK ARE OPPOSITE OF EACH OTHER

Test Step

Result / Action to Take

O1

Yes

On the service check scree, does the vehicle signal of navigation

Repeair the navigation ECU.

check show the REV to be normal?

No

Inspect the wiring harnesses and connectors.
Areas to inspect : REV

G88871 en

419-07-14 Satellite

Navigation 419-07-14

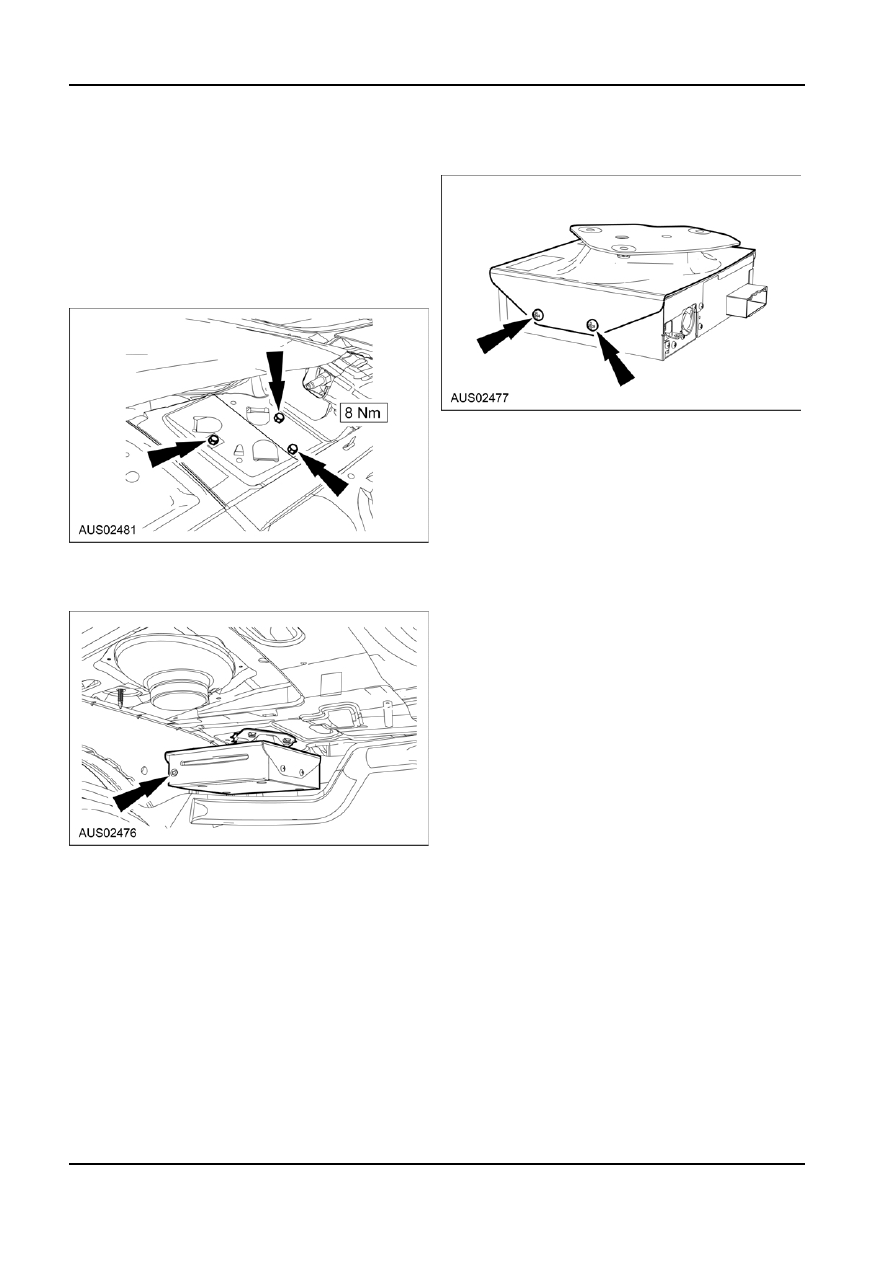

REMOVAL AND INSTALLATION

5.  Remove mounting bracket from processor, four

Navigation System Module

bolts.

Removal and Installation
1.  Remove Parcel Shelf as described in Section

501-05 Interior Trim and Ornamentation.

2.  Remove Navigation Bracket mounting bolts (x3).

Tightening torque 8Nm.
NOTE: Navigation bracket is held in position by

guide tabs.

Navigation System Antenna

Removal and Installation
1.  Remove Parcel Shelf as described in Section

501-05 Interior Trim and Ornamentation.

2.  Disconnect antenna and remove.

Navigation System Display Module

3.  Remove map DVD.

NOTE: Ignition must be "ON" position, then push

Removal and Installation

the front panel switch on the processor.

Refer to section 413-08 for instructions.

4.  Slide processor and bracket assembly out.

NOTE: Disconnect main connector and G.P.S

antenna lead wire.

G88872 en

419-08-1 Cellular

Phone 419-08-1

SECTION : 419-08 Cellular Phone

VEHICLE APPLICATION : 2003.0 BA Falcon
CONTENTS

PAGE

SPECIFICATIONS

 Specifications   ........................................................................................................................419-08-2

DESCRIPTION AND OPERATION

  Mobile Telephone Wiring   ......................................................................................................419-08-3

  Mobile Telephone Platform   ...................................................................................................419-08-3

DIAGNOSIS AND TESTING

 Cellular Phone  .......................................................................................................................419-08-4

  Connector Circuit Reference  ................................................................................................419-08-4

REMOVAL AND INSTALLATION

  Mobile Telephone Platform   ...................................................................................................419-08-5

  Mobile Telephone Kit   ............................................................................................................419-08-5

419-08-2 Cellular

Phone 419-08-2

SPECIFICATIONS

Torque Specifications

Description

Nm

Bracket to console mounting screw

1
