417-01-59 Exterior
Lighting 417-01-59
REMOVAL AND INSTALLATION (Continued)
3. Remove bulb holder by turning anti-clockwise
2. Disconnect wiring connector to stop lamp.
about 45 degrees.
4. Remove bulb from holder by pulling straight out.
Installation
1. Reverse the removal procedure.

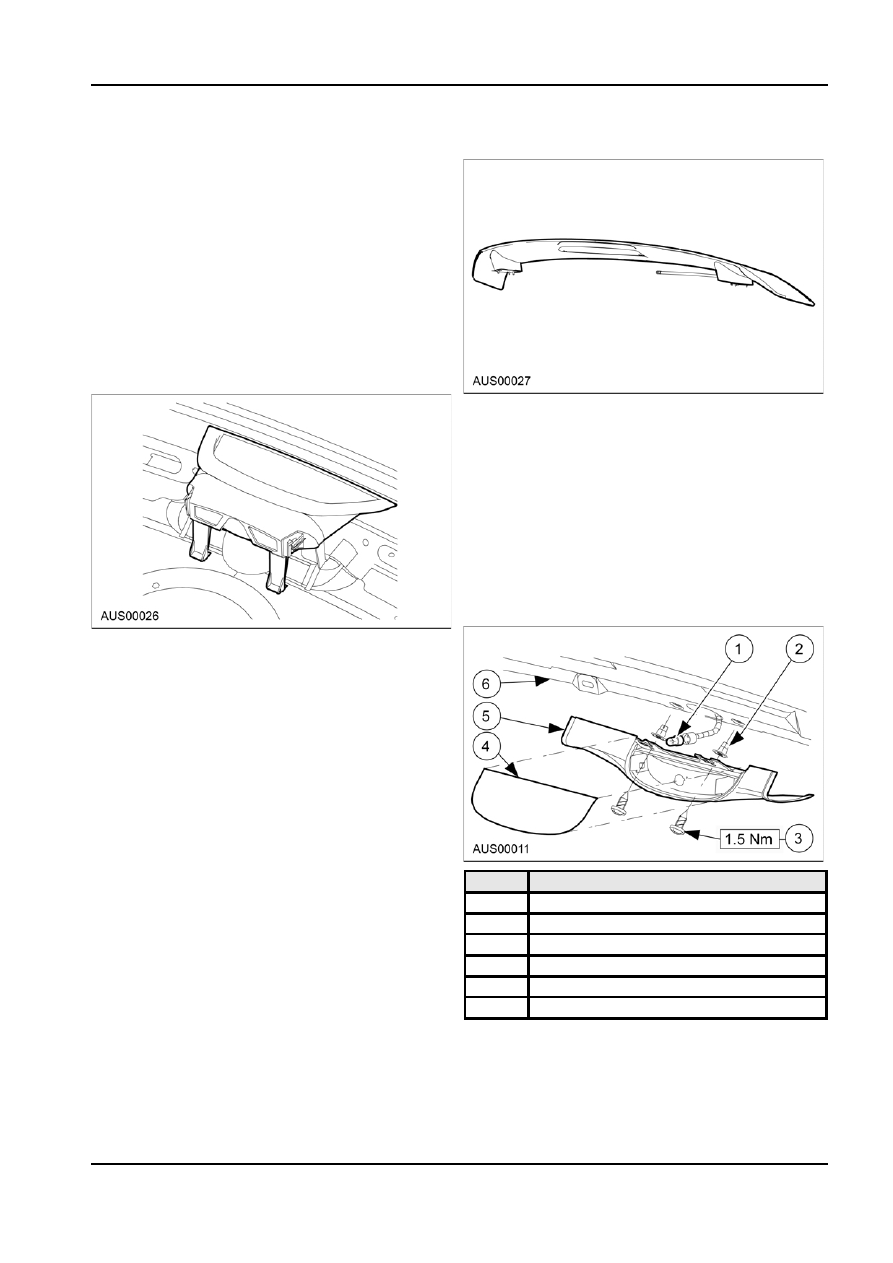

High Mount Stop Lamp — Sedan
(Except LWB)
Removal
1. From inside the luggage compartment remove the
bulb holder from the base of the lamp.
2. From inside the vehicle remove the parcel shelf
trim.
3. Unscrew lamp assembly from spoiler.
Installation
NOTE: Lamp is a sealed unit and must be replaced
as a complete assembly.
1. Reverse the removal procedure.
High Mount Stop Lamp Bulb — Wagon
Removal
1. Raise the liftgate and detach the clip-on cover
from the lamp.
2. Detach the bulb holder from the lamp.
3. Gently prise the lamp from the panel, dislodging
the front legs first.
Installation
1. Slot rear hooks of lamp into panel, then snap in
front legs.
2. Replace the trim.
3. Install the bulb holder in the lamp.
NOTE: There is no bulb fitted to holder when a
spoiler mounted HMSL is fitted.
High Mount Stop Lamp — XR Series
Sedan
Item
Description
1
High mount stop lamp
Removal
2
Screw receptacle
1. Unbolt rear spoiler and lift from bootlid.
3
Screw
4
High mount brake light lens
5
High mount brake light housing
6
Tail gate
3. Remove the wedge base bulb from the bulb
holder.
Installation
1. Install the bulb in the bulb holder.
2. Install the bulb holder in the lamp.
3. Install the cover on the lamp.
