310-00-17 Fuel

System 310-00-17

REMOVAL AND INSTALLATION (Continued)

Installation
1.  Reverse the removal process.

Fuel Shut Off Switch

Removal
1.  Remove left front scuff plate. Please see Section

501-05 for scuff plate installation and removal

instructions.

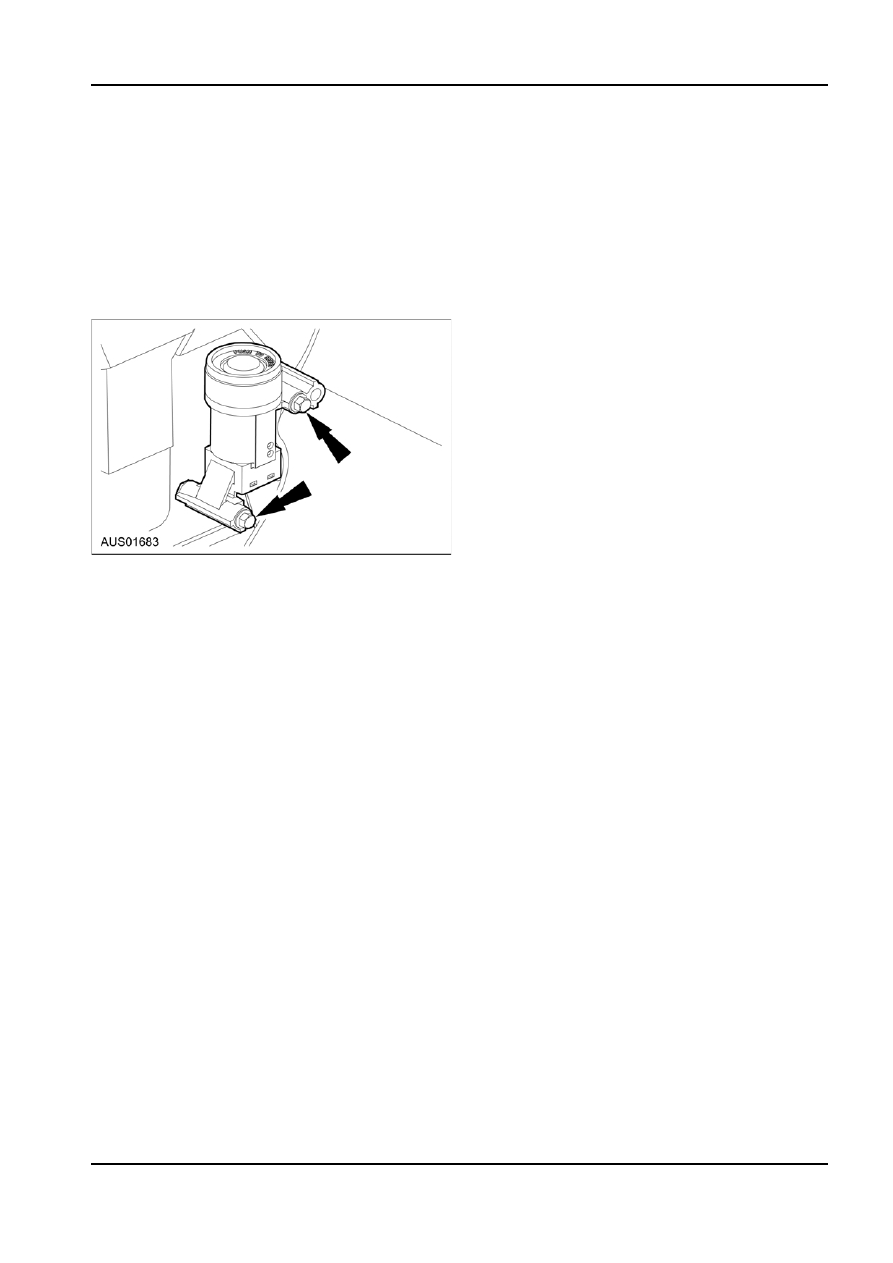

2.  Unscrew Fuel shut off switch.

Installation
1.  Reverse the removal process.

G345293 en

310-02-1 Acceleration

Control 310-02-1

SECTION : 310-02 Acceleration Control

VEHICLE APPLICATION : 2003.0 BA Falcon
CONTENTS

PAGE

SPECIFICATIONS

 Specifications   ........................................................................................................................310-02-2

DESCRIPTION AND OPERATION

  Acceleration Control   ..............................................................................................................310-02-3

  Acronyms and Abbreviations  ...............................................................................................310-02-3

DIAGNOSIS AND TESTING

  Acceleration Control   ..............................................................................................................310-02-4

  Inspection and Verification  ...................................................................................................310-02-4

 Symptom

Chart



....................................................................................................................310-02-4

  Connector Circuit Reference  ................................................................................................310-02-5

 Pinpoint

Tests



......................................................................................................................310-02-8

REMOVAL AND INSTALLATION

  Accelerator Pedal and APM unit — Adjustable Pedals   ......................................................310-02-11

  Accelerator Pedal and APM unit — Fixed Pedals   ..............................................................310-02-12

  Adjustable Pedal Indexing   ..................................................................................................310-02-14

310-02-2 Acceleration

Control 310-02-2

SPECIFICATIONS

Torque Specifications

Description

Nm

Carrier Plate Bolts (fixed accelerator

6

± 0.5

pedal only)
Adjustment Motor Retaining Bolts

5

± 0.5

(adjustable pedal)
Pedal Box Housing

22.5

± 3.4

Brake Booster Retaining Nuts

22.5

± 3.4

Accelerator Gearbox Torx Head

2.5

± 0.5

Screws (adjustable pedal only)
APM Mounting Bolts

6

± 0.5

G73252 en

310-02-3 Acceleration

Control 310-02-3

DESCRIPTION AND OPERATION

Acceleration Control

Acronyms and Abbreviations

APM

Accelerator Pedal Module

PCM

Powertrain Control Module

BEM

Body Electronic Module

Step Over

Height Difference Between Brake and

Accelerator Pedal

MSC

Memory Seat Controller

PPS

Pedal Position Sensor

G73253 en
