Ford Falcon. Manual - part 289

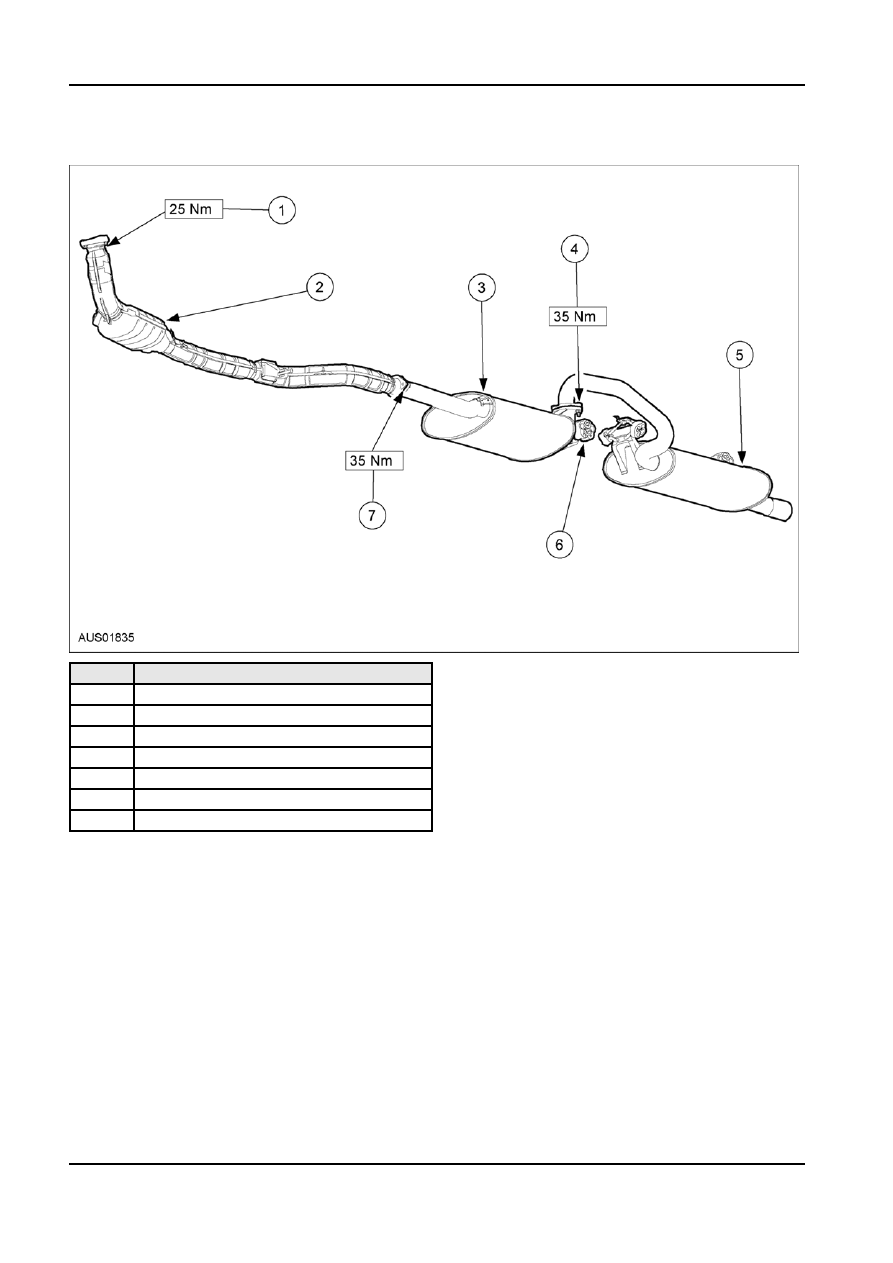

309-00-14 Exhaust

System 309-00-14

REMOVAL AND INSTALLATION (Continued)

XR6 (ULP)

Item

Description

1

M10 Nut assembly

2

Three-way catalytic converter

3

Intermediate muffler assembly

4

Nut Assembly

5

Rear muffler assembly

6

Rubber exhaust hanger insulators

7

Nut assembly

G56320 en

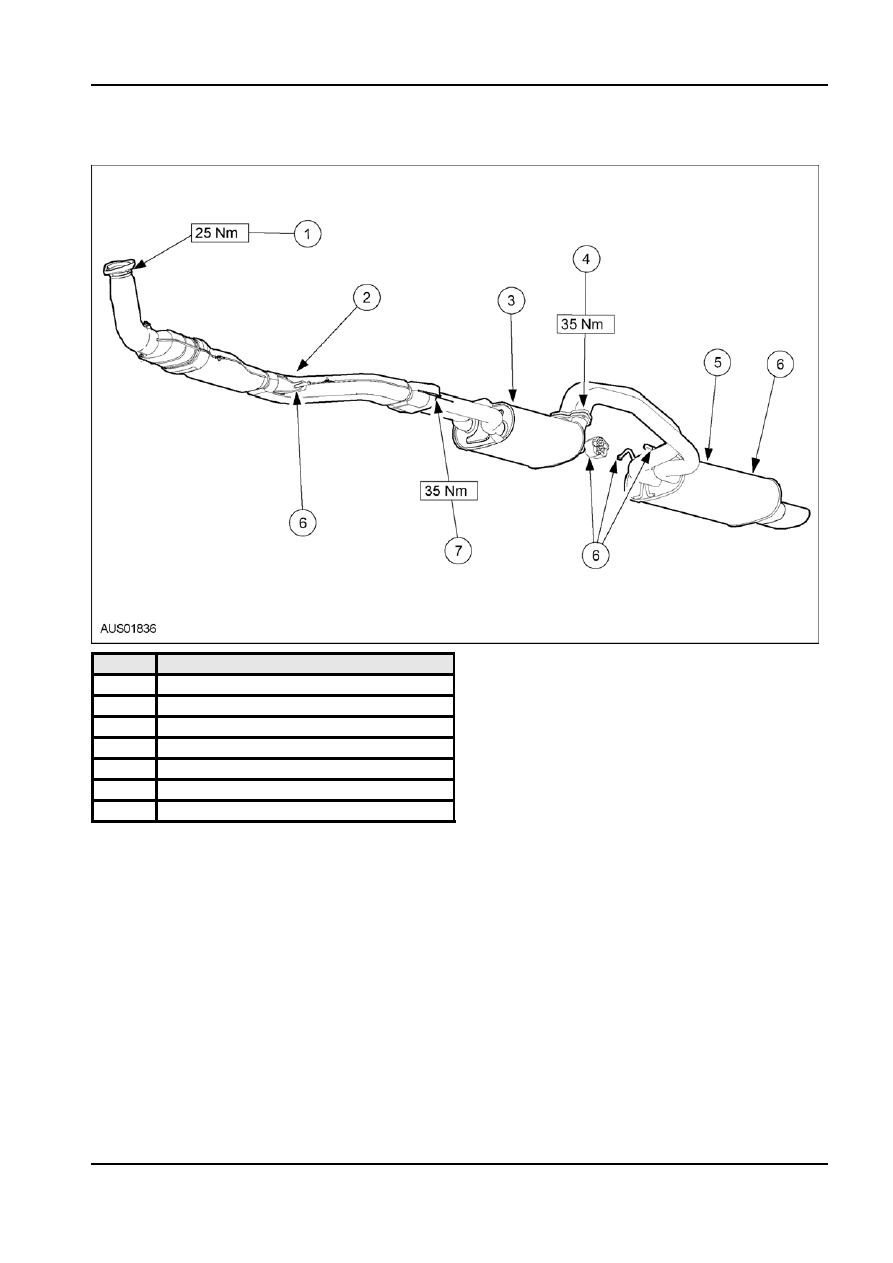

309-00-15 Exhaust

System 309-00-15

REMOVAL AND INSTALLATION (Continued)

XR6 Turbo (ULP)

Item

Description

1

M10 Nut assembly

2

Three-way catalytic converter

3

Intermediate muffler assembly

4

Nut Assembly

5

Rear muffler assembly

6

Rubber exhaust hanger insulators

7

Bolts  x  3

G56320 en

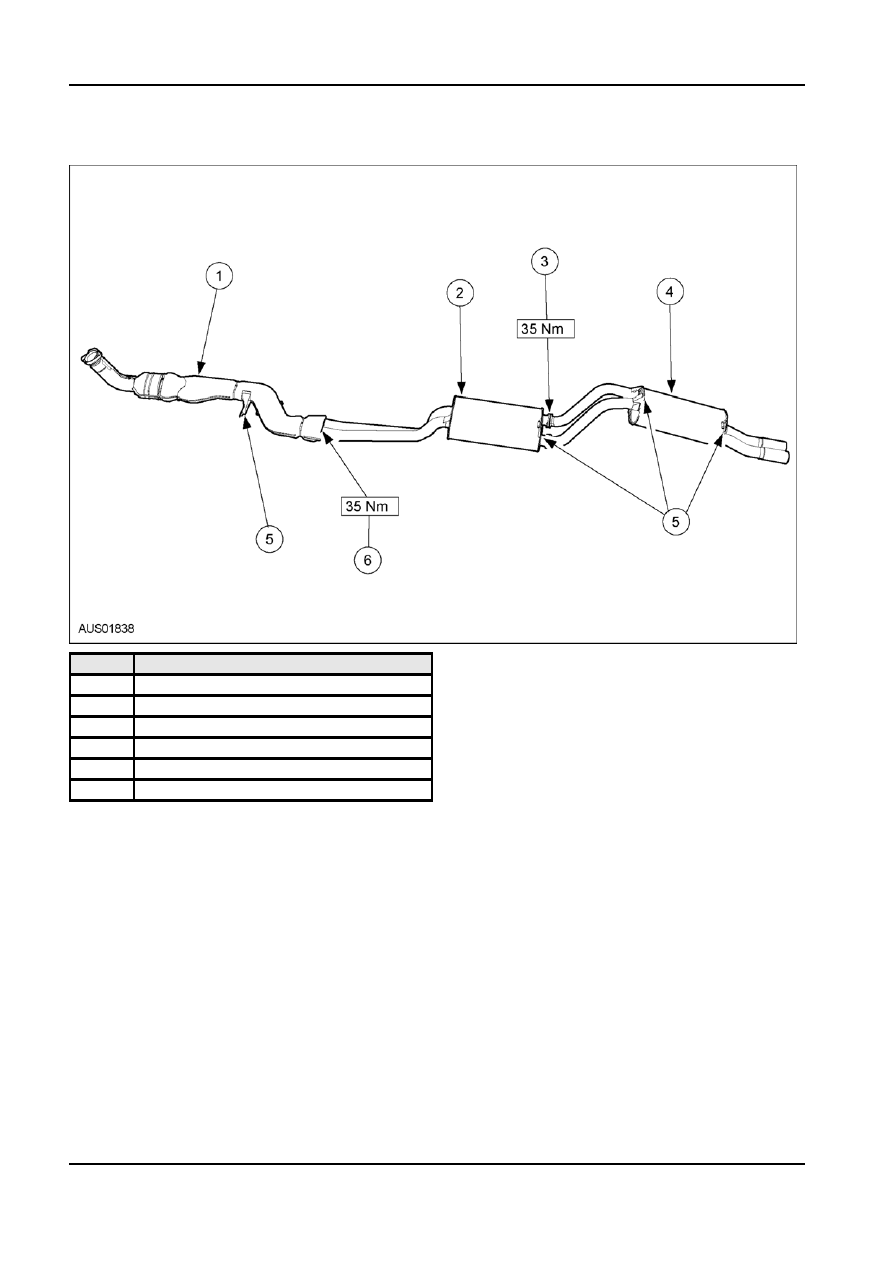

309-00-16 Exhaust

System 309-00-16

REMOVAL AND INSTALLATION (Continued)

Ute – XR6 Turbo (ULP)

Item

Description

1

Three way catalytic converter

2

Front muffler assembly

3

Nut assembly

4

Rear muffler assembly

5

Rubber exhaust hanger insulators

6

Bolts  x  3

G56320 en

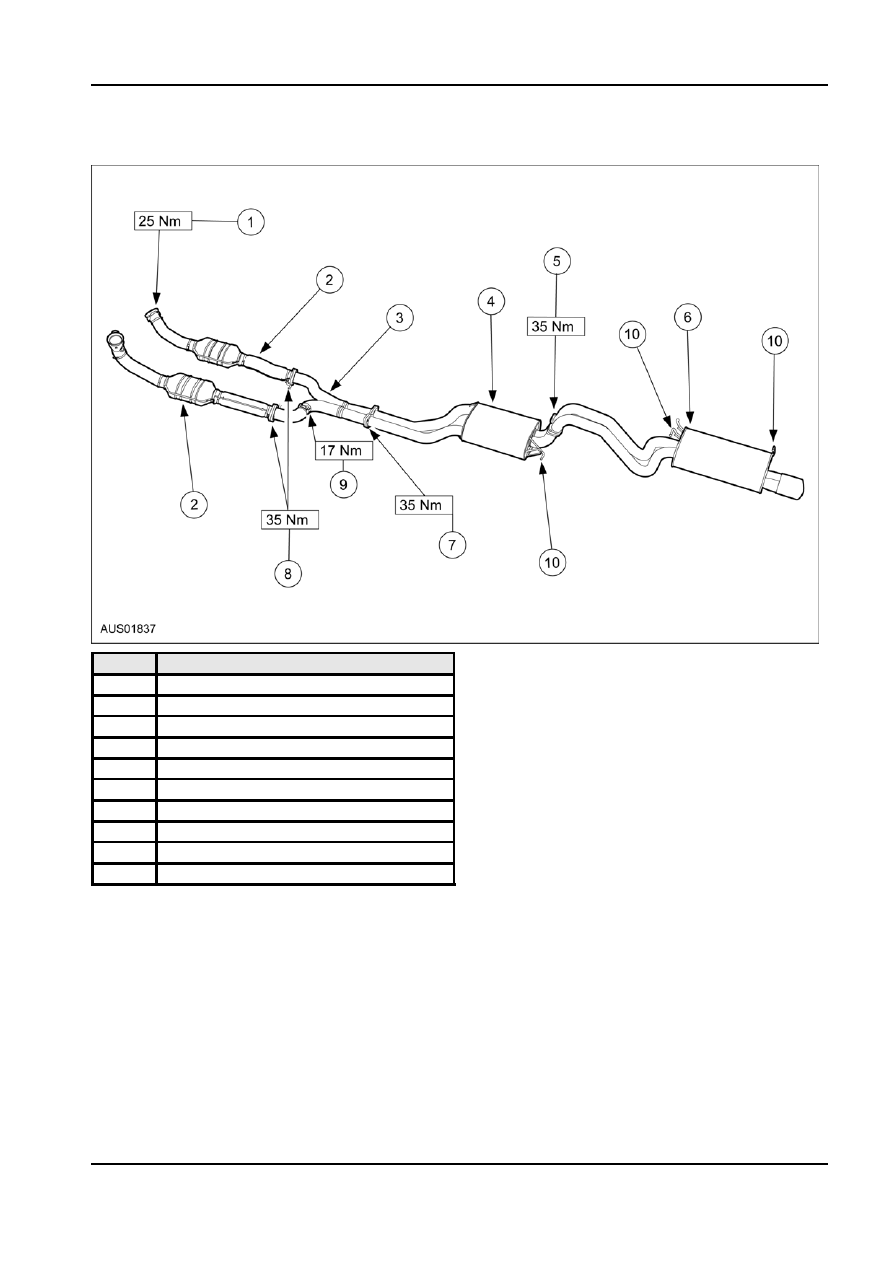

309-00-17 Exhaust

System 309-00-17

REMOVAL AND INSTALLATION (Continued)

XR8 (ULP)

Item

Description

1

M10 Nut assembly

2

Three-way catalytic converter

3

XR8 Y Pipe Assembly

4

Intermediate muffler assembly

5

Nut assembly

6

Rear muffler assembly

7

Nut Assembly

8

Nut assembly

9

XR8 Y Pipe Band Clamp

10

Rubber exhaust hanger insulators

G56320 en
