307-01-63 Automatic

Transmission 307-01-63

REMOVAL AND INSTALLATION (Continued)

15. Remove the transmission control lever from the

transmission cross shaft.

16. Remove the converter housing to cylinder block

bolts.

17. Hold the converter firmly against the transmission,

move the transmission rearward and lower.

Secure the converter to the transmission and

remove the assembly from under the vehicle.

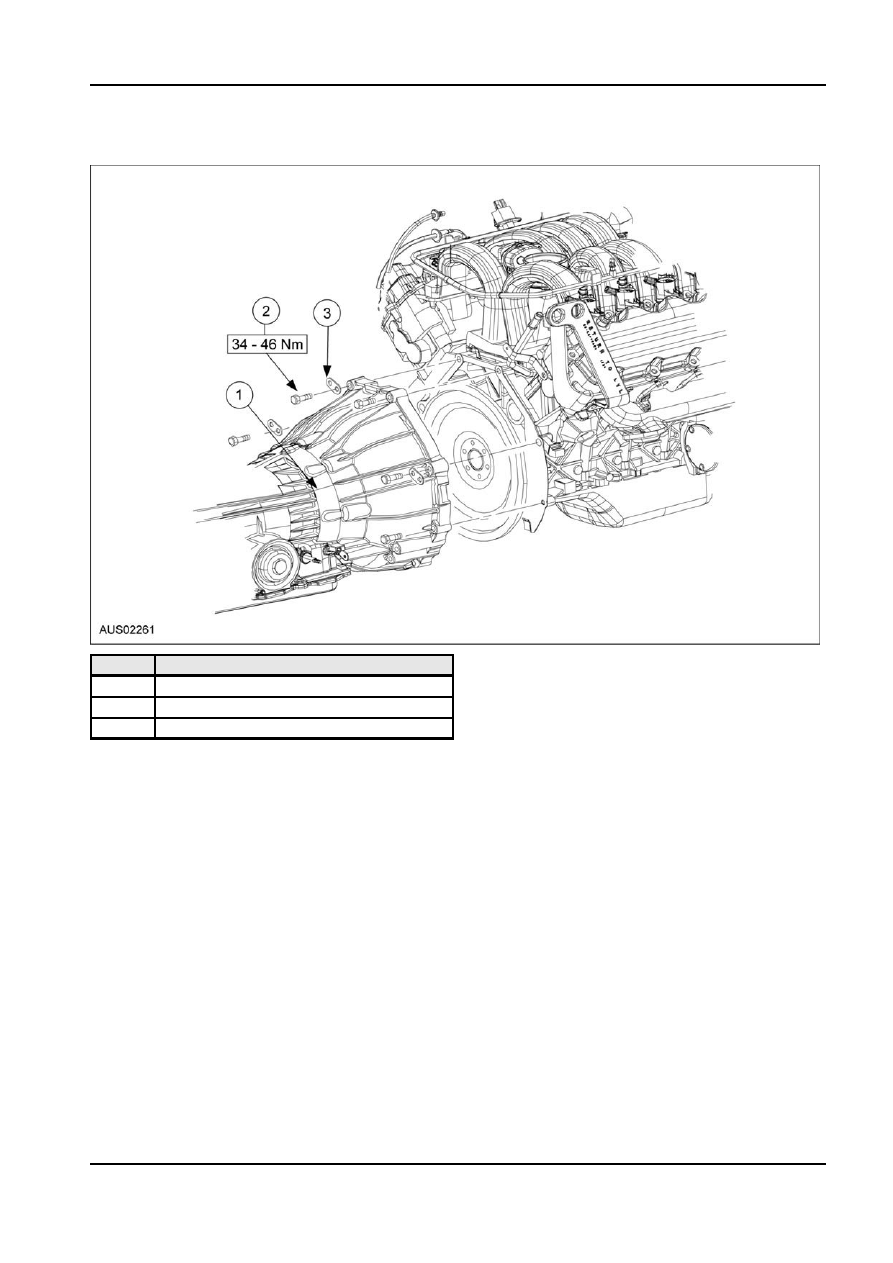

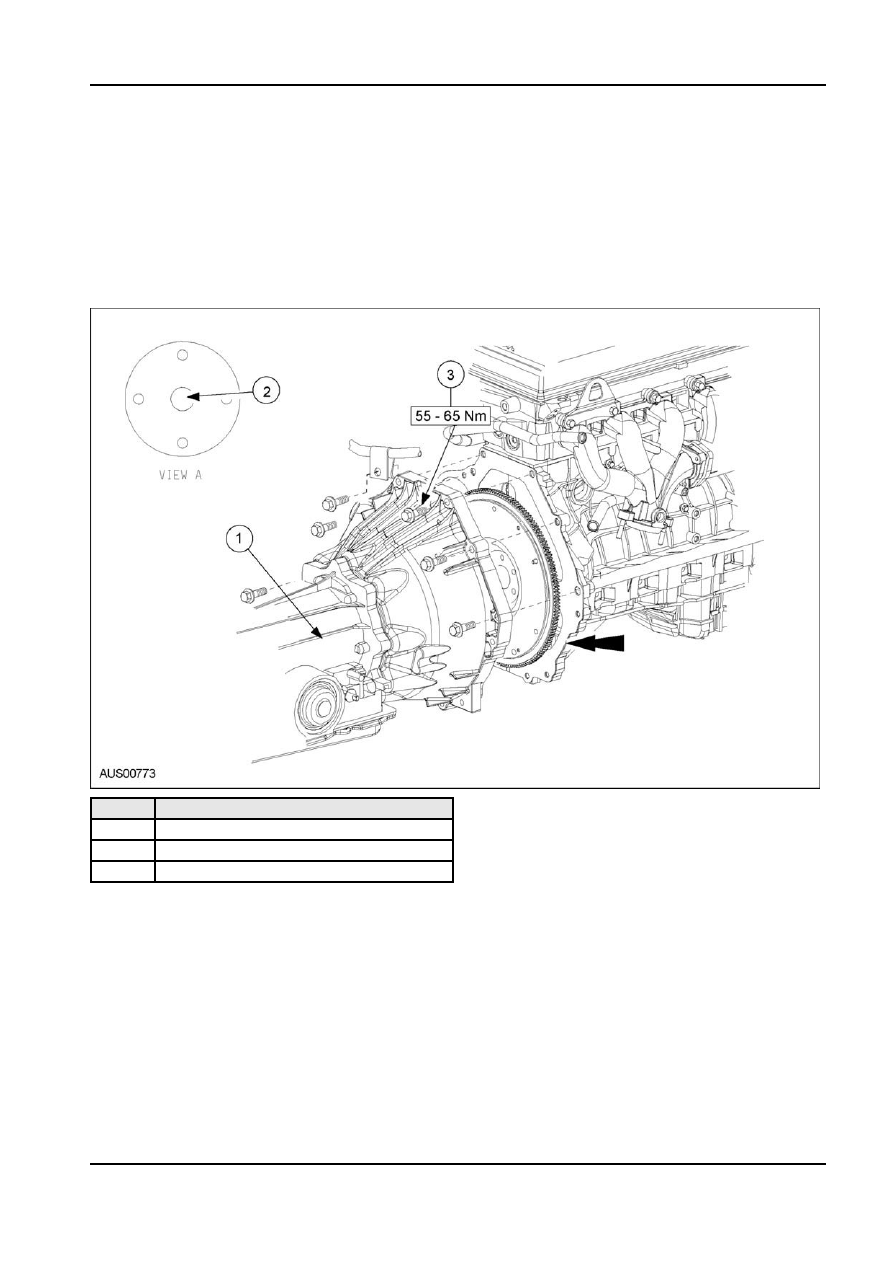

Installing Transmission - 93LE

Item

Description

1

Transmission case

2

Lubricant ESA-MK-75B

3

Bolt M12x55

G73113 en

307-01-64 Automatic

Transmission 307-01-64

REMOVAL AND INSTALLATION (Continued)

Installing Transmission - 93LE

Item

Description

1

Transmission case

2

Bolt M10x50

3

Bolt M10x18

4

Cover flywheel

G73113 en

307-01-65 Automatic

Transmission 307-01-65

REMOVAL AND INSTALLATION (Continued)

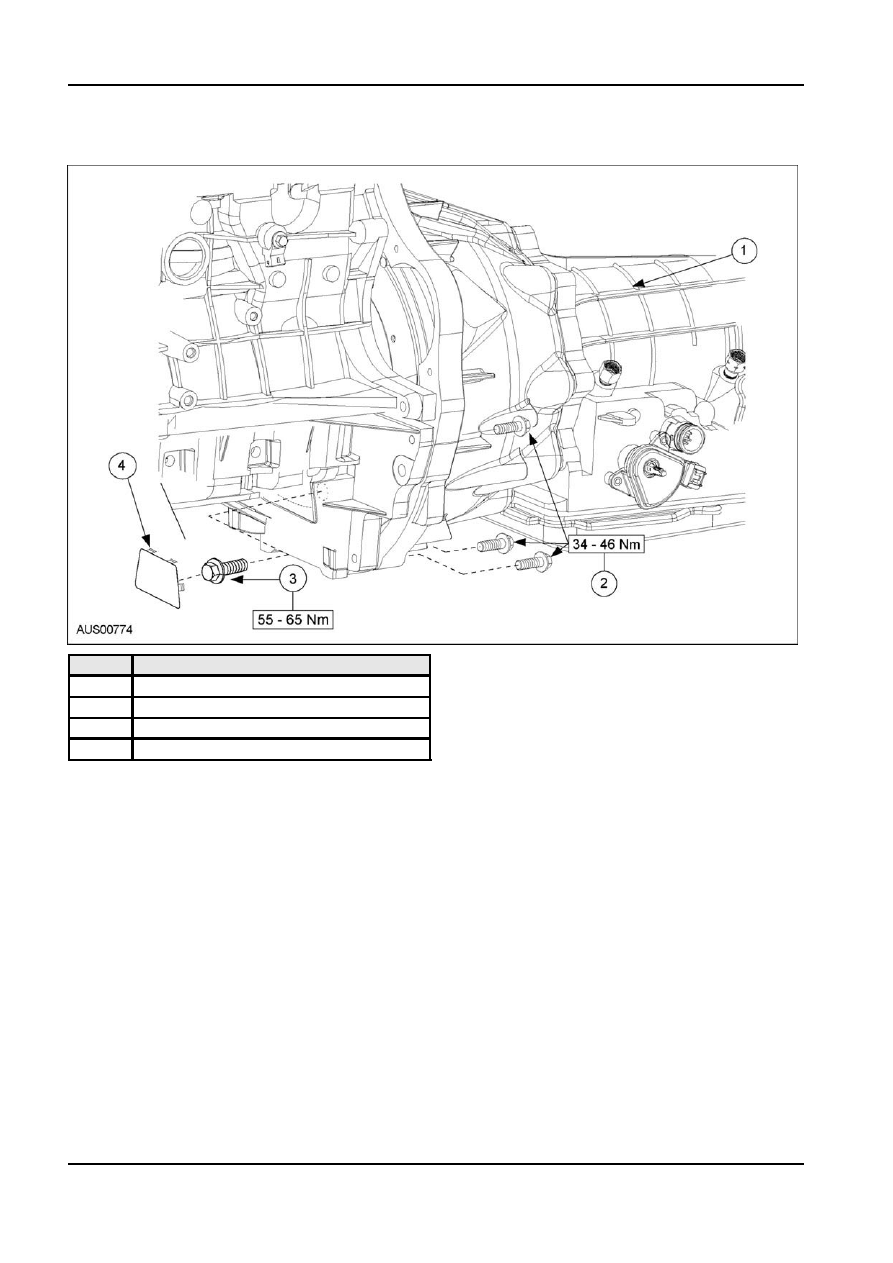

Installing Transmission - 97LE

13. Connect the inhibitor switch, speedometer

Item

Description

transducer (if fitted) and solenoid wiring. Ensure

1

Transmission case

that the inhibitor switch 2 pin plug and breather

2

Bolt M12x55

tube are sealed. Attach the inhibitor switch shield.

3

Wiring retainer

14. Install the drive shaft. Match the alignment marks

and secure the flange bolts.

Installation

NOTE: When disconnecting or removing the

1.  With the converter properly installed on the

driveshaft it is essential that the position of the

transmission, place it on the jack and install the

slip yoke relative to the output shaft and position

safety chain.

of the companion flange hardware be identified as

2.  Raise the transmission into position.

illustrated. Failure to return all parts to their

original position may induce driveline vibration.

3.  Install the transmission to engine attaching bolts.
4.  Install the converter to flywheel bolts. Install the

15. Install the catalytic converter assembly.

converter housing cover and engine to body earth 16. Connect the park brake cable.

cable.

17. Lower the vehicle.

5.  Install the starter motor.

18. Connect the battery.

6.  Loosely connect the transmission cooler pipes.

19. Check the fluid level and top up with approved

7.  Install the mass damper and rear mount on the

fluid as required (see Transmission Fluid Level

extension housing.

Check).

8.  Detach the safety chain, raise the transmission

20. Check the operation of the transmission controls.

and install the transmission cross member.

21. Carry out the ’Throttle Learn’ procedure.

9.  Remove the jack.
10. Tighten the cooler line unions.
11. Install the control lever on the transmission cross

shaft.

12. Check the gear shift cable adjustment (refer

section 307-05).

G73113 en

307-01-66 Automatic

Transmission 307-01-66

REMOVAL AND INSTALLATION (Continued)

22. If a new transmission has been installed the PCM

must be configured using an WDS tester and the

Service Card:

Enter SERVICE BAY FUNCTIONS
Select PCM
Select TRANSMISSION CONFIGURE (1)

This procedure ensures that the line pressure

is regulated to correspond with a green/new

transmission.
