303-06-17 Starting

System 303-06-17

DISASSEMBLY AND ASSEMBLY (Continued)

6.  Gently push the tool until the annular flange

contacts the brushplate, the armature may now be

withdrawn. The tool will support the brushes in

their holders until the armature needs to be

reinserted.

7.  Remove the armature thrust washer.

G86737 en

303-12-1

Intake Air Distribution and Filtering

303-12-1

SECTION : 303-12 Intake Air Distribution and

Filtering

VEHICLE APPLICATION : 2003.0 BA Falcon
CONTENTS

PAGE

SPECIFICATIONS

 Specifications   ........................................................................................................................303-12-2

DESCRIPTION AND OPERATION

  Intake Air Distribution and Filtering   .......................................................................................303-12-3

  Intake Air Distribution and Filtering  ......................................................................................303-12-3

  The Intake Air System  ..........................................................................................................303-12-3

DIAGNOSIS AND TESTING

  Intake Air Distribution and Filtering   .......................................................................................303-12-4

GENERAL PROCEDURES

  Cleaning and Inspection   .......................................................................................................303-12-5

REMOVAL AND INSTALLATION

  Air Cleaner Body — I6 Engine   ..............................................................................................303-12-6

  Air Cleaner Element — I6 and V8 Engines   ..........................................................................303-12-6

  Engine Air Ducting — I6 and V8 Engines   .............................................................................303-12-6

303-12-2

Intake Air Distribution and Filtering

303-12-2

SPECIFICATIONS

Torque Specifications

Description

Nm

Air cleaner bolt

9

Air cleaner intake pipe screw

2.5

Air cleaner assembly screw

12

Air cleaner intake manifold duct

screw
Air cleaner to intake manifold duct

1.5

clamp

G93830 en

303-12-3

Intake Air Distribution and Filtering

303-12-3

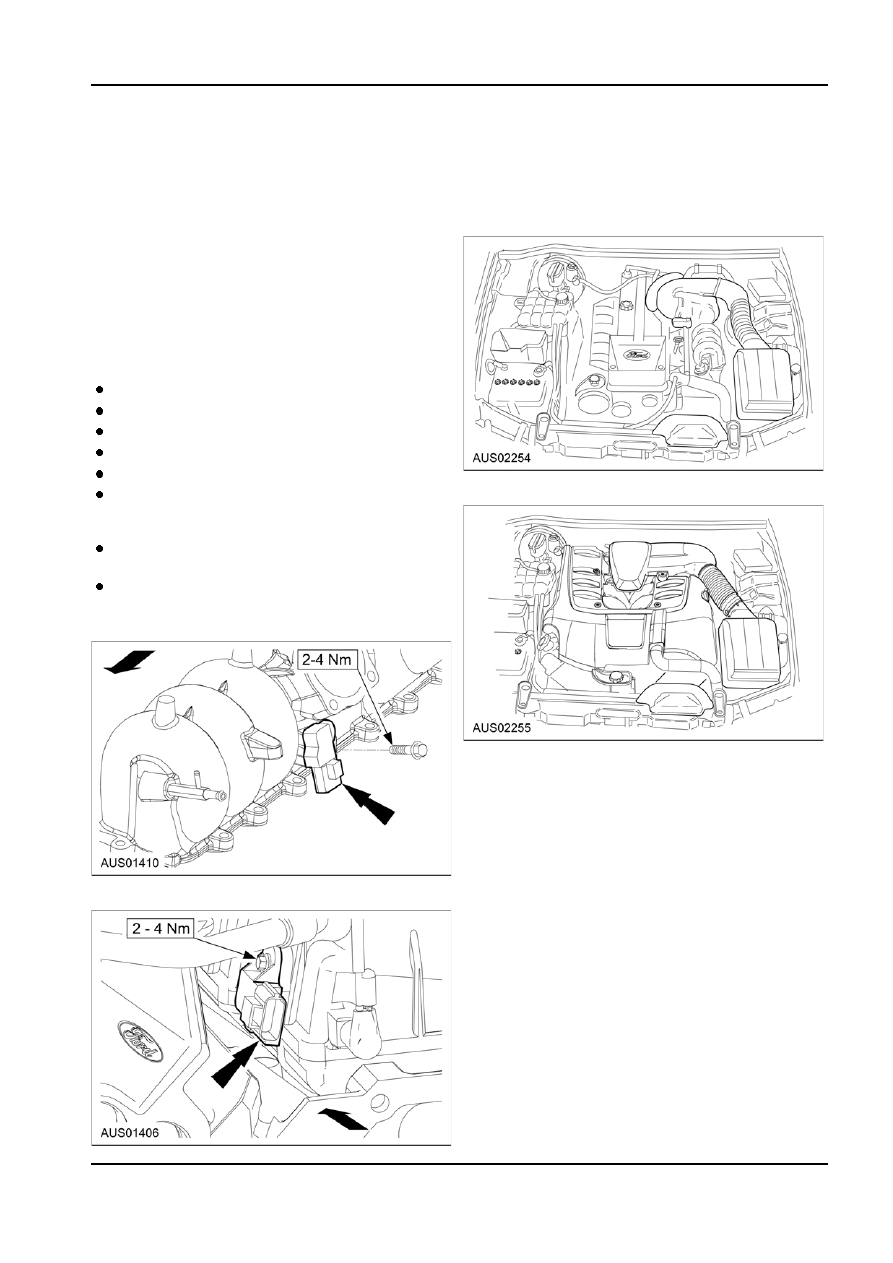

DESCRIPTION AND OPERATION

The air cleaner assembly is secured to the LH fender

Intake Air Distribution and Filtering

inner panel with three insulator mountings. The top

cover is attached to the air cleaner tray by four spring

All engines are equipped with dry type air cleaners

clips.

that have serviceable PET(plastic fibre) filtering

elements. Air enters the air cleaner from the front

I6

grille, through a duct above the radiator shroud, and

then passes through the filter element. Dust particles

are trapped in the filter element as the air passes

through it. After leaving the filter element, the air

passes through an intake duct into the throttle body.

Intake Air Distribution and Filtering

The air intake system consists of the following

components:

air cleaner
air cleaner element
mass air flow (MAF) sensor
air cleaner outlet tube
inlet tube
resonator

V8

The Intake Air System

filters intake air with a replaceable air cleaner

element.
measures intake Air Temperature and manifold

absolute pressure.

I6

V8

G93831 en
