Ford Falcon. Manual - part 148

303-01c-13

Engine — V8 (4V)

303-01c-13

DESCRIPTION AND OPERATION (Continued)

Item

Description

1

Cylinder head gasket

2

Gear

3

Bolt (2 req’d)

4

Washer (2 req’d)

5

Secondary timing chain (2 req’d)

6

Screw and washer (2 req’d)

7

Timing chain vibration damper

8

Camshaft bearing cap (2 req’d)

9

Bolt (19 req’d)

10

Bolt (6 req’d)

11

Camshaft

12

Roller follower (8 req’d)

13

Bolt (10 req’d)

14

Hydraulic lash adjuster

15

Camshaft

16

Camshaft bearing cap (2 req’d)

17

Exhaust manifold gasket

18

Exhaust manifold

19

HEX Screw (8 req’d)

20

Washer (8 req’d)

21

Gasket

22

Oil filler cap

23

Bolt (4 req’d)

24

Ignition coil cover

25

Spark plug (8 req’d)

26

Valve cover

27

Bolt (16 req’d)

28

Stud (4 req’d)

29

PCV Connector

G89771 en

303-01c-14

Engine — V8 (4V)

303-01c-14

DESCRIPTION AND OPERATION (Continued)

G89771 en

303-01c-15

Engine — V8 (4V)

303-01c-15

DESCRIPTION AND OPERATION (Continued)

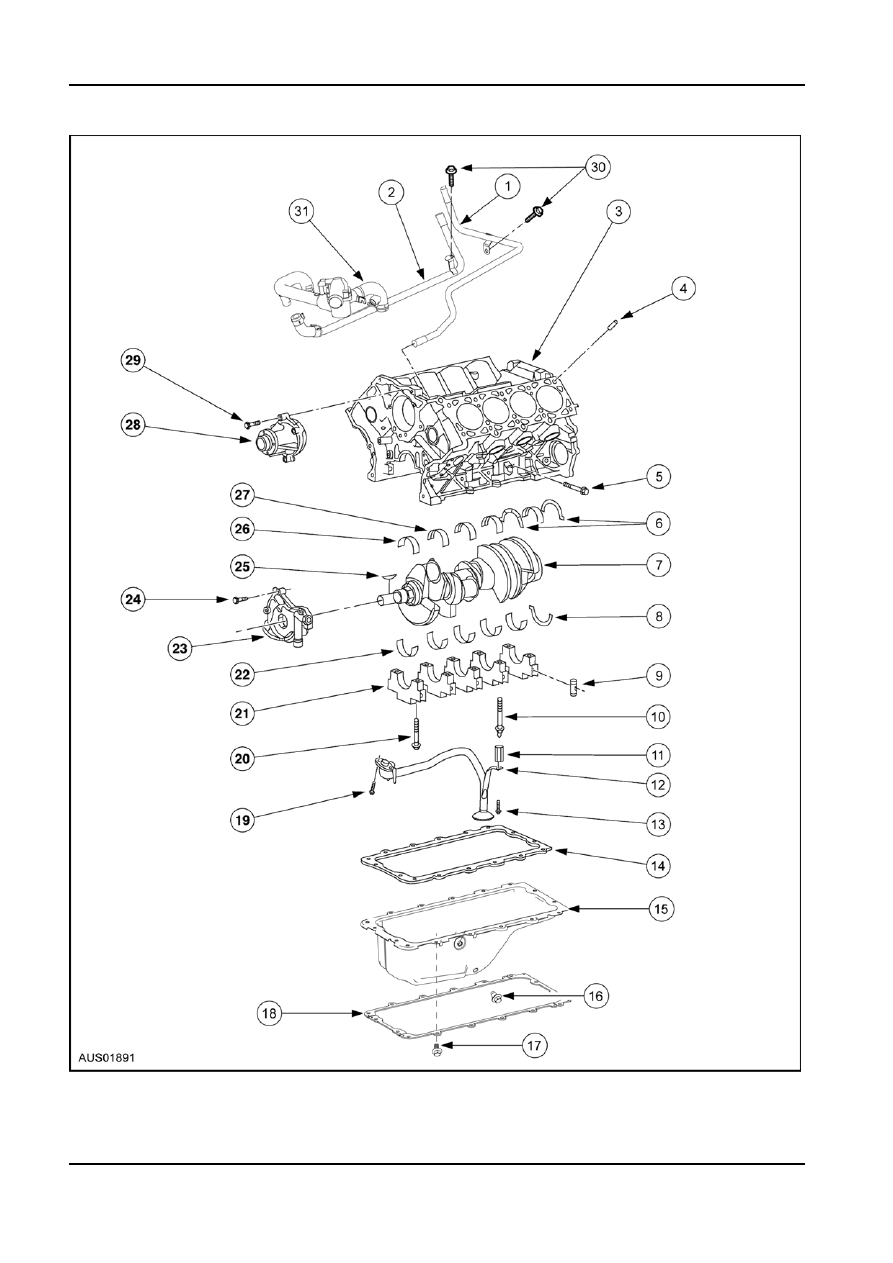

Item

Description

1

Heater water tube (in)

2

Heater water tube (out)

3

Engine block

4

Dowel (4 req’d)

5

Bolt (10 req’d)

6

Thrust bearing (2 req’d)

7

Crankshaft

8

Thrust bearing

9

Crankshaft bearing cap adjusting screw

(10 req’d)

10

Bolt

11

Spacer

12

Oil pump screen cover and tube

13

Bolt

14

Oil pan gasket

15

Oil pan

16

Oil pan drain plug

17

Bolt (16 req’d)

18

Oil pan reinforcements

19

Bolt (2 req’d)

20

Bolt (9 req’d)

21

Main bearing cap

22

Crankshaft main bearing (5 req’d)

23

Oil pump

24

Bolt (3 req’d)

25

Woodruff key

26

Crankshaft main bearing #1

27

Crankshaft main bearing upper (4 req’d)

28

Water pump

29

Bolt (4 req’d)

30

Screw & Washer

31

Water thermostat housing

G89771 en

303-01c-16

Engine — V8 (4V)

303-01c-16

DESCRIPTION AND OPERATION (Continued)

Item

Description

1

Bolt (8 req’d)

2

Crankshaft oil slinger

3

Crankshaft rear oil seal

4

Crankshaft rear retainer

5

Plug

6

Plug

7

Bolt (6 req’d)

8

Flexplate

G89771 en
