303-01c-9

Engine — V8 (4V)

303-01c-9

DESCRIPTION AND OPERATION (Continued)

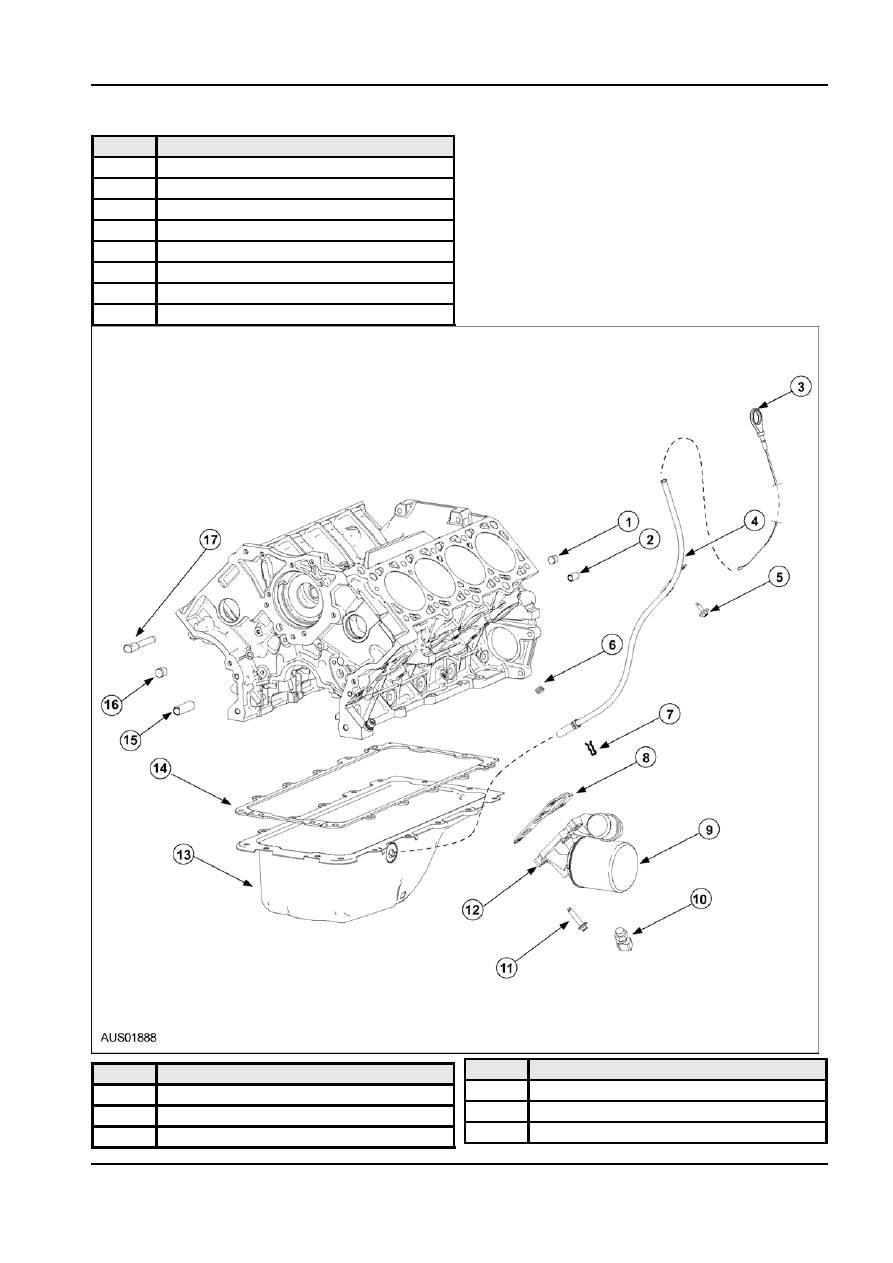

Item

Description

25

Bolt

26

Crankshaft sprocket (2 req’d)

27

Ignition pulse ring

28

Power steering pump

29

Bolt (3 req’d)

30

Stud (2 req’d)

31

Bolt (8 req’d)

32

Crankshaft front seal

Item

Description

Item

Description

4

Oil level indicator tube

1

Pipe plug (4 req’d)

5

Bolt

2

Dowel (2 req’d)

6

Pipe plug

3

Oil level indicator

G89771 en

303-01c-10

Engine — V8 (4V)

303-01c-10

DESCRIPTION AND OPERATION (Continued)

Item

Description

7

Retention Spring (11 mm)

8

Oil filter adapter gasket

9

Oil bypass filter

10

Oil pressure sender

11

Bolt (4 req’d)

12

Oil filter adapter (4 x 2)

13

Oil pan

14

Oil pan gasket

15

Dowel (2 req’d)

16

Plug

17

Water bypass tube

G89771 en

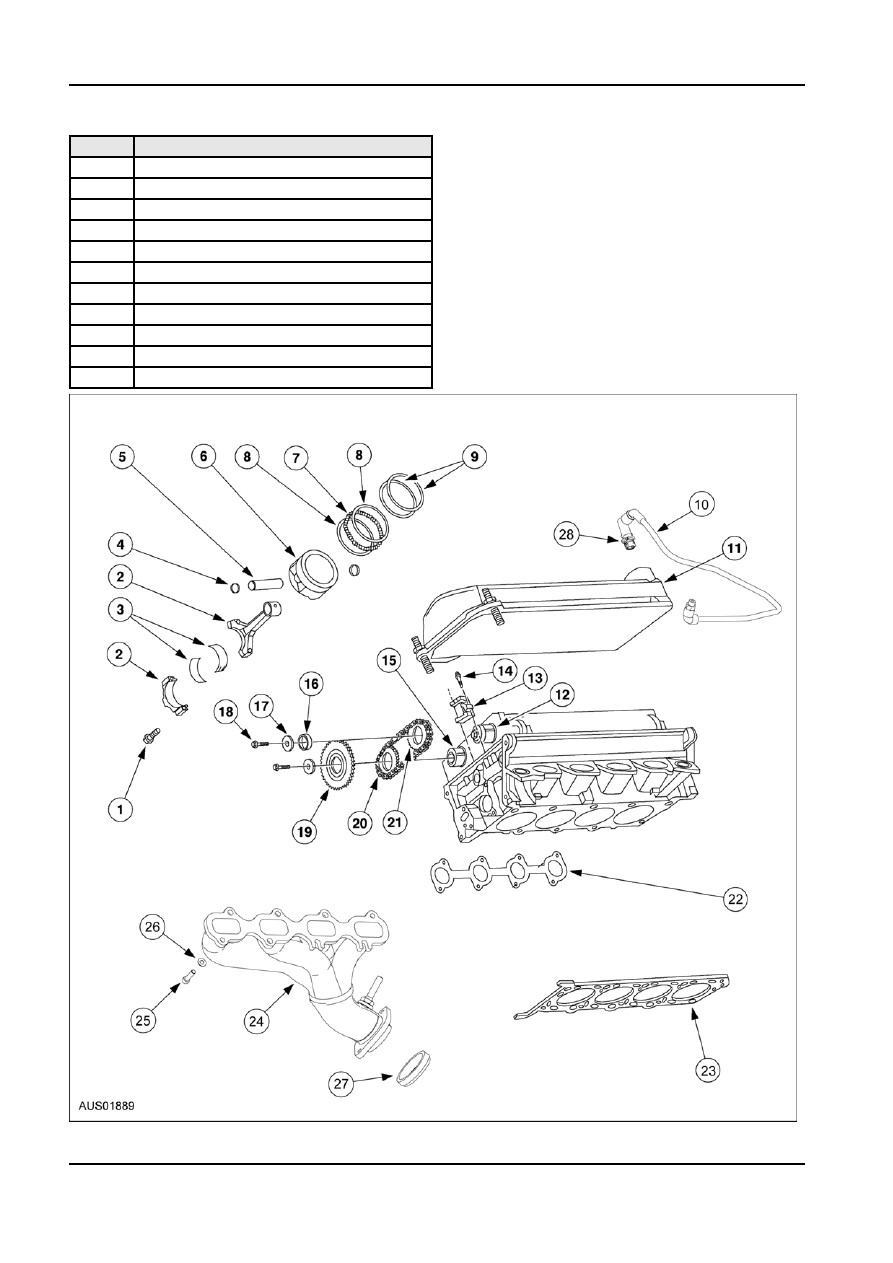

303-01c-11

Engine — V8 (4V)

303-01c-11

DESCRIPTION AND OPERATION (Continued)

Item

Description

1

Bolt (2 req’d) (part of 6100)

2

Connecting rod (8 req’d) (part of 6100)

3

Connecting rod bearing (16 req’d)

4

Piston pin retainer (16 req’d) (part of 6100)

5

Piston pin (8 req’d) (part of 6100)

6

Piston (8 req’d) (part of 6100)

7

Piston ring (8 req’d) (part of 6100)

8

Piston ring (8 req’d) (part of 6100)

9

Piston ring (8 req’d) (part of 6100)

10

Crankcase vent tube and connector

11

Valve cover

12

Camshaft

13

Chain tensioner

14

Bolts (2 req’d)

15

Camshaft

16

Bushing

17

Washers (2 req’d)

18

Bolts (2 req’d)

19

Gear

20

Chain

21

Gear

22

Exhaust manifold gasket

23

Cylinder head gasket

24

Exhaust manifold

25

HEX Screw (8 req’d)

26

Washer (8 req’d)

27

Gasket

28

PCV Valve

G89771 en

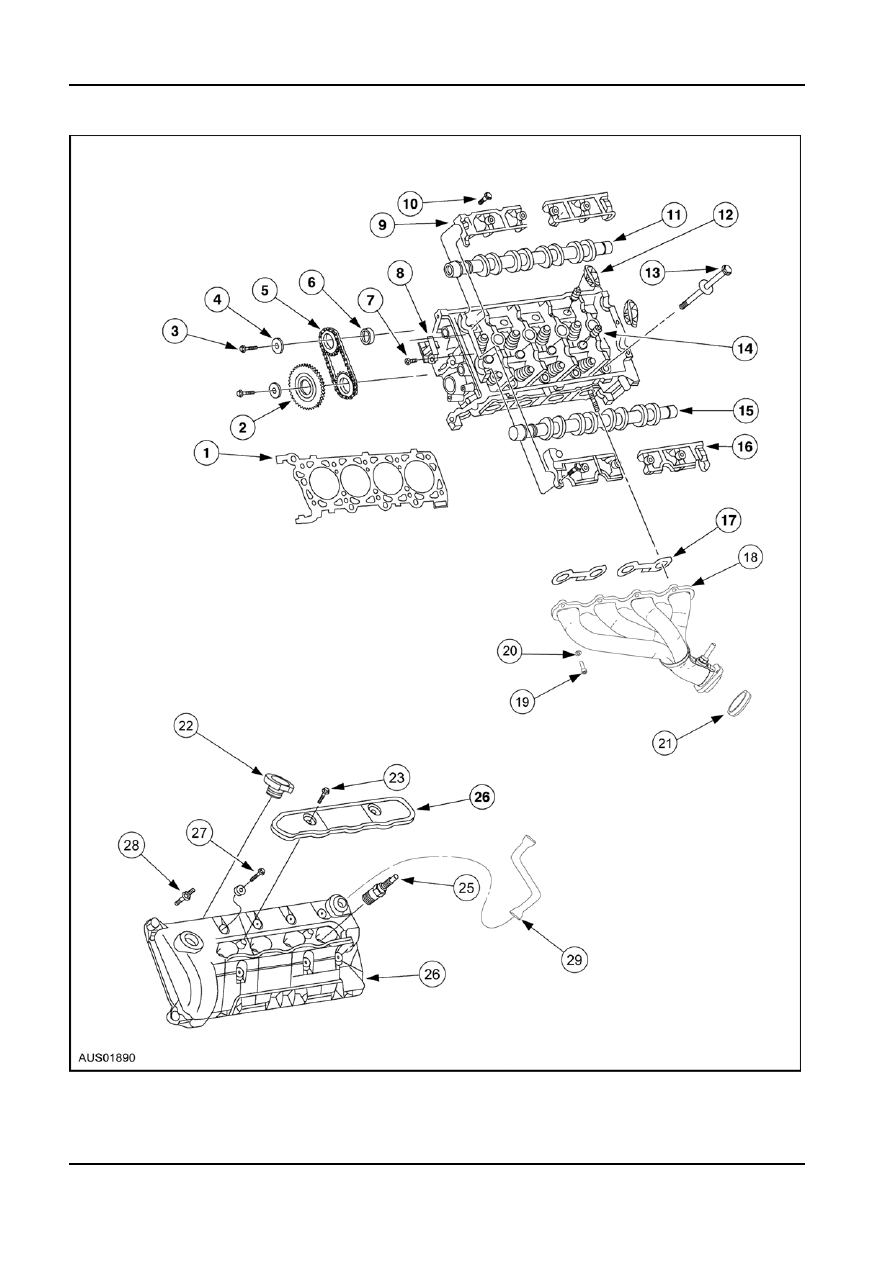

303-01c-12

Engine — V8 (4V)

303-01c-12

DESCRIPTION AND OPERATION (Continued)

G89771 en
