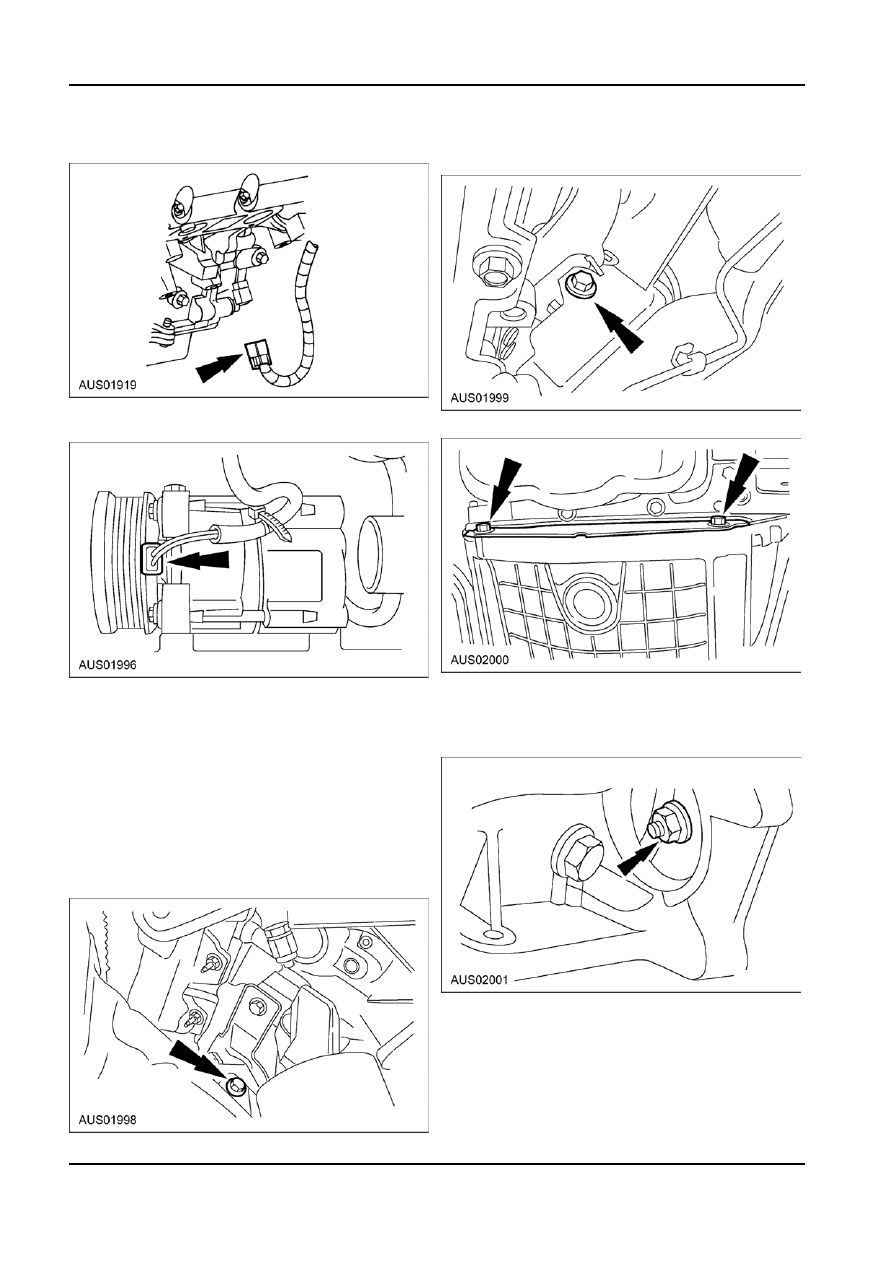

303-01b-50

Engine — 5.4L (3V)

303-01b-50

IN-VEHICLE REPAIR (Continued)

36. Remove the through bolt from the RH motor

30. Disconnect the crankshaft position (CKP) sensor.

mount

31. Disconnect the A/C compressor electrical

37. Remove the plate bolts and the inspection cover

connector.

38. Remove the four bolts from the torque converter

32. Remove the bolts and the A/C compressor.

and discard (Auto tran only).

NOTE: Do not degas, position A/C compressor

NOTE: Gain access to the nuts by turning the

out of the way.

crank dampener counterclockwise.

33. Remove nut holding exhaust heatshield and

discard, then remove heatshield.

34. Disconnect the pipes at the exhaust manifolds.

NOTE: If studs are removed from exhaust

manifolds during disassembly, then discard studs

and nut and replace with new parts.

35. Remove the through bolt from the LH engine

mount.

G89792 en

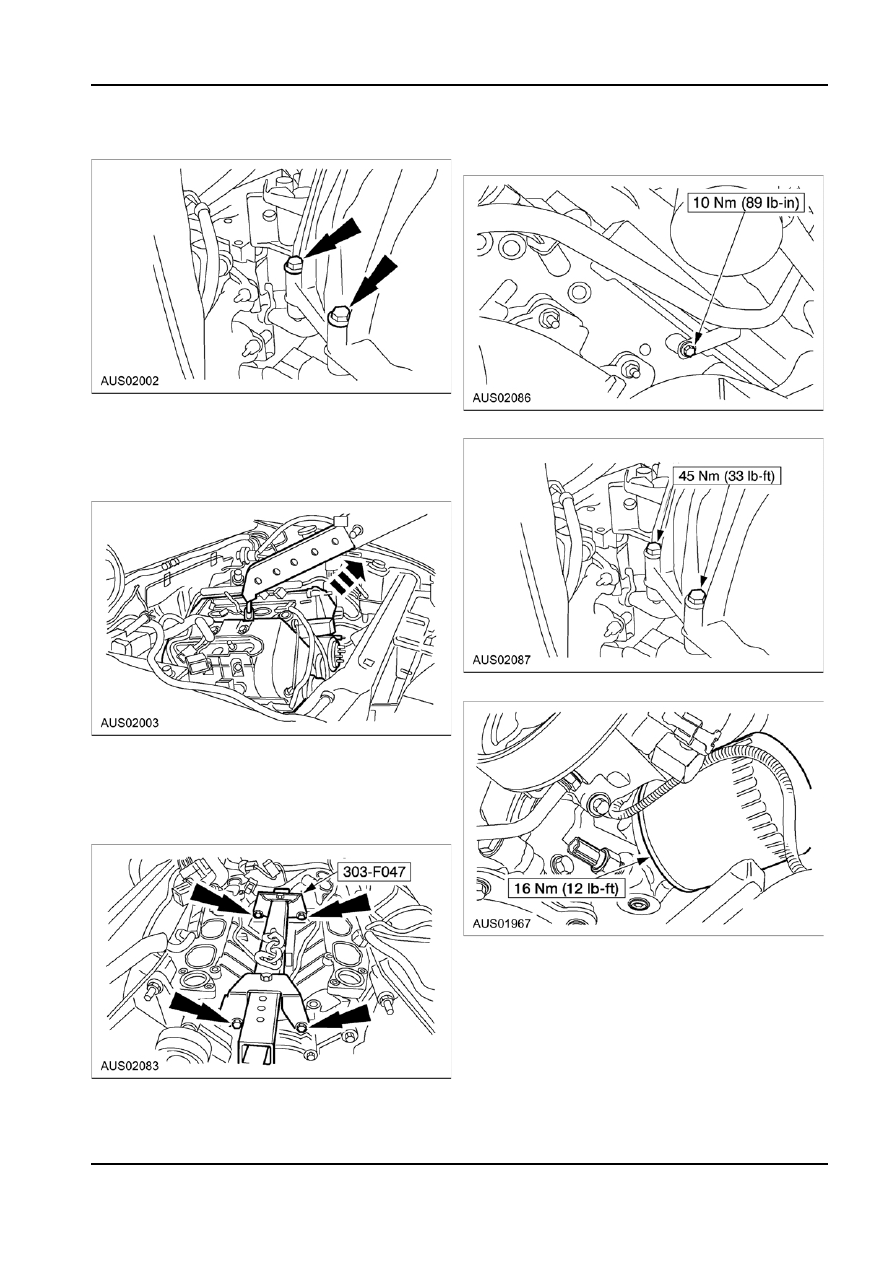

303-01b-51

Engine — 5.4L (3V)

303-01b-51

IN-VEHICLE REPAIR (Continued)

39. Remove the 6 bolts from the transmission.

5.  Position the transmission level indicator tube and

install the bolt.

40.  Lower the vehicle.

6.  Install the five bolts to the bell housing.

41. Install rear lifting hook and front lifting hook.
42. Support the transmission with a floor jack and a

block of wood.

43. Remove the engine from the vehicle.

7.  Install the oil filter.

Installation
1.  Support the transmission with a floor jack and a

block of wood.

2.  Install the engine in the vehicle.
3.  Remove the special tool.

4.  Raise the vehicle. For additional information, refer

to Section 100-02.

G89792 en

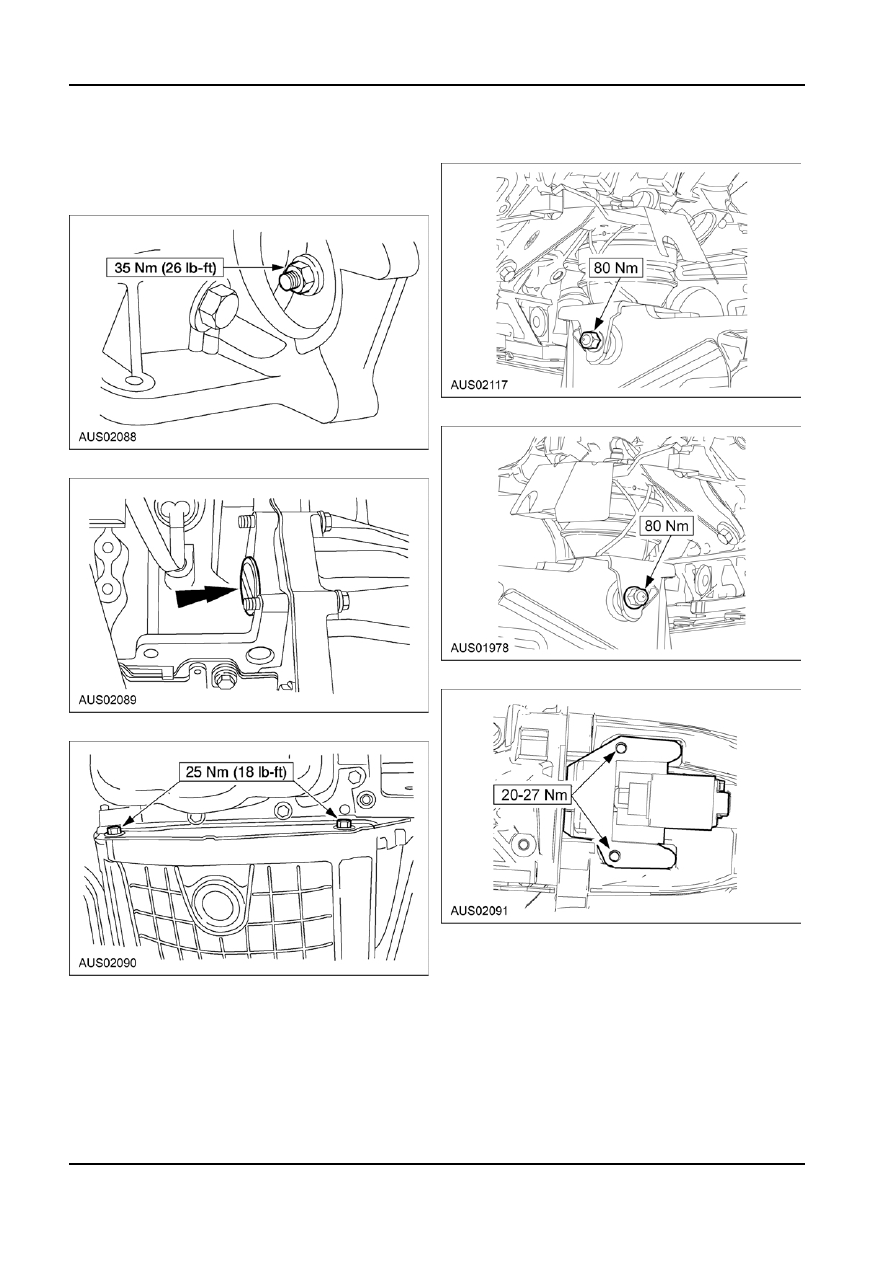

303-01b-52

Engine — 5.4L (3V)

303-01b-52

IN-VEHICLE REPAIR (Continued)

8.  Install 4 new bolts to the torque converter (Auto

11. Install the bolt to the RH engine motor mount.

trans only).
NOTE: Gain access to the nuts by turning the

crank dampener counterclockwise.

12. Install the bolt to the LH engine motor mount.

9.  Install the plug (Auto trans only).

13. Install the starter motor and 2 bolts.

10. Install the inspection cover and the bolts.

G89792 en

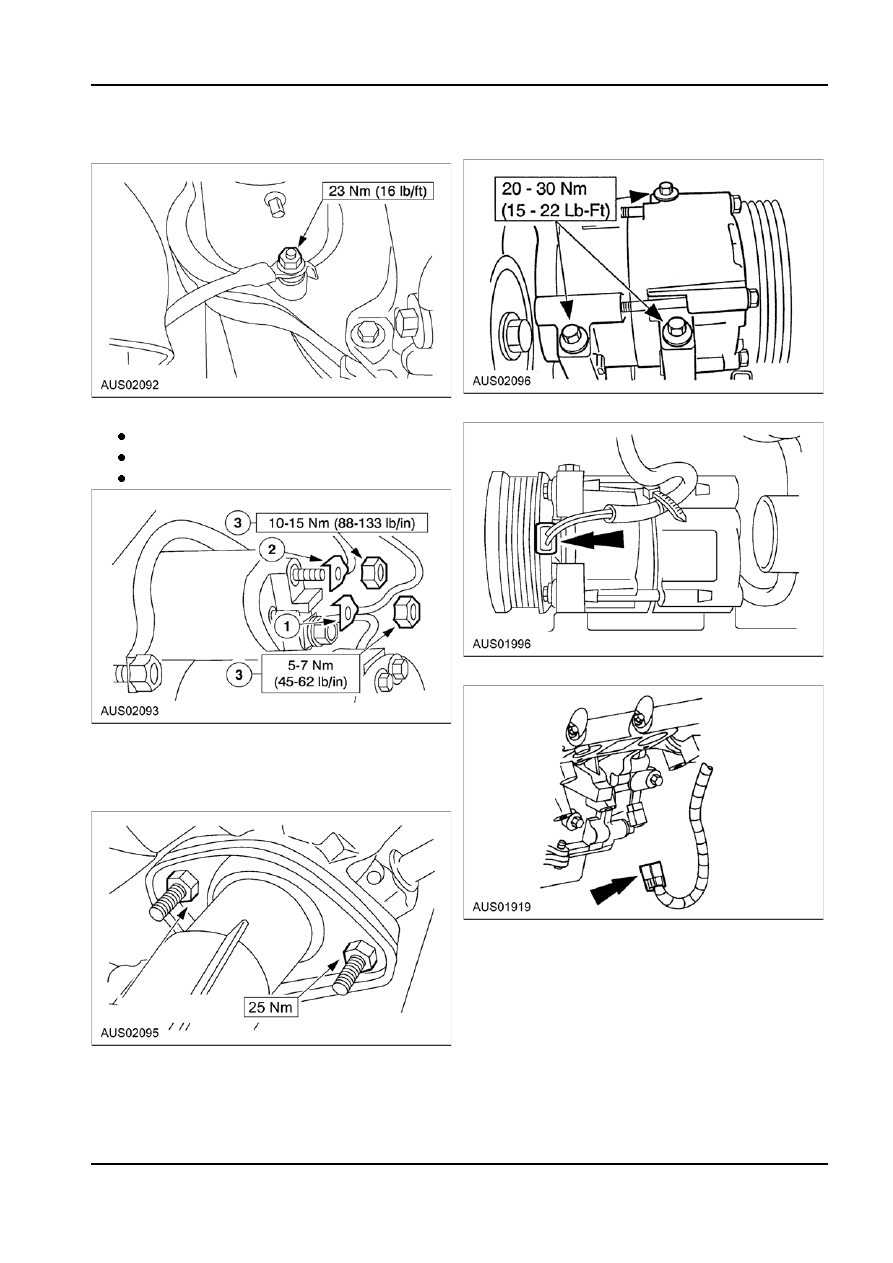

303-01b-53

Engine — 5.4L (3V)

303-01b-53

IN-VEHICLE REPAIR (Continued)

20. Install the A/C compressor and bolts.

14. Connect the cable and install the motor nut.

21. Connect the A/C compressor electrical connector.

15. Connect the starter motor electrical connectors.

Position the starter solenoid wire.
Position the battery cable.
Install the nuts.

22. Connect the crankshaft position sensor.

16. Install the starter motor solenoid terminal cover.
17. Install the RH exhaust manifold studs.
18. Connect the exhaust pipes to the exhaust

manifolds and torque nuts to specification.

19. Install the heatshield and fasten with a new

heatshield nut.
