Rear Drive Axle / Differential — Beam Axle
205-02A-8
DESCRIPTION AND OPERATION (Continued)
Item
Description

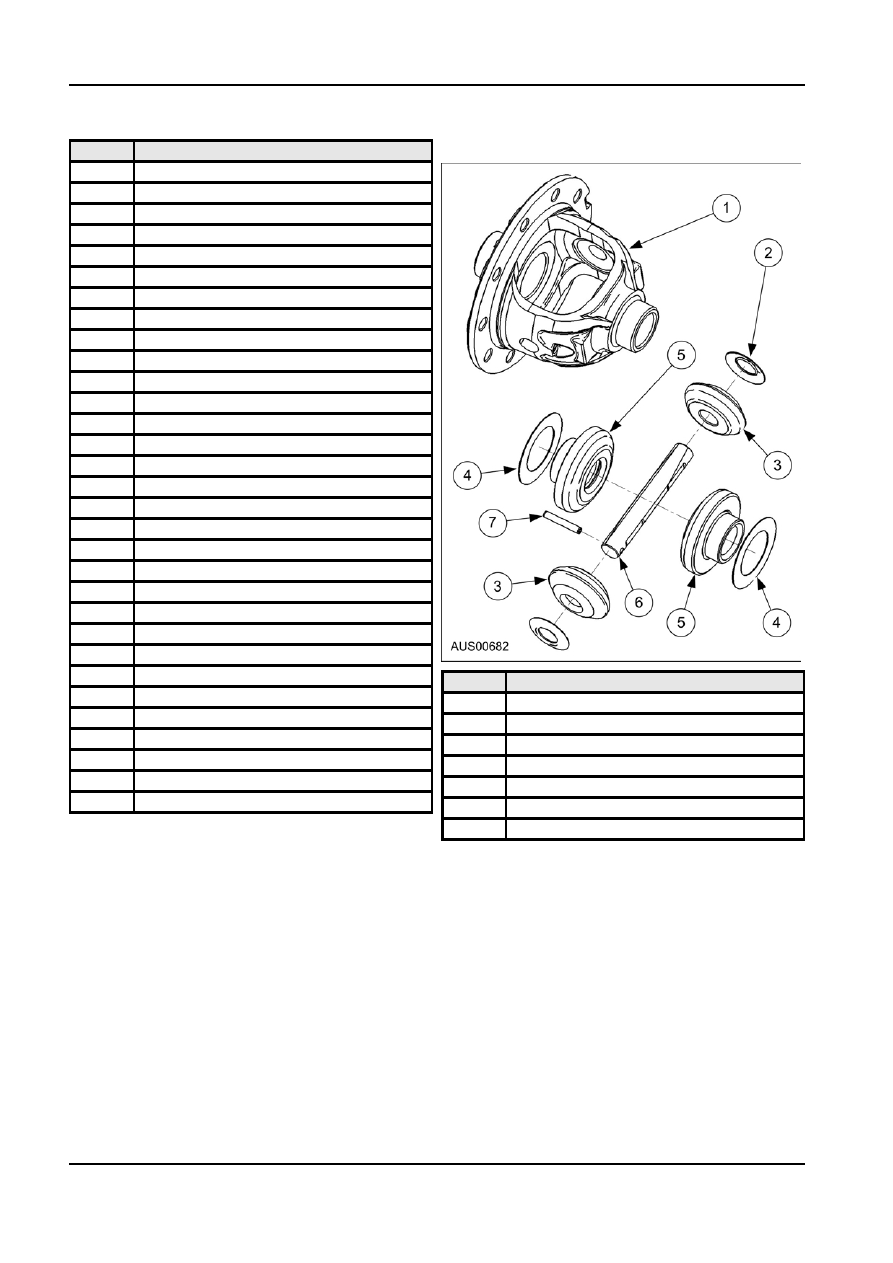

M86 Conventional Differential Assembly
1
Axle & brake retaining bolt (8 off)
2
Park brake assembly
3
Inner bearing retainer
4
Axle shaft oil seal
5
Axle shaft wheel bearing
6
Outer bearing retainer
7
ABS tone wheel
8
Wheel Stud (5 off each side)
9
Axle shaft
10
Differential bearing cap bolts (4 off)
11
Differential bearing caps (2 off)
12
Carrier and tube assembly
13
Filler plug & gasket
14
Drain Plug
15
Lubricant tag
16
Rear cover
17
Differential position shim
18
Differential bearing (cup and cone)
19
Ring gear bolt (8 off)
20
Differential case
21
Rear pinion bearing (cup & cone)
22
Pinion position shim
23
Collapsible preload control spacer
24
Front pinion bearing (cup & cone)
25
Pinion oil seal
Item
Description
26
Companion flange assembly

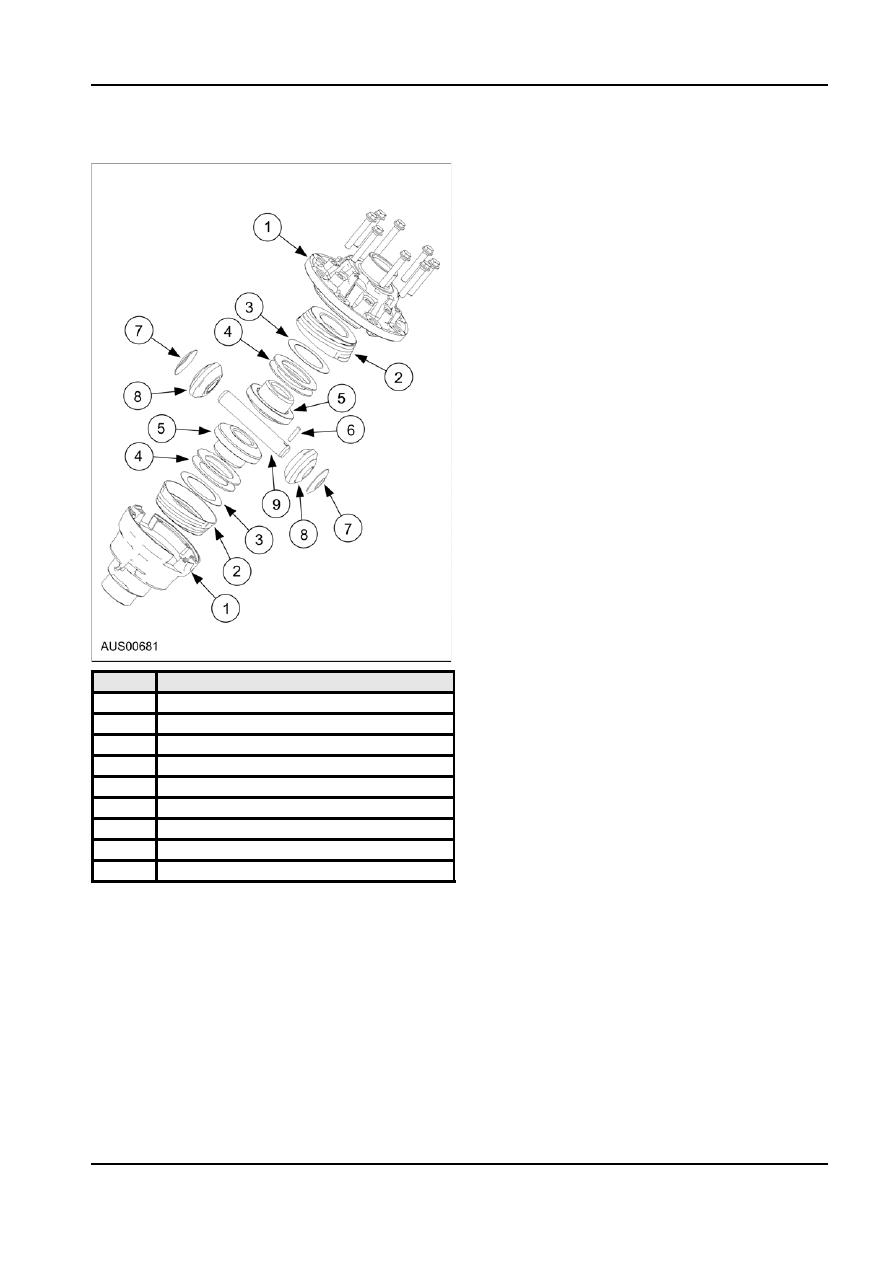

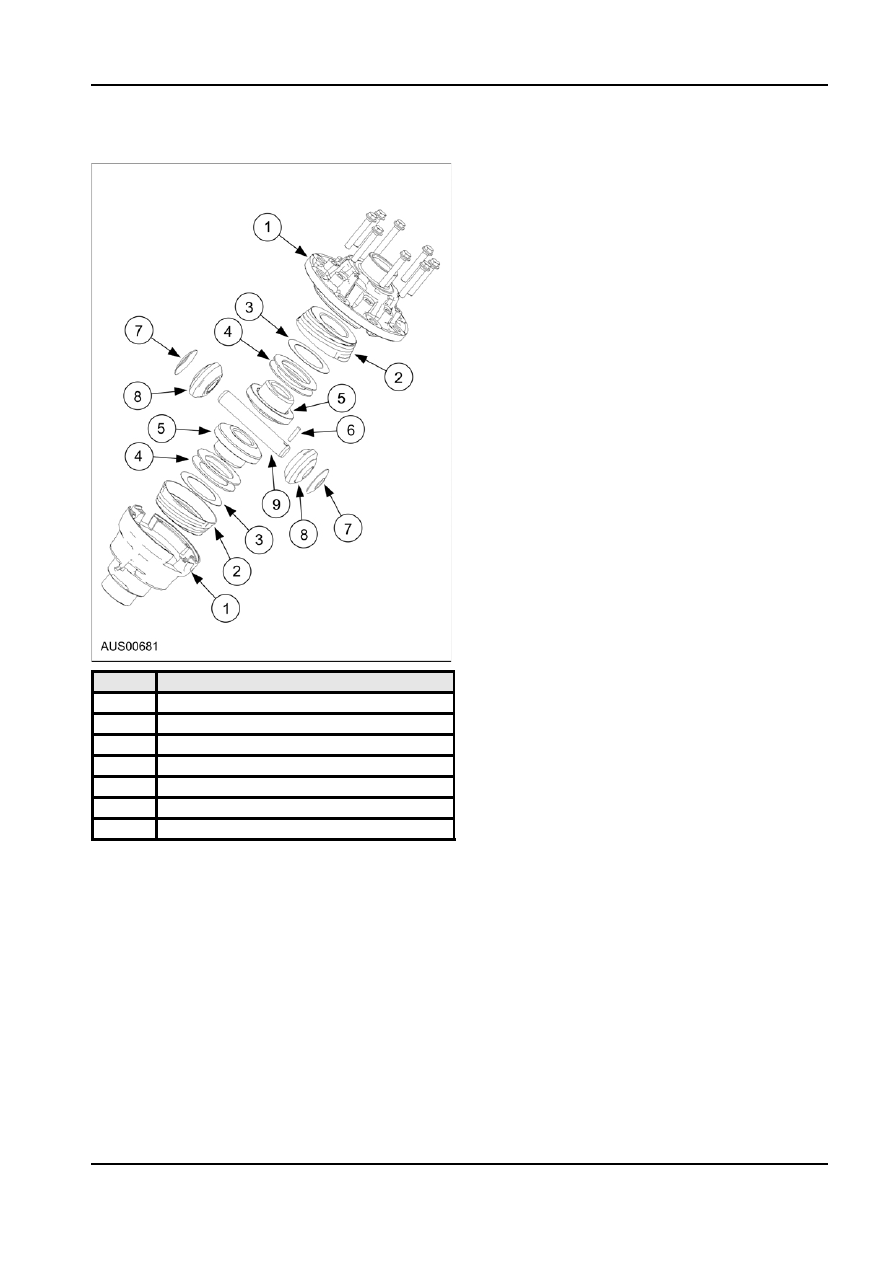

1
Case
27
Pinion nut
2
Differential pinion thrust washer
28
Hypoid gearset (Ring gear & pinion)
3
Differential Pinion
29
Load level bracket
4
Side gear thrust washer
30
Park brake cable clips (2 off)
5
Side gears
31
Rear cover bolts
6
Differential shaft
7
Lock pin
