Auxiliary Battery Warning Lamp Inputs

ER133-A

12-VOLT

BATTERY

AUXILIARY BATTERY
WARNING LAMP

INSTRUMENT CLUSTER

IAA

LESSON 2: VEHICLE OPERATION

2-32

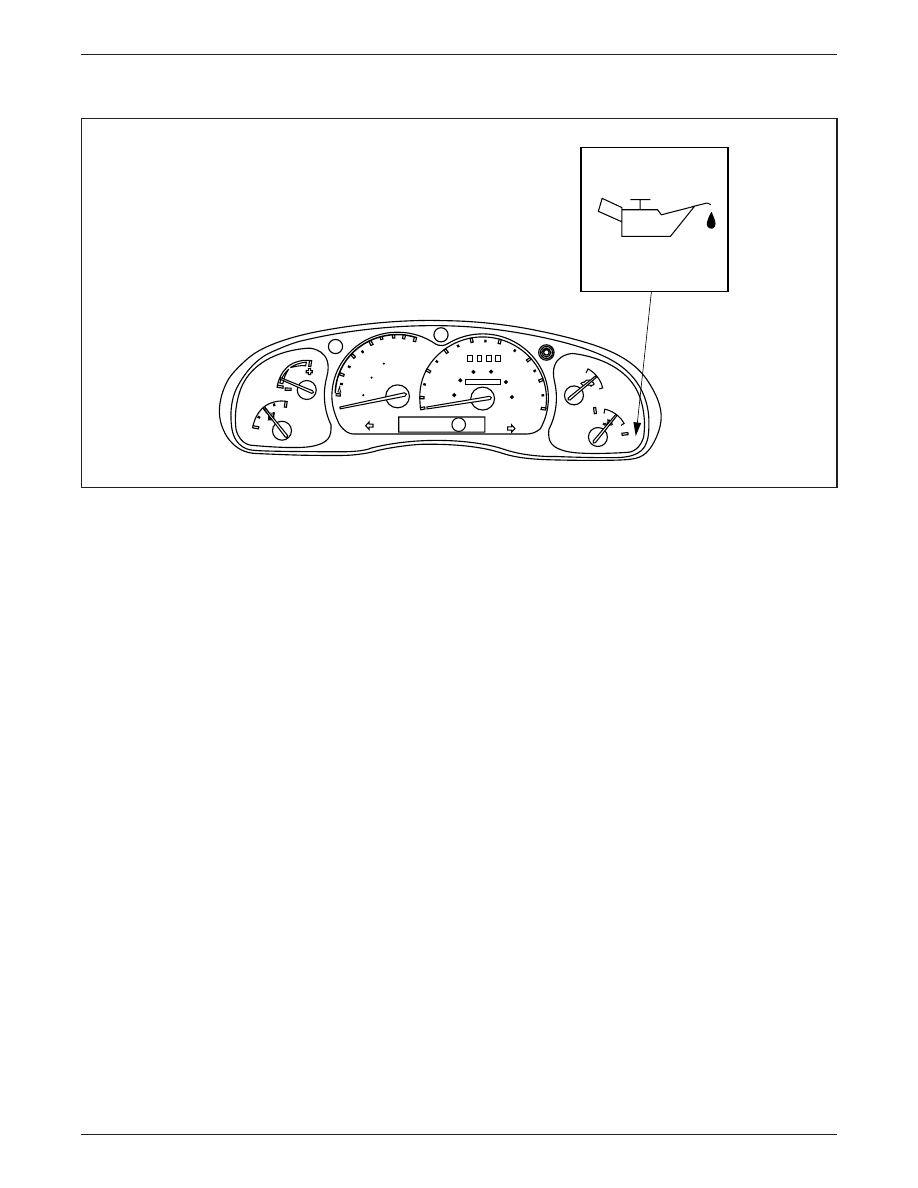

Low Oil Pressure Warning Lamp

Low Oil Pressure Warning Lamp

ER066-A

F

E

ECON

0

2

4

6

DISTANCE
TO EMPTY

km

MILES

0

0

0

0

50

100

20

10

30

40

50

60

70

80

0 0 0 0 0 0

20

40

60

80

100

120

MPH

km/h

ON

OFF

H

C

P   R N D E

•

The red Low Oil Pressure Warning Lamp will illuminate if the

transaxle oil pressure falls below 28 kPa (4 psi).

•

If the Low Oil Pressure Warning Lamp illuminates, the driver must

pull over to a safe area and have the vehicle repaired.

•

The TIM monitors the oil pressure switch mounted to the transaxle.

•

The oil pressure switch normally grounds the circuit to the TIM.

•

If pressure drops below 29 kPa (4 psi) the switch opens and signals

the TIM.

– The TIM signals the IAA to illuminates the Low Oil Pressure

Warning Lamp.

LESSON 2: VEHICLE OPERATION

2-33

ER134-A

TIM

TRANSAXLE

LOW OIL PRESSURE
WARNING LAMP

INSTRUMENT CLUSTER

TRANSAXLE OIL
PRESSURE SWITCH

IAA

Low Oil Pressure Warning Lamp Inputs

Other Indicator Lamps

•

The following indicator lamps operate in the same manner as those

used on gasoline-powered vehicles:

– ABS warning lamp

– air bag indicator lamp

– seat belt indicator lamp

– DOOR AJAR indicator lamp

– highbeam indicator lamp

– turn signal indicator lamps

LESSON 2: VEHICLE OPERATION

2-34

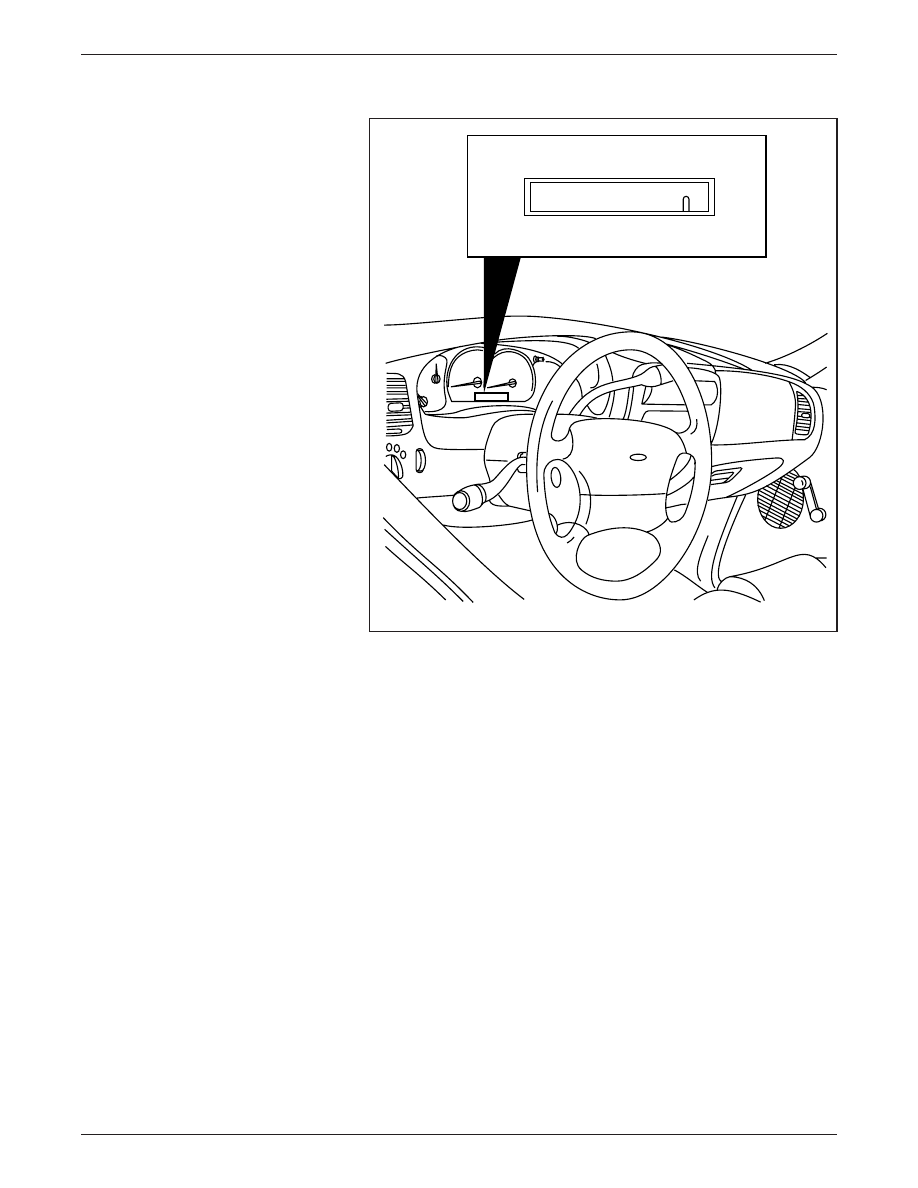

ECONOMY MODE

Economy Mode

•

When the driver selects the economy operating mode using the

gear selector lever, the regenerative brake function is enhanced to

increase vehicle range.

•

The economy mode applies a higher regenerative motor torque to

the rear wheels, allowing more power to be recovered and stored in

the Traction Battery.

•

The economy mode also limits the top speed of the vehicle to

104 km/h (65 mph).

ER067-A

P

R N    E

D
