Ford Ranger EV. Electric Manual - part 23

LESSON 2: VEHICLE OPERATION

2-27

ER130-A

BCM

TIM

IAA

INERTIA SHUTOFF
SWITCH

CONTACTOR
BOX

INSTRUMENT  CLUSTER

POWER RESET
INDICATOR LAMP

POWER RESET Indicator Lamp Inputs

NOTE: The inertia shutoff switch is located in the passenger

compartment, above the carpet line and below the evaporator

assembly.

LESSON 2: VEHICLE OPERATION

2-28

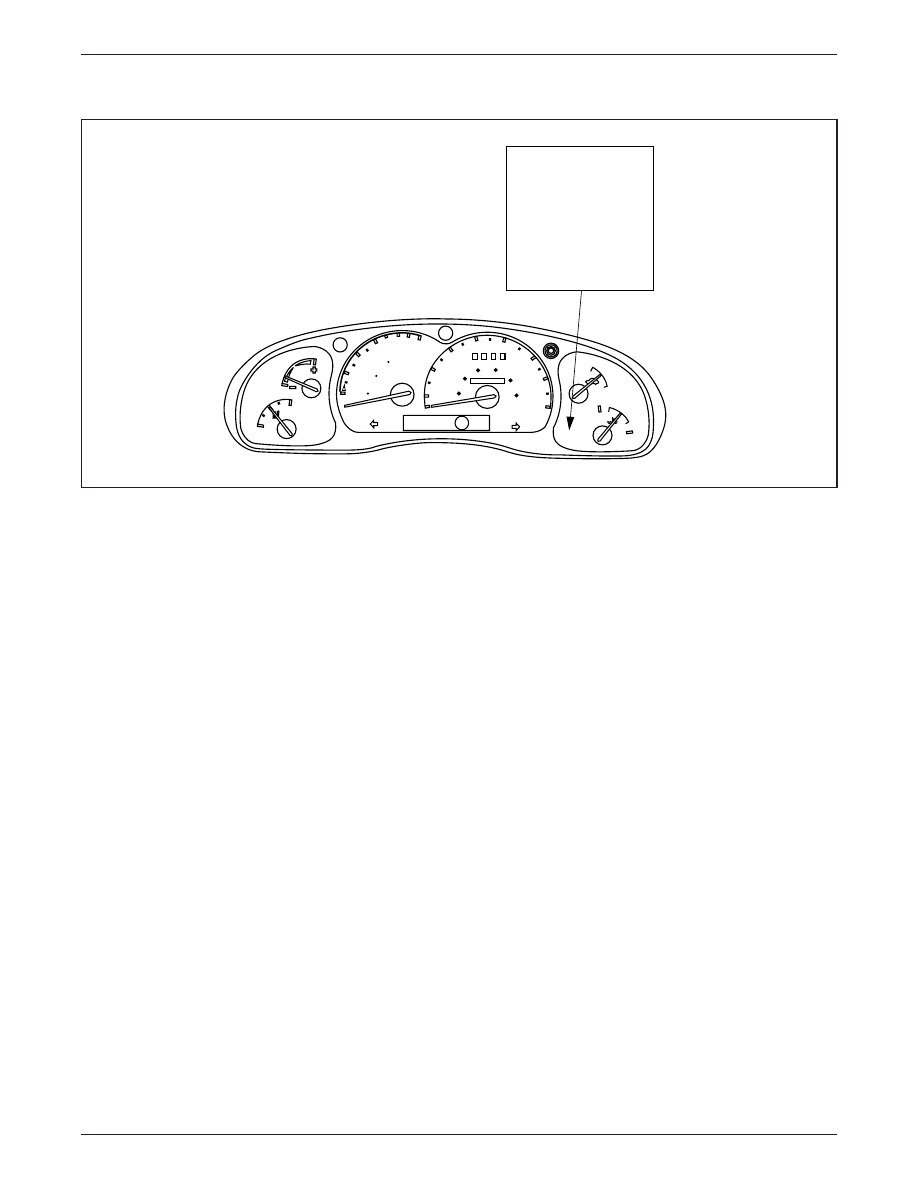

ECON MODE Indicator Lamp

ECON MODE Indicator Lamp

•

The green ECON MODE Indicator Lamp will illuminate when the

driver has selected the economy driving mode (E).

•

The economy mode will increase the level of regenerative braking

to improve vehicle range.

•

The brightness of this lamp is controlled by the instrument cluster

lamp dimmer control.

•

The TIM monitors the DTR sensor and relays information to

the IAA.

•

When the driver selects economy mode, the TIM informs the IAA

and the IAA illuminates the ECON MODE Indicator Lamp.

ER064-A

ECON

MODE

F

E

ECON

0

2

4

6

DISTANCE
TO EMPTY

km

MILES

0

0

0

0

50

100

20

10

30

40

50

60

70

80

0 0 0 0 0 0

20

40

60

80

100

120

MPH

km/h

ON

OFF

H

C

P   R N D E

LESSON 2: VEHICLE OPERATION

2-29

ER132-A

P   R N D E

TIM

DTR

ECON MODE
INDICATOR LAMP

INSTRUMENT CLUSTER

IAA

ECON MODE Indicator Lamp Inputs

LESSON 2: VEHICLE OPERATION

2-30

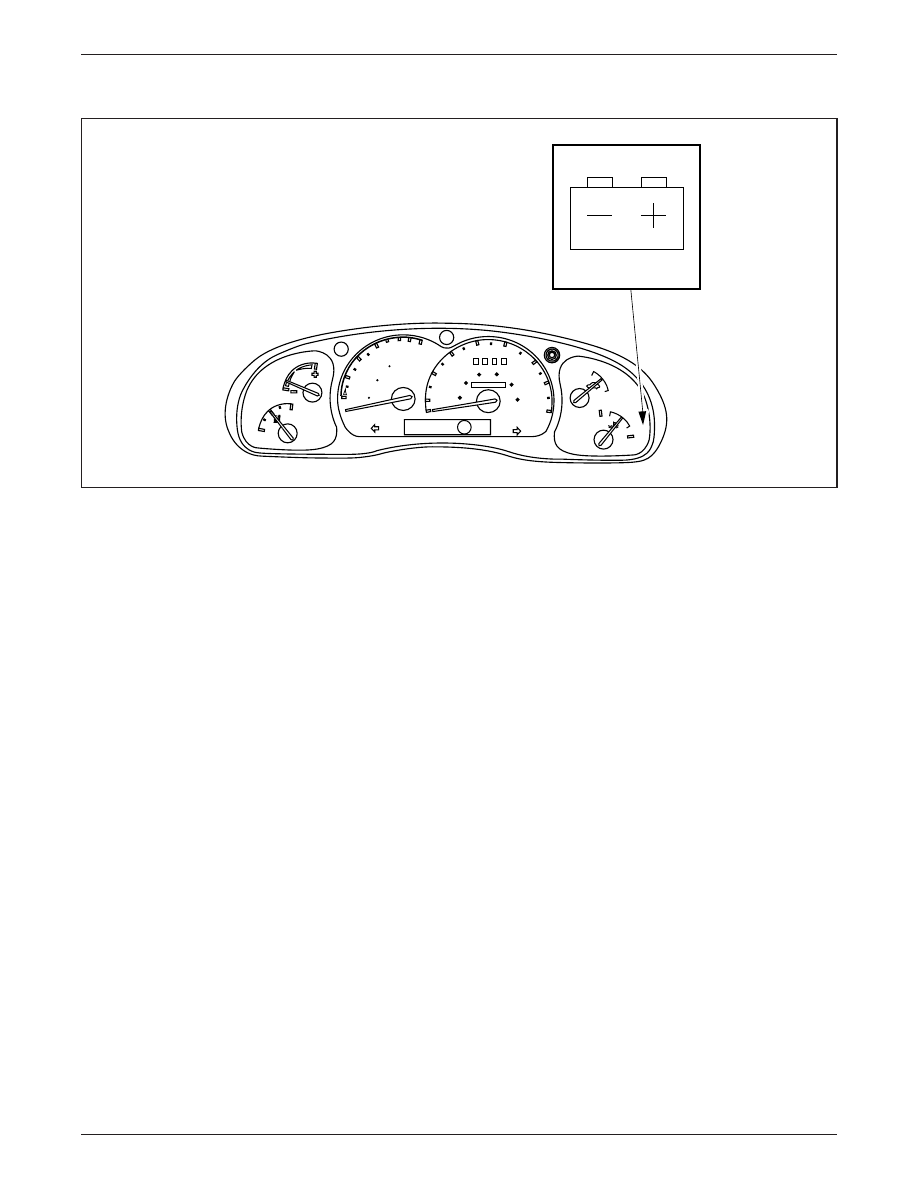

Auxiliary Battery Warning Lamp

Auxiliary Battery Warning Lamp

•

The red Auxiliary Battery Warning Lamp will illuminate during the

following conditions:

– the auxiliary battery voltage exceeds 15.75 volts.

– the auxiliary battery voltage falls below 11.5 volts.

•

If the auxiliary battery voltage warning lamp illuminates, the driver

must pull over to a safe area and have the vehicle repaired.

•

The IAA monitors the auxiliary battery voltage. If voltage exceeds

15.75 volts or falls below 11.5 volts the IAA illuminates the

Auxiliary Battery Warning Lamp.

ER065-A

F

E

ECON

0

2

4

6

DISTANCE
TO EMPTY

km

MILES

0

0

0

0

50

100

20

10

30

40

50

60

70

80

0 0 0 0 0 0

20

40

60

80

100

120

MPH

km/h

ON

OFF

H

C

P   R N D E
