LESSON 2: VEHICLE OPERATION

2-11

Motor Enabled Gauge Inputs

ER122-A

IAA

INSTRUMENT CLUSTER

MOTOR ENABLED
GAUGE

TIM

LESSON 2: VEHICLE OPERATION

2-12

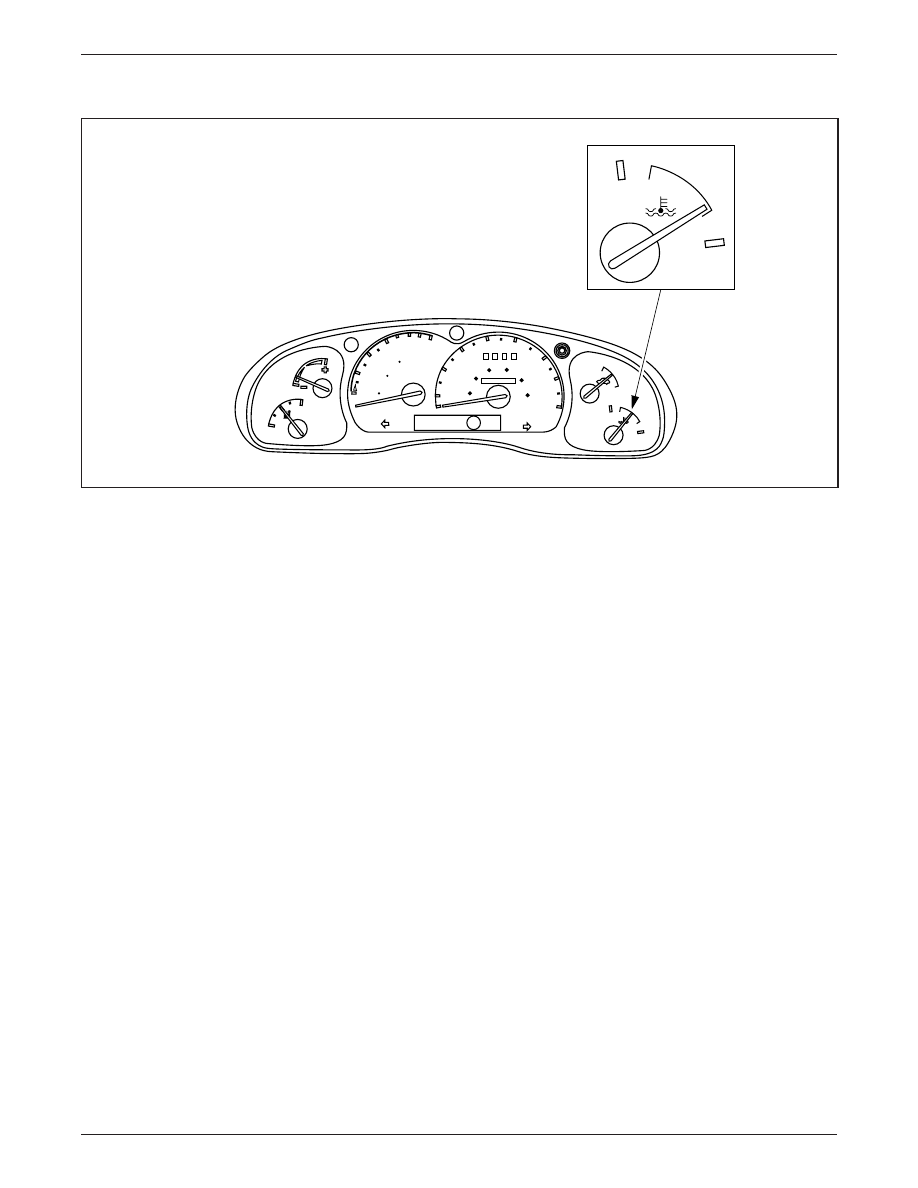

Temperature Gauge

•

The Temperature Gauge indicates the extreme temperature of

major components:

– Traction battery

– TIM

– Motor/transaxle

– Coolant

•

If the temperature of any of these components is not within

desirable limits, the needle will move into the H (hot) or

C (cold) areas.

– The traction battery is the only component that can cause the

needle to move into the cold area.

– If the traction battery is too cold and another component is too

hot, the temperature gauge will display the hot condition.

•

The IAA monitors systems that produce heat and uses the

Temperature Gauge to indicate an overheating condition or

a cold condition in the case of the traction battery.

ER056-A

F

E

ECON

0

2

4

6

DISTANCE
TO EMPTY

km

MILES

0

0

0

0

50

100

20

10

30

40

50

60

70

80

0 0 0 0 0 0

20

40

60

80

100

120

MPH

km/h

ON

OFF

H

C

P   R N D E

H

C

Temperature Gauge

LESSON 2: VEHICLE OPERATION

2-13

Temperature Gauge Inputs

ER123-A

MOTOR/

TRANSAXLE

TIM

TRACTION BATTERY

DC/DC

CONVERTER

COOLANT

IAA

INSTRUMENT CLUSTER

TEMPERATURE GAUGE

AC

INVERTER

LESSON 2: VEHICLE OPERATION

2-14

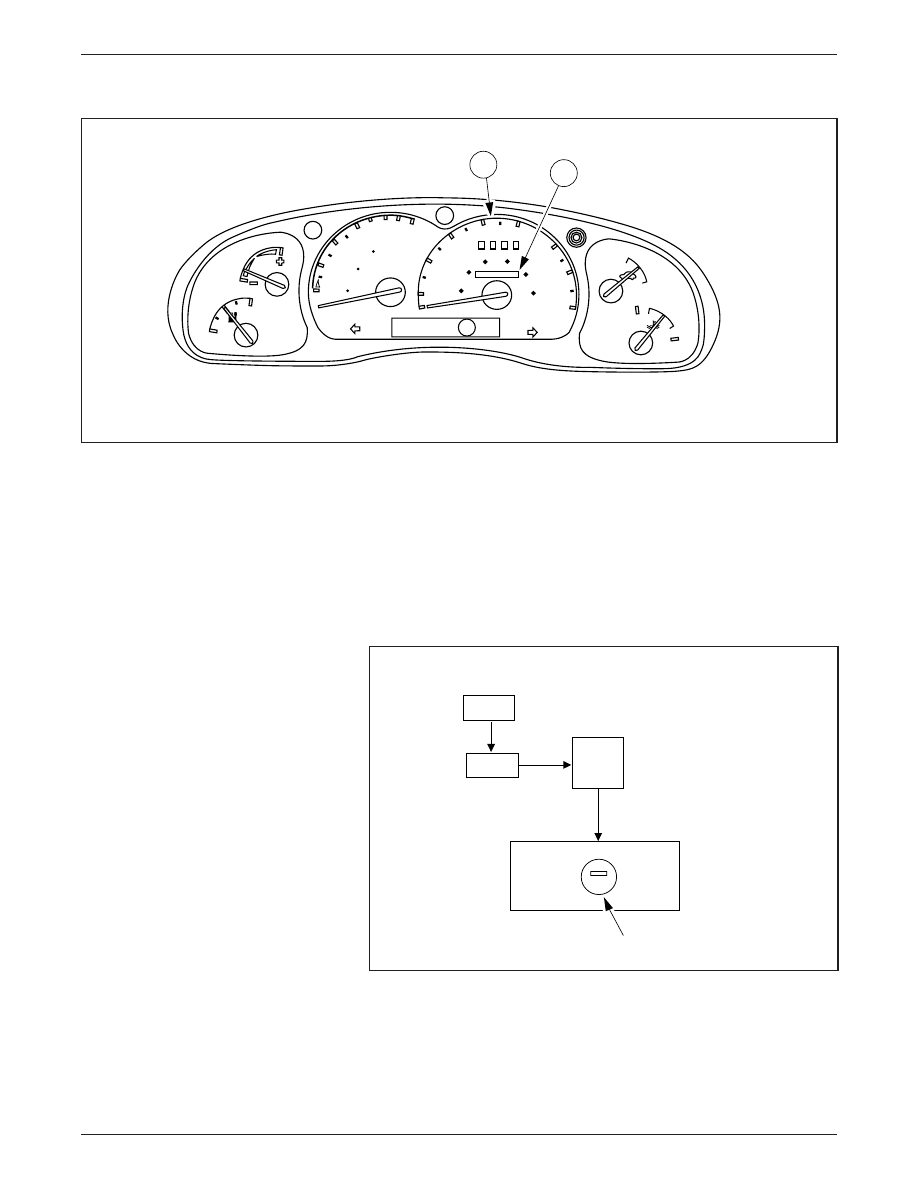

Speedometer/Odometer/Tripmeter

Speedometer/Odometer/Tripmeter

•

The speedometer (A) is an electronically driven 0-130 km/h

(0-80 mph) gauge with a carryover Ranger odometer (B) and

tripmeter.

•

The IAA monitors the ABS module for input from the rear

anti-lock brake system speed sensor. This input is used to indicate

vehicle speed.

ER057-A

F

E

ECON

0

2

4

6

DISTANCE
TO EMPTY

km

MILES

0

0

0

0

50

100

20

10

30

40

50

60

70

80

0 0 0 0 0 0

20

40

60

80

100

120

MPH

km/h

ON

OFF

H

C

P   R N D E

B

A

ER136-A

REAR ABS

SPEED SENSOR

IAA

INSTRUMENT
CLUSTER

SPEEDOMETER/ODOMETER

ABS

MODULE

Speedometer/Odometer/Tripmeter Inputs
