Ford Transit (2018 year). Manual - part 79

•

MP3 and WMA folder mode represents
a folder structure consisting of one
level of folders. The CD player numbers
all MP3 and WMA tracks on the disc
(noted by the MP3 or WMA file
extension) and all folders containing
MP3 and WMA files, from F001 (folder)
T001 (track) to F253 T255.

•

Creating discs with only one level of
folders helps with navigation through
the disc files.

If you are burning your own MP3 and WMA
discs, it is important to understand how
the system reads the structures you create.
While various files may be present (files
with extensions other than MP3 and
WMA), only files with the MP3 and WMA
extension are played; other files are
ignored by the system. This enables you to
use the same MP3 and WMA disc for a
variety of tasks on your work computer,
home computer and your in-vehicle
system.

In track mode, the system displays and
plays the structure as if it were only one
level deep (all MP3 and WMA files play,
regardless of being in a specific folder). In
folder mode, the system only plays the
MP3 and WMA files in the current folder.

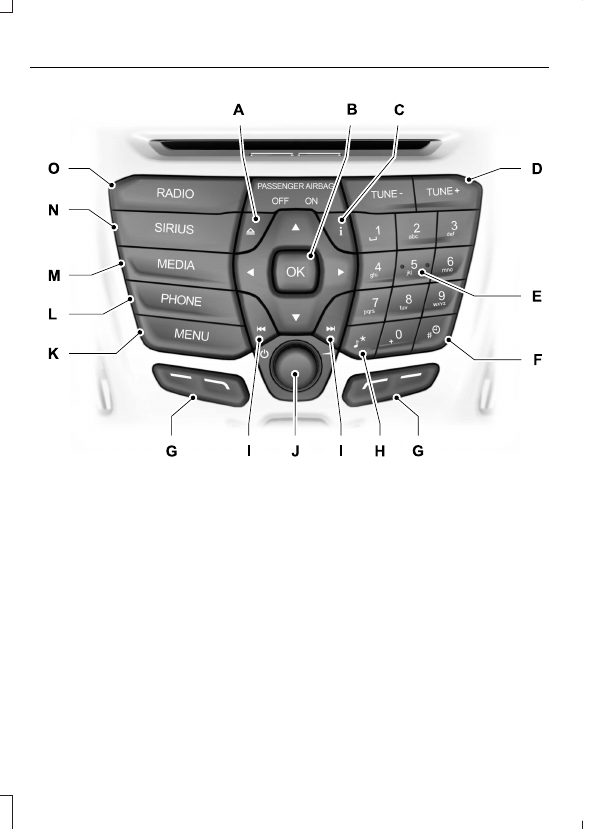

AUDIO UNIT - VEHICLES WITH:
AM/FM/CD/SYNC/SATELLITE
RADIO

WARNING

Driving while distracted can result in
loss of vehicle control, crash and
injury. We strongly recommend that

you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.

Note: You can operate your audio system
for up to one hour after you switch the
ignition off. Press the on and off control to
operate the system with the ignition turned
off. The system automatically turns off after
one hour.

Note: Some features, such as SIRIUS
satellite radio, may not be available in your
location. Check with an authorized dealer.

E216052

Eject: Press to eject a CD.

A

OK and Arrow buttons: Press OK to confirm menu selections. Press to scroll
through the menu choices.

B

Information: Press to access any available radio or CD information.

C

TUNE: Press to manually search through the radio frequency band.

D

Number block: In radio mode, you can store your favorite radio stations. To
store a radio station, tune to the station, then press and hold a preset button
until sound returns. In CD mode, select a track. In phone mode, enter a phone
number.

E

CLOCK: If not in phone mode, press to display the clock.

F

Function buttons: Select different functions of the audio system depending
on which mode you are in (such as Radio mode or CD mode).

G

SOUND: Press to access settings for Treble, Midrange, Bass, Fade or Balance.
Use the up and down arrow buttons to select the various settings. When you
make your selection, press the left and right arrow buttons to change the
settings. Press OK to set or press MENU to exit. Sound settings can be set for
each audio source independently.

H

Seek, Fast Forward and Reverse: In radio mode, select a frequency band
and press either button. The system stops at the first station it finds in that
direction. In media mode, press to select the previous or next track. Press and
hold either button to move quickly forward or backward through the current
track.

I

VOL and Power: Press to switch the system on and off. Turn to adjust the
volume.

J

MENU: Press to access different audio system features. See Menu Structure
later in this chapter.

K

PHONE: Press to access the phone features of the SYNC system. See your
SYNC information.

L

MEDIA: Press to open the media source menu. You can press this multiple
times to change to CD or to a SYNC-Media device or scroll through the media
sources using the arrow buttons. Press OK to select a source.

M

SIRIUS: Press to listen to SIRIUS satellite radio.

N

RADIO: Press this multiple times to select a radio band. Press and hold to
select the autostore function. Press to return to the main screen of the active
radio band.

O

AUDIO UNIT - VEHICLES WITH:
PREMIUM AM/FM/CD

WARNING

Driving while distracted can result in
loss of vehicle control, crash and
injury. We strongly recommend that

you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.

Note: The touchscreen system controls
most of the audio features. See your SYNC
information.

E177140

C

D

G

E

F

B

A

TUNE: In radio mode, press to manually search through the radio frequency
band. In SIRIUS mode, press to find the previous or next available satellite radio
station.

A

Mute: Press to mute the sound.

B

DISP: Press to switch the display screen on and off.

C

Seek, Fast Forward and Reverse: In radio mode, select a frequency band
and press either button. The system stops at the first station it finds in that
direction. In media mode, press to select the previous or next track. Press and
hold either button to move quickly forward or backward through the current
track. In SIRIUS mode, press to select the next or previous satellite radio station.
If a specific category is selected (such as Jazz, Rock or News), use this button
to find the next or previous in the selected category.

D

SOUND: Press to access settings for Treble, Midrange, Bass, Fade or Balance.

E

VOL and Power: Press to switch the system on and off. Turn to adjust the
volume.

F

SOURCE: Press to access different audio modes, such as AM, FM, Satellite
Radio and Line in.

G
