Ford Transit (2018 year). Manual - part 76

CAPACITIES AND
SPECIFICATIONS - 3.2L
POWER STROKE DIESEL

WARNING

The air conditioning refrigerant
system contains refrigerant under
high pressure. Only qualified

personnel should service the air
conditioning refrigerant system. Opening
the air conditioning refrigerant system can
cause personal injury.

Capacities

Quantity

Item

12.0 qt (11.4 L)

Engine oil fill capacity including the oil filter.

11.6 qt (11 L)

Engine oil fill capacity excluding the oil filter.

15.3 qt (14.5 L)

Engine coolant fill capacity - vehicles with an auxil-
iary heater.

13.9 qt (13.2 L)

Engine coolant fill capacity - vehicles without an
auxiliary heater.

13.1 qt (12.4 L)

Automatic transmission fluid fill capacity.

1

2.9 qt (2.72 L)

Rear axle fluid fill capacity - vehicles with limited

slip differential.

2

3.0 qt (2.84 L)

Rear axle fluid fill capacity - vehicles with conven-
tional differential.

4.0 fl oz (118 ml)

Rear axle friction modifier.

25.1 gal (95 L)

Fuel tank fill capacity.

5.5 gal (21 L)

Diesel exhaust fluid fill capacity.

4.8 qt (4.5 L)

Washer system fill capacity.

2.45 lb (1.11 kg)

Air conditioning refrigerant fill capacity - vehicles
with rear air conditioning.

1.76 lb (0.8 kg)

Air conditioning refrigerant fill capacity - vehicles
without rear air conditioning.

Quantity

Item

9.5 fl oz (280 ml)

Air conditioning refrigerant compressor oil fill capa-
city - vehicles with rear air conditioning.

5.4 fl oz (160 ml)

Air conditioning refrigerant compressor oil fill capa-
city - vehicles without rear air conditioning.

1

Change the automatic transmission fluid and filter at the correct service interval.  See

Scheduled Maintenance (page 454).

2

For complete refill of limited slip differential, add 4.0 fl oz. (118 ml) of Additive Friction

Modifier XL-3 or equivalent meeting Ford Specification EST-M2C118-A.
Note: Ford rear axles contain a synthetic lubricant that does not require changing unless
you submerge the axle in water.

Adding Engine Oil

Quantity

2.6 qt (2.5 L)

The quantity of engine oil required to raise
the indicated level on the dipstick from
minimum to maximum.

Specifications

We recommend that you use Motorcraft
oil and fluids for your vehicle.  Only use
fluid that meets Ford specifications.  Only
use oils certified for diesel engines by the
American Petroleum Institute (API).

Materials

Specification

Name

WSS-M2C171-E

Motorcraft® SAE 5W-40 Full Synthetic Diesel Motor Oil (U.S.)
Motorcraft® SAE 5W-40 Huile synthétique pour moteur diesel
(Canada)
XO-5W40-5QSD (U.S. & Canada)

WSS-M97B44-D2

Motorcraft® Orange Prediluted Antifreeze/Coolant (U.S.)
Antigel/liquide de refroidissement prédilué orange Motorcraft®
(Canada)
VC-3DIL-B (U.S.)
CVC-3DIL-B (Canada)

WSS-M6C65-A2

Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake
Fluid (U.S.)
Liquide de frein automobile haute performance DOT 4 LV
Motorcraft® (Canada)
PM-20 (U.S. & Canada)

MERCON® LV

Motorcraft® MERCON® LV Automatic Transmission Fluid (U.S.)

WSS-M2C938-A

Liquide pour boîte de vitesses automatique Motorcraft® (Canada)
XT-10-QLVC (U.S.)
CXT-10-LV6 (Canada)

WSS-M2C942-A

Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear
Lubricant (U.S.)

Specification

Name

Huile synthétique de haute qualité pour engrenages hypoïdes SAE
75W-85 Motorcraft® (Canada)
XY-75W85-QL (U.S. & Canada)

EST-M2C118-A

Motorcraft® Additive Friction Modifier (U.S.)
Additif modificateur de friction (Canada)
XL-3 (U.S.)
CXL-3 (Canada)

WSS-M14P19-A

Motorcraft® Premium Windshield Wash Concentrate with
Bitterant (U.S.)
Liquide lave-glace de haute qualité Motorcraft® (Canada)
ZC-32-B2 (U.S.)
CXC-37-A/B/D/F (Canada)

WSH-M17B19-A

Motorcraft® R-134a Refrigerant (U.S.)
Frigorigène R-134a (Canada)
YN-19 (U.S.)
CYN-19-R (Canada)

WSH-M1C231-B

Motorcraft® PAG Refrigerant Compressor Oil (U.S.)
Huile PAG pour compresseur frigorifique Motorcraft® (Canada)
YN-12-D (U.S. & Canada)

ESA-M1C75-B

Premium Long-Life Grease (U.S.)
Première Qualité Graisse de Longue Durée (Canada)
XG-1-E1 (U.S. & Canada)

Note: Automatic transmissions that require
MERCON® LV transmission fluid should
only use MERCON® LV transmission fluid.

E179966

If you are unable to find an engine oil that
meets the specification defined by
WSS-M2C171-E, it is acceptable to use a
SAE 5W-40 engine oil that meets API CJ-4
requirements.

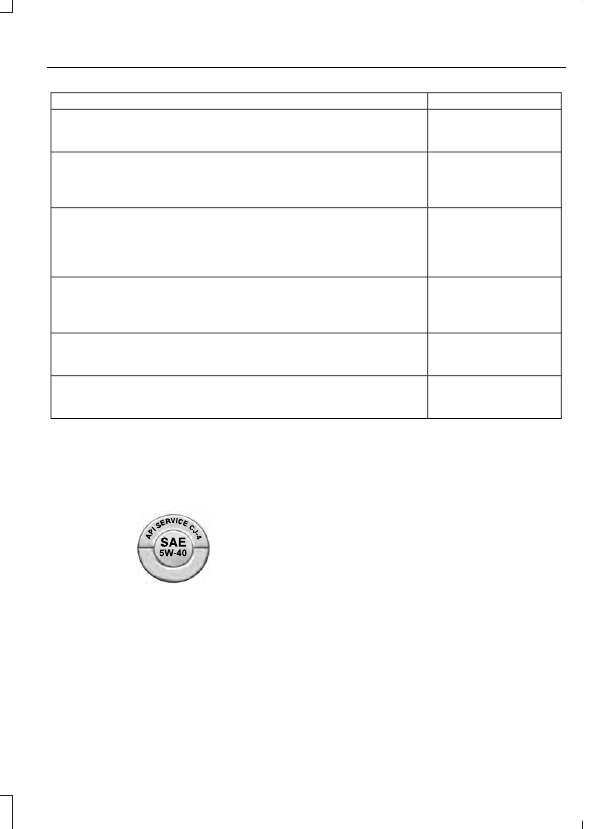

The American Petroleum Institute (API)
service symbol is used to identify the
proper engine oil for your engine.   The API
service symbol will be displayed on the oil
container you purchase.   The API symbol
displays the oil performance category in
the top half of the symbol and the viscosity
grade in the center of the symbol.

Note: Do not use more than 1.1 qt (1 L) of
the alternative engine oil between
scheduled service intervals.

Using oil and fluids that do not meet the
defined specification and viscosity grade
may lead to:
•

Component damage which may not be
covered by the vehicle Warranty.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Reduced brake performance.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that may
not be covered by the vehicle Warranty.

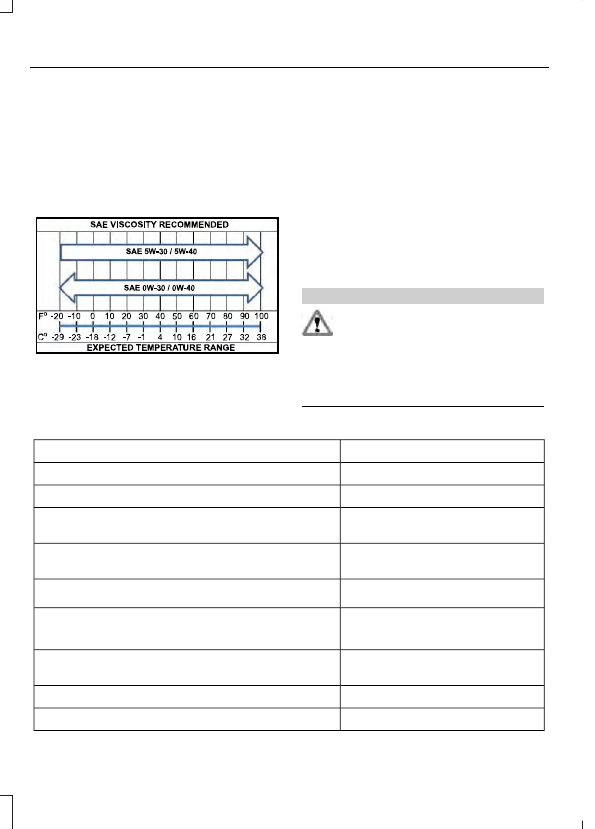

Alternative Oil Viscosity

E176394

The use of correct oil viscosities is
important for satisfactory operation.
Determine which oil viscosity best suits the
temperature range you expect to
encounter for the next service interval from
the SAE viscosity grade chart.

Note: For the use of biodiesel fuel (B6 –
B20), use SAE 5W-40 API CJ-4.

CAPACITIES AND
SPECIFICATIONS - 3.5L
ECOBOOST™

WARNING

The air conditioning refrigerant
system contains refrigerant under
high pressure. Only qualified

personnel should service the air
conditioning refrigerant system. Opening
the air conditioning refrigerant system can
cause personal injury.

Capacities

Quantity

Item

5.9 qt (5.6 L)

Engine oil fill capacity including the oil filter.

5.4 qt (5.1 L)

Engine oil fill capacity excluding the oil filter.

16.4 qt (15.5 L)

Engine coolant fill capacity - vehicles with an auxil-
iary heater.

14.9 qt (14.1 L)

Engine coolant fill capacity - vehicles without an
auxiliary heater.

13.1 qt (12.4 L)

Automatic transmission fluid fill capacity.

1

2.9 qt (2.72 L)

Rear axle fluid fill capacity - vehicles with limited

slip differential.

2

3.0 qt (2.84 L)

Rear axle fluid fill capacity - vehicles with conven-
tional differential.

4.0 fl oz (118 ml)

Rear axle friction modifier.

25.1 gal (95 L)

Fuel tank fill capacity.
