Ford Transit (2018 year). Manual - part 72

Note: Vehicles with a Temporary Mobility
Kit do not have a vehicle jack or a lug
wrench.

Vehicle Jack Storage

E218058

E218059

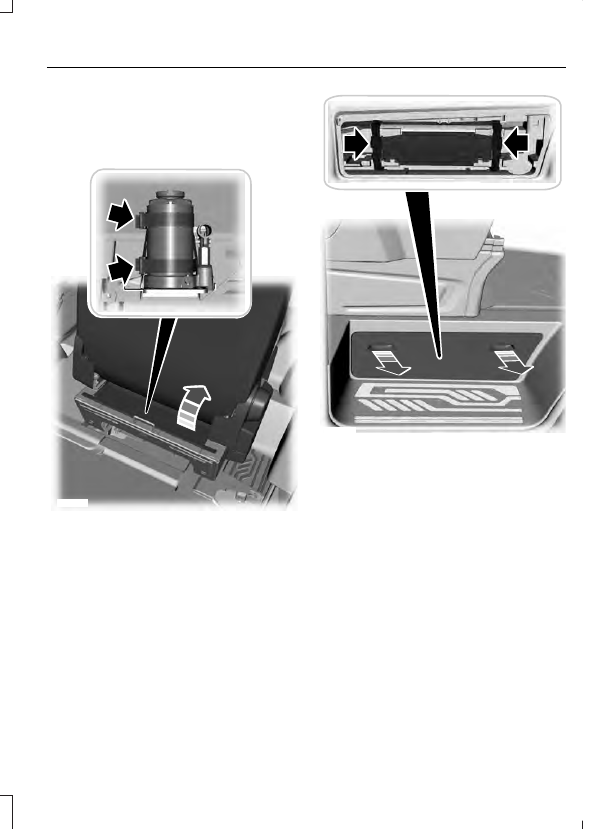

The vehicle jack is under the passenger
seat.  The jack handle and lug wrench are
in the storage compartment in the front
right-hand side stepwell.

Note: The vehicle jack is in the load space
area on vehicles with rear climate control.

E70959

1.

Assemble the jack handle.

2. Insert the jack handle onto the release

valve and rotate clockwise until you
feel a strong resistance.

3. Insert the jack handle into the pump

and use a pumping action to raise your
vehicle.

4. Insert the jack handle into the release

valve and rotate counterclockwise to
lower your vehicle.

Front Jacking Points

WARNING

You must use the specified jacking
points.

Note: If your vehicle has rear air
conditioning make sure the vehicle jack does
not come in contact with the air conditioning
lines.

E171405

Position the head of the vehicle jack under
the protrusions at the rear of front
sub-frame.

Rear Jacking Points

WARNING

You must use the specified jacking
points.

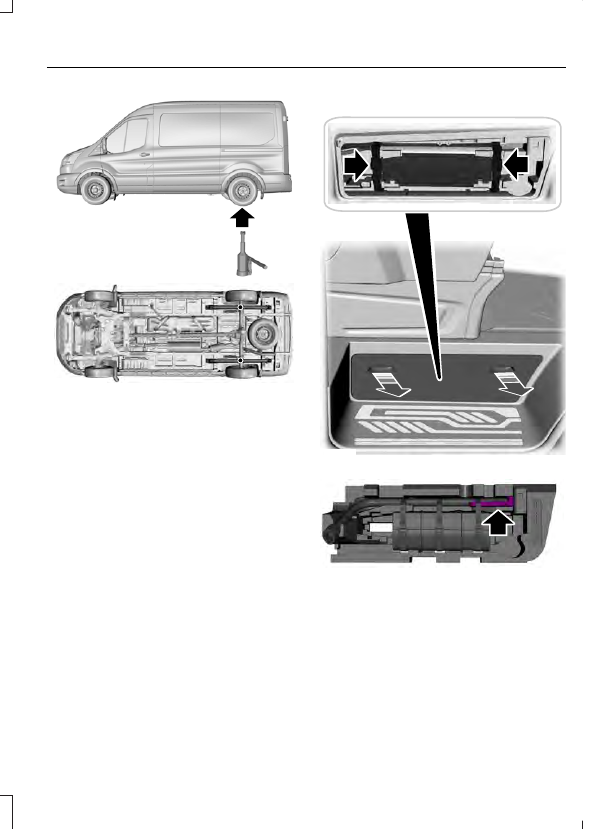

E171406

Position the head of the vehicle jack under
the rear axle.

Removing a Wheel Trim

 (If Equipped)

Vehicles With Steel Wheels

1.

Insert the flat end of the lug wrench
between the wheel rim and the wheel
trim.

2. Carefully remove the wheel trim.

Vehicles With Dual Rear Alloy Wheels

E218059

E256347

E252527

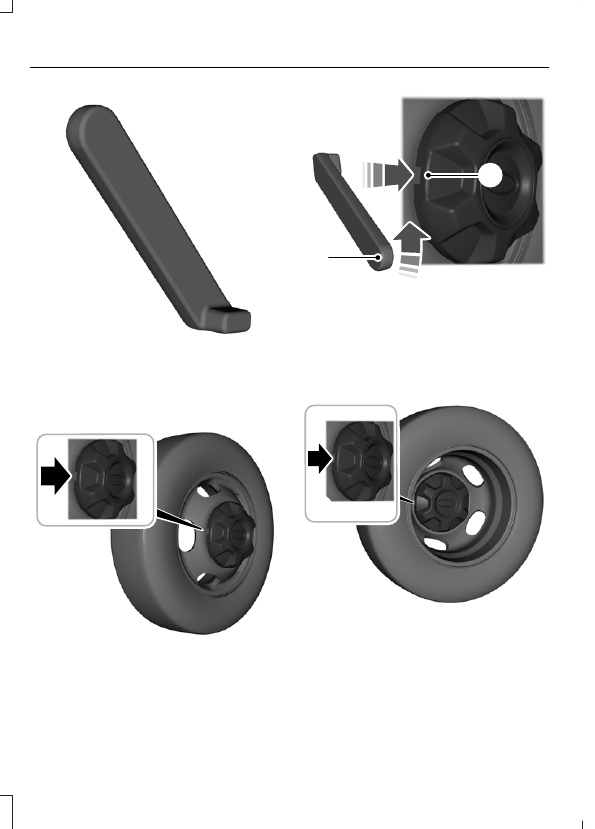

The wheel trim removal tool is in the
storage compartment in the front
right-hand side stepwell.

Front Wheel Trim

E252525

1

1.

Locate the notch in the wheel trim.

2

3

E252535

2. Insert the wheel trim removal tool into

the notch in the wheel trim.

3. Rotate the wheel trim removal tool and

remove the wheel trim.

Rear Wheel Trim

1

E252526

1.

Locate the notch in the wheel trim.
