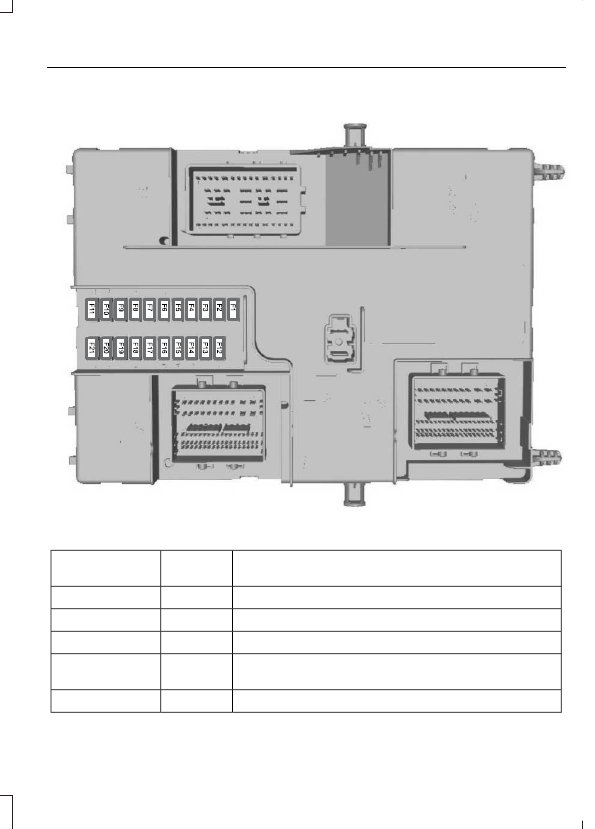

Body Control Module

E148830

Protected Component

Fuse

Rating

Fuse Number

Central locking system.

15 A

F1

Central locking system.

15 A

F2

Ignition switch.

15 A

F3

Parking assist control module.

5 A

F4

Brake shift interlock.

Rain sensor module.

5 A

F5

Protected Component

Fuse

Rating

Fuse Number

Windshield washer pump.

15 A

F6

Exterior mirrors.

7.5 A

F7

Not used.

-

F8

Right-hand high beam.

10 A

F9

Left-hand high beam.

10 A

F10

Right-hand exterior lamps.

25 A

F11

Left-hand headlamp.

Not used.

-

F12

Secondary On-Board Diagnostic Control Module A.

15 A

F13

Battery saver.

Direction indicators.

25 A

F14

Power windows.
Heated windshield element.

Left-hand exterior lamps.

25 A

F15

Right-hand headlamp.
Central high mounted stoplamp.

Audio unit.

20 A

F16

Navigation unit.

Instrument panel cluster.

7.5 A

F17

Auxiliary heater control module.

Headlamp switch.

10 A

F18

Steering wheel module.
Stoplamp switch.

Front control/display interface module.

5 A

F19

Ignition passive anti-theft system.

5 A

F20

Spare.

3 A

F21

CHANGING A FUSE

Fuses

WARNING

Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage

rating can cause severe wire damage and
could start a fire.

E217331

If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.

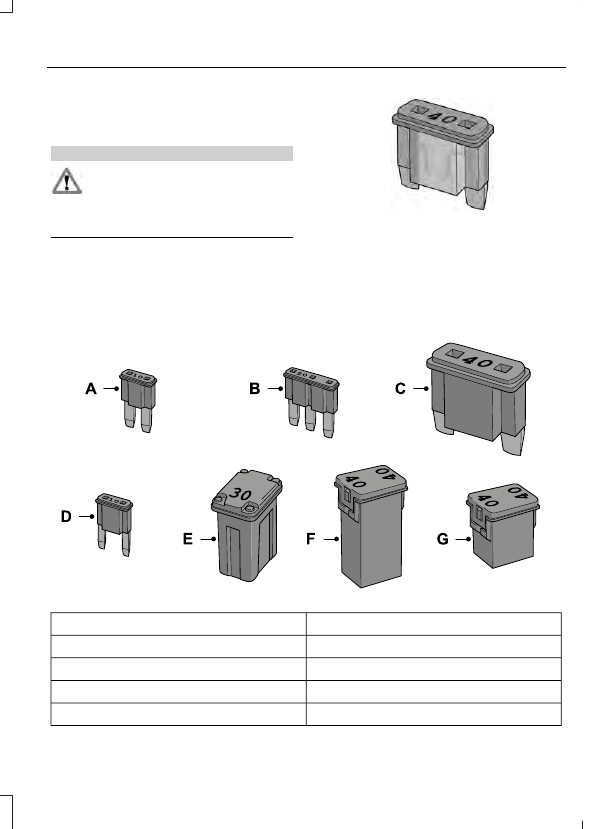

Fuse Types

E207206

Fuse Type

Callout

Micro 2

A

Micro 3

B

Maxi

C

Mini

D

Fuse Type

Callout

M Case

E

J Case

F

J Case Low Profile

G
