Ford Transit (2018 year). Manual

Perform the following steps to install a
child safety restraint with tether anchors:

Note: If you install a child restraint with rigid
LATCH attachments, do not tighten the
tether strap enough to lift the child restraint
off your vehicle seat cushion when the child
is seated in it. Keep the tether strap just snug
without lifting the front of the child restraint.
Keeping the child restraint just touching your
vehicle seat gives the best protection in a
severe crash.

Front Passenger Seating Position

Adjust the front passenger seat fully
forward.

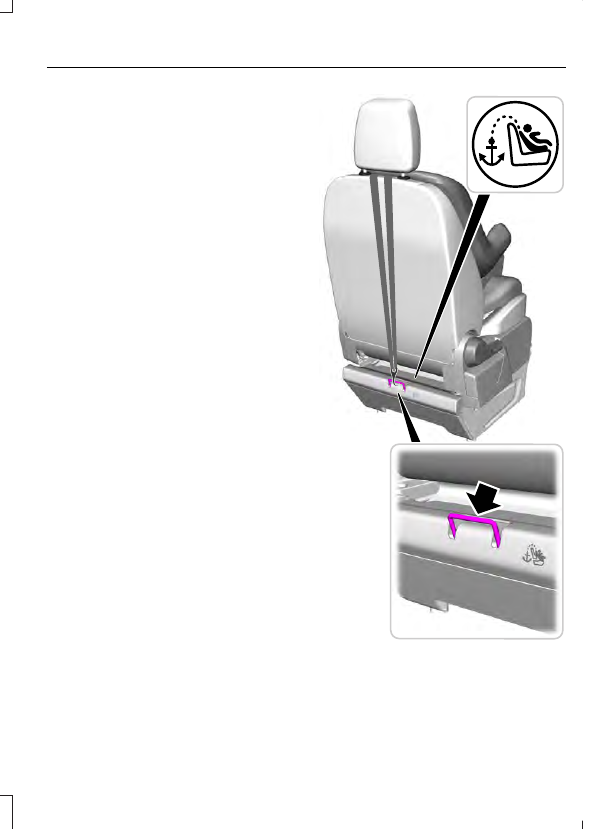

2. Route the child safety restraint tether

strap over the back of the seat, under
the head restraint and between the
head restraint posts.

E178096

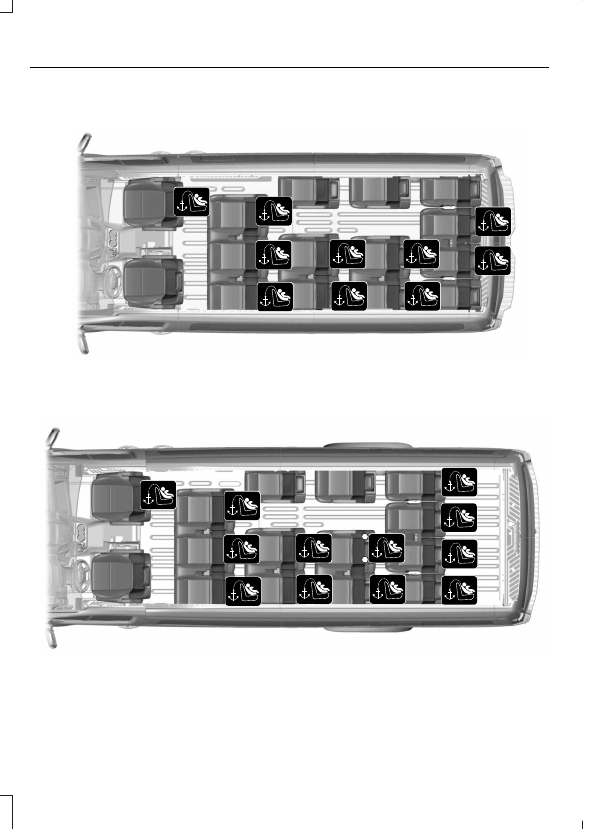

3. Locate the correct anchor on the back

panel of the rear seat for the selected
seating position. The anchors are
labeled with the tether strap symbol
and are partially covered by the gap
panel. Pull the panel back to fully
expose the anchors.

4. Clip the tether strap to the anchor as

shown.

5. Adjust the front passenger seat fully

rearward.

6. Tighten the child safety restraint tether

strap according to the manufacturer's
instructions. If your child restraint
system is equipped with a tether strap,
and the child restraint manufacturer
recommends its use, we also
recommend its use.

Rear Seats

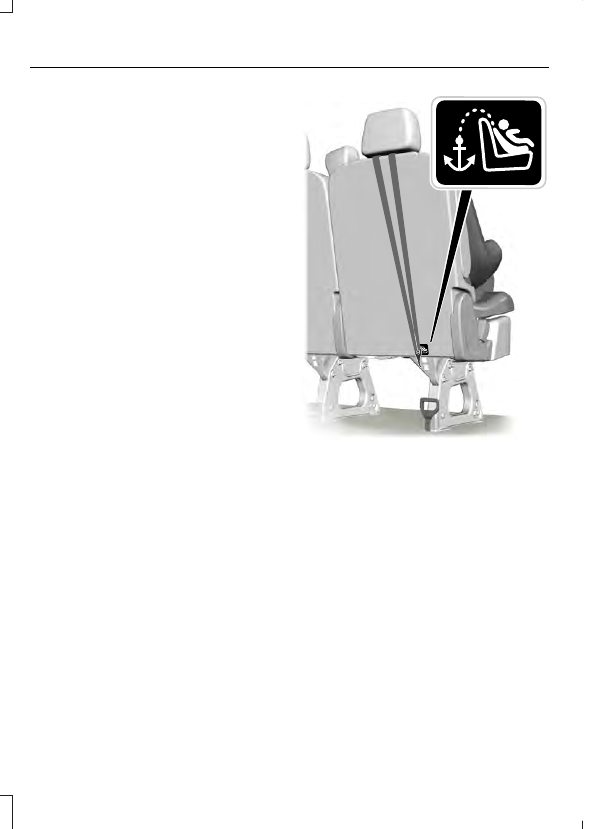

Route the child safety restraint tether
strap over the back of the seat, under
the head restraint and between the
head restraint posts.

E177640

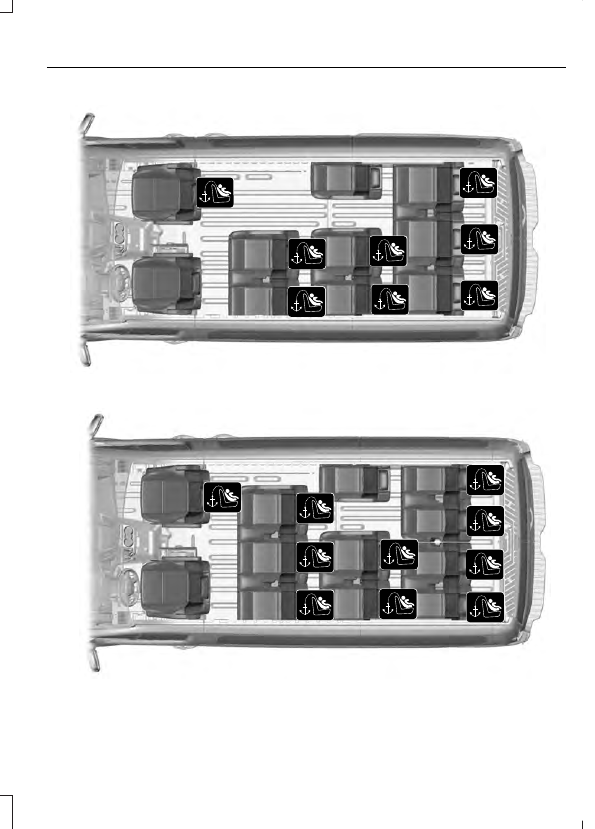

2. Locate the correct anchor on the back

3. Clip the tether strap to the anchor as

shown.

4. Tighten the child safety restraint tether

strap according to the manufacturer's
instructions. If your child restraint
system has a tether strap, and the child
restraint manufacturer recommends
its use, we also recommend its use.
